Siemens 6ES7314-6CH04-0AB0 Spare for S7-300 Automation

Siemens 6ES7314-6CH04-0AB0 Spare for S7-300 Automation: Spare Replacement & Industrial Downtime Risk Control

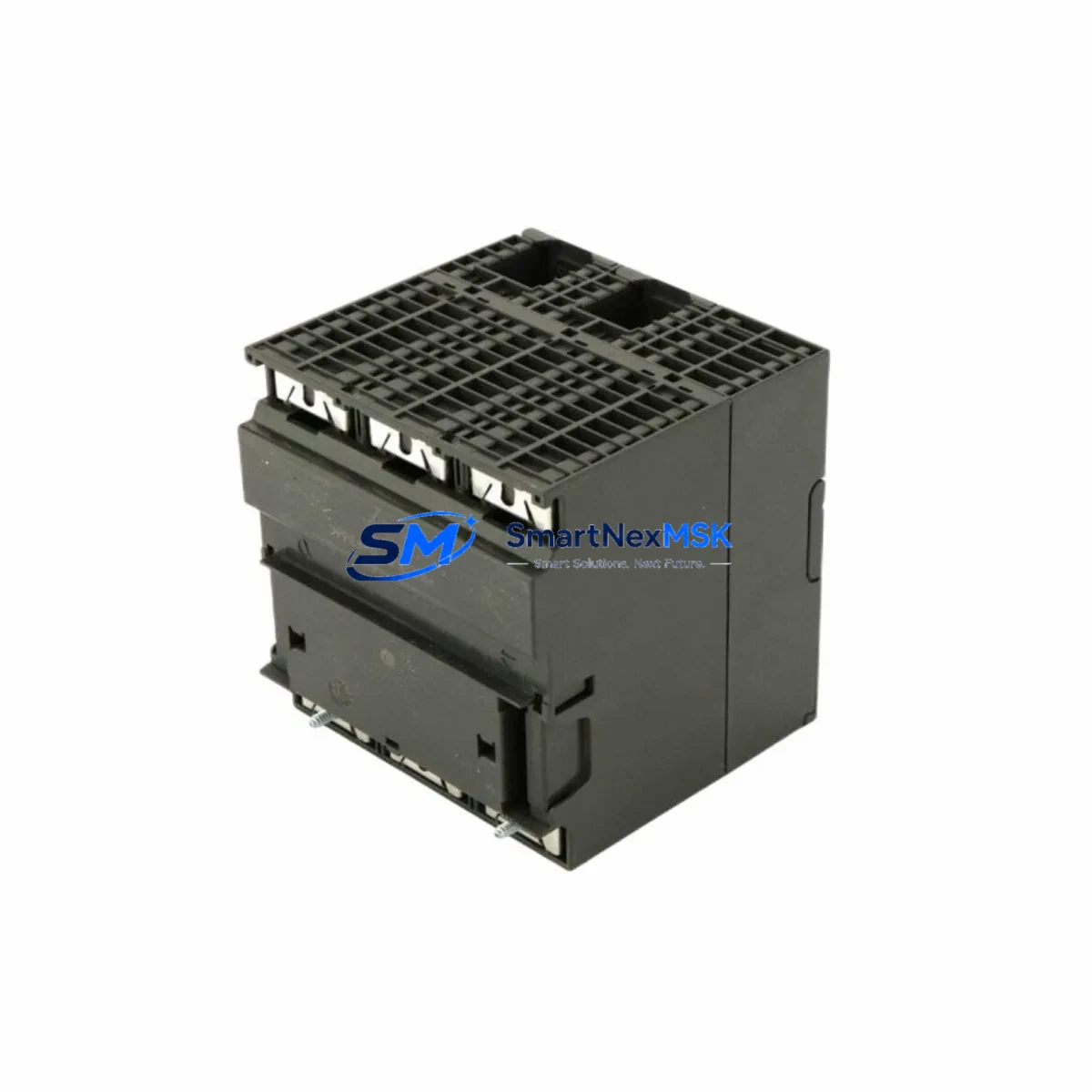

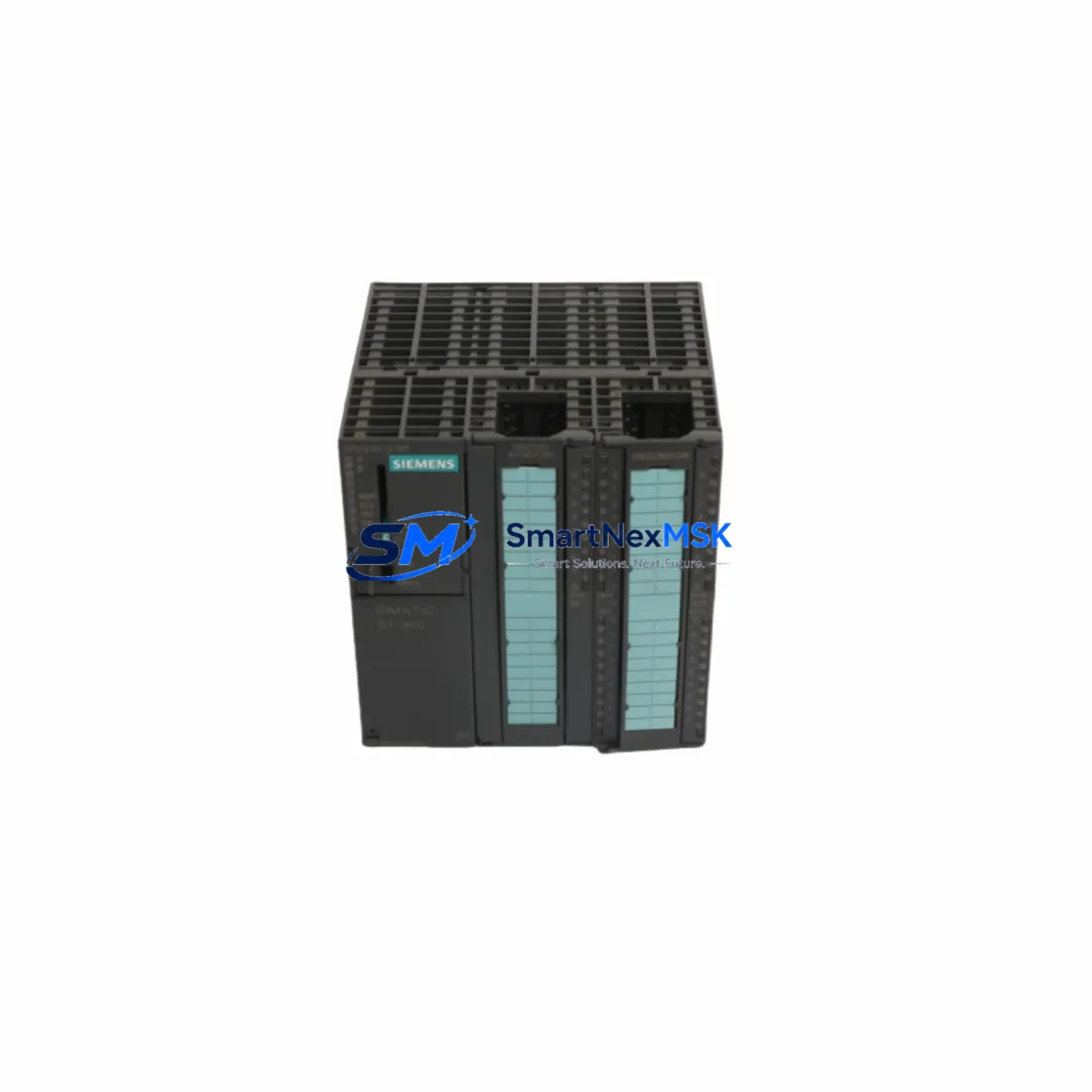

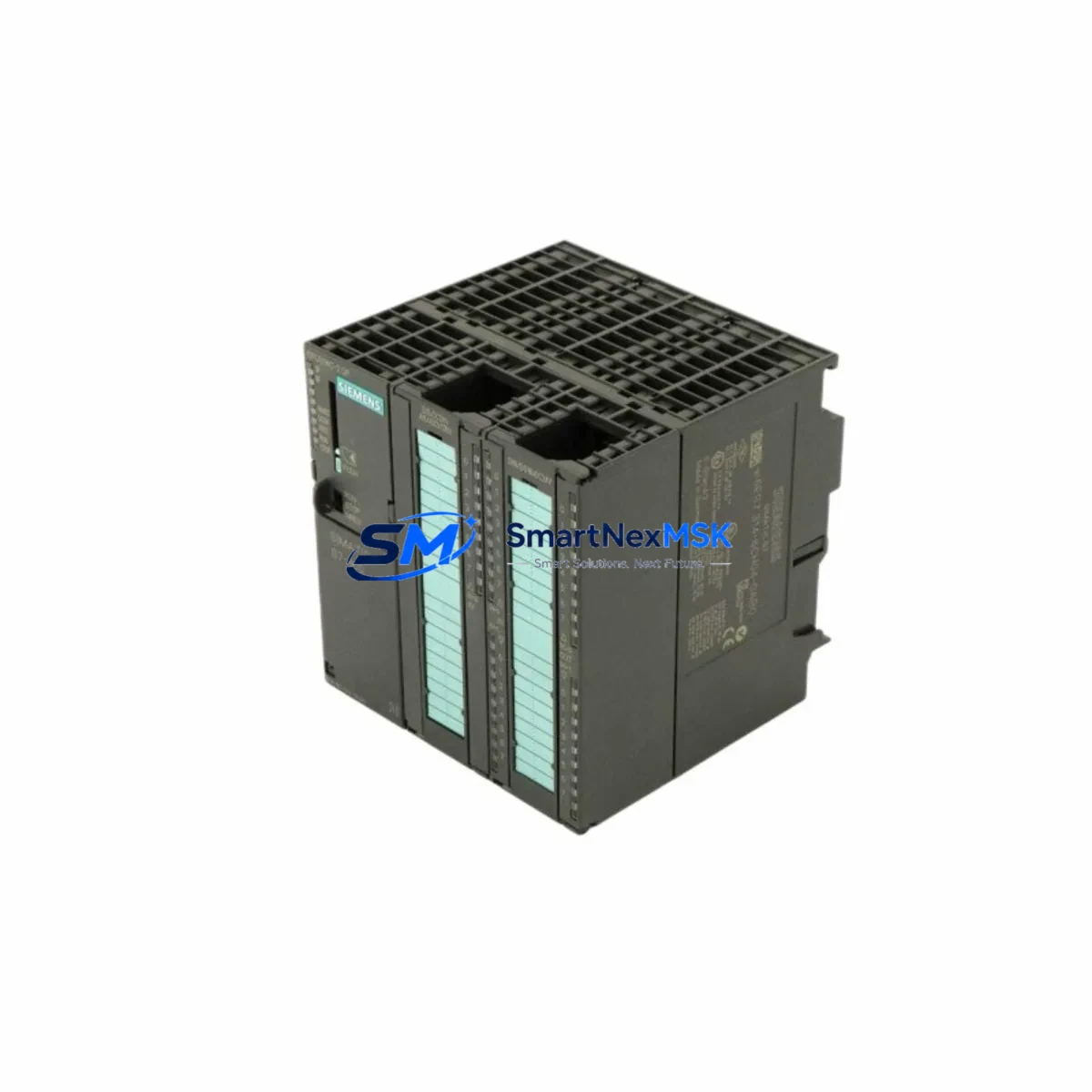

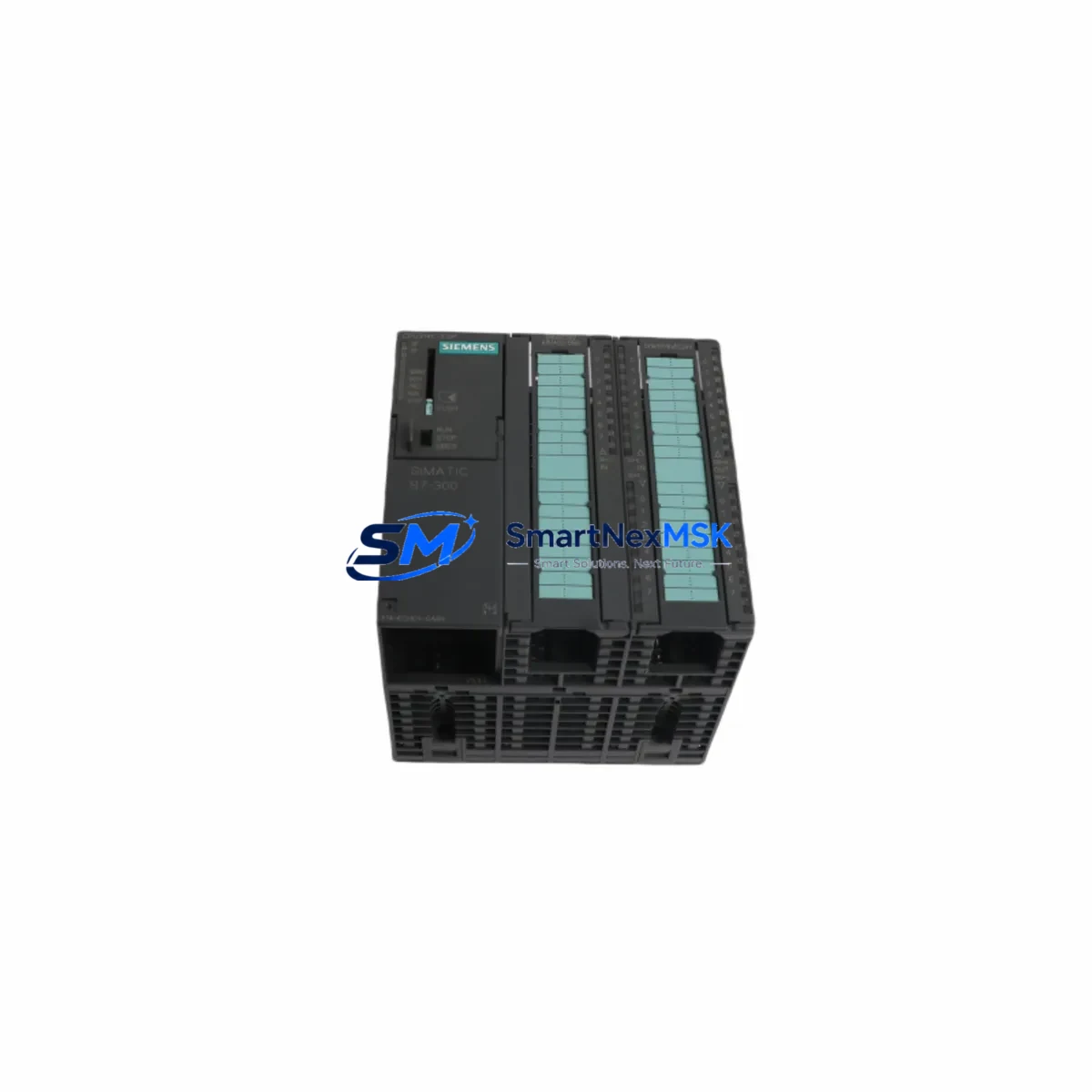

The Siemens 6ES7314-6CH04-0AB0 is the CPU 314C-2 DP compact processor unit within the SIMATIC S7-300 series — one of the most widely deployed PLC platforms in global industrial automation. Featuring an integrated DP master/slave interface, 192 KB work memory, and onboard digital/analog I/O, this CPU is the operational core of countless process control, machine automation, and conveyor systems. When this module fails or reaches end-of-life, the entire control cabinet goes offline. Sourcing a verified, tested replacement unit is the fastest path to restoring production continuity.

At SMARTNEXMSK, every 6ES7314-6CH04-0AB0 unit is sourced from authorized supply chains, subjected to pre-shipment functional verification, and backed by a 12-month warranty. We maintain long-term stock to support both emergency replacement and planned maintenance programs for facilities running legacy S7-300 infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7314-6CH04-0AB0 CPU is rarely an isolated task. Maintenance engineers and procurement teams should treat a CPU swap as a trigger for a broader control cabinet inspection. The CPU interfaces directly with the power supply module — typically a Siemens PS 307 (6ES7307-1EA01-0AA0) or equivalent 24 V DC rail supply — and any degradation in supply voltage ripple or current capacity can cause the new CPU to fault immediately after installation. Verify output voltage stability before powering the replacement unit.

The S7-300 backplane bus connector (6ES7390-0AA00-0AA0) is a passive but critical component: cracked or corroded bus connectors cause intermittent communication faults that are often misdiagnosed as CPU failures. Inspect and replace bus connectors across all slots during a CPU change. Similarly, the SM 321 digital input module and SM 322 digital output module should be checked for blown fuses and relay contact wear, particularly in high-cycle applications.

For systems using PROFIBUS DP, the DP network termination resistors and cable shielding at the DB9 connector should be verified. A degraded PROFIBUS segment can prevent the new CPU from establishing communication with remote I/O stations, ET 200 distributed I/O racks, or drives. If the installation includes a CP 342-5 PROFIBUS communication processor, confirm its firmware compatibility with the replacement CPU firmware version.

Analog signal integrity is another area to audit. The SM 331 analog input module and SM 332 analog output module should be calibrated after a CPU replacement, especially if the system uses 4–20 mA process signals. Signal isolators and loop-powered transmitters in the field wiring should also be checked for drift. In older installations, SITOP power supply modules and surge protection devices on the 24 V DC bus may have degraded capacitors that only manifest as instability under load.

For facilities maintaining aging S7-300 systems beyond their original design life, it is advisable to stock the following alongside the CPU: a spare MMC memory card (6ES7953-8LF31-0AA0) pre-loaded with the current program backup, a replacement backup battery (6ES7971-0BA00), and at least one spare front connector (6ES7392-1AM00-0AA0) for the I/O modules. If the panel includes an OP 177B or TP 177B HMI panel, verify that the MPI address and baud rate settings are compatible with the replacement CPU configuration before going live.

Site Replacement Workflow

Step 1 — Pre-replacement backup: Use STEP 7 or TIA Portal to upload and archive the current CPU program, including all data blocks, to the MMC memory card and an offline project backup. Confirm the firmware version of the existing CPU and note the MPI address, DP master system ID, and subnet configuration.

Step 2 — Power isolation: De-energize the control cabinet via the main isolator. Verify zero voltage on the 24 V DC bus and the backplane supply rail before removing the CPU. Discharge any capacitive loads in the power supply section.

Step 3 — Physical swap: Remove the bus connector from the existing CPU without disconnecting it from the adjacent modules. Slide the replacement 6ES7314-6CH04-0AB0 into the CPU slot (slot 2 on the standard S7-300 rack). Reconnect the bus connector, MPI cable, and DP cable. Insert the pre-loaded MMC memory card.

Step 4 — Power-on and verification: Restore power and observe the CPU LED sequence. The STOP LED should illuminate briefly, followed by RUN after the program loads from the MMC. If the CPU remains in STOP, connect STEP 7 and check the diagnostic buffer for fault codes. Verify DP slave communication status and I/O module recognition in the hardware configuration.

Step 5 — Functional test: Execute a controlled I/O test sequence to confirm all digital and analog channels respond correctly. Verify PROFIBUS DP slave addresses and confirm HMI communication is restored. Document the replacement in the maintenance log with the new unit serial number and warranty start date.

This workflow minimizes downtime to under two hours for experienced maintenance teams and ensures full system compatibility without requiring hardware reconfiguration. The 6ES7314-6CH04-0AB0 is a direct form-fit-function replacement for earlier CPU 314C-2 DP variants, eliminating the need for rack or wiring modifications.

Spare Parts Support FAQ

Q1: Is the 6ES7314-6CH04-0AB0 compatible with my existing S7-300 rack and I/O modules?
Yes. The CPU 314C-2 DP (6ES7314-6CH04-0AB0) is fully compatible with all standard S7-300 racks (UR1, UR2, UR2-H) and the complete range of SM 300 series signal modules. It also replaces earlier CPU 314C-2 DP variants (6ES7314-6CH02-0AB0, 6ES7314-6CH00-0AB0) without rack or wiring changes. Confirm firmware version compatibility if your installation uses specific GSD files for PROFIBUS DP slaves.

Q2: What pre-shipment testing does SMARTNEXMSK perform on this unit?
Every unit undergoes power-on functional verification, PROFIBUS DP communication interface testing, and visual inspection for physical damage or counterfeit indicators before shipment. Units are shipped in anti-static packaging with a test report. The 12-month warranty covers functional defects from the date of shipment.

Q3: How should I manage spare parts inventory for long-term S7-300 system support?
For facilities with multiple S7-300 panels, we recommend maintaining at least one CPU spare per production line, one pre-loaded MMC memory card per system, and a set of bus connectors and backup batteries. SMARTNEXMSK offers long-term supply agreements for customers requiring guaranteed stock availability beyond standard catalog lead times. Contact our team to discuss a tailored spare parts program.

Q4: What is the lead time and shipping process for emergency orders?
In-stock units ship within 24–48 hours of order confirmation. We support express international freight via DHL, FedEx, and UPS for emergency downtime recovery. All shipments include tracking, commercial invoice, and packing list. For orders requiring customs clearance documentation or country-of-origin certificates, please notify our sales team at the time of order.
