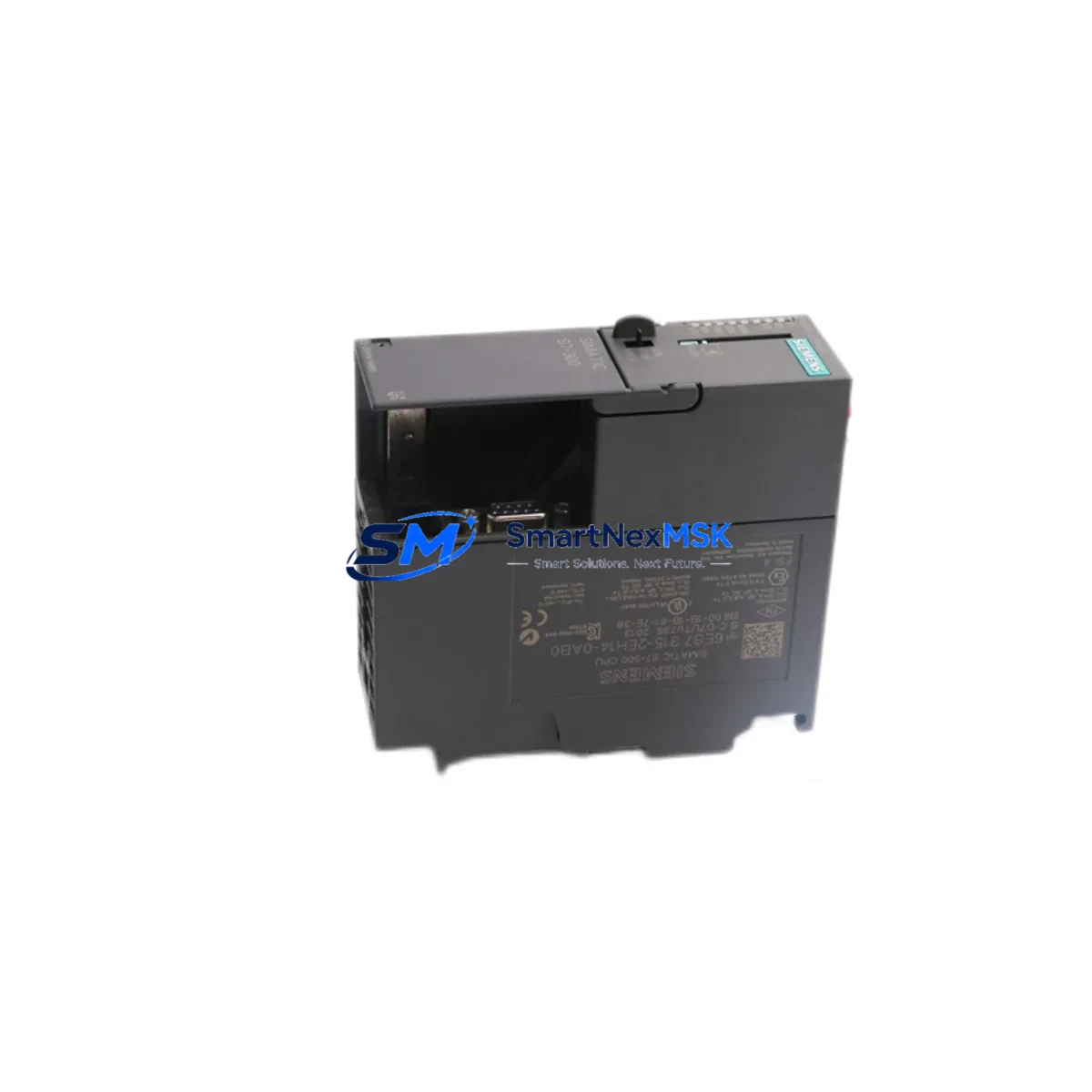

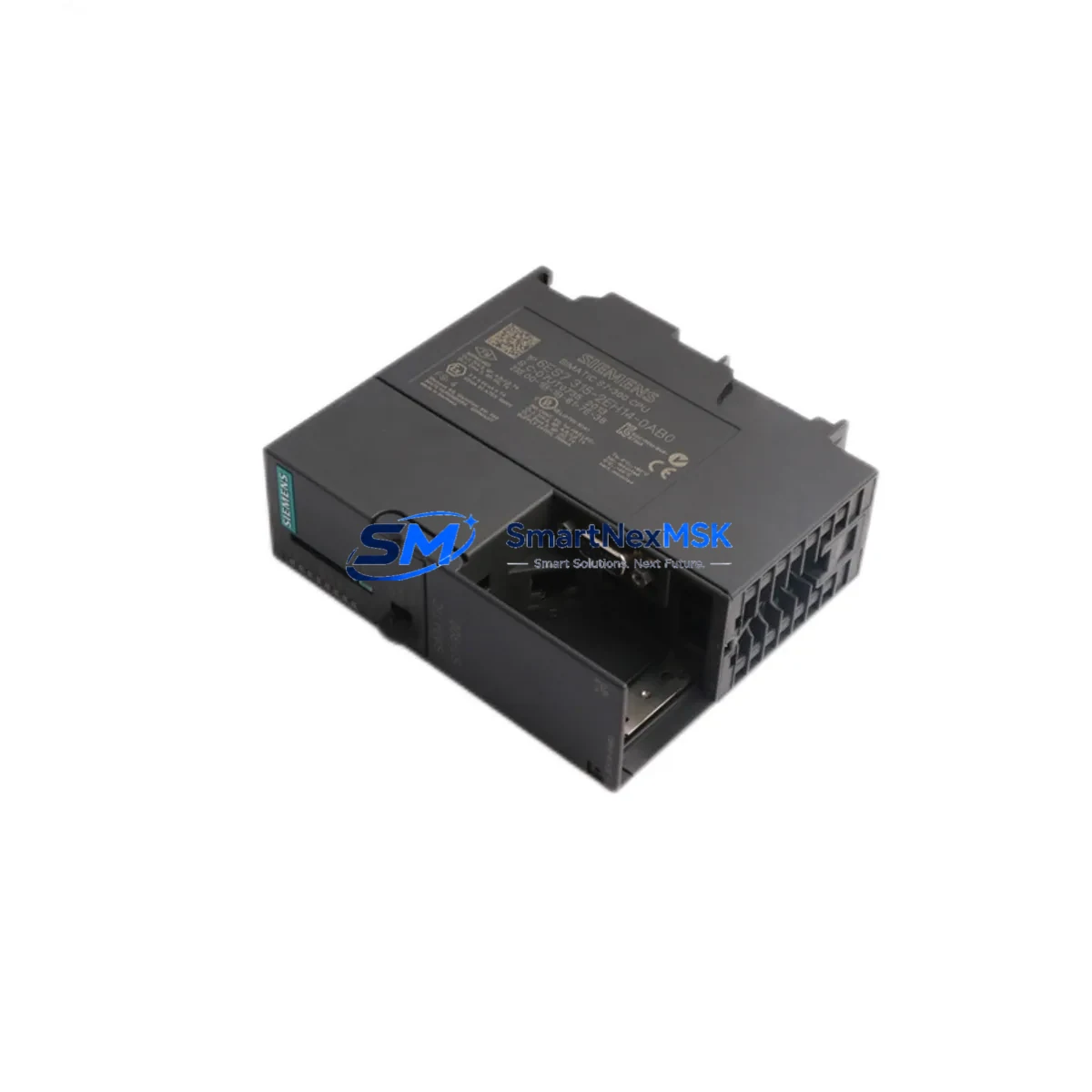

The Siemens 6ES7315-2EH14-0AB0 is the CPU 315-2 PN/DP central processing unit for the SIMATIC S7-300 programmable logic controller platform — one of the most widely deployed automation architectures in discrete manufacturing, process control, and utility infrastructure worldwide. When this CPU fails or reaches end-of-service life, the downstream impact is immediate: production lines halt, batch processes abort, and maintenance teams face intense pressure to restore operation within the shortest possible window. Holding a verified, tested spare of the 6ES7315-2EH14-0AB0 in your maintenance inventory is the single most effective measure to contain unplanned downtime risk for any S7-300-based control system.

This unit ships as an original Siemens spare, inspected and function-tested prior to dispatch. Each 6ES7315-2EH14-0AB0 is covered by a 12-month warranty against manufacturing defects and operational failure, giving procurement and maintenance engineers the confidence to stock this module as a long-term replacement asset. Whether you are managing a greenfield spare-parts program or extending the operational life of an aging S7-300 rack, this CPU module delivers the compatibility, reliability, and documentation traceability that industrial maintenance demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7315-2EH14-0AB0 CPU is rarely an isolated task. A disciplined maintenance engineer treats a CPU swap as a trigger for a broader control-cabinet inspection, because the root cause of CPU failure is often upstream — and because the replacement window is the lowest-cost opportunity to address adjacent wear items before they cause the next unplanned stop.

Begin with the PS 307 power supply module (e.g., 6ES7307-1EA01-0AA0 or 6ES7307-1KA02-0AA0). A degraded power supply delivering marginal DC 24 V is a leading cause of CPU resets and memory corruption. Measure output voltage under load before reinstalling the new CPU. Next, inspect the IM 360 / IM 361 interface modules if your installation uses expansion racks — a failing IM can cause intermittent I/O loss that mimics CPU faults.

Check all SM 321 digital input modules and SM 322 digital output modules in the rack. Burned output channels, failed optocouplers, and corroded terminal blocks on these signal modules are common in high-cycle or high-temperature environments. While the rack is open, inspect the SM 331 analog input modules for drift — analog signal degradation often goes undetected until a process setpoint deviation triggers an alarm.

For systems using PROFIBUS-DP field devices, verify the CP 342-5 or CP 343-5 communication processor if installed, and check bus termination resistors and cable shielding continuity. On PROFINET-connected installations, inspect the CP 343-1 Ethernet communication module and confirm switch port link speeds. A marginal network connection can cause the new CPU to report PN station failures immediately after startup.

Do not overlook the MMC (Micro Memory Card) — the 6ES7315-2EH14-0AB0 requires a valid MMC to retain the program after power cycling. Carry a pre-programmed spare MMC (e.g., 6ES7953-8LF31-0AA0) in your maintenance kit. Finally, inspect terminal blocks, fuse holders, and 24 V distribution rails in the cabinet. Loose terminals and blown fuse elements are frequently the actual fault source when a CPU appears to have failed.

Site Replacement Workflow

Step 1 — Backup and documentation. Before removing the existing CPU, use STEP 7 or TIA Portal to upload the current program and hardware configuration to a laptop. Confirm the MMC contains the latest project version. Photograph all wiring, module positions, and DIP switch settings.

Step 2 — Safe isolation. Follow your site LOTO (Lockout/Tagout) procedure. De-energize the PS 307 power supply and verify zero voltage on the backplane bus before touching any module.

Step 3 — Module removal. Release the CPU bus connector, unscrew the module retaining screws, and slide the 6ES7315-2EH14-0AB0 out of the rail. Note the MPI address and DP address settings on the rotary switches — these must be replicated on the replacement unit.

Step 4 — Replacement installation. Insert the pre-tested replacement 6ES7315-2EH14-0AB0, seat the bus connector, and torque retaining screws to specification. Insert the pre-programmed MMC. Set MPI and DP address rotary switches to match the original configuration.

Step 5 — Power-up and verification. Re-energize the PS 307. Observe the CPU LED sequence: RUN/STOP, SF, BF, and DC5V indicators. A clean startup shows RUN green with no SF or BF faults. Verify PROFIBUS-DP and PROFINET station status in the diagnostic buffer. Confirm all I/O modules report OK before releasing the system to production.

Step 6 — Documentation update. Record the replacement date, new module serial number, firmware version, and MMC part number in your maintenance log. Update your spare-parts inventory to trigger reorder of the consumed CPU unit.

Spare Parts Support FAQ

Q: Is the 6ES7315-2EH14-0AB0 a direct replacement for earlier S7-300 CPU 315-2 variants?
A: Yes. The -2EH14-0AB0 is backward compatible with the -2EH13-0AB0 and other earlier -2EH1x hardware revisions. The hardware configuration in STEP 7 may require a minor update to reflect the new firmware version, but the program, I/O mapping, and communication parameters transfer without modification.

Q: How is the module tested before shipment?
A: Each 6ES7315-2EH14-0AB0 undergoes a power-on functional test verifying CPU startup, memory integrity, and communication interface status. Units that fail any test parameter are quarantined and not shipped. A test report is available on request.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and operational failure under normal industrial operating conditions (per IEC 61131-2 environmental class). It does not cover damage from incorrect installation voltage, ESD mishandling, or physical impact. Warranty claims are processed with return shipping covered by SMARTNEXMSK for confirmed defective units.

Q: Can you supply the 6ES7315-2EH14-0AB0 on an ongoing basis for long-term maintenance contracts?
A: Yes. SMARTNEXMSK maintains stock of S7-300 CPU modules and can support blanket purchase orders, consignment stock arrangements, and scheduled delivery programs for maintenance teams managing multiple S7-300 installations. Contact our sales team to discuss volume pricing and lead-time commitments.
