Siemens 6ES7322-1HF10-0AA0 Safety-Enhanced Output for Harsh Sites

Siemens 6ES7322-1HF10-0AA0 Safety-Enhanced Digital Output Module for Harsh Industrial Sites

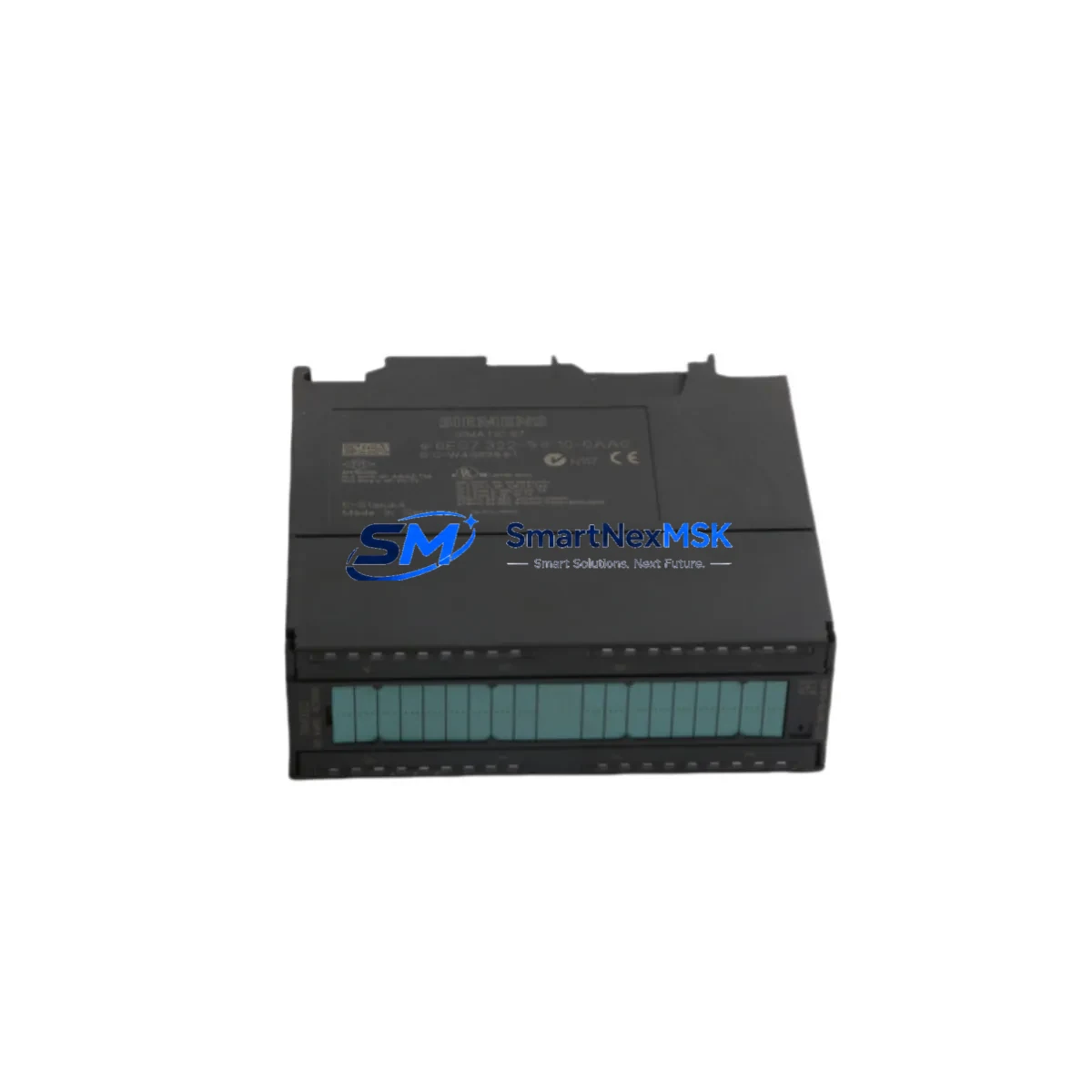

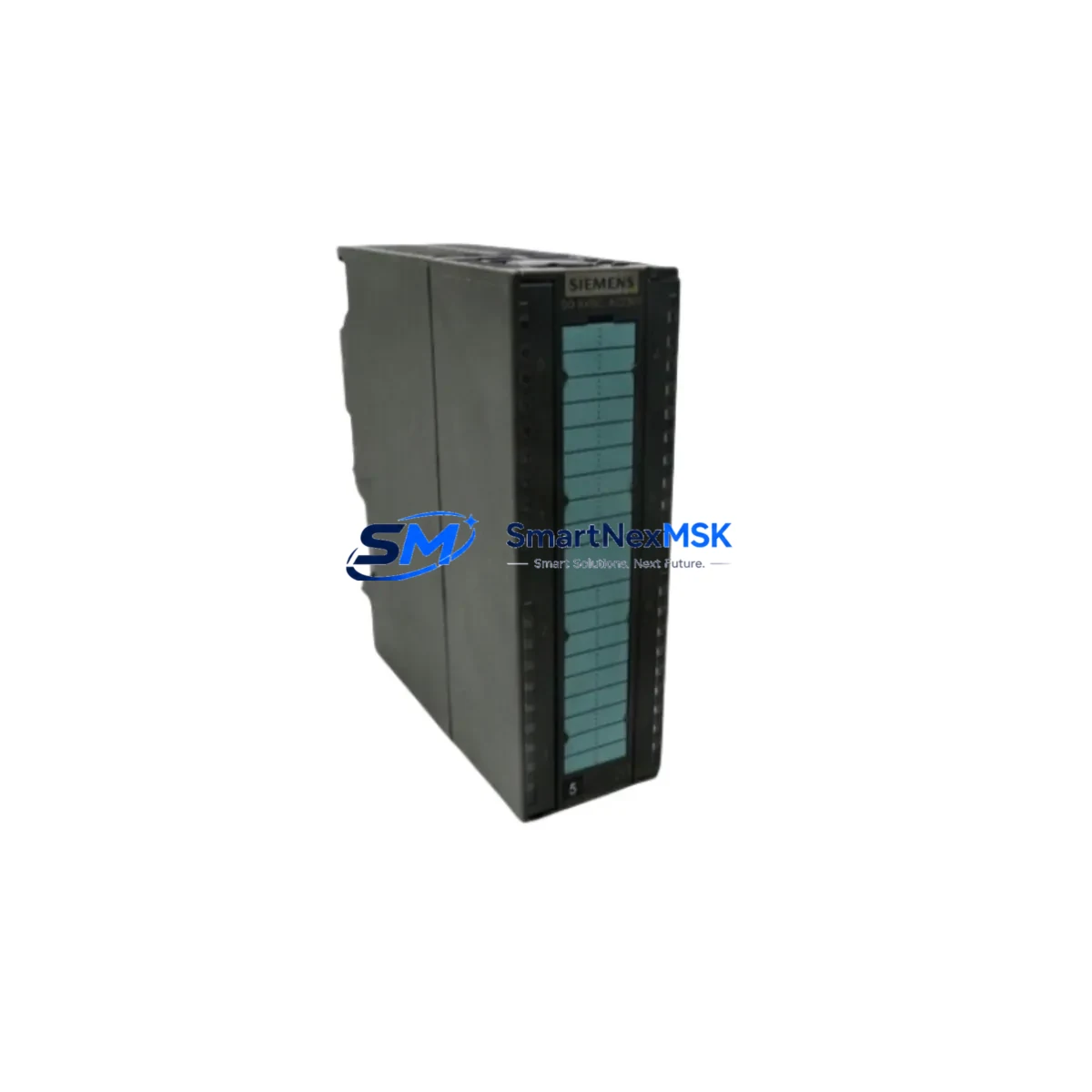

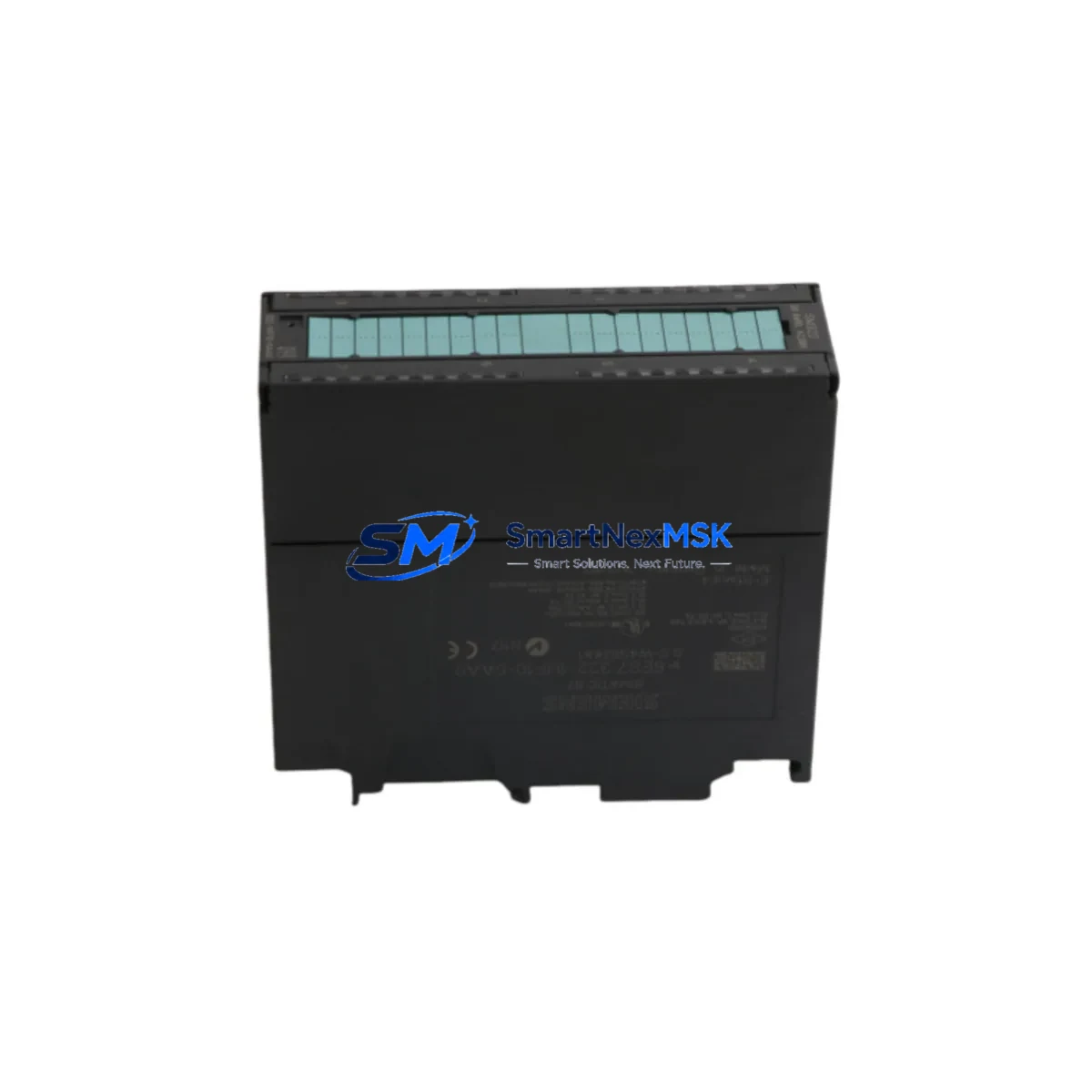

The Siemens 6ES7322-1HF10-0AA0 is an SM322 series 8-channel 24 VDC transistor digital output module engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous-process manufacturing lines — this module delivers the output switching precision and electrical robustness that safety-critical control loops demand. Every unit shipped by SMARTNEXMSK undergoes pre-delivery functional verification and is backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered S7-300 control cabinet, the 6ES7322-1HF10-0AA0 output module does not operate in isolation — it functions as one node in a tightly coordinated protection architecture. The module receives switching commands from the CPU, such as the 6ES7315-2EH14-0AB0 or 6ES7317-2EK14-0AB0, and drives field actuators including solenoid valves, motor contactors, and safety relays. Its optocoupler-isolated outputs prevent ground loops and common-mode noise from propagating back into the logic bus, a critical safeguard when the cabinet is co-located with variable-frequency drives or large motor starters.

On the input side, a companion digital input module such as the 6ES7321-1BH02-0AA0 SM321 16-channel 24 VDC unit monitors field feedback signals — limit switches, pressure switches, and interlock contacts — completing the closed-loop safety verification cycle. Power to the S7-300 rack is typically supplied through a 6ES7307-1EA01-0AA0 PS307 5 A power supply module, which provides regulated 24 VDC with built-in overload and short-circuit protection. Upstream of the power supply, a SITOP PSU100S or equivalent DIN-rail power conditioner filters mains-borne transients before they can reach the PLC backplane.

For installations requiring distributed I/O expansion beyond the main rack, the 6ES7153-1AA03-0XB0 IM153 PROFIBUS DP interface module enables remote ET 200M stations to share the same engineering environment, extending the reach of the output module’s switching logic to field junction boxes hundreds of meters away. In safety-instrumented systems operating under IEC 61511, the output channels of the 6ES7322-1HF10-0AA0 are often paired with 6ES7326-2BF41-0AB0 F-DO safety output modules in a 1oo2 or 2oo3 voting architecture, ensuring that a single-channel fault cannot cause an undetected dangerous output state. Signal integrity on long cable runs is further protected by surge arresters and cable shielding grounded at the cabinet entry gland plate, preventing induced voltages from exceeding the module’s 28.8 VDC maximum load voltage.

Communication health across the control network is monitored by the CPU’s integrated PROFIBUS DP or PROFINET port, with watchdog timers configured to force outputs to a safe de-energized state if a communication timeout is detected — a behavior that the 6ES7322-1HF10-0AA0 supports natively through its backplane bus protocol. Spare modules are recommended to be held in climate-controlled storage alongside the 6ES7392-1AJ00-0AA0 front connector, ensuring that field replacement can be completed within minutes without rewiring.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing environments, the 6ES7322-1HF10-0AA0 controls shutdown valves, blowdown actuators, and emergency depressurization solenoids within burner management systems and emergency shutdown (ESD) panels. Its transistor outputs provide the fast switching response — typically under 0.5 ms — required to meet process safety time requirements defined in HAZOP studies and SIL assessments.

Power Generation and Substation Control: Turbine auxiliary control panels and substation bay controllers rely on this module to switch protection relay trip coils, breaker close/open commands, and alarm annunciator outputs. The module’s galvanic isolation prevents high-voltage transients from substation switching events from damaging the PLC logic circuitry.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to severe vibration, coal dust, and wide temperature swings. The SM322 module’s robust mechanical design and conformal-coated PCB (on select variants) maintain reliable output switching for conveyor drive starters, ventilation fan contactors, and dewatering pump controls even under these conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the 6ES7322-1HF10-0AA0 to control dosing pump motors, UV disinfection lamp ballasts, and automated valve actuators. Continuous 24/7 operation demands the module’s thermal management and electronic short-circuit protection to prevent nuisance trips during peak load cycles.

Metallurgical and Steel Mill Automation: Rolling mill and furnace control systems expose output modules to intense electromagnetic interference from large thyristor drives and induction heating equipment. The module’s EN 61000-6-2 immunity rating and optocoupler isolation ensure that output states remain stable and do not exhibit spurious toggling that could cause mechanical damage or personnel hazards.

Port and Material Handling Logistics: Crane PLC cabinets and automated stacker-reclaimer systems demand output modules that can withstand the shock and vibration of heavy-load operations while maintaining precise control of hoist brakes, travel drives, and anti-collision interlock outputs. The 6ES7322-1HF10-0AA0 meets these demands within the proven S7-300 platform architecture.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the 6ES7322-1HF10-0AA0?
Every 6ES7322-1HF10-0AA0 module supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. If the module exhibits any functional defect under normal operating conditions within this period, we will arrange replacement or repair at no additional cost to the customer.

Q2: What pre-shipment testing is performed on each module?
Each unit undergoes a multi-point outgoing quality inspection that includes visual inspection for physical damage, verification of module identification markings and firmware label, functional power-on test confirming backplane bus communication readiness, and output channel continuity verification. Modules that do not pass all inspection criteria are quarantined and not shipped.

Q3: Is the 6ES7322-1HF10-0AA0 compatible with all S7-300 CPU and rack configurations?
Yes. The module is fully compatible with all standard SIMATIC S7-300 racks (CR2, CR3, ER1, ER2) and all S7-300 CPUs that support SM322 signal modules, including the CPU 312, 314, 315-2DP, 317-2DP/PN, and 319-3PN/DP families. It is also compatible with ET 200M distributed I/O stations using the IM153 interface module. No firmware upgrade or special configuration is required beyond standard STEP 7 or TIA Portal hardware configuration.

Q4: Can SMARTNEXMSK support long-term and repeat supply for maintenance and spare-parts programs?
Yes. SMARTNEXMSK maintains dedicated inventory of the 6ES7322-1HF10-0AA0 and related S7-300 signal modules to support planned maintenance shutdowns, emergency replacements, and multi-year spare-parts agreements. Customers operating continuous-process plants or critical infrastructure are encouraged to contact our sales team to discuss consignment stock arrangements and priority fulfillment agreements that guarantee module availability when unplanned downtime cannot be tolerated.
