Siemens 6ES7323-1BH01-0AA0 Maintenance-Ready Spare for S7-300

Siemens 6ES7323-1BH01-0AA0 Maintenance-Ready Spare for S7-300 Automation

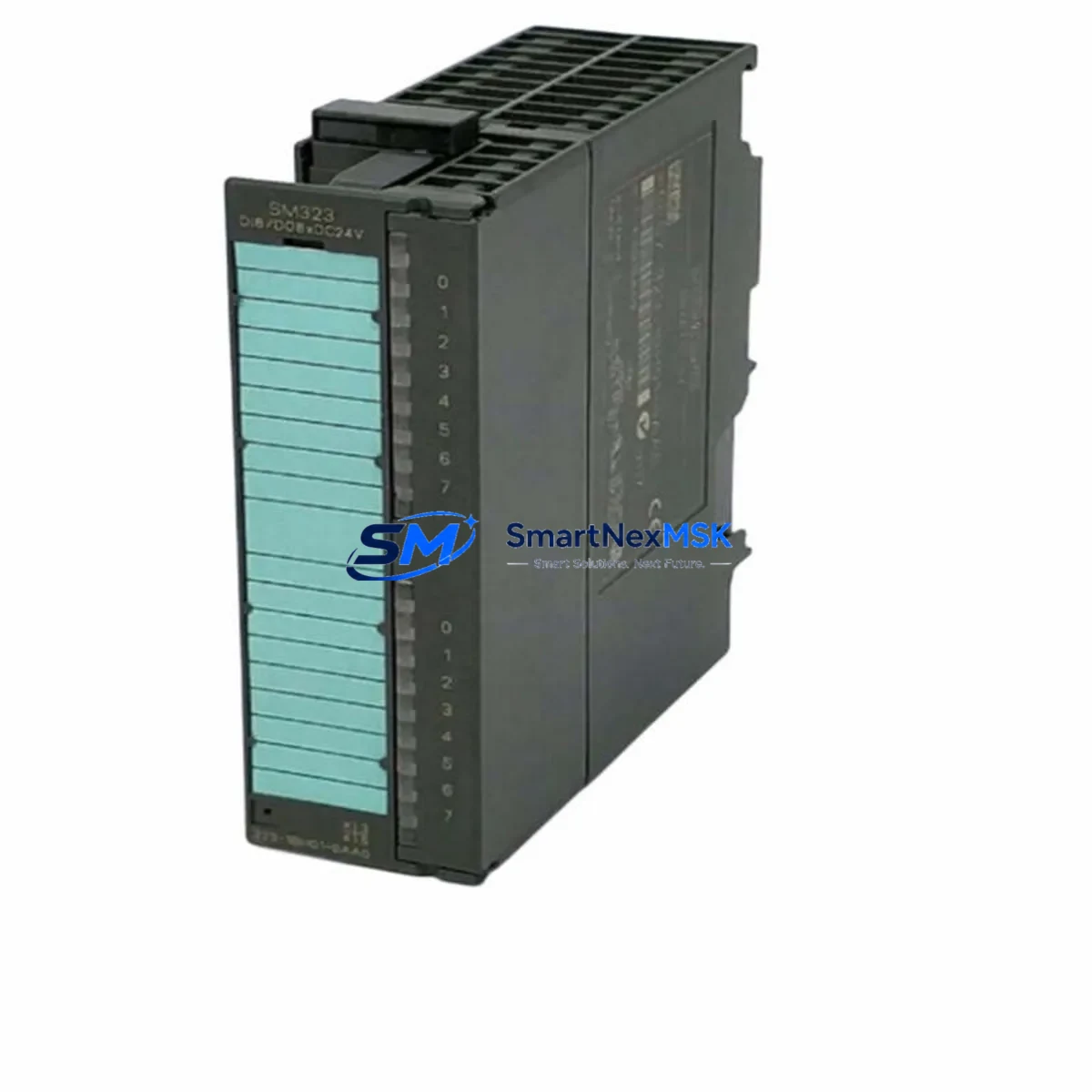

The Siemens 6ES7323-1BH01-0AA0 is an original SM 323 Digital Input/Output module designed for the SIMATIC S7-300 programmable logic controller platform. In industrial environments where continuous operation is non-negotiable, maintaining a verified spare of this module is a fundamental element of any proactive maintenance strategy. Whether you are managing a high-throughput manufacturing line, a process automation cell, or a legacy control system that must remain operational for years to come, the 6ES7323-1BH01-0AA0 represents a critical node in your I/O architecture — and its failure without a ready replacement can translate directly into costly unplanned downtime.

This module provides 8 digital inputs and 8 digital outputs in a single compact form factor, making it one of the most widely deployed mixed I/O modules in the S7-300 ecosystem. Its broad compatibility across S7-300 racks and its straightforward integration with STEP 7 and TIA Portal configuration environments make it a preferred choice for both original installations and field replacements. Sourced as an original Siemens component, each unit is tested prior to shipment and backed by a 12-month warranty, ensuring that your replacement stock meets the same performance standards as the original installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the 6ES7323-1BH01-0AA0, the replacement event should be treated as a broader inspection opportunity for the entire control cabinet and associated I/O circuit. Field experience consistently shows that a failed or degraded digital I/O module rarely fails in isolation — surrounding components in the same electrical loop are often subject to the same environmental stressors, load cycles, and aging effects.

Begin by verifying the 24 V DC supply rail feeding the SM 323 module. The Siemens PS 307 power supply module (e.g., 6ES7307-1EA01-0AA0) should be checked for output voltage stability and ripple under load. A marginal power supply is a common root cause of intermittent I/O faults that are misdiagnosed as module failures. Alongside the power supply, inspect the S7-300 CPU module (such as the CPU 314 or CPU 315-2 DP) for firmware currency and diagnostic buffer entries that may indicate prior I/O communication errors.

The S7-300 backplane bus connector and rack should be inspected for mechanical damage, corrosion, or loose seating — a poor backplane connection can cause the SM 323 to report faults even when the module itself is functional. If the cabinet includes a CP 343-1 Ethernet communication module or a CP 342-5 PROFIBUS DP module, verify that their configuration addresses and baud rate settings remain consistent with the network after any module swap.

On the field wiring side, inspect the terminal blocks and wiring harnesses connected to the SM 323’s 40-pin front connector. Loose terminals, corroded conductors, or undersized wire cross-sections are frequent contributors to output switching failures. If the outputs drive inductive loads such as solenoid valves or relay coils, confirm that freewheeling diodes or varistors are installed at the load to suppress back-EMF — their absence accelerates transistor output degradation.

For applications where the SM 323 interfaces with field sensors through intermediate signal isolators or signal conditioners, verify that the isolator output levels remain within the module’s 15–30 V DC input threshold range. Aging isolators can drift out of specification without triggering obvious alarms. Similarly, if intermediate relay modules (such as Phoenix Contact or Weidmüller relay terminal blocks) are used to interface the DO outputs with higher-voltage field circuits, inspect the relay contacts for wear and confirm coil drive current is within the transistor output’s 0.5 A rating.

Where the S7-300 system includes an IM 360/361 interface module for multi-rack expansion, confirm that the rack interconnect cables are undamaged and that the expansion rack’s power supply is stable. Finally, if an OP/TP HMI panel (such as a TP 177 or OP 177) is connected to the CPU, verify that the HMI project’s I/O tag addresses still map correctly after the module replacement, particularly if the new module occupies a different slot address than the original.

Site Replacement Workflow

Replacing the 6ES7323-1BH01-0AA0 in the field is a straightforward procedure when the correct preparation steps are followed. Before beginning, download and save the current STEP 7 or TIA Portal project to a backup location, and record the module’s slot address, configured I/O addresses, and any special parameter assignments visible in the hardware configuration.

Power down the 24 V DC field supply to the module before disconnecting the 40-pin front connector — this prevents transient signals from reaching field devices during the swap. Remove the front connector, release the module from the rack, and install the replacement 6ES7323-1BH01-0AA0 in the same slot. The front connector is keyed and can be reattached directly to the new module without rewiring, provided the connector coding key is transferred correctly.

After reinstallation, restore power and perform a CPU memory reset if required by your site procedure. In STEP 7, use the Module Information dialog to confirm the module is recognized and reporting no faults. Run a short I/O forcing test on each channel to verify correct input reading and output switching before returning the system to automatic mode. This workflow typically achieves a complete replacement in under 30 minutes, minimizing production impact and eliminating the need for specialist commissioning support.

For sites operating legacy S7-300 systems where the 6ES7323-1BH00-0AA0 (earlier hardware revision) was originally installed, the 6ES7323-1BH01-0AA0 is a direct functional replacement. No hardware configuration changes are required in STEP 7 — the module is recognized under the same GSD entry, and existing I/O address assignments remain valid.

Spare Parts Support FAQ

Q1: Is the 6ES7323-1BH01-0AA0 compatible with all S7-300 CPU variants?
Yes. The SM 323 module is compatible with all standard S7-300 CPUs, including the CPU 312, 313, 314, 315, 316, and 317 series, as well as fail-safe and technology CPUs. It occupies any standard I/O slot in the S7-300 rack and is configured identically across all CPU variants in STEP 7 or TIA Portal.

Q2: What is your spare parts inventory policy and lead time?
We maintain stock of the 6ES7323-1BH01-0AA0 for immediate dispatch. Standard orders are processed and shipped within 1–3 business days. For urgent breakdown situations, expedited shipping options are available — contact our sales team directly to confirm current stock levels and arrange priority dispatch.

Q3: How is each unit tested before shipment?
Every 6ES7323-1BH01-0AA0 unit undergoes functional verification prior to shipment, including power-on testing and I/O channel continuity checks. Units are shipped in original or equivalent protective packaging to prevent ESD damage and mechanical stress during transit. A 12-month warranty covers any manufacturing or functional defects identified after installation.

Q4: Can you support long-term supply for multi-site maintenance programs?
Yes. We support procurement engineers managing multi-site or multi-year maintenance contracts. Blanket order arrangements, reserved stock agreements, and scheduled delivery programs are available for the 6ES7323-1BH01-0AA0 and related S7-300 spare parts. Contact us to discuss volume pricing and supply continuity terms suited to your maintenance planning cycle.
