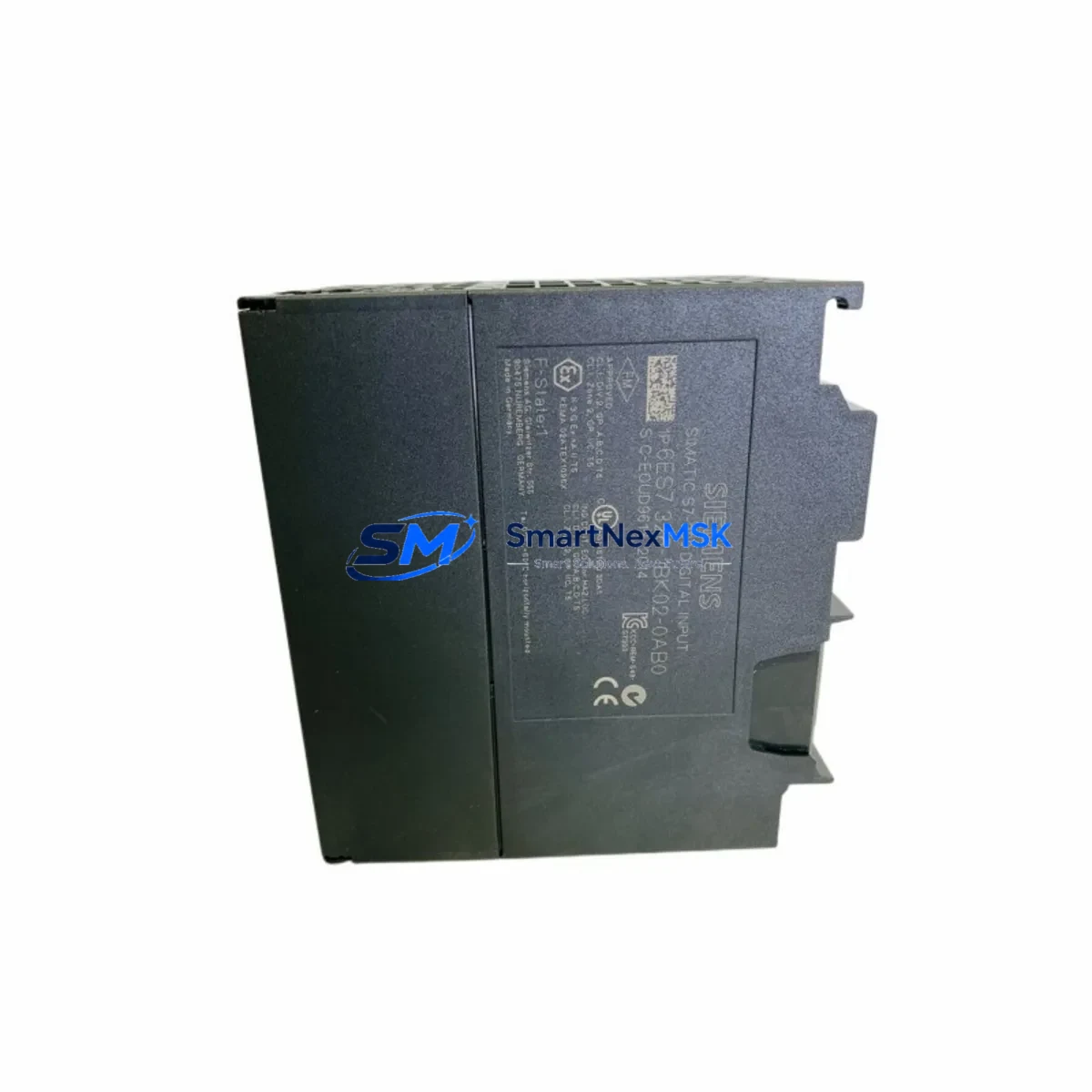

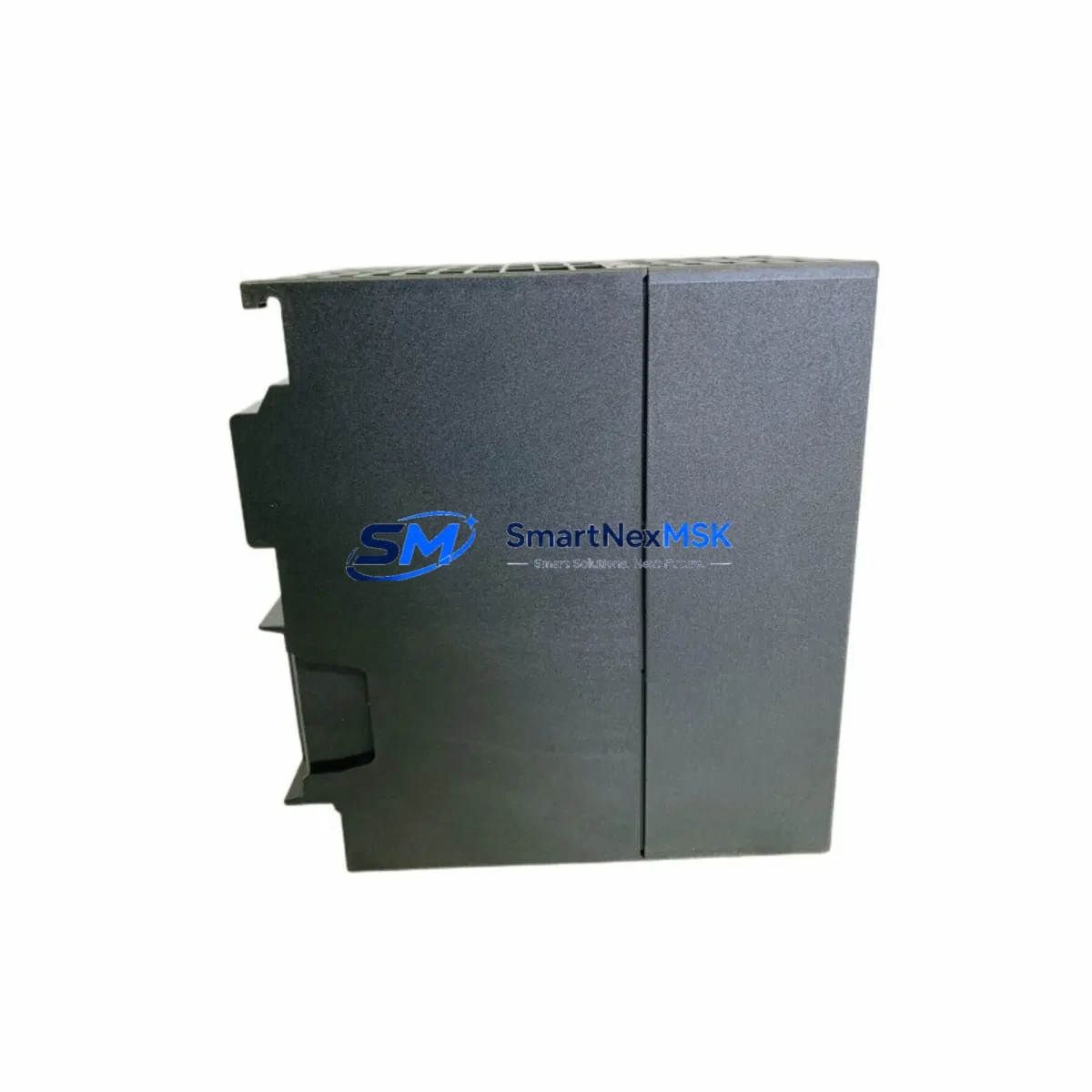

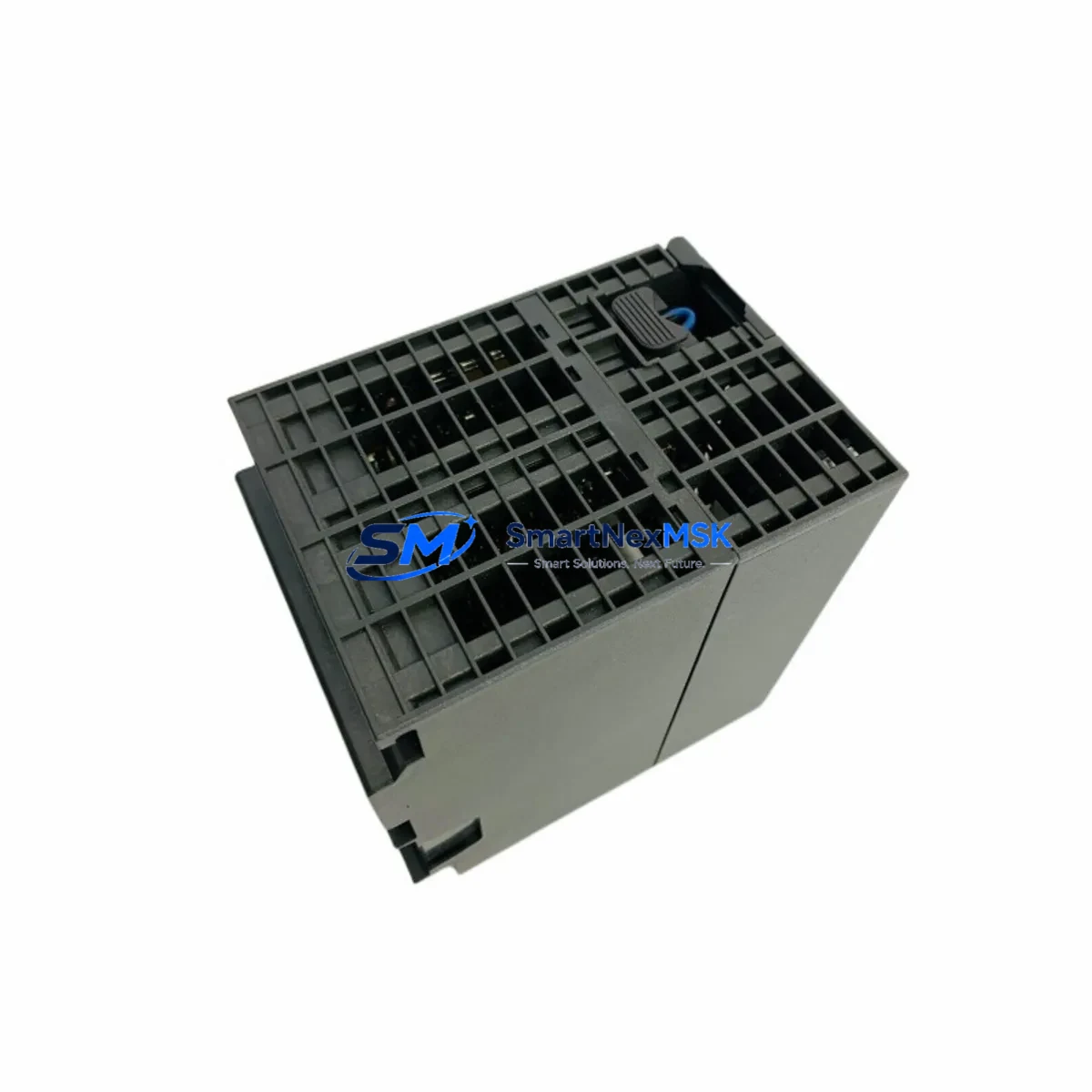

The Siemens 6ES7326-1BK02-0AB0 is an original SM326 F-DI 24×24VDC Failsafe Digital Input Module designed for the SIMATIC S7-300 safety-integrated control platform. As a maintenance-ready spare, this module is a critical component for facilities operating safety-instrumented systems (SIS) in process automation, machine safety, and hazardous-area control environments. Unplanned downtime caused by a failed F-DI module can halt an entire production line or trigger a safety shutdown — having a verified, tested replacement on the shelf is the single most effective strategy for rapid recovery and sustained operational continuity.

This unit is sourced as an original Siemens component, individually inspected prior to dispatch, and backed by a 12-month warranty. It is suitable for direct replacement in existing SM326 racks without firmware reconfiguration in most standard S7-300 configurations, making it the preferred choice for maintenance engineers who need a drop-in solution under time pressure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7326-1BK02-0AB0 module fails or is flagged during a scheduled inspection, the replacement process should be treated as part of a broader control cabinet audit. Maintenance engineers should not limit their inspection to the F-DI module alone. The following components in the same rack, power loop, or safety circuit should be simultaneously verified:

Begin with the SM326 F-DO 10×24VDC/2A (6ES7326-2BF41-0AB0) failsafe digital output module, which typically shares the same rack and safety program logic. A degraded output module can mask input-side faults during diagnostics. Next, inspect the PS 307 power supply module (e.g., 6ES7307-1EA01-0AA0) — voltage ripple or brownout conditions are a leading cause of spurious F-DI channel faults. Check the IM 153-2 interface module if the SM326 is deployed in a distributed ET 200M station; a failing interface module can generate false channel errors that appear to originate from the F-DI module.

Terminal blocks and field wiring should be inspected for loose connections, corrosion, or insulation breakdown — particularly on the 24-channel input side where wiring density is high. The 6ES7392-1AJ00-0AA0 front connector used with SM326 modules should be checked for pin wear if the module has been removed and reinstalled multiple times. Signal isolators or SITRANS I/P transducers upstream of the digital inputs should be verified for correct output levels, as out-of-range signals can cause persistent channel faults.

For facilities running older S7-300 racks, it is advisable to maintain a parallel stock of the 6ES7321-1BL00-0AA0 SM321 standard digital input module alongside the failsafe variant, as mixed-rack configurations are common in legacy installations. Communication health between the F-CPU and the SM326 should be confirmed via the PROFIBUS DP diagnostic buffer — a CP 342-5 communications processor or DP master interface fault can produce symptoms identical to a hardware module failure. Finally, review the SIMATIC S7-300 rack (6ES7390-1AE80-0AA0) bus connectors for oxidation, which is a known failure mode in high-humidity environments.

Site Replacement Workflow

Replacing the 6ES7326-1BK02-0AB0 on-site follows a structured sequence to minimize downtime and ensure safety system integrity is maintained throughout the process:

Step 1 — Safety Isolation: Initiate a controlled safety shutdown via the F-CPU. Confirm the safety program has transitioned to a safe state before de-energizing the rack. Do not hot-swap failsafe modules without explicit authorization from the system integrator.

Step 2 — Module Removal: Disconnect the front connector (retain wiring labels or photograph terminal assignments). Release the module locking mechanism and slide the 6ES7326-1BK02-0AB0 out of the rack slot. Note the slot address for re-insertion.

Step 3 — Replacement Verification: Confirm the replacement unit’s order number and firmware version match or are compatible with the existing hardware configuration. The SM326 F-DI 24×24VDC is a direct replacement for the same order number — no hardware configuration change is required in STEP 7 Safety Advanced when the order number is identical.

Step 4 — Installation and Wiring: Insert the new module into the same rack slot. Reconnect the front connector. Verify all 24 input channels are correctly wired per the original terminal diagram.

Step 5 — Functional Test: Power up the rack and perform a channel-by-channel diagnostic check via STEP 7 or TIA Portal. Confirm no fault LEDs are active and that the safety program resumes normal operation. Document the replacement in the maintenance log with date, technician ID, and new module serial number.

This workflow supports legacy system life extension strategies, allowing facilities to continue operating S7-300-based safety systems well beyond the standard product lifecycle without migrating to newer platforms.

Spare Parts Support FAQ

Q1: Is the 6ES7326-1BK02-0AB0 still available as a new original part?
Yes. We maintain stock of original Siemens 6ES7326-1BK02-0AB0 modules sourced through authorized industrial supply channels. Each unit is individually tested before shipment and ships with a 12-month warranty. Lead time for in-stock units is 1–3 business days.

Q2: How do I verify compatibility with my existing S7-300 safety configuration?
The 6ES7326-1BK02-0AB0 is compatible with all SIMATIC S7-300 F-CPUs and ET 200M distributed I/O stations using the IM 153-2 interface module. Compatibility is confirmed by matching the order number in your STEP 7 Safety Advanced hardware configuration. No re-parameterization is required when replacing a module with the same order number.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or environmental conditions outside the specified operating range. Warranty claims are processed with return shipping support and a replacement or refund within 10 business days of receipt.

Q4: Can this module replace older SM326 variants in the same rack?
The 6ES7326-1BK02-0AB0 is the current production revision of the SM326 F-DI 24×24VDC. It is backward compatible with earlier hardware revisions of the same order number. If you are replacing a different SM326 variant (e.g., a different channel count or voltage rating), a hardware configuration update in STEP 7 Safety Advanced will be required. Contact our technical team with your existing hardware configuration file for a pre-sale compatibility assessment.
