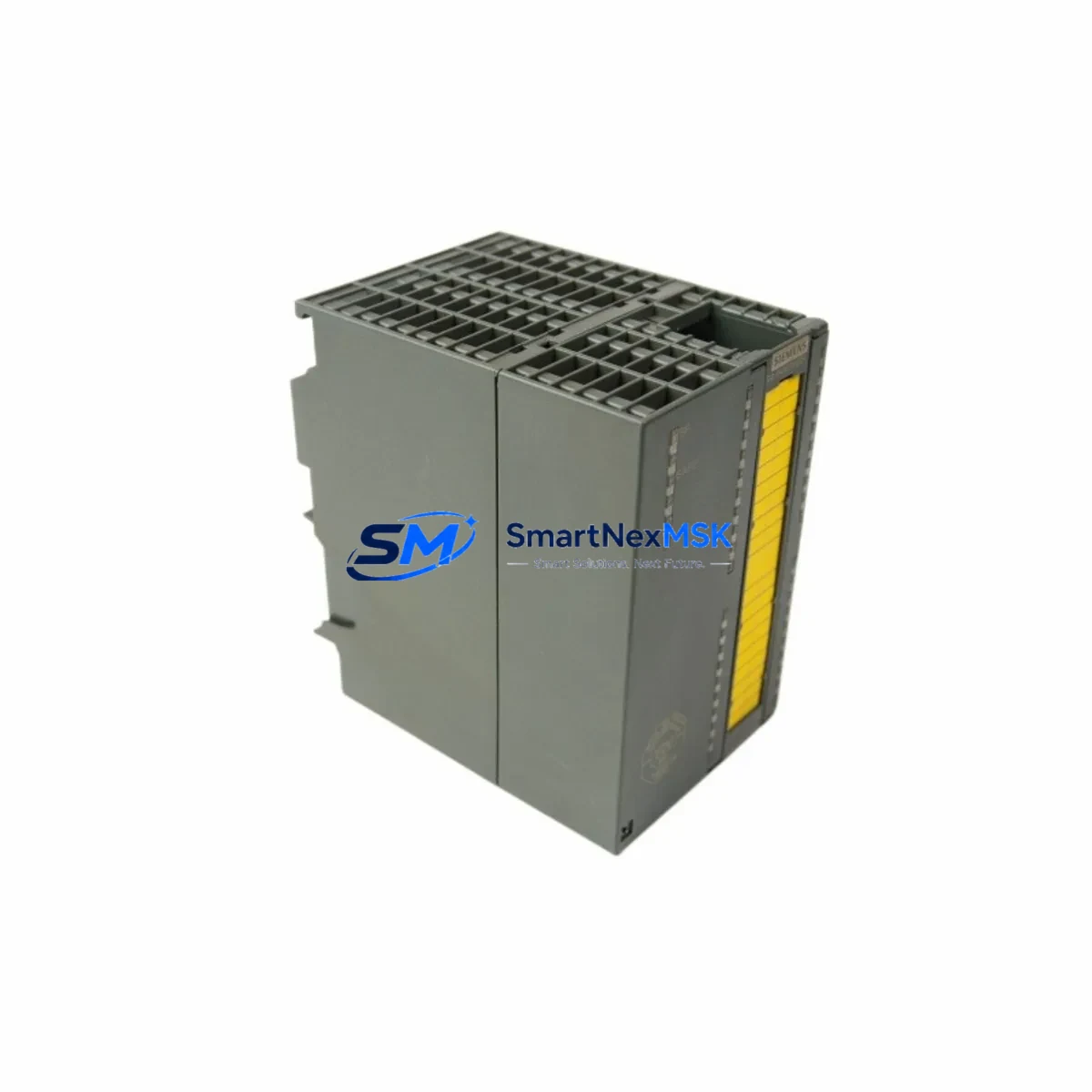

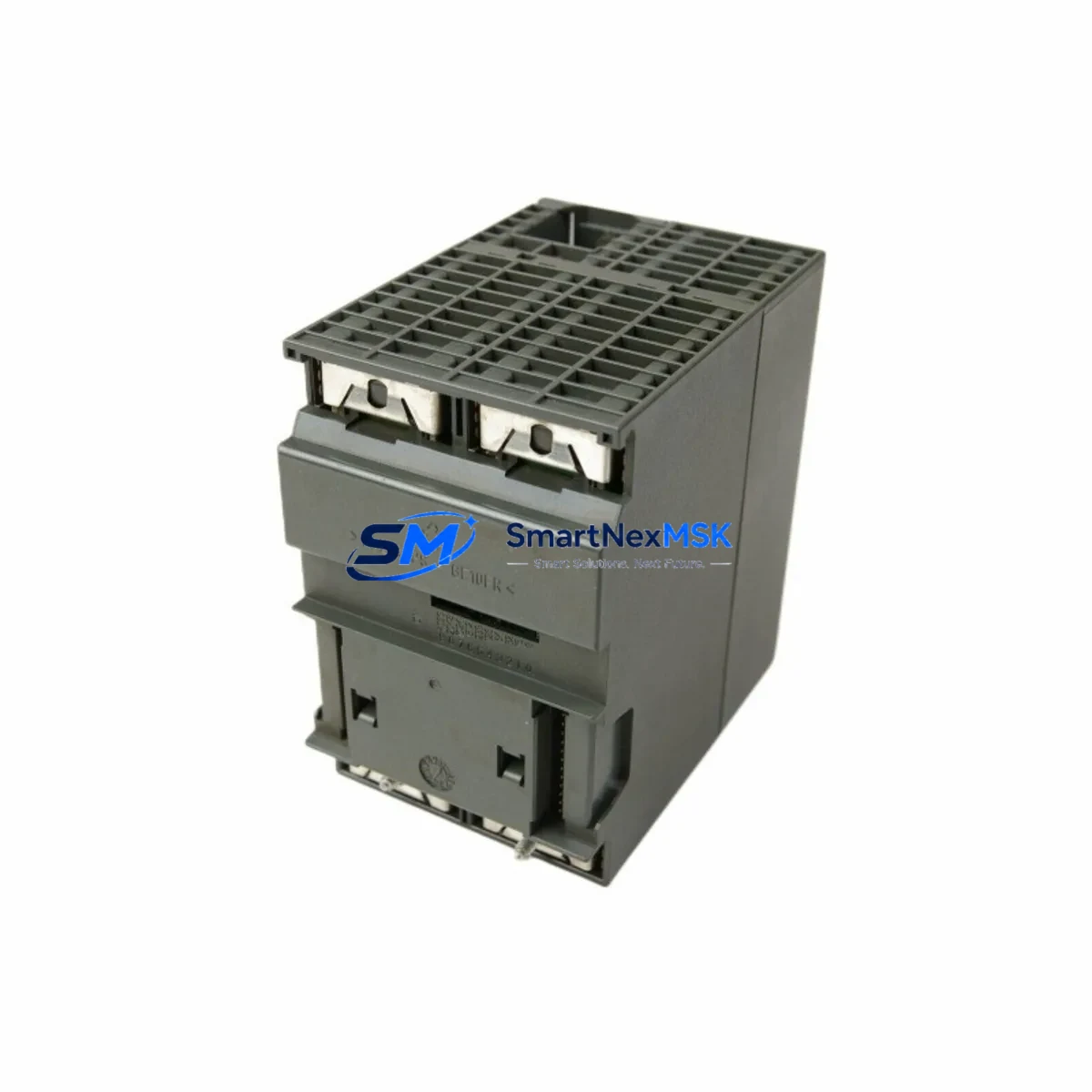

The Siemens 6ES7326-2BF01-0AB0 is an original SM326 Failsafe Digital Output (F-DO) module designed for integration into Siemens S7-300 safety-rated control systems. As a certified failsafe output module, it plays a critical role in emergency shutdown (ESD) circuits, safety interlock loops, and SIL 2/3-rated automation architectures across process, chemical, oil & gas, and heavy manufacturing environments. Maintaining a verified spare of this module in your site inventory is a fundamental strategy for minimizing unplanned downtime and protecting production continuity.

This listing provides a maintenance-ready, original spare unit — pre-tested, serialized, and shipped with a 12-month warranty. Each unit undergoes functional verification prior to dispatch to ensure drop-in compatibility with your existing S7-300 rack configuration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6ES7326-2BF01-0AB0 F-DO module is flagged for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding control cabinet is essential to restore full system integrity and prevent repeat failures.

Begin by verifying the 24VDC power supply module feeding the S7-300 rack — a degraded or undersized PSU (such as the 6ES7307-1EA01-0AA0 or equivalent PS307 series) can cause intermittent F-DO faults that mimic module failure. Next, inspect the front connector (6ES7392-1BM01-0AA0) for terminal corrosion, loose crimps, or insulation damage on the output wiring harness, particularly on channels driving solenoid valves or safety relays.

The SM326 F-DI input module (6ES7326-1BK02-0AB0) is frequently paired with this F-DO in the same safety loop — if the output module has failed due to load-side overcurrent, the corresponding input module should be tested for latent damage. Similarly, the CPU 315F-2 PN/DP (6ES7315-2FJ14-0AB0) or the safety CPU in use should be checked for logged F-channel passivation events in the diagnostic buffer, which may indicate recurring wiring faults rather than a module defect.

For cabinet-level inspection, review the terminal blocks and marshalling strips (Phoenix Contact or Weidmüller series commonly used alongside S7-300 panels) for signs of thermal stress or vibration-induced loosening. If the system includes signal isolators or safety barriers on the output side — particularly where intrinsically safe field devices are involved — these should be tested for correct output voltage and current limiting behavior.

In installations where the S7-300 communicates over PROFIBUS DP, inspect the bus connector (6ES7972-0BB52-0XA0) and termination resistors at both ends of the segment. A degraded PROFIBUS segment can cause the safety CPU to passivate F-modules unnecessarily. Where ET 200S or ET 200M distributed I/O is used in the same safety architecture, verify that the IM151 or IM153 interface modules are operating within their diagnostic thresholds.

Finally, if the plant uses a SIMATIC HMI panel (TP700, KTP900, or MP377 series) for operator acknowledgment of safety faults, confirm that the HMI project is synchronized with the current safety program version to avoid acknowledgment mismatches after the module swap. Maintaining a documented spare parts list that includes the F-DO module, its paired F-DI, the front connector, and the PSU ensures that your next planned maintenance window can be executed without procurement delays.

Site Replacement Workflow

Step 1 — Safety Isolation: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the S7-300 rack section containing the 6ES7326-2BF01-0AB0. Confirm zero-energy state on all output channels before removing the front connector.

Step 2 — Front Connector Removal & Documentation: Label all wiring on the front connector before disconnection. Photograph the terminal layout for reference. The front connector retains its wiring and can be transferred directly to the replacement module — this is a key advantage of the S7-300 modular architecture that minimizes rewiring time during emergency replacements.

Step 3 — Module Swap: Slide out the faulty module from the DIN rail slot. Insert the replacement 6ES7326-2BF01-0AB0 into the same slot position. The backplane bus connector is integrated — no separate bus connection is required. Reattach the front connector.

Step 4 — F-Address Verification: Power up the rack. In STEP 7 Safety or TIA Portal Safety, confirm that the replacement module has been assigned the correct F-address (F-destination address) matching the original configuration. A mismatch will prevent the safety CPU from accepting the module and will trigger a passivation fault.

Step 5 — Functional Test: Execute a channel-by-channel output test under controlled conditions before returning the system to automatic mode. Verify LED status indicators: SF (group fault), EXTF (external fault), and channel-specific LEDs should all clear after successful F-address assignment and program download.

Step 6 — Documentation Update: Record the replacement in your maintenance log, including the new module serial number, date of installation, and technician sign-off. Update your spare parts inventory to trigger reorder of a replacement unit — maintaining at least one on-shelf spare of the 6ES7326-2BF01-0AB0 is recommended for any facility running S7-300 safety systems.

Spare Parts Support FAQ

Q1: Is this 6ES7326-2BF01-0AB0 an original Siemens module or a compatible replacement?
This is an original Siemens SM326 F-DO module. Each unit is sourced from verified industrial supply channels and undergoes pre-shipment functional testing. The module is not a third-party compatible or clone product.

Q2: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. Coverage includes functional failure under normal operating conditions. Each module is tested for output channel integrity, bus communication, and LED diagnostic response before dispatch. Warranty claims are supported by our technical team at sales@smartnexmsk.com.

Q3: Can this module replace an older revision of the 6ES7326-2BF01-0AB0?
The SM326 F-DO module has maintained backward compatibility across its production revisions within the S7-300 platform. However, it is recommended to verify the firmware version of your safety CPU and confirm F-address compatibility in your STEP 7 or TIA Portal Safety project before installation. Our technical team can assist with compatibility verification prior to order.

Q4: What is your lead time and can you support urgent breakdown orders?
Standard orders ship within 1–3 business days. For emergency breakdown situations, expedited processing is available — contact us directly at sales@smartnexmsk.com or +86 18259474341 to confirm stock availability and arrange priority dispatch. We maintain standing inventory of high-demand S7-300 safety modules to support unplanned maintenance events.
