Siemens 6ES7326-2BF10-0AB0 Safety-Enhanced Failsafe DO Module

Siemens 6ES7326-2BF10-0AB0 Safety-Enhanced Failsafe DO Module: Reliable Safety Control for Harsh Industrial Sites

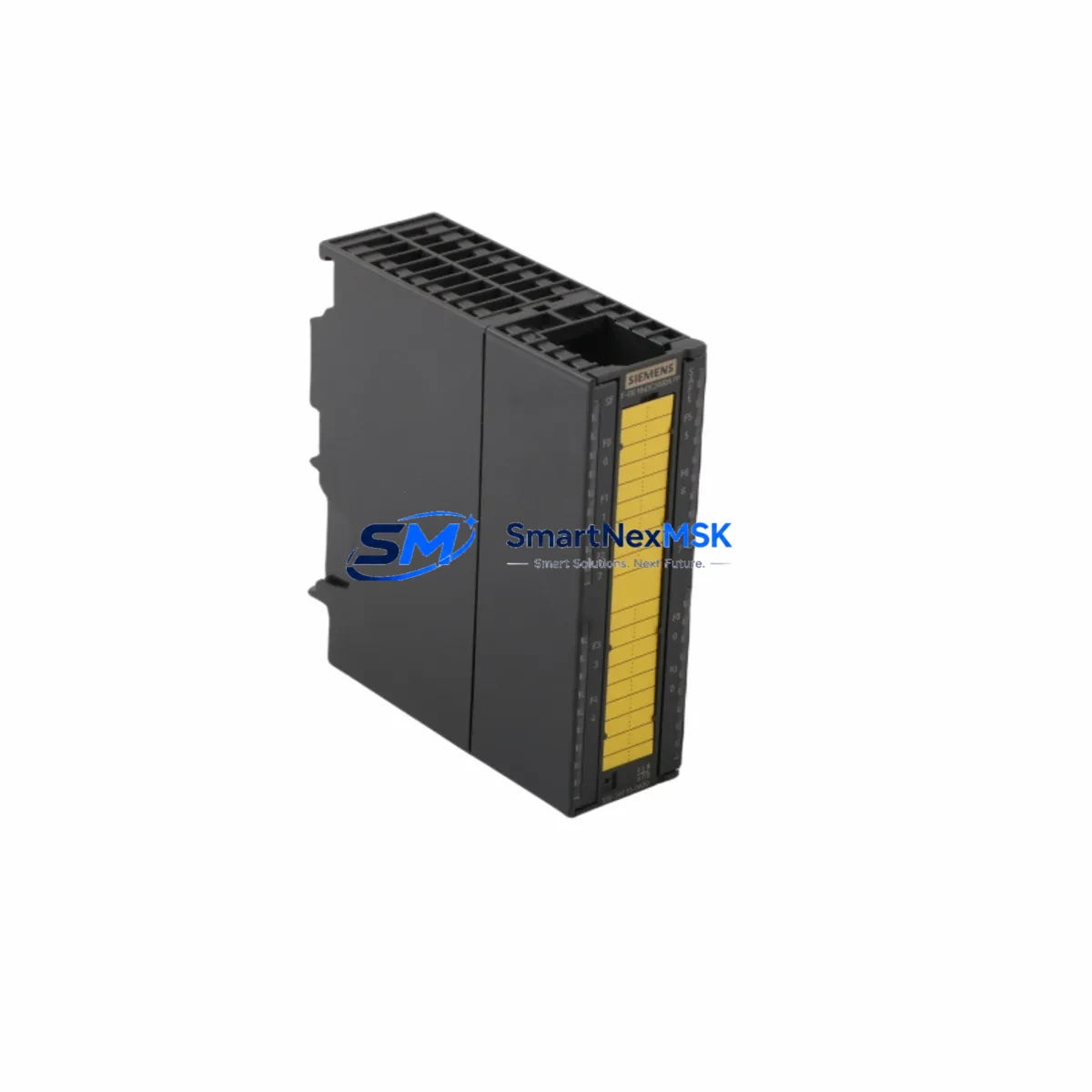

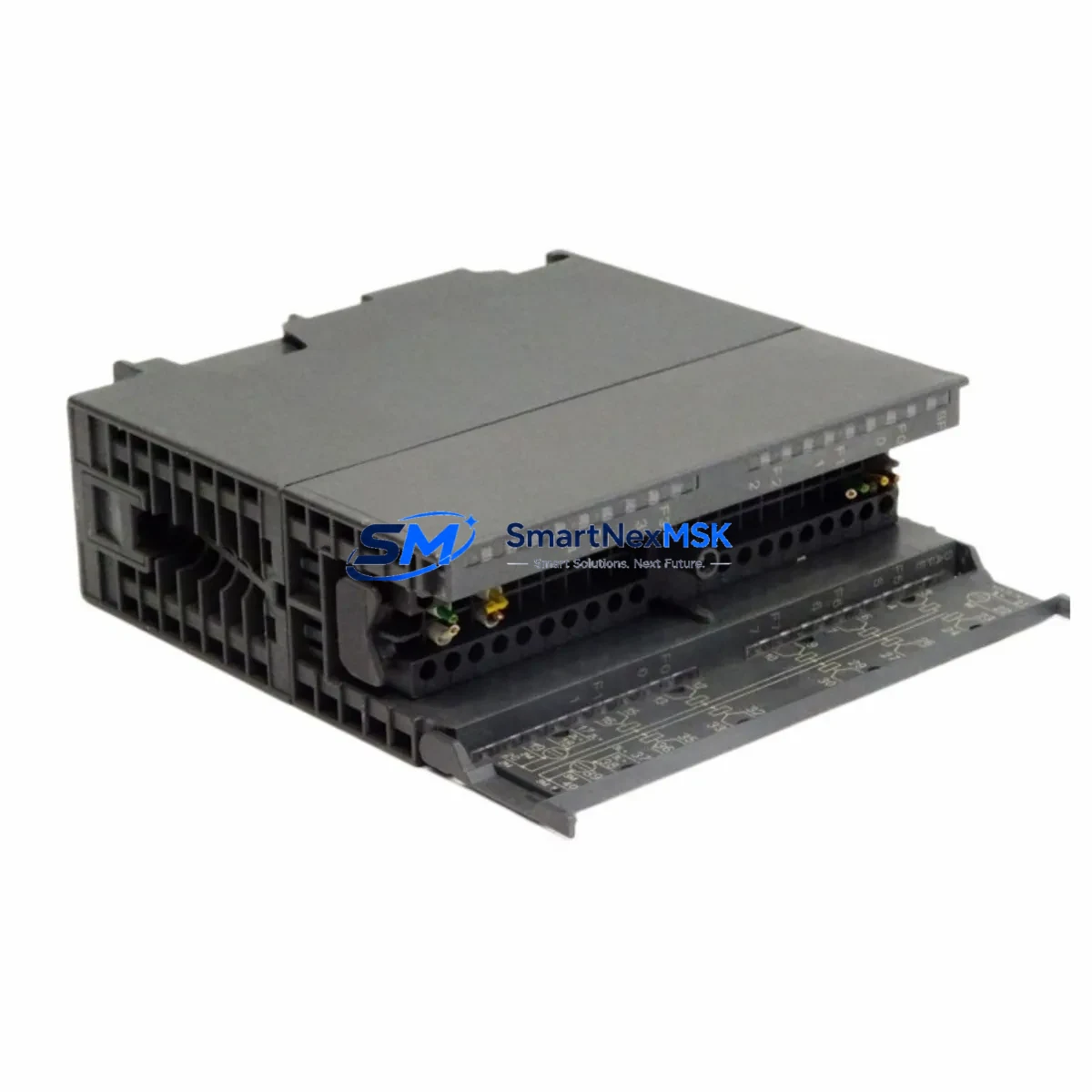

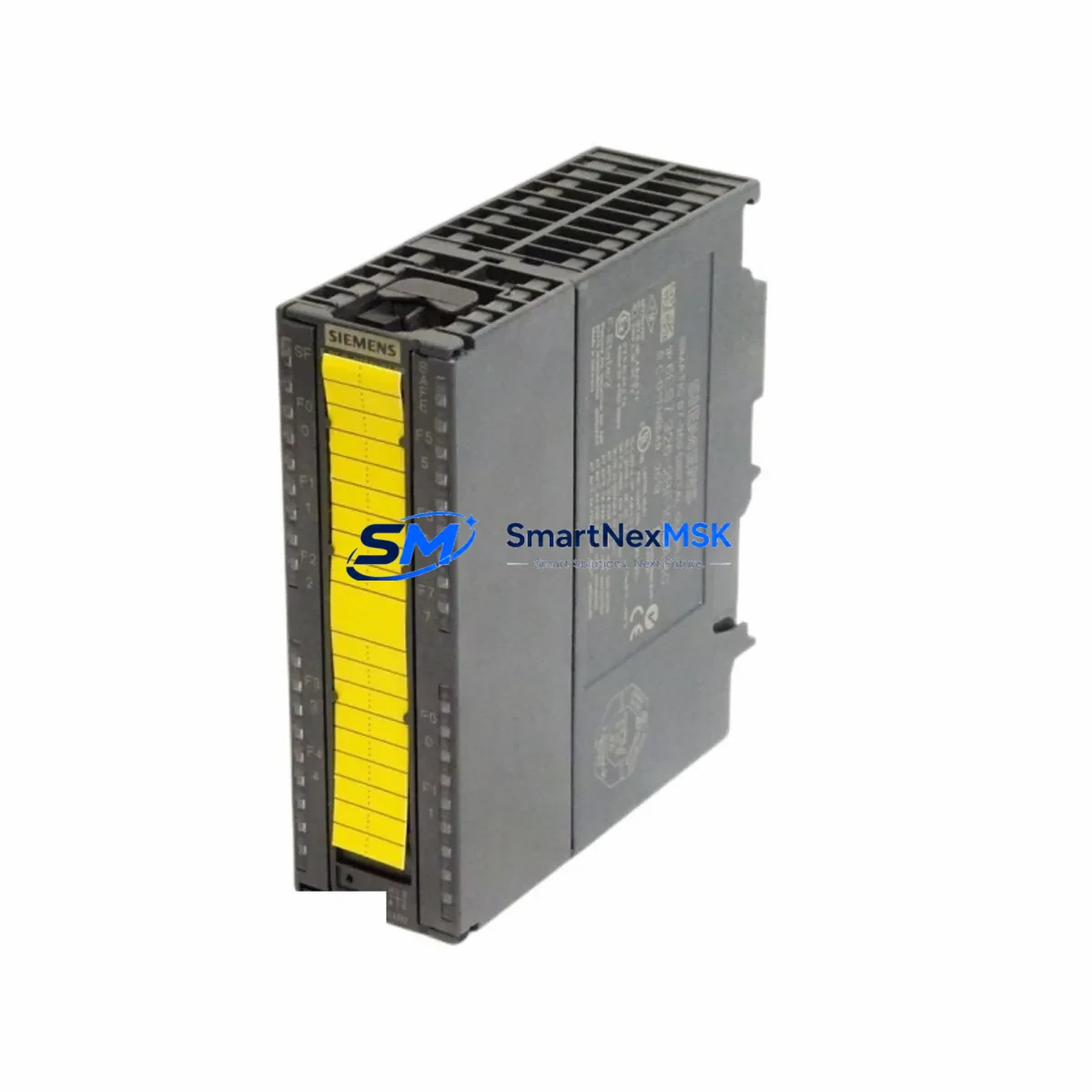

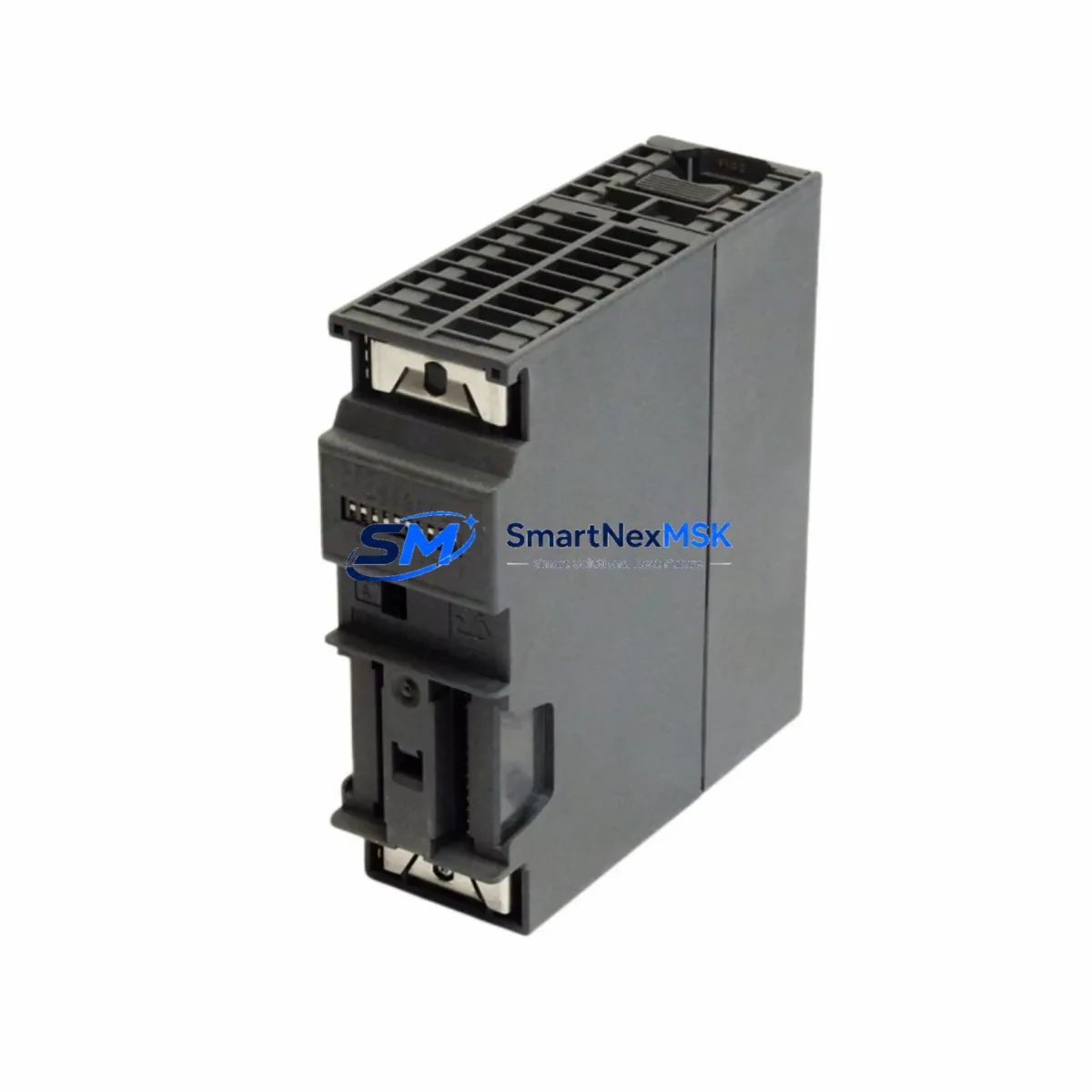

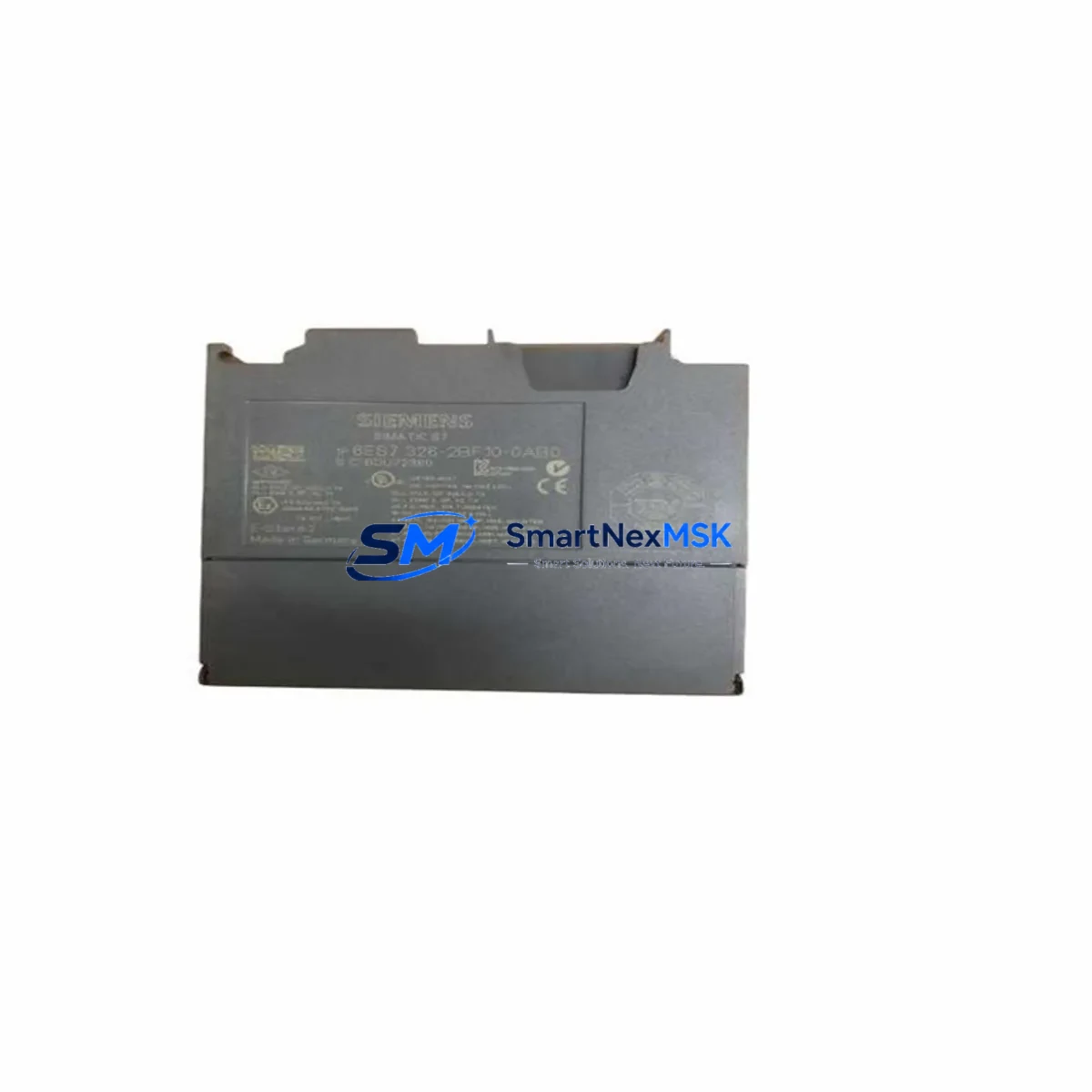

The Siemens 6ES7326-2BF10-0AB0 is a high-integrity SM326 F-DO Failsafe Digital Output module engineered for mission-critical safety instrumented systems (SIS) operating within the SIMATIC S7-300 platform. Rated to SIL2 (IEC 61508) and Category 3 (EN 954-1 / ISO 13849-1), this module is purpose-built to maintain safe output states under fault conditions, making it indispensable in environments where control interruption, signal drift, or module misfiring can result in catastrophic consequences. Whether deployed in a petrochemical emergency shutdown loop, a power plant turbine protection circuit, or a mining conveyor safety interlock, the 6ES7326-2BF10-0AB0 delivers the deterministic, fail-safe switching performance that modern industrial safety architectures demand.

Designed for continuous production environments where downtime is not an option, this module integrates seamlessly into PROFIBUS DP-based safety networks alongside the CP 342-5 communication processor and the IM 360/361 interface modules for distributed rack expansion. Its robust design tolerates wide operating temperature ranges, high electromagnetic interference, and the mechanical vibration typical of heavy industrial control cabinets — ensuring stable operation even in the most demanding field conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

In a fully integrated S7-300 safety control cabinet, the 6ES7326-2BF10-0AB0 operates as the final output authority in the safety loop — receiving validated commands from the CPU 315F-2 DP or CPU 317F-2 DP failsafe processor and driving actuators such as solenoid valves, motor contactors, and emergency stop relays into a safe de-energized state upon fault detection. This architecture eliminates the risk of spurious output activation caused by power fluctuations, communication timeouts, or internal module faults.

To protect the upstream signal chain, the SM321 DI 16×DC 24V digital input module feeds process status signals into the safety CPU, while the SM326 F-DI 24×DC 24V failsafe input module handles safety-rated sensor inputs from pressure switches, position sensors, and emergency stop buttons. Together with the 6ES7326-2BF10-0AB0 output module, these components form a complete, validated safety loop capable of achieving SIL2 performance targets.

Power supply integrity is maintained by the PS 307 24V/10A regulated power supply module, which provides stable DC 24 V to the entire rack under load variations and transient surge conditions. For installations requiring additional surge suppression at the field terminal level, the SITOP PSE200U selective current limiting module provides per-channel protection, preventing a single field fault from propagating into the control backplane and causing unintended module resets or output state changes.

Communication reliability across the PROFIBUS DP network is ensured by the CP 342-5 communication processor, which maintains deterministic cycle times even under high bus load. In distributed I/O architectures using ET 200M remote stations with IM 153-2 interface modules, the 6ES7326-2BF10-0AB0 can be deployed remotely from the safety CPU while maintaining full SIL2 loop integrity — a critical advantage in large-footprint plants such as refineries, steel mills, and port terminal automation systems.

For cabinet-level protection against inductive load switching transients generated by solenoid valves and motor starters, the 6ES7326-2BF10-0AB0’s output channels incorporate internal diagnostic circuitry that continuously monitors load current, detects open-circuit and short-circuit conditions, and reports fault status to the safety CPU via the F-Bus — enabling predictive maintenance actions before a field fault escalates into a process shutdown.

Critical Industrial Safety Applications

The Siemens 6ES7326-2BF10-0AB0 is deployed across the most demanding industrial safety applications globally. In petrochemical and refinery plants, it drives emergency shutdown (ESD) valves and blowdown actuators in high-pressure hydrocarbon processing units, where a single output failure could trigger a major process hazard. Its SIL2 rating satisfies the requirements of IEC 61511 functional safety management systems, making it a preferred choice for safety instrumented function (SIF) implementation.

In electric power generation and transmission facilities, the module controls turbine trip solenoids, generator excitation contactors, and transformer protection relays — applications where response time and output state certainty are non-negotiable. The module’s internal watchdog and cross-circuit monitoring ensure that any internal fault results in a safe output state within the required process safety time.

In underground and open-cut mining operations, the 6ES7326-2BF10-0AB0 manages conveyor belt emergency stops, ventilation fan interlocks, and hoist brake release circuits. Its wide operating temperature tolerance and vibration resistance make it suitable for installation in mobile plant control panels and fixed infrastructure control rooms alike.

Water and wastewater treatment facilities rely on this module to control high-integrity pump isolation valves and chemical dosing system interlocks, where incorrect output states could result in environmental contamination or personnel exposure to hazardous substances. In metallurgical and steel production environments, it governs furnace burner management systems and ladle transfer car interlocks, operating reliably in the presence of intense electromagnetic interference generated by arc furnaces and induction heating equipment.

Across all these applications, the 6ES7326-2BF10-0AB0 is supported by SMARTNEXMSK’s in-stock availability, pre-shipment functional testing, and 12-month warranty — ensuring that replacement modules reach the field quickly and perform to specification from the first power-on cycle.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7326-2BF10-0AB0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified failsafe output functions within the warranty period, SMARTNEXMSK will provide a replacement unit at no additional cost. Warranty claims are processed with priority to minimize plant downtime.

Q2: How is the module tested before shipment?
Every 6ES7326-2BF10-0AB0 unit undergoes a full functional verification test prior to dispatch. This includes power-on self-test validation, output channel switching verification, diagnostic response testing, and communication interface checks. Only units that pass all test criteria are released for shipment, ensuring field-ready performance upon arrival.

Q3: Is this module compatible with my existing S7-300 safety CPU and ET 200M configuration?
The 6ES7326-2BF10-0AB0 is fully compatible with SIMATIC S7-300 failsafe CPUs including the CPU 315F-2 DP and CPU 317F-2 DP, as well as ET 200M distributed I/O stations equipped with the IM 153-2 interface module. It requires STEP 7 with the S7 Distributed Safety optional package for configuration. If you need compatibility confirmation for a specific hardware revision or firmware version, contact our technical team before ordering.

Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated stock of the 6ES7326-2BF10-0AB0 and related S7-300 safety modules to support long-term spare parts programs for plants with extended maintenance cycles. We can provide volume reservation agreements and scheduled delivery programs to ensure your facility is never exposed to critical spare part shortages during planned or unplanned maintenance windows.
