Siemens 6ES7331-7PF01-0AB0 SM331: Safety-Grade RTD Analog Input for Harsh Industrial Control Sites
The Siemens 6ES7331-7PF01-0AB0 is an 8-channel RTD/thermocouple analog input module from the SM331 series, designed for integration into the SIMATIC S7-300 programmable logic controller platform. Built to operate reliably in high-load, high-interference, and continuous-production industrial environments, this module is a cornerstone component for safety-critical measurement and control loops across heavy industry sectors.
In demanding applications — from petrochemical reactor temperature monitoring to power plant turbine control — signal integrity is non-negotiable. The 6ES7331-7PF01-0AB0 delivers high-resolution resistance temperature detector (RTD) and thermocouple signal acquisition with galvanic isolation between channels and the backplane bus, dramatically reducing the risk of signal drift caused by ground loops, electromagnetic interference, or common-mode voltage fluctuations. This isolation architecture is essential in control cabinets where variable frequency drives (VFDs), high-current contactors, and power switching equipment generate significant conducted and radiated noise.
The module supports a wide range of sensor types including Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, and standard thermocouple types (J, K, E, N, R, S, B), making it universally applicable across temperature measurement scenarios in process industries. Its configurable measurement range and resolution — up to 15-bit plus sign — ensure that even subtle thermal deviations in critical process equipment are captured accurately, enabling early fault detection before a process upset escalates into a safety incident or unplanned shutdown.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| SKU / Order Number | 6ES7331-7PF01-0AB0 |
| Series | SM331 — SIMATIC S7-300 Analog Input |
| Number of Channels | 8 (configurable in groups of 2) |
| Sensor Types Supported | RTD (Pt100/200/500/1000, Ni100/1000), Thermocouples (J, K, E, N, R, S, B), Resistance (0–600 Ω) |
| Resolution | 15-bit + sign |
| Galvanic Isolation | Yes — channels isolated from backplane bus |
| Supply Voltage | DC 24 V (via S7-300 backplane) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Degree of Protection | IP20 |
| EMC / Interference Immunity | Compliant with EN 61000-4 series; suitable for industrial EMI environments |
| Surge / Transient Protection | Internal protection against voltage transients on signal lines |
| Backplane Bus Compatibility | SIMATIC S7-300 (all CPU variants with analog I/O support) |
| Dimensions (W × H × D) | 40 mm × 125 mm × 120 mm |
| Weight | Approx. 300 g |
| Country of Origin | Germany |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
| Shipping Inspection | Full functional test and visual inspection prior to dispatch |
Control Cabinet Protection Strategy
In a well-engineered S7-300 control cabinet, the 6ES7331-7PF01-0AB0 does not operate in isolation — it functions as part of a layered protection architecture. The CPU module, such as the 6ES7315-2EH14-0AB0 (CPU 315-2 PN/DP), coordinates all I/O data exchange and executes the safety logic that depends on accurate analog inputs from this SM331 module. Alongside it, digital output modules like the 6ES7322-1BL00-0AA0 (SM322 DO 32×DC24V) act on the temperature data to trigger alarms, isolate equipment, or initiate controlled shutdowns.
Power supply integrity is equally critical. The 6ES7307-1EA01-0AA0 (PS307 5A Power Supply) provides stable DC 24 V to the S7-300 rack, ensuring that analog measurement accuracy is not compromised by power rail fluctuations — a common cause of spurious readings in high-load environments. For installations in areas with significant surge risk, pairing the system with a SITOP PSU100S 24V/10A (6EP1334-2BA20) power supply with integrated diagnostics adds an additional layer of supply-side protection.
Communication reliability is maintained through the 6GK7343-1EX30-0XE0 (CP343-1 Ethernet CP), which enables the S7-300 to participate in PROFINET or Industrial Ethernet networks without burdening the CPU. In legacy installations using PROFIBUS, the 6GK7342-5DA02-0XE0 (CP342-5) communications processor ensures deterministic fieldbus communication even under heavy network load. For distributed I/O architectures, the 6ES7153-2BA01-0XB0 (IM153-2 Interface Module) allows SM331 modules to be deployed in remote ET 200M stations, extending the analog input reach to field junction boxes closer to sensors — reducing cable runs and improving signal quality.
In safety interlock circuits, the 6ES7331-7PF01-0AB0 is often used alongside SIRIUS 3RK3 safety relay modules or SIMATIC S7-300F fail-safe CPUs (such as the 6ES7315-2FJ14-0AB0 CPU 315F-2 PN/DP) to form a complete functional safety loop compliant with IEC 62061 or EN ISO 13849. The analog temperature or resistance data feeds directly into the safety logic, enabling automatic process isolation when measured values exceed safe operating limits.
Critical Industrial Safety Applications
Petrochemical & Refinery Plants: In continuous catalytic cracking units and distillation columns, the 6ES7331-7PF01-0AB0 monitors reactor bed temperatures via Pt100 sensors. Accurate RTD measurement prevents thermal runaway events by triggering feed cutoff or emergency cooling sequences through the S7-300 safety logic before temperatures reach critical thresholds.
Power Generation & Utilities: Turbine bearing temperature monitoring in coal-fired and gas turbine power plants relies on high-resolution RTD inputs. The SM331’s 15-bit resolution enables early detection of bearing overheating — a leading indicator of mechanical failure — allowing planned maintenance rather than catastrophic forced outages.
Mining & Mineral Processing: In underground conveyor drive control systems and crusher motor protection panels, the module’s EMI immunity ensures that analog signals from motor winding temperature sensors remain stable despite the heavy electrical noise generated by large variable speed drives and high-voltage switchgear.
Water & Wastewater Treatment: Pump motor protection in water treatment facilities uses RTD inputs to monitor winding temperatures and prevent dry-run or overload damage. The 6ES7331-7PF01-0AB0 integrates seamlessly into existing S7-300 SCADA architectures, providing reliable data to operators without requiring system redesign.
Metallurgy & Steel Production: In electric arc furnace (EAF) control systems and continuous casting lines, precise temperature measurement of cooling water, electrode arms, and mold surfaces is essential for product quality and equipment longevity. The SM331’s multi-sensor compatibility (including high-temperature thermocouple types R, S, and B) makes it suitable for the extreme thermal ranges encountered in steelmaking.
Port & Heavy Logistics Equipment: Ship-to-shore crane drive systems and automated stacking crane control panels operate in coastal environments with high humidity and salt-laden air. The module’s robust industrial design and IP20 protection, combined with proper cabinet sealing, ensures reliable analog signal acquisition in these corrosive conditions.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the 6ES7331-7PF01-0AB0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified analog input functions within this period due to a component or assembly defect, we will provide a replacement or repair at no additional cost. The warranty does not cover damage caused by incorrect installation, overvoltage beyond rated limits, or physical mishandling.
Q2: What pre-shipment testing is performed on each module?

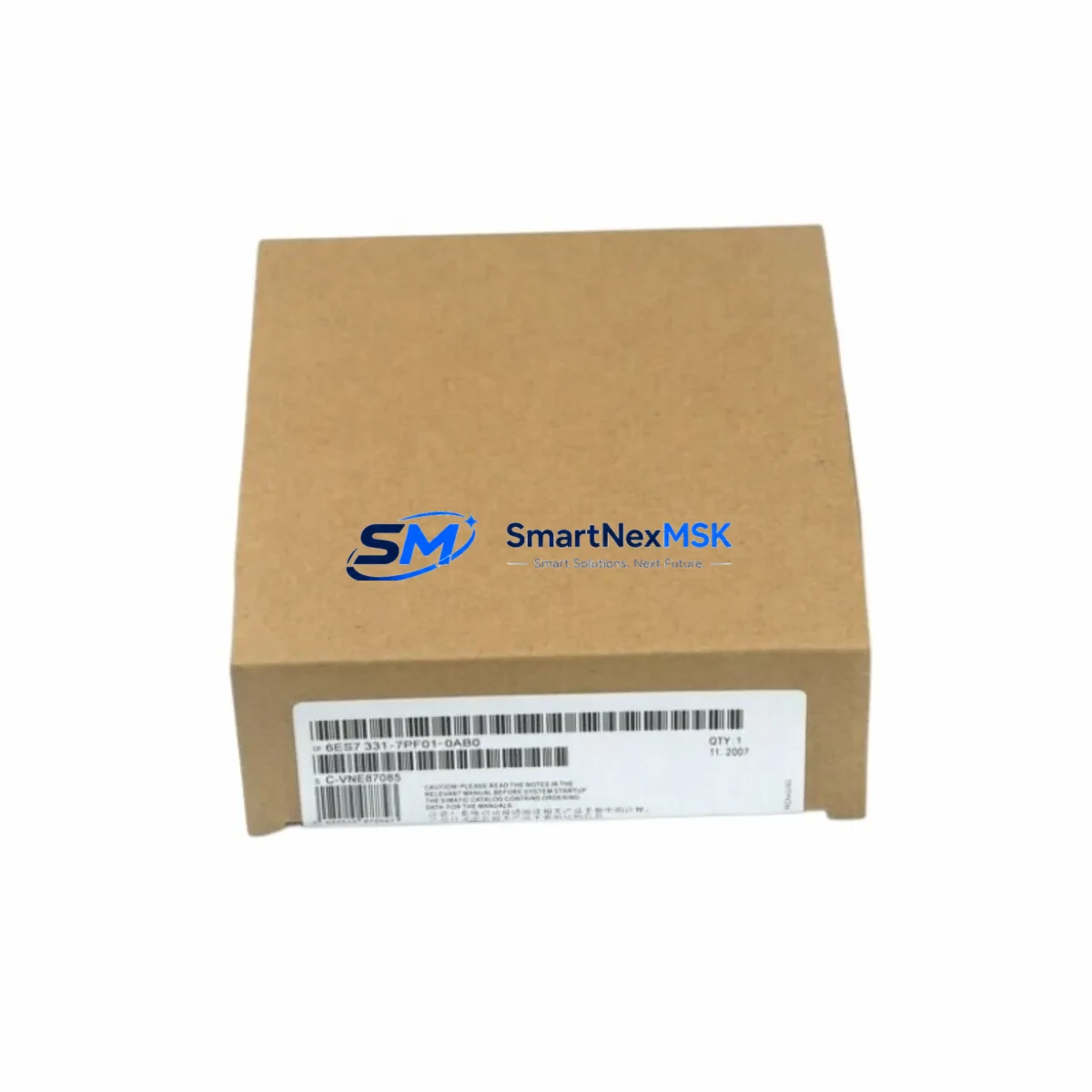

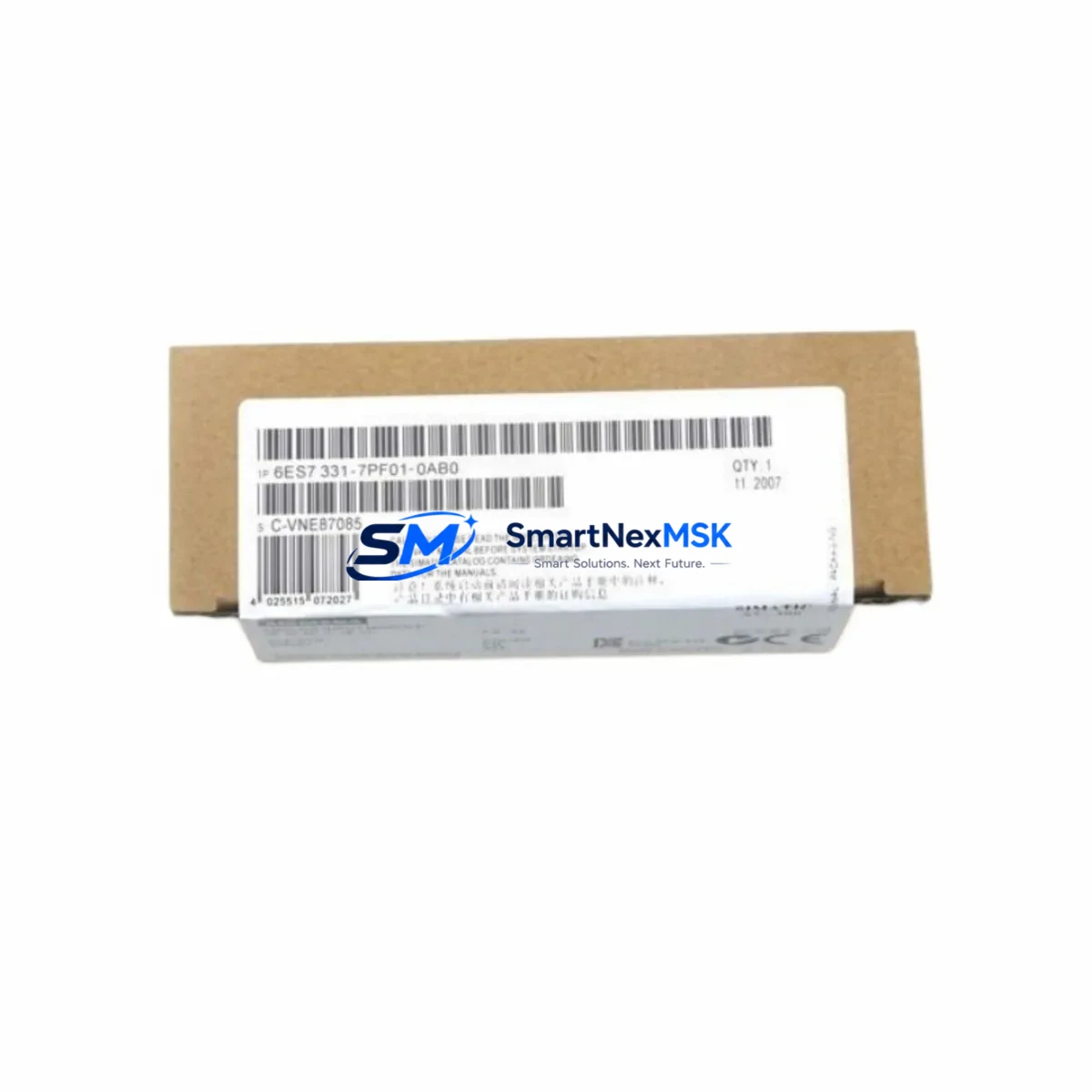

Every 6ES7331-7PF01-0AB0 unit undergoes a full functional inspection prior to dispatch. This includes verification of channel-by-channel analog input response, backplane bus communication integrity, and visual inspection for physical damage or counterfeit indicators. Modules are shipped in anti-static packaging with protective end caps to prevent connector damage in transit.
Q3: Is this module compatible with all S7-300 CPU variants and existing S7-300 racks?
Yes. The 6ES7331-7PF01-0AB0 is compatible with all standard SIMATIC S7-300 racks and CPU variants that support analog signal modules, including compact CPUs (e.g., CPU 312, 313, 314) and advanced CPUs (e.g., CPU 315, 317, 319). It is also compatible with ET 200M distributed I/O stations using the IM153 interface module. No firmware upgrade is required for integration into existing S7-300 systems.
Q4: Can long-term supply and replacement support be guaranteed for this module?
We maintain dedicated stock of the 6ES7331-7PF01-0AB0 to support both immediate replacement needs and planned maintenance programs. For facilities operating S7-300 systems in critical infrastructure, we recommend establishing a consignment stock arrangement to ensure zero-delay spare availability. Our team can provide lead time commitments and volume pricing for multi-unit procurement to support long-term operational continuity.
