SIEMENS 6ES7332-5HB01-0AB0 Spare for S7-300 Automation

SIEMENS 6ES7332-5HB01-0AB0 Spare for S7-300 Automation: Spare Replacement & Industrial Downtime Risk Control

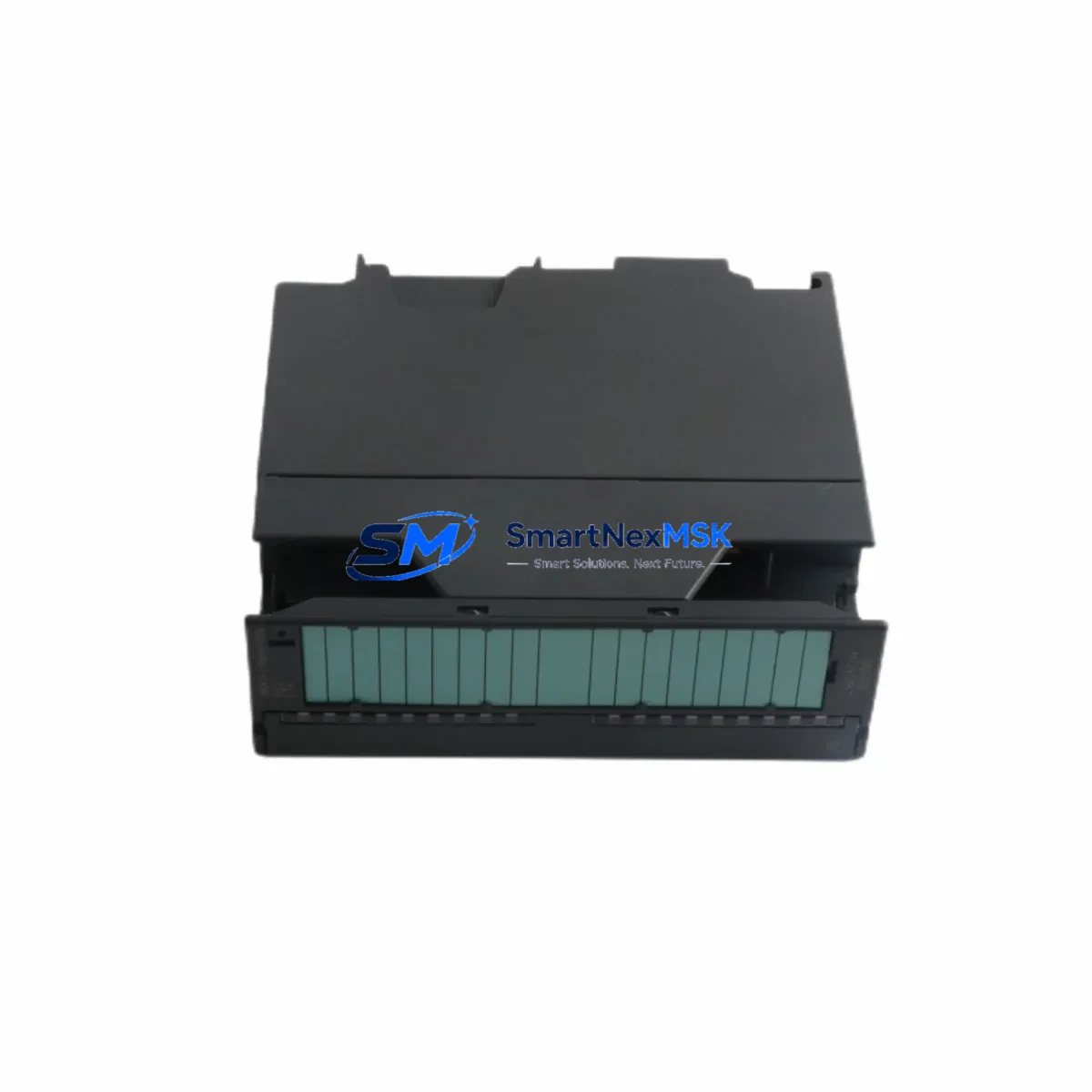

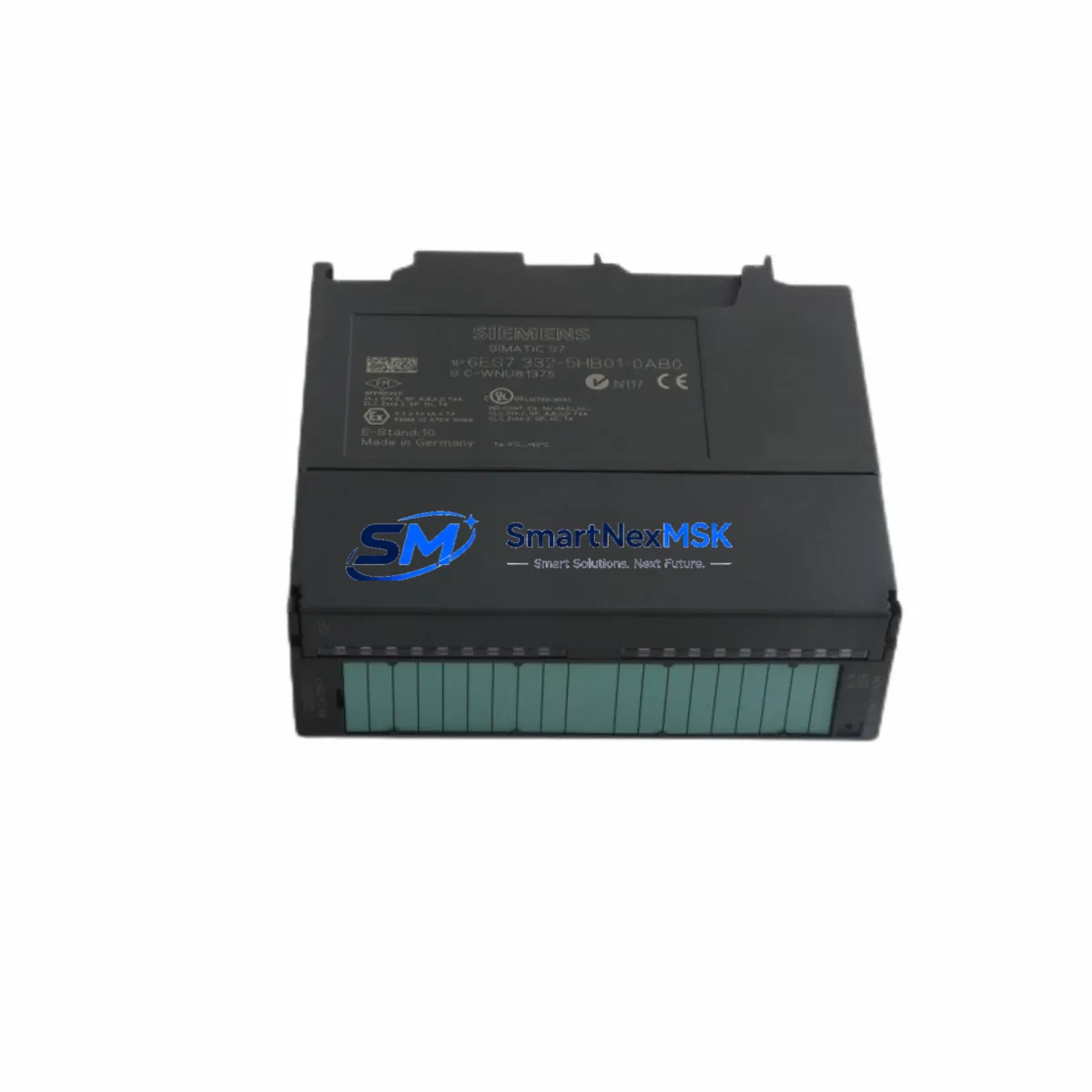

The SIEMENS 6ES7332-5HB01-0AB0 is an original SM332 8-channel analog output module designed for the SIMATIC S7-300 programmable logic controller platform. In process control, factory automation, and continuous manufacturing environments, this module serves as the critical interface between the PLC and field actuators — including control valves, variable-speed drives, and positioners. When this module fails or degrades, the entire control loop is compromised, leading to unplanned downtime, production loss, and potential safety incidents. Maintaining a verified spare on the shelf is the most effective strategy for rapid restoration of normal operations.

At SMARTNEXMSK, every 6ES7332-5HB01-0AB0 unit is sourced from authorized supply chains, individually tested for output accuracy and channel integrity, and shipped with a 12-month warranty. Our stock is continuously replenished to support long-term supply commitments for maintenance teams managing aging S7-300 installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Experienced maintenance engineers know that replacing the 6ES7332-5HB01-0AB0 in isolation rarely resolves the root cause of a control loop failure. A thorough site inspection should accompany every module swap. Begin by verifying the 24 VDC backplane power supply — a degraded PS 307 or PS 305 power supply module can cause intermittent analog output errors that mimic module failure. Check the supply voltage at the rail before condemning the SM332.

Next, inspect the SM321 digital input module and SM322 digital output module slots adjacent to the analog output module. Shared rack faults, such as a cracked backplane connector or a loose bus connector (6ES7390-0AA00-0AA0), can affect multiple modules simultaneously. Replacing only the analog output module without addressing a damaged bus connector will result in repeat failures.

For systems using the 6ES7332-5HB01-0AB0 to drive 4–20 mA current loops to field instruments, verify the integrity of the signal isolator or loop-powered barrier in the circuit. Zener barriers and galvanic isolators in hazardous-area installations are frequently overlooked during module replacement and can introduce loop resistance errors that cause calibration drift after the new module is installed.

If the S7-300 rack communicates via PROFIBUS DP using a CP 342-5 or IM 153-2 interface module, confirm that the DP address and baud rate settings are intact after the module swap. A reset or firmware mismatch on the communications module can prevent the CPU — such as the CPU 315-2 DP or CPU 317-2 PN/DP — from recognizing the restored analog output channel.

Terminal block condition is another critical checkpoint. The 40-pin front connector (6ES7392-1AM00-0AA0) used with the SM332 should be inspected for oxidized contacts, loose screw terminals, and insulation damage. In high-vibration environments such as compressor stations or press lines, terminal loosening is a common cause of intermittent analog signal loss. Replace the front connector if contact resistance is elevated or if the connector has been in service for more than five years.

For facilities running extended S7-300 installations, consider stocking the SM334 analog I/O combination module and SM331 analog input module alongside the 6ES7332-5HB01-0AB0. These modules share the same rack, power budget, and STEP 7 configuration environment, and a failure in any one of them can disrupt the entire analog control strategy. A coordinated spare parts kit covering the full analog I/O complement reduces mean time to repair (MTTR) significantly.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the faulty module, use STEP 7 or TIA Portal to read the current hardware configuration (HW Config) and note the slot address, module order number, and any configured channel parameters (output range, substitution value, diagnostic settings). Export the configuration as a backup.

Step 2 — Safe isolation: Switch the CPU to STOP mode. De-energize the 24 VDC load power supply feeding the SM332 output channels. Do not rely solely on the CPU STOP state — field actuators may retain power from independent sources. Verify zero voltage at the front connector terminals before disconnecting.

Step 3 — Module removal and installation: Disconnect the 40-pin front connector. Release the module locking screw and slide the module out of the rack. Insert the replacement 6ES7332-5HB01-0AB0 into the same slot. Reconnect the front connector, ensuring the connector coding key matches the module type. Tighten the locking screw to the specified torque.

Step 4 — Configuration restore and commissioning: Power up the rack. The CPU should automatically recognize the replacement module if the order number matches the HW Config entry. If a “module mismatch” fault appears, re-download the hardware configuration. Verify all 8 output channels by commanding known setpoints from the STEP 7 variable table and measuring the corresponding output signals at the front connector terminals.

Step 5 — Documentation: Record the replacement date, new module serial number, and post-replacement test results in the site maintenance log. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for critical analog output capacity.

This workflow applies equally to systems where the 6ES7332-5HB01-0AB0 is replacing an older 6ES7332-5HB00-0AB0 (earlier hardware revision). The two revisions are functionally compatible and use the same slot assignment, front connector, and STEP 7 module catalog entry, making the upgrade transparent to the control system.

Spare Parts Support FAQ

Q1: Is the 6ES7332-5HB01-0AB0 still available as a new original part, or only as refurbished stock?
A: SMARTNEXMSK supplies original new-production 6ES7332-5HB01-0AB0 units sourced from authorized distribution channels. Each unit is individually tested and ships with a 12-month warranty covering manufacturing defects and functional failure. Refurbished or repaired units are clearly identified as such and are never substituted without customer confirmation.

Q2: How do I confirm compatibility before ordering if my system uses a different CPU or rack configuration?
A: The 6ES7332-5HB01-0AB0 is compatible with all standard S7-300 racks and CPUs that support SM300-series analog output modules. Compatibility is determined by the slot type (SM slot), the backplane bus standard, and the STEP 7 hardware catalog entry — not by the specific CPU model. If you provide your existing HW Config export or rack layout, our technical team can confirm compatibility before shipment.

Q3: What pre-shipment testing is performed on each unit?
A: Every 6ES7332-5HB01-0AB0 undergoes output channel accuracy testing across all 8 channels, backplane bus communication verification, and electrical isolation testing between channels and the bus interface. Test results are available upon request. Units that do not meet SIEMENS factory specifications are rejected and not shipped.

Q4: What is the recommended inventory strategy for facilities with multiple S7-300 racks using SM332 modules?
A: For facilities with 3 or more SM332 modules in service, we recommend maintaining a minimum of 1 spare unit per 5 installed modules, with a floor of 1 unit regardless of installed quantity. For critical process lines where downtime cost exceeds USD 10,000 per hour, a 1:3 spare ratio is advisable. SMARTNEXMSK offers long-term supply agreements and reserved stock programs to support multi-year maintenance contracts.
