SIEMENS 6ES7332-5HD01-0AB0 Safety-Enhanced Analog Output

SIEMENS 6ES7332-5HD01-0AB0 Safety-Enhanced Analog Output Module for Harsh Industrial Sites

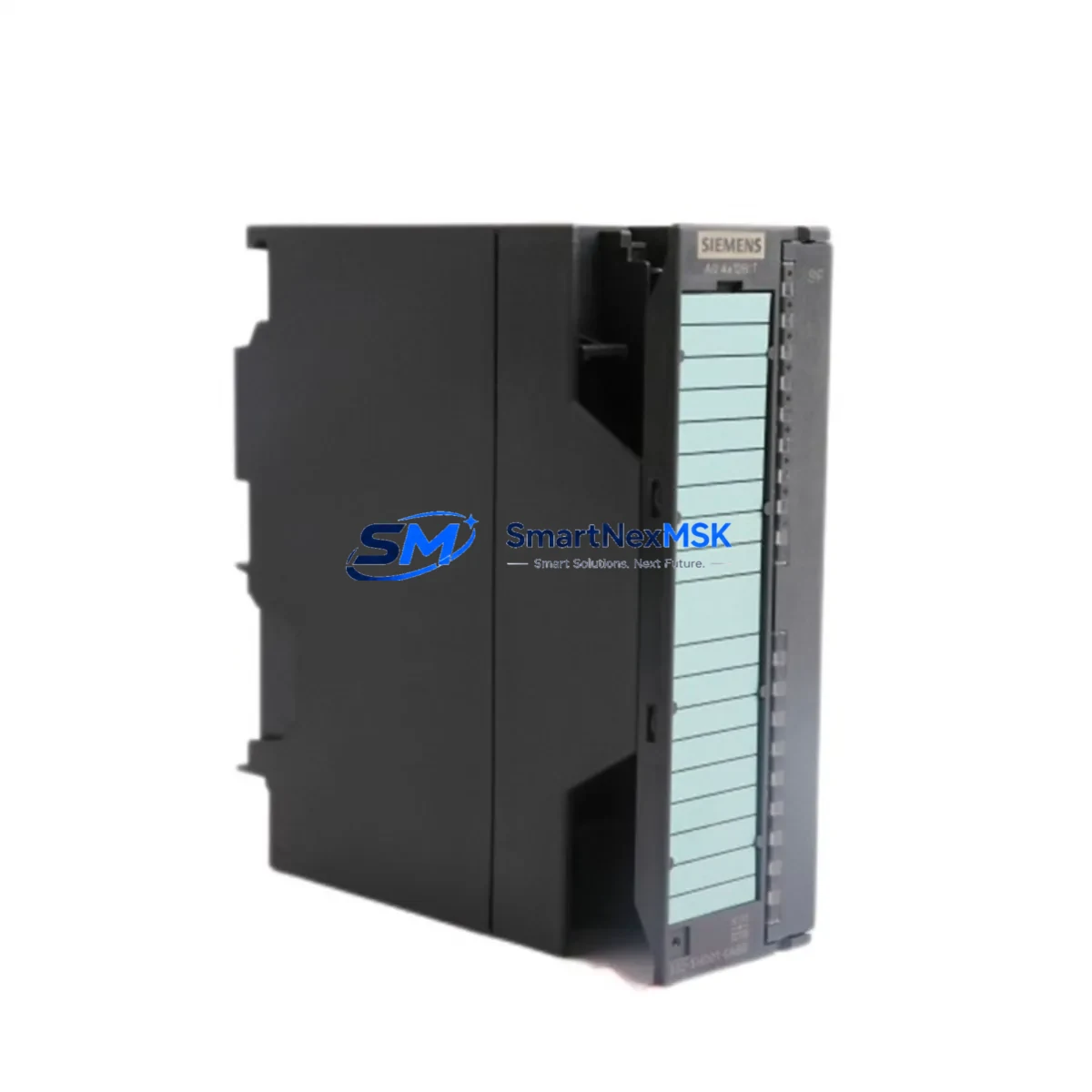

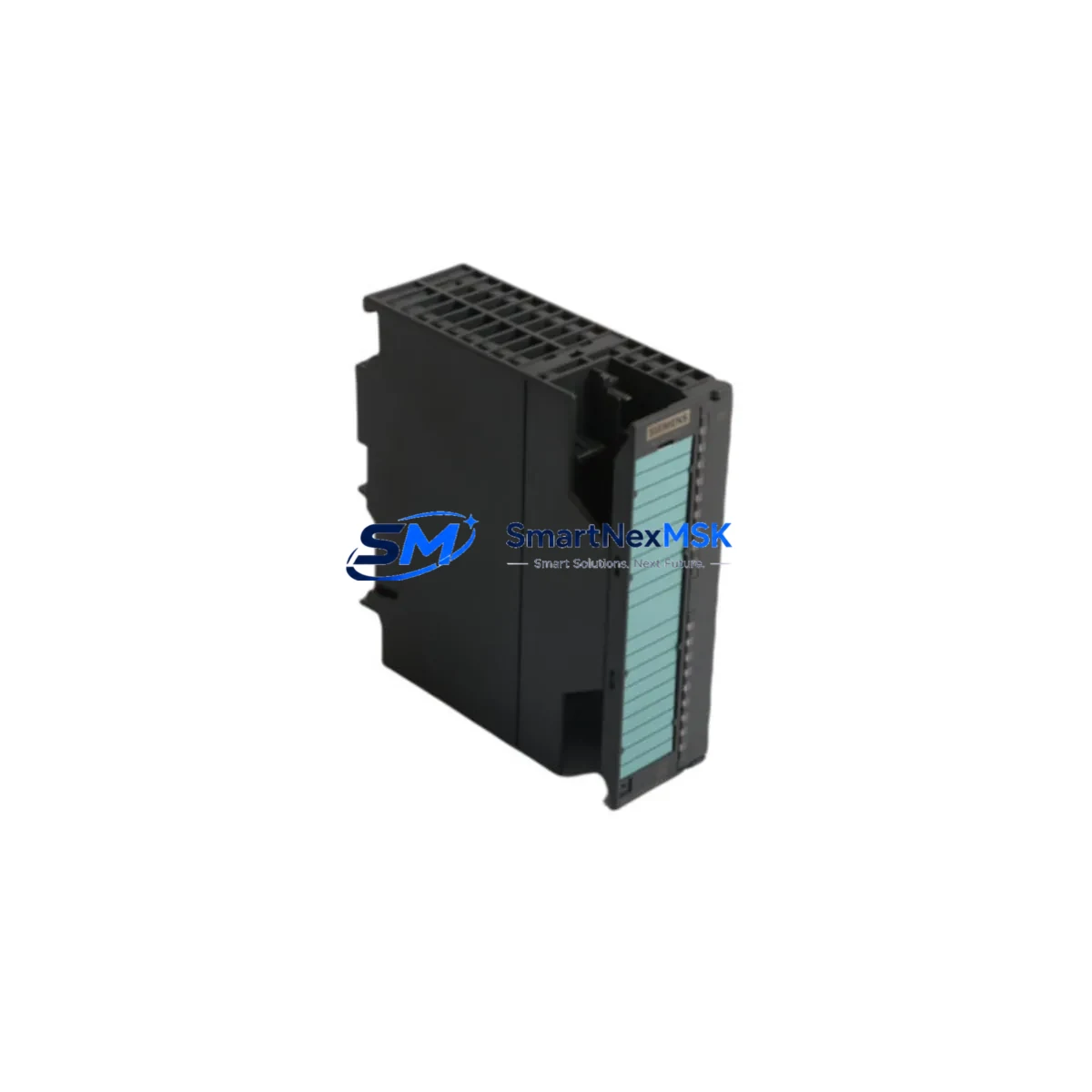

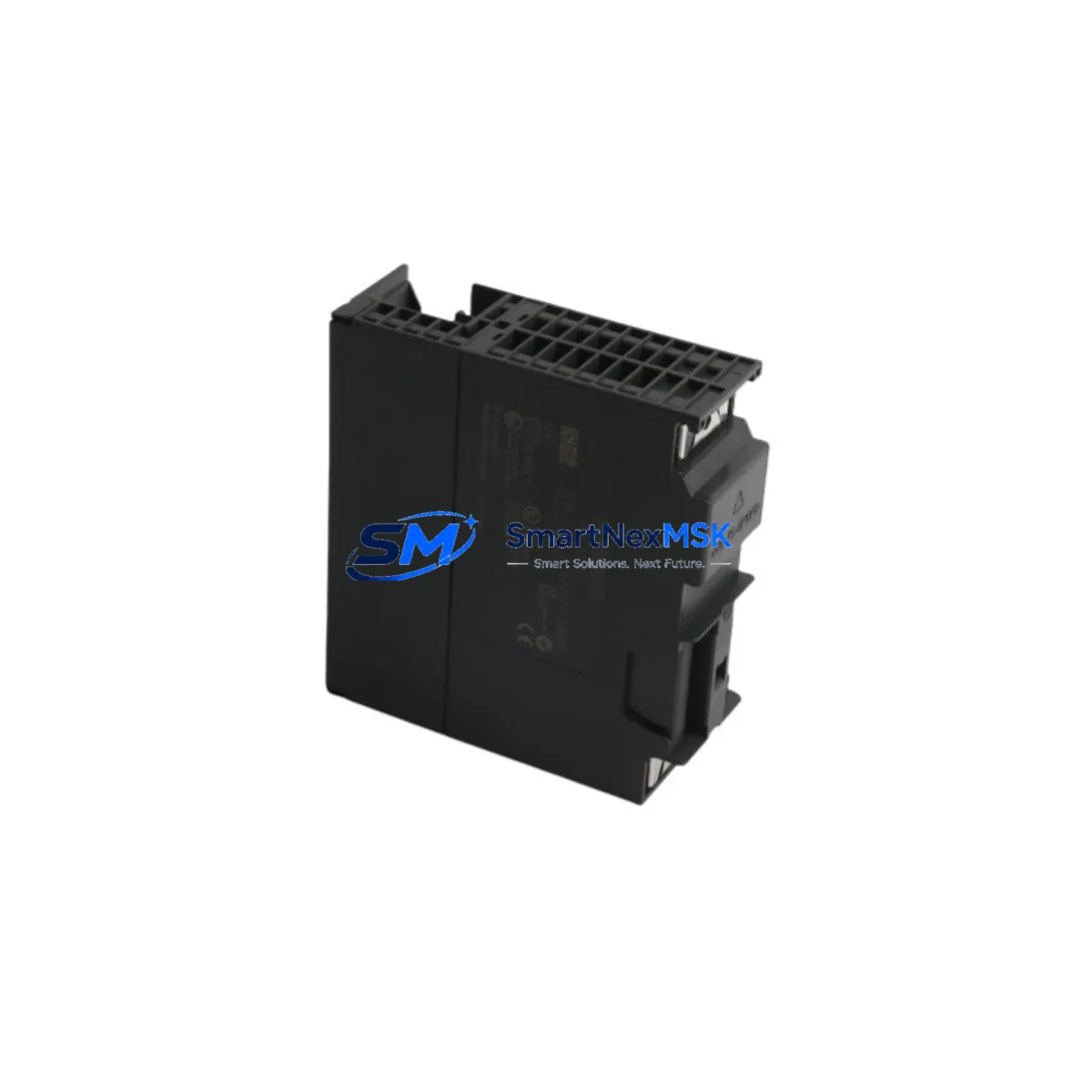

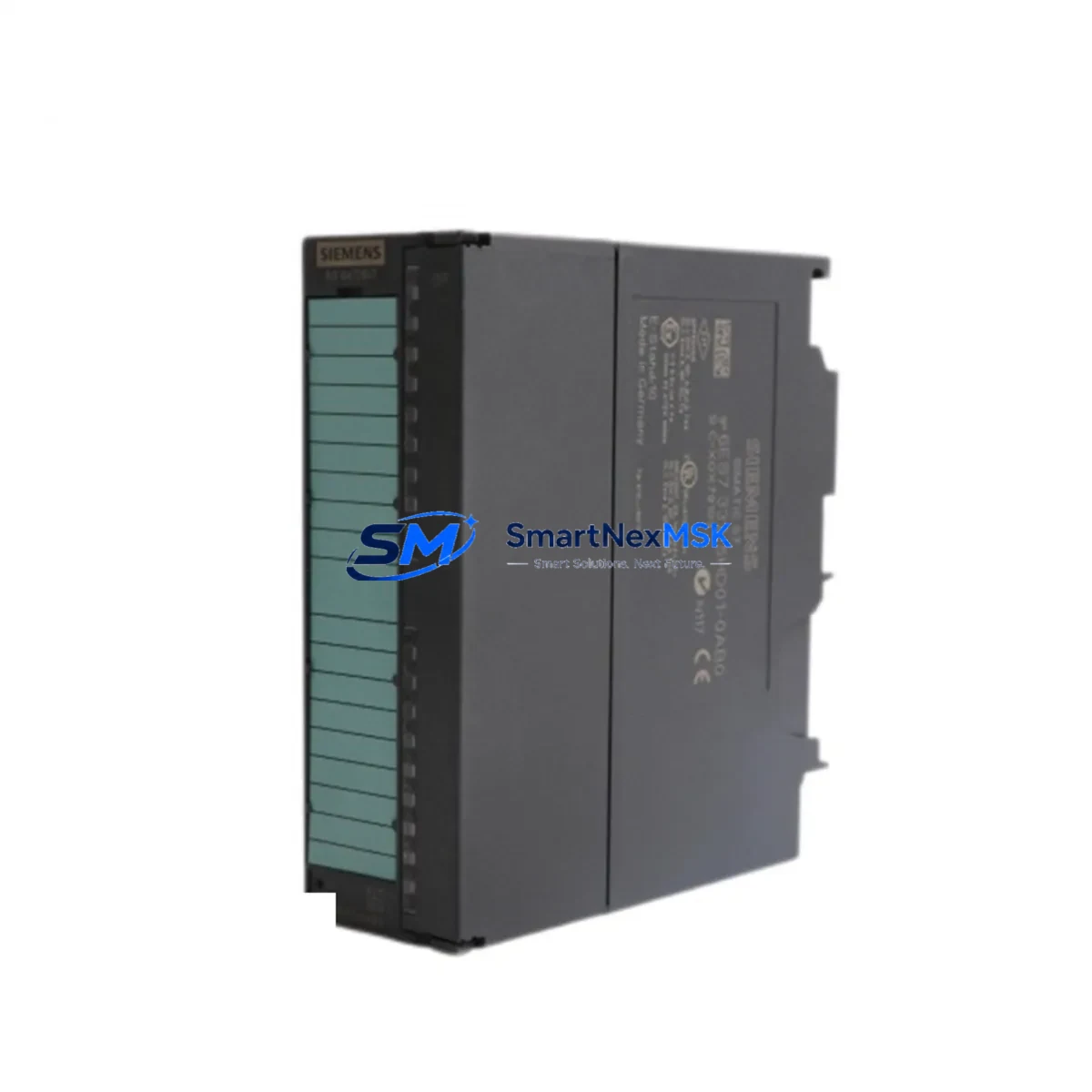

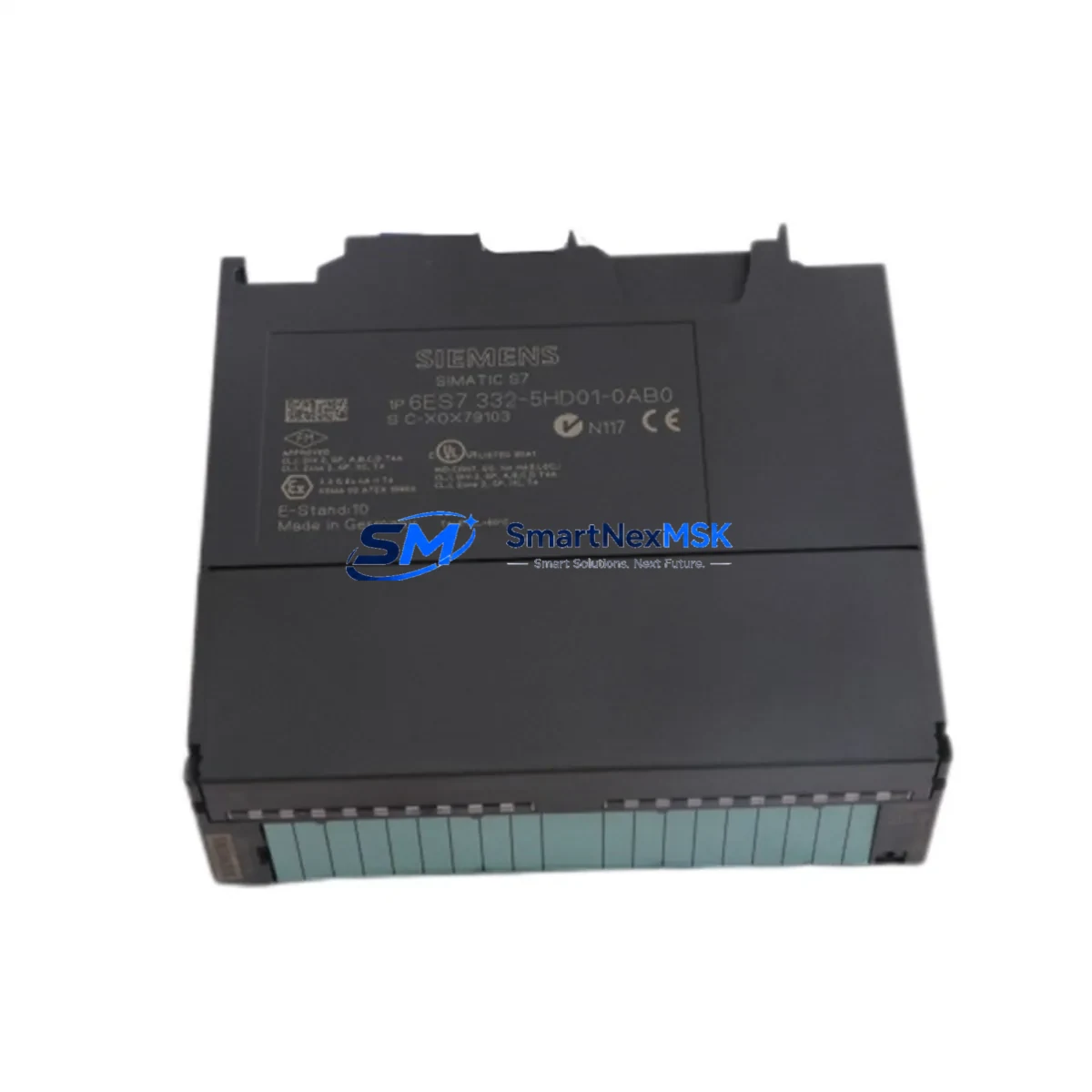

The SIEMENS 6ES7332-5HD01-0AB0 is a 4-channel analog output module engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to operate reliably in high-load, high-interference industrial environments, this module delivers precise 0–20 mA / 4–20 mA current output and ±10 V voltage output across all four channels simultaneously. Its robust hardware architecture makes it a trusted component in critical control loops where signal integrity, output stability, and continuous availability are non-negotiable.

In demanding industrial facilities — including petrochemical plants, power generation stations, metallurgical smelters, water treatment works, mining operations, and continuous-process manufacturing lines — analog output accuracy directly governs process safety. A drifting output signal can cause valve misposition, pump over-speed, or heater runaway. The 6ES7332-5HD01-0AB0 addresses these risks through hardware-level output monitoring, short-circuit protection on every channel, and a thermally stable design that maintains calibration accuracy across the full operating temperature range of 0 °C to +60 °C.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable analog output performance in a control cabinet depends on the integrity of the entire signal chain — from the CPU through the backplane bus to the field device. The 6ES7332-5HD01-0AB0 is designed to integrate seamlessly within a hardened S7-300 control cabinet architecture. It operates alongside the SIEMENS 6ES7315-2EH14-0AB0 CPU 315-2 PN/DP, which manages the program cycle and communicates with the analog output module via the high-speed S7-300 backplane. The CPU’s watchdog and diagnostic functions continuously monitor module health, triggering safe-state outputs if a fault is detected.

Power supply stability is critical for analog accuracy. The SIEMENS 6EP1333-3BA00 SITOP PSU100S 24 VDC/5 A power supply provides a regulated, low-ripple 24 VDC rail that feeds the module’s L+ terminal, preventing output drift caused by supply voltage fluctuation. In installations where power quality is poor or where long cable runs introduce noise, a SIEMENS 6EP1961-2BA00 SITOP UPS module can be added to buffer transient dips and maintain output continuity during brief supply interruptions.

On the signal input side, the SIEMENS 6ES7321-1BL00-0AA0 SM 321 32-channel digital input module and 6ES7322-1BL00-0AA0 SM 322 32-channel digital output module handle discrete interlock signals that gate the analog output channels during emergency stop sequences. This ensures that the 6ES7332-5HD01-0AB0 outputs are driven to a safe state — typically 0 mA or 0 V — whenever a safety relay or emergency stop circuit opens.

For installations requiring analog input feedback to close the control loop, the SIEMENS 6ES7331-7KF02-0AB0 SM 331 8-channel analog input module reads process variable signals from field transmitters and feeds them back to the CPU for PID computation. The analog output module then drives the final control element — a control valve positioner, variable-frequency drive, or electro-pneumatic converter — based on the computed output. Shielded signal cables terminated at the SIEMENS 6ES7392-1AM00-0AA0 front connector minimize capacitive coupling and ground loop interference between the module and field devices.

In cabinets where PROFIBUS DP communication is used, the SIEMENS 6GK1500-0FC10 PROFIBUS bus connector with integrated termination resistor ensures correct bus impedance at the segment end, preventing reflections that could corrupt cyclic data exchange and cause spurious output updates. For PROFINET-based architectures, the SIEMENS 6GK7343-1EX30-0XE0 CP 343-1 communications processor provides deterministic Ethernet connectivity with hardware-level redundancy support.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the 6ES7332-5HD01-0AB0 drives control valve positioners on feed, reflux, and product streams. Its short-circuit-protected outputs and EMI-hardened design ensure that valve positions remain stable even in the presence of high-frequency interference from variable-speed drives and high-voltage switchgear. In safety instrumented systems operating at SIL 1 or SIL 2 levels, the module is deployed in non-safety layers with hardwired override capability, ensuring that a module fault does not prevent manual intervention.

Power Generation and Substation Control: Turbine governor systems and excitation control loops require analog outputs with sub-millisecond settling times and high linearity. The 6ES7332-5HD01-0AB0 meets these demands, providing stable 4–20 mA signals to electro-hydraulic actuators and automatic voltage regulators. Its wide operating temperature range and vibration tolerance make it suitable for installation in generator control panels subject to mechanical vibration from rotating machinery.

Mining and Mineral Processing: Conveyor speed control, flotation cell level regulation, and crusher load management all rely on accurate analog outputs. In underground mining environments where cable runs can exceed 500 meters, the current output mode (4–20 mA) of the 6ES7332-5HD01-0AB0 provides inherent noise immunity and allows live-zero fault detection — a 0 mA signal indicates a broken wire rather than a valid zero command, enabling the control system to trigger an alarm and initiate a safe shutdown.

Water and Wastewater Treatment: Dosing pump speed control, aeration blower modulation, and UV disinfection intensity regulation are typical applications. The module’s ability to drive both current and voltage outputs from the same hardware platform simplifies cabinet design and reduces spare-part inventory. Its IP20 enclosure rating, combined with a sealed control cabinet, provides adequate protection against the humid, chemically aggressive atmospheres common in water treatment facilities.

Metallurgy and Steel Production: Electric arc furnace electrode positioning, continuous casting mold level control, and rolling mill tension regulation demand analog outputs that remain stable under extreme electromagnetic interference from high-current bus bars and arc furnace transformers. The 6ES7332-5HD01-0AB0’s compliance with EN 61000-4 immunity standards — including conducted and radiated immunity, electrostatic discharge, and electrical fast transient burst — makes it a proven choice for these environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7332-5HD01-0AB0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to meet its published output accuracy, channel isolation, or communication specifications within the warranty period, we will replace or repair the unit at no charge. Warranty claims are processed within 5 business days of receipt of the returned module, and a replacement unit is dispatched from stock to minimize your downtime.

Q2: What pre-shipment testing is performed on each module?
Every 6ES7332-5HD01-0AB0 unit undergoes a multi-point functional test before dispatch. This includes verification of all four analog output channels across the full output range (0–20 mA and ±10 V), short-circuit protection activation testing, backplane bus communication check, and visual inspection for physical damage. Test records are retained and can be provided upon request for quality audit purposes.

Q3: Is the 6ES7332-5HD01-0AB0 compatible with all S7-300 CPU variants and expansion racks?
Yes. The module is compatible with all standard S7-300 CPUs — including the CPU 312, 313, 314, 315, 317, and 319 families — as well as ET 200M distributed I/O stations using the IM 153-x interface module. It can be installed in any slot position on the S7-300 profile rail, subject to the maximum module count and power budget of the specific CPU. No firmware update is required for integration with existing S7-300 configurations.

Q4: Can long-term supply and replacement support be guaranteed?
We maintain dedicated stock of the 6ES7332-5HD01-0AB0 and its compatible accessories to support ongoing maintenance and emergency replacement requirements. For facilities with critical uptime requirements, we recommend holding at least one spare module on-site. We can supply modules on short lead times and offer consignment stock arrangements for high-volume customers. Our supply chain covers both current-production and refurbished-tested units, ensuring continuity even for legacy S7-300 installations that are no longer in active production by the OEM.
