Siemens 6ES7332-5RD00-0AB0 Safety-Enhanced Analog Output

Siemens 6ES7332-5RD00-0AB0 Safety-Enhanced Analog Output for Harsh Industrial Sites

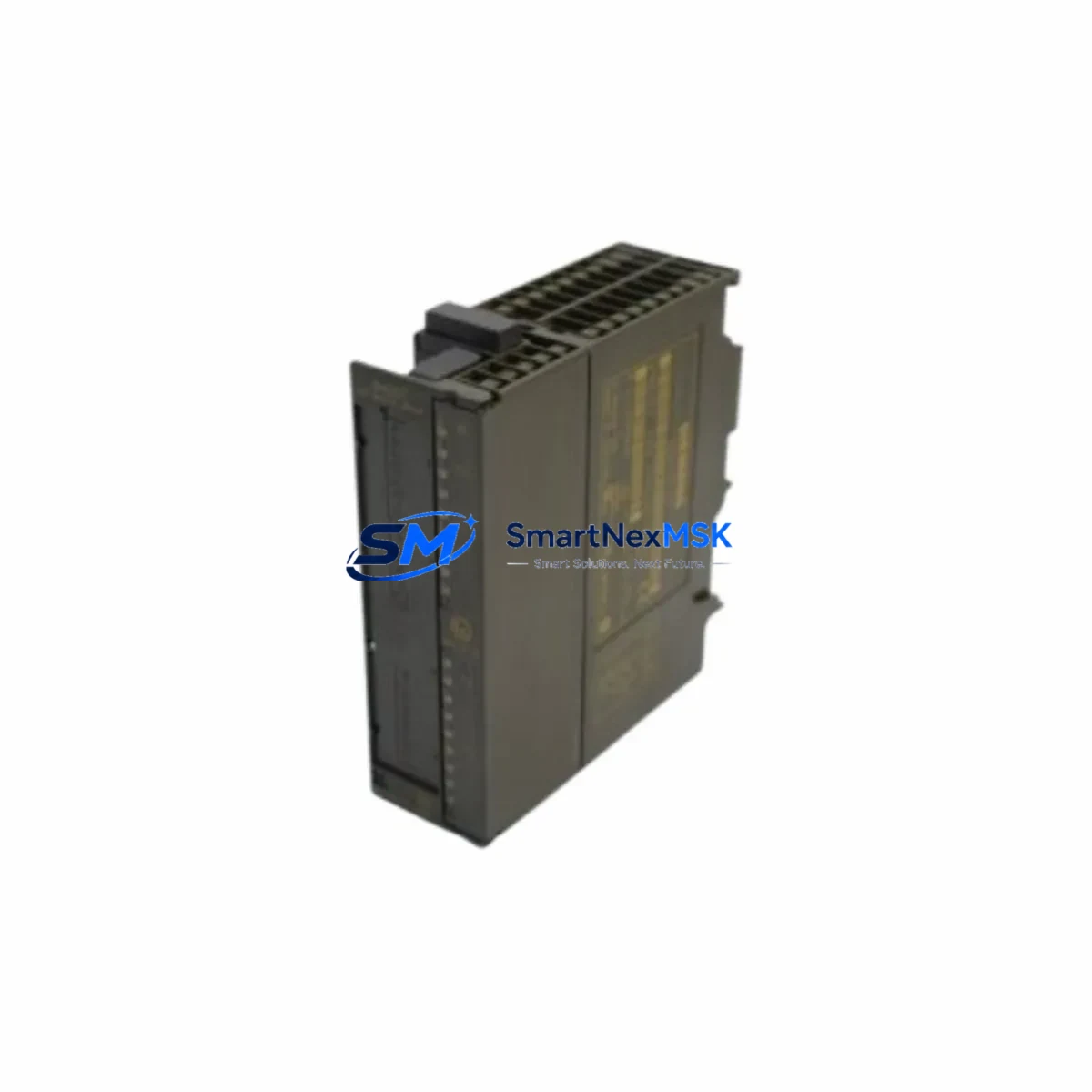

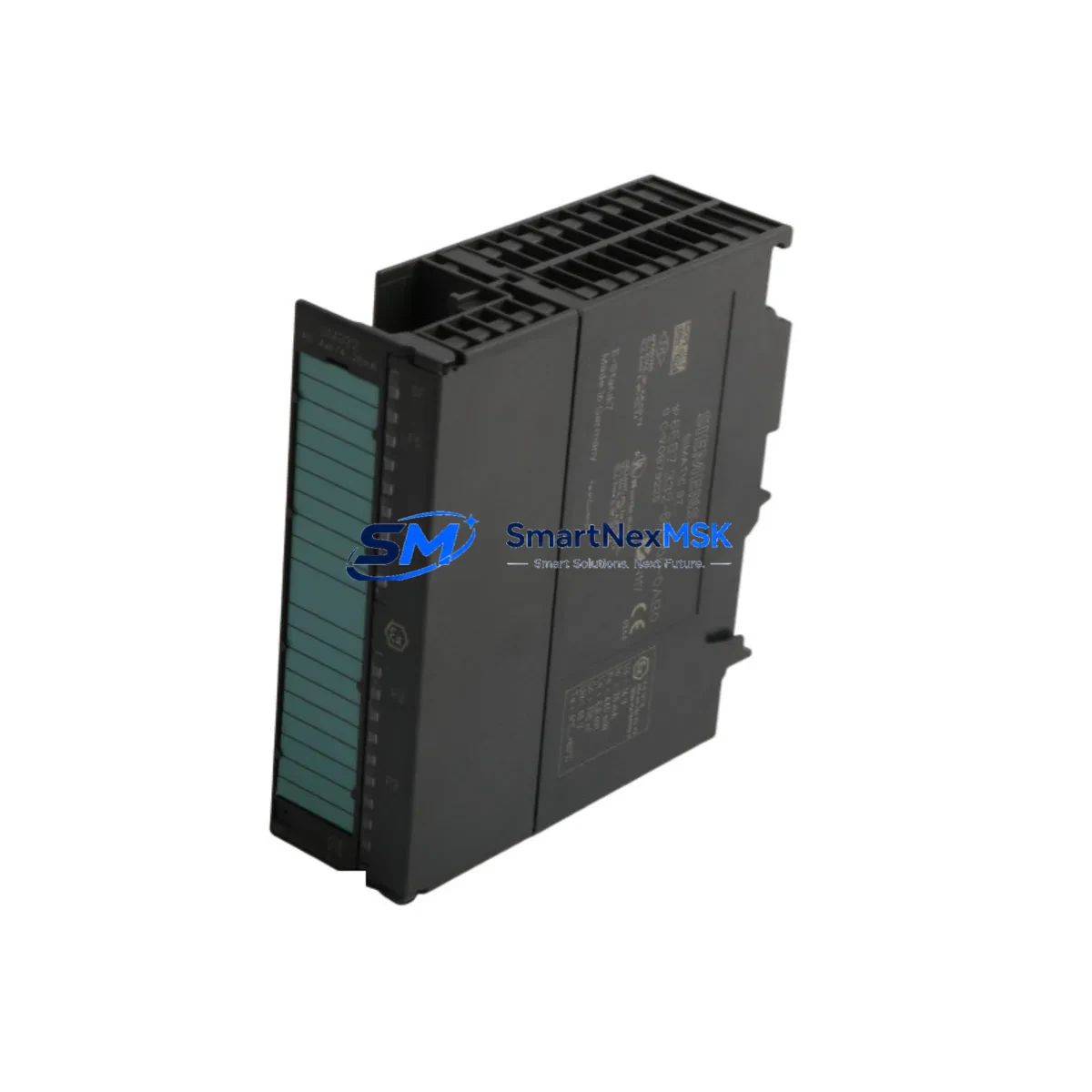

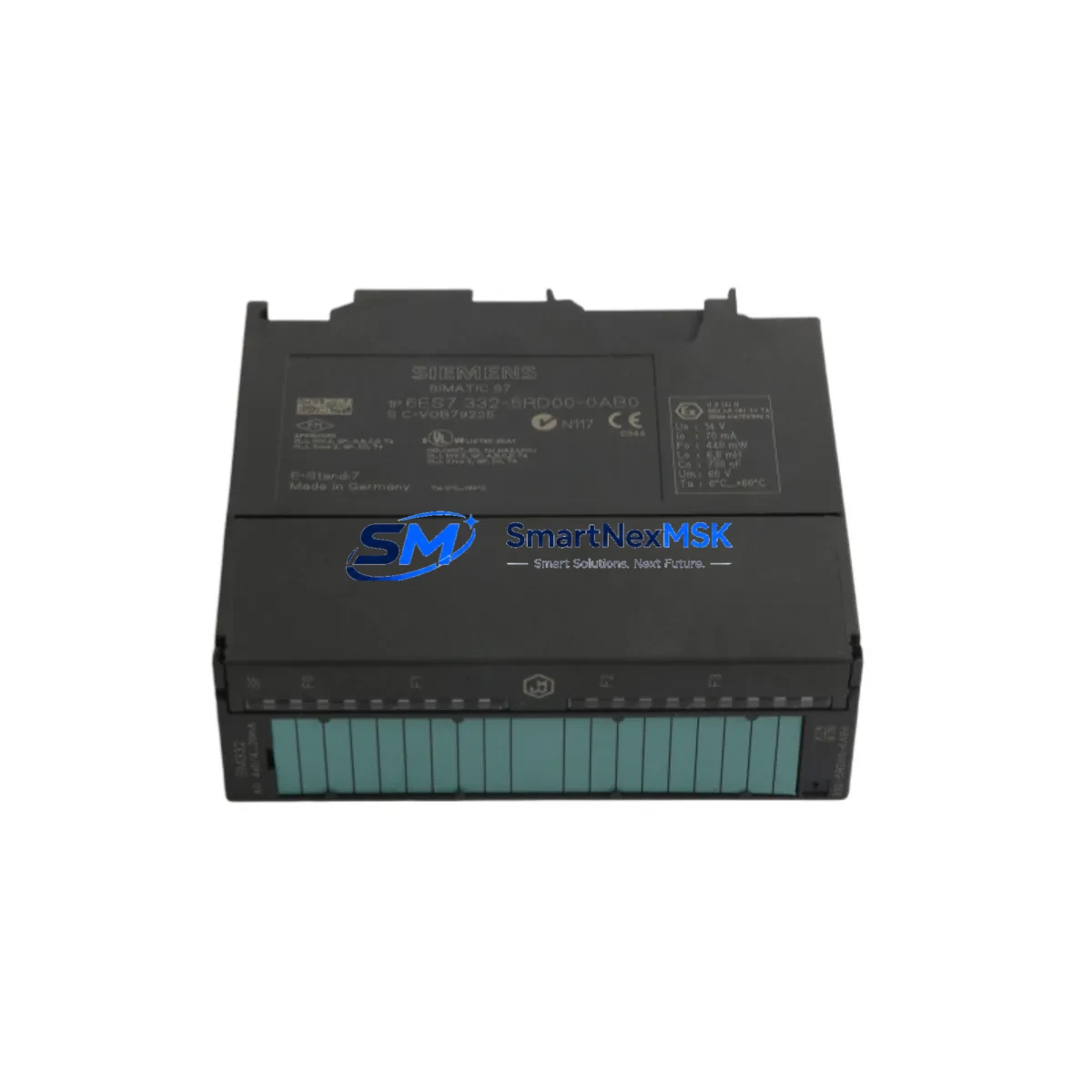

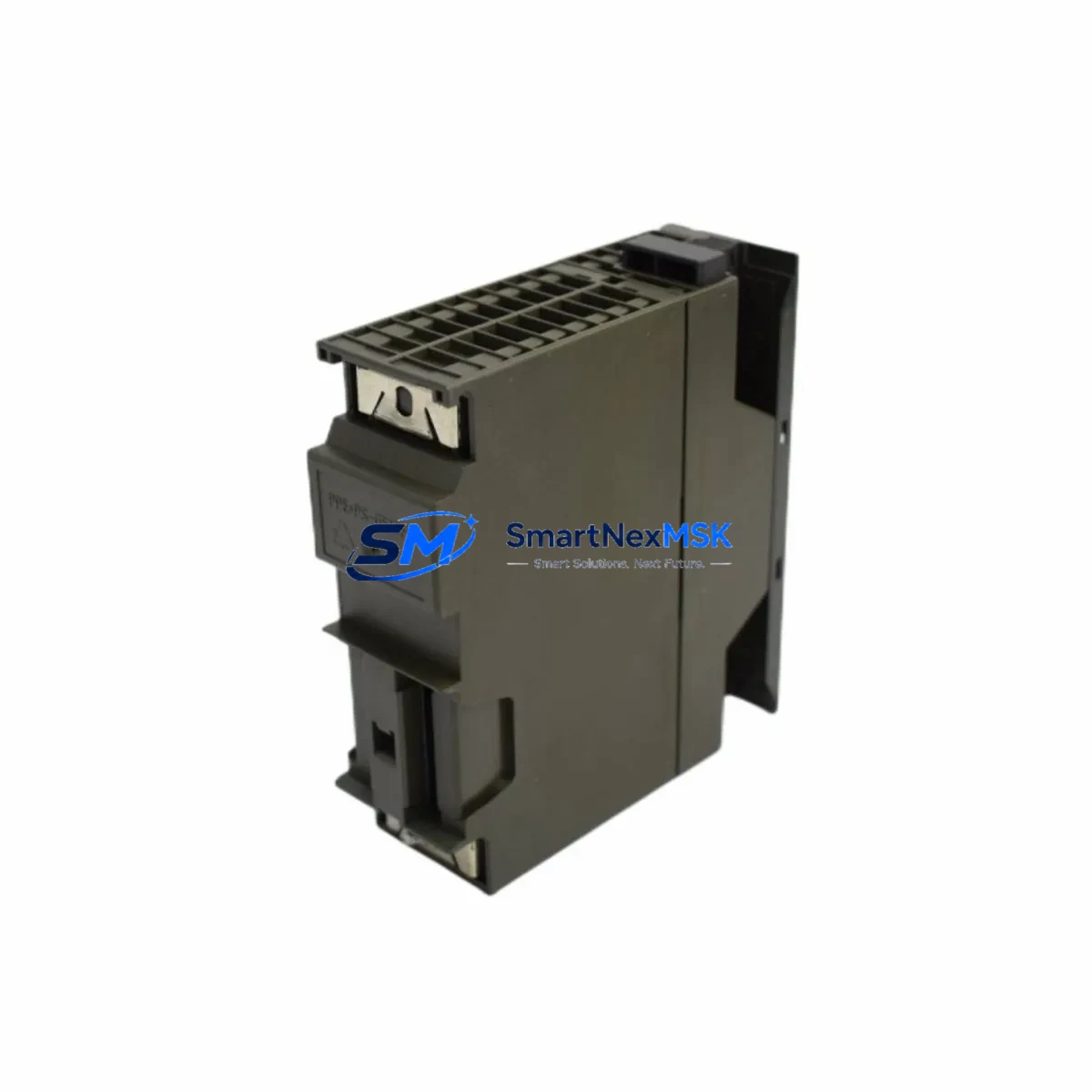

The Siemens 6ES7332-5RD00-0AB0 is a high-reliability SM 332 series 4-channel analog output module engineered for the SIMATIC S7-300 programmable logic controller platform. Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port automation systems — this module delivers precise, stable analog signal output even under conditions of extreme electrical noise, voltage fluctuation, and thermal stress.

In critical control loops where signal integrity is non-negotiable, the 6ES7332-5RD00-0AB0 provides consistent 0–10 V or 4–20 mA output across all four channels, maintaining resolution and accuracy that process safety instrumented systems (SIS) and distributed control architectures depend upon. Its robust design minimizes the risk of control interruption, signal drift, and module misoperation — three of the most common root causes of unplanned shutdowns in continuous manufacturing environments.

When integrated into a SIMATIC S7-300 control cabinet alongside the SM 321 digital input module and SM 322 digital output module, the 6ES7332-5RD00-0AB0 forms a complete I/O backbone capable of handling both discrete and analog process variables within a single rack. The module communicates over the S7-300 backplane bus with deterministic timing, ensuring that the CPU 315-2 DP or CPU 317-2 PN/DP receives output acknowledgment without latency-induced control errors — a critical requirement in interlock and safety relay circuits.

Surge and transient protection is a key safety attribute of this module. In facilities where heavy motor drives, arc furnaces, or high-voltage switching equipment operate in proximity to control panels, the 6ES7332-5RD00-0AB0’s EMI shielding and galvanic isolation architecture prevent surge energy from propagating into the analog output channels. This directly reduces the risk of actuator misoperation — such as unintended valve opening or pump speed deviation — that could trigger process upsets or safety system activations. Pairing this module with a SITOP PSU100S 24 V DC power supply and a SIMATIC ET 200M distributed I/O station further reinforces the power quality and signal stability of the entire control loop.

For installations requiring functional safety compliance, the 6ES7332-5RD00-0AB0 is commonly deployed alongside SIMATIC S7 F-CPU fail-safe processors and SM 326 F digital safety output modules within SIL-rated interlock architectures. While the SM 332 itself is a standard (non-F) module, its deterministic output behavior and high mean time between failures (MTBF) make it a dependable component in the non-safety layer of a defense-in-depth control strategy. Engineers frequently specify it in combination with SIRIUS 3RK3 safety relays to manage actuator-level interlocks in hazardous area control panels.

Communication reliability is maintained through the module’s tight integration with the S7-300 rack infrastructure. Unlike remote I/O solutions that introduce fieldbus latency, the 6ES7332-5RD00-0AB0 operates on the local backplane, eliminating PROFIBUS DP or PROFINET packet loss as a failure mode for analog output delivery. In applications where the CP 343-1 Ethernet communication processor or IM 360/361 interface modules are used for rack expansion, the SM 332 continues to deliver output commands with full determinism, supporting multi-rack S7-300 configurations in large-scale process control installations.

Field replacement and spare parts availability are critical considerations for plant maintenance teams. The 6ES7332-5RD00-0AB0 is a direct plug-in replacement for existing SM 332 slots in any S7-300 rack, requiring no hardware reconfiguration beyond parameter download via STEP 7 or TIA Portal. SMARTNEXMSK maintains verified stock of this module with pre-shipment functional testing, ensuring that replacement units arrive ready for immediate installation — minimizing mean time to repair (MTTR) during unplanned outages.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust S7-300 control cabinet deployment built around the 6ES7332-5RD00-0AB0 requires a layered protection strategy that addresses power quality, signal integrity, and communication continuity simultaneously. At the power layer, a SITOP PSU100S 24 V / 10 A regulated DC power supply provides clean, stable bus voltage that prevents the analog output channels from experiencing reference drift caused by supply ripple — a common failure mode in cabinets shared with variable frequency drives or contactor banks. Adding a SITOP UPS1600 buffer module ensures that the S7-300 rack maintains output continuity during brief mains interruptions, preventing actuators from receiving undefined signals during power transients.

At the I/O layer, the SM 332 module works in concert with the SM 331 analog input module (6ES7331-7KF02-0AB0) to form closed-loop control pairs — the SM 331 reads process variables while the 6ES7332-5RD00-0AB0 drives the corresponding control outputs. Shielded twisted-pair cabling terminated at Siemens SIMATIC S7-300 front connectors with proper shield grounding at the cabinet entry point is essential to maintaining the module’s specified EMI rejection performance in high-noise environments.

For cabinets operating in areas with significant surge risk — such as those adjacent to high-voltage switchgear or outdoor substations — installing Phoenix Contact TRABTECH surge protection devices on the 24 V DC supply lines and analog signal cables provides an additional barrier against transient energy that could damage the module’s output DAC circuitry. The SIMATIC S7-300 IM 360 expansion interface module allows the SM 332 to be located in a remote rack, physically separating sensitive analog I/O from high-power switching equipment while maintaining deterministic backplane communication.

Communication health monitoring is supported through the CP 343-1 PROFINET communication processor, which enables remote diagnostics of the S7-300 rack — including SM 332 channel fault detection — without requiring physical access to the control cabinet. This capability is particularly valuable in unmanned substations, offshore platforms, and remote pump stations where on-site intervention is costly and time-consuming.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The 6ES7332-5RD00-0AB0 is widely deployed in hydrocarbon processing facilities to drive control valve positioners, variable speed pump drives, and heat exchanger bypass actuators. In these environments, the module’s galvanic isolation prevents ground loop currents — generated by the large grounding networks of process plants — from introducing offset errors into the 4–20 mA control signals that govern critical flow and pressure loops. A single mA of signal error in a high-pressure reactor feed control loop can translate directly into a process safety event; the SM 332’s tight accuracy specification and stable zero-point performance make it a preferred choice for these applications.

Electric Power Generation and Transmission: In thermal power stations and hydroelectric facilities, the SM 332 module controls excitation systems, turbine governor actuators, and cooling water flow regulators. The module’s ability to maintain output accuracy across the full 0 °C to +60 °C operating range is critical in generator hall environments where ambient temperatures fluctuate significantly with load conditions. Its compatibility with the S7-300 CPU 317T-2 DP motion control CPU also makes it suitable for coordinated turbine speed regulation applications.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to severe vibration, dust ingress, and electrical interference from large conveyor drives and crusher motors. The 6ES7332-5RD00-0AB0’s robust mechanical design and EMI-hardened analog output circuitry maintain reliable operation in these conditions, controlling slurry pump speeds, flotation cell reagent dosing systems, and crusher feed rate actuators without signal degradation over extended continuous operation periods.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise analog output control for chemical dosing pumps, aeration blower speed regulation, and filter backwash valve positioning. The SM 332 module’s long-term stability — with minimal zero and span drift over its service life — reduces the frequency of field calibration interventions, lowering maintenance costs and ensuring consistent treatment quality in facilities operating under environmental compliance obligations.

Metallurgy and Steel Production: Continuous casting lines, rolling mills, and electric arc furnace control systems demand analog output modules capable of withstanding the extreme electromagnetic environment generated by high-current bus bars and induction heating equipment. The 6ES7332-5RD00-0AB0’s shielded design and galvanic isolation architecture provide the necessary immunity to maintain precise thickness control, temperature regulation, and speed synchronization outputs in these high-interference environments.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the 6ES7332-5RD00-0AB0?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority response, and replacement units are dispatched from verified stock to minimize your downtime. The warranty period begins from the date of confirmed delivery to your facility.

Q2: How is each module tested before shipment?
Every 6ES7332-5RD00-0AB0 unit undergoes pre-shipment functional verification, including analog output accuracy testing across all four channels at multiple output levels (0%, 25%, 50%, 75%, and 100% of full scale), supply current draw measurement, and backplane connector integrity inspection. Units that do not meet Siemens SM 332 specification tolerances are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with both STEP 7 Classic and TIA Portal engineering environments?
Yes. The 6ES7332-5RD00-0AB0 is fully supported in STEP 7 V5.4 and later (Classic) as well as TIA Portal V13 SP1 and later via the S7-300 hardware catalog. Module parameterization — including output type selection, diagnostic interrupt enabling, and substitute value configuration — is performed identically in both environments. No firmware update or hardware modification is required when migrating projects between engineering platforms.

Q4: Can SMARTNEXMSK support long-term and repeat supply of this module?
Yes. SMARTNEXMSK maintains ongoing inventory of the 6ES7332-5RD00-0AB0 and related S7-300 I/O modules to support both immediate replacement needs and planned maintenance procurement programs. For facilities managing large S7-300 installed bases, we offer reserved stock arrangements and scheduled delivery programs to ensure spare parts availability without requiring customers to carry excessive on-site inventory. Contact our technical sales team to discuss your specific supply continuity requirements.
