Siemens 6ES7392-1AJ00-0AA0 Safety-Enhanced 20-Pin Front Connector

Siemens 6ES7392-1AJ00-0AA0 Safety-Enhanced 20-Pin Front Connector for Harsh Industrial Sites

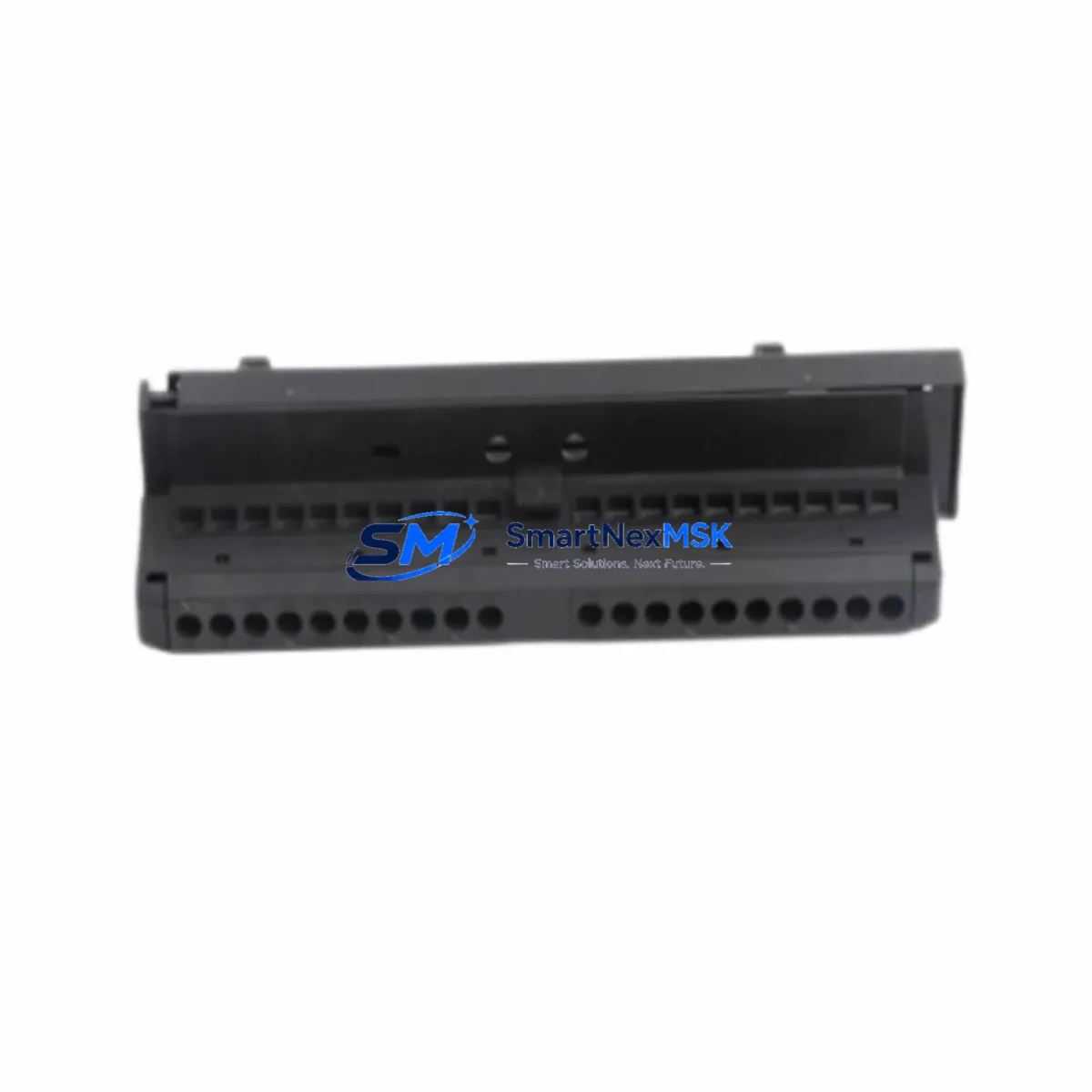

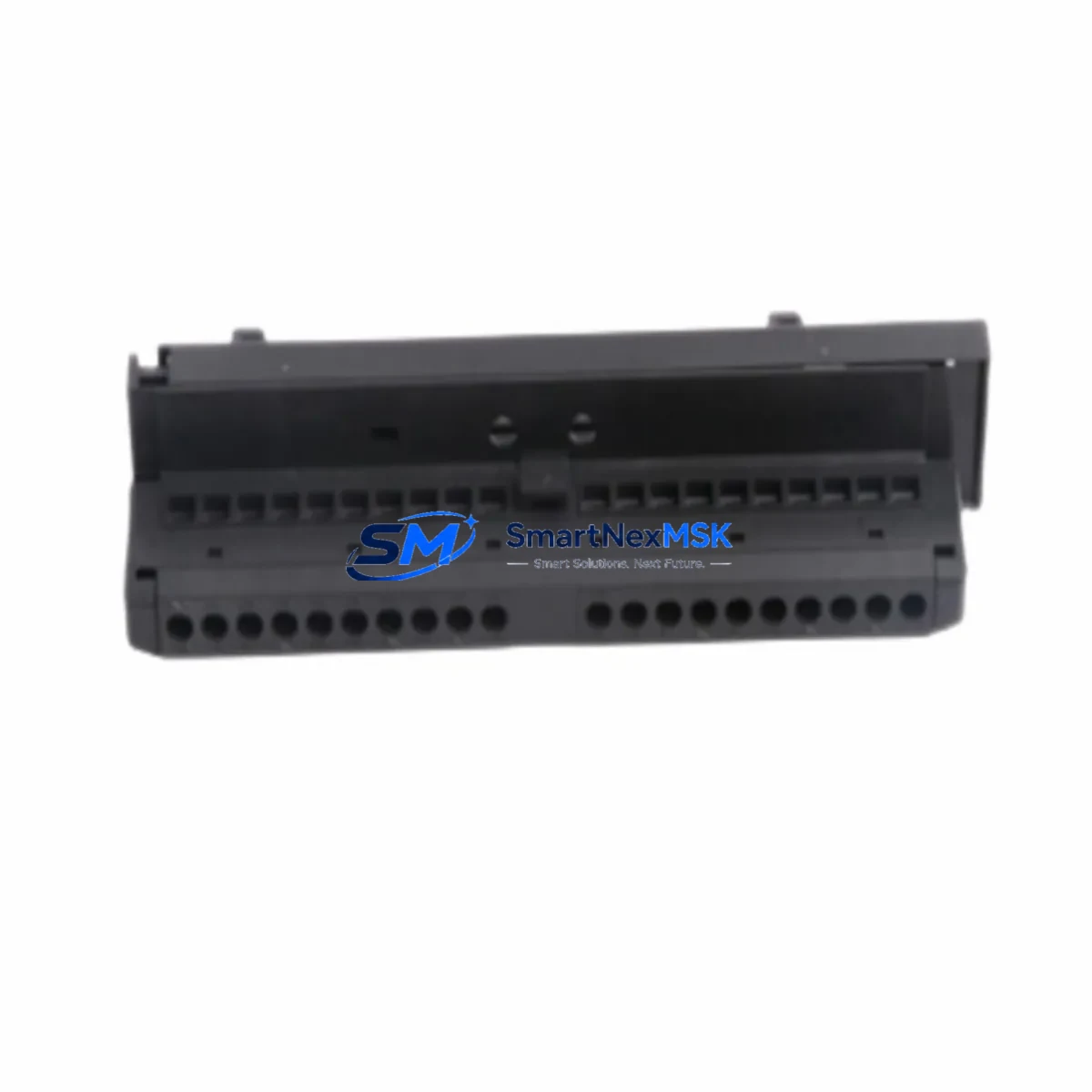

The Siemens 6ES7392-1AJ00-0AA0 is a 20-pin screw-type front connector engineered for the SIMATIC S7-300 programmable logic controller series. Designed to operate reliably in high-load, high-interference industrial environments, this connector forms the critical interface between S7-300 signal modules and field wiring — a junction point where connection integrity directly determines control loop safety and process continuity.

In continuous production facilities, petrochemical plants, power distribution substations, and heavy metallurgical operations, a degraded or intermittent front connector can cascade into signal drift, module misoperation, spurious trips, or unplanned shutdowns. The 6ES7392-1AJ00-0AA0 addresses these risks through its robust screw-terminal clamping mechanism, which maintains consistent contact force under vibration, thermal cycling, and mechanical stress — conditions routinely encountered in mining conveyor control cabinets, port crane automation panels, and water treatment SCADA enclosures.

Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification to confirm terminal integrity, insulation resistance, and mechanical locking engagement before dispatch. Stock is sourced from authorized distribution channels and stored under controlled conditions to preserve connector quality for long-term spare parts programs.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered S7-300 control cabinet, the 6ES7392-1AJ00-0AA0 front connector does not operate in isolation — it is one element of a layered protection architecture. The SIMATIC S7-300 CPU modules (such as the CPU 314C-2 DP or CPU 315-2 PN/DP) rely on stable, low-resistance signal paths at every module interface to execute deterministic scan cycles without interruption. When front connectors are compromised by loose terminals or corrosion, the CPU may log diagnostic faults or, in safety-critical applications, trigger a controlled stop.

To protect the power supply rail feeding the S7-300 rack, the SITOP PSU100S 24 V DC power supply unit is commonly deployed alongside surge protection devices such as the DEHN or Phoenix Contact DEHNguard surge arrester, which absorbs transient overvoltages before they reach the backplane. The PS 307 power supply module within the S7-300 rack itself provides regulated 24 V DC to I/O modules, and its output stability is directly dependent on clean field wiring — wiring that terminates at front connectors like the 6ES7392-1AJ00-0AA0.

For digital input modules such as the SM 321 DI 32×DC 24V, each of the 32 input channels connects to field sensors through a dedicated front connector. A loose screw terminal on the 6ES7392-1AJ00-0AA0 in this position can cause a discrete input to read an incorrect state, potentially disabling an emergency stop interlock or masking a process alarm. Similarly, on SM 322 digital output modules driving solenoid valves or motor contactors, terminal integrity is essential to prevent spurious actuation or failure to actuate in safety-critical sequences.

Analog signal integrity is equally dependent on connector quality. The SM 331 AI 8×13Bit analog input module, used for temperature, pressure, and flow measurement in process industries, is sensitive to contact resistance variations that introduce offset errors or noise into 4–20 mA current loop signals. Pairing this module with a correctly torqued 6ES7392-1AJ00-0AA0 front connector eliminates a common source of signal drift in long-running continuous processes.

In PROFIBUS DP communication architectures, the IM 360/361 interface modules and CP 342-5 communication processors maintain network integrity across distributed I/O racks. While these modules use dedicated bus connectors, the reliability of the entire distributed control system depends on the signal modules at each rack node maintaining stable I/O — which begins at the front connector level. Maintaining a stock of 6ES7392-1AJ00-0AA0 connectors as certified spare parts ensures that module replacement during planned or emergency maintenance does not introduce delays that extend process downtime.

Critical Industrial Safety Applications

In petrochemical refining and upstream oil and gas facilities, the S7-300 platform with 6ES7392-1AJ00-0AA0 front connectors is deployed in burner management systems, emergency shutdown (ESD) panels, and compressor control cabinets where SIL-rated interlock reliability is mandatory. The screw-terminal design of this connector supports the periodic inspection and re-torquing schedules required by functional safety management programs under IEC 61511.

In electric power generation and transmission substations, S7-300 systems equipped with these front connectors manage transformer protection relays, switchgear control, and load-shedding automation. The connector’s vibration resistance is critical in environments where large transformers and switchgear generate continuous mechanical vibration that can loosen inferior terminal connections over time.

In underground and open-pit mining operations, control cabinets managing conveyor drives, crusher automation, and ventilation fan control are subject to dust ingress, humidity fluctuations, and mechanical shock. The 6ES7392-1AJ00-0AA0, installed within IP54 or IP65-rated enclosures, provides the reliable field wiring interface needed to sustain continuous extraction operations without unplanned stoppages.

Water and wastewater treatment plants operating 24/7 rely on S7-300 PLCs for pump sequencing, chemical dosing control, and SCADA integration. Front connector reliability in these facilities directly affects regulatory compliance, as control failures can result in treatment process deviations with environmental and public health consequences. Port and terminal automation systems — including ship-to-shore crane controls, automated stacking cranes, and conveyor belt management — similarly depend on S7-300 I/O module integrity for safe, high-throughput cargo handling operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 6ES7392-1AJ00-0AA0?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement dispatch and technical documentation to minimize site downtime.

Q2: What pre-shipment testing is performed on each connector?
Each 6ES7392-1AJ00-0AA0 unit undergoes visual inspection, terminal continuity verification, insulation resistance check, and mechanical locking function test before shipment. Units that do not meet acceptance criteria are quarantined and not dispatched.

Q3: Is this connector compatible with all S7-300 signal modules?
The 6ES7392-1AJ00-0AA0 is compatible with the full range of 20-pin SIMATIC S7-300 signal modules, including SM 321 digital input, SM 322 digital output, SM 331 analog input, SM 332 analog output, and SM 334 analog I/O modules. Compatibility with specific module variants should be confirmed against the Siemens hardware configuration documentation for your project.

Q4: Can long-term supply be arranged for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains standing inventory of the 6ES7392-1AJ00-0AA0 to support planned maintenance schedules, spare parts programs, and emergency replacement requirements. Framework supply agreements with defined lead times and pricing are available for industrial customers with recurring procurement needs. Contact sales@smartnexmsk.com to discuss supply continuity arrangements.
