SIEMENS 6ES7392-1AM00-0AA0 Retrofit-Ready Front Connector S7-300

SIEMENS 6ES7392-1AM00-0AA0 Retrofit-Ready Front Connector for S7-300 Control Systems

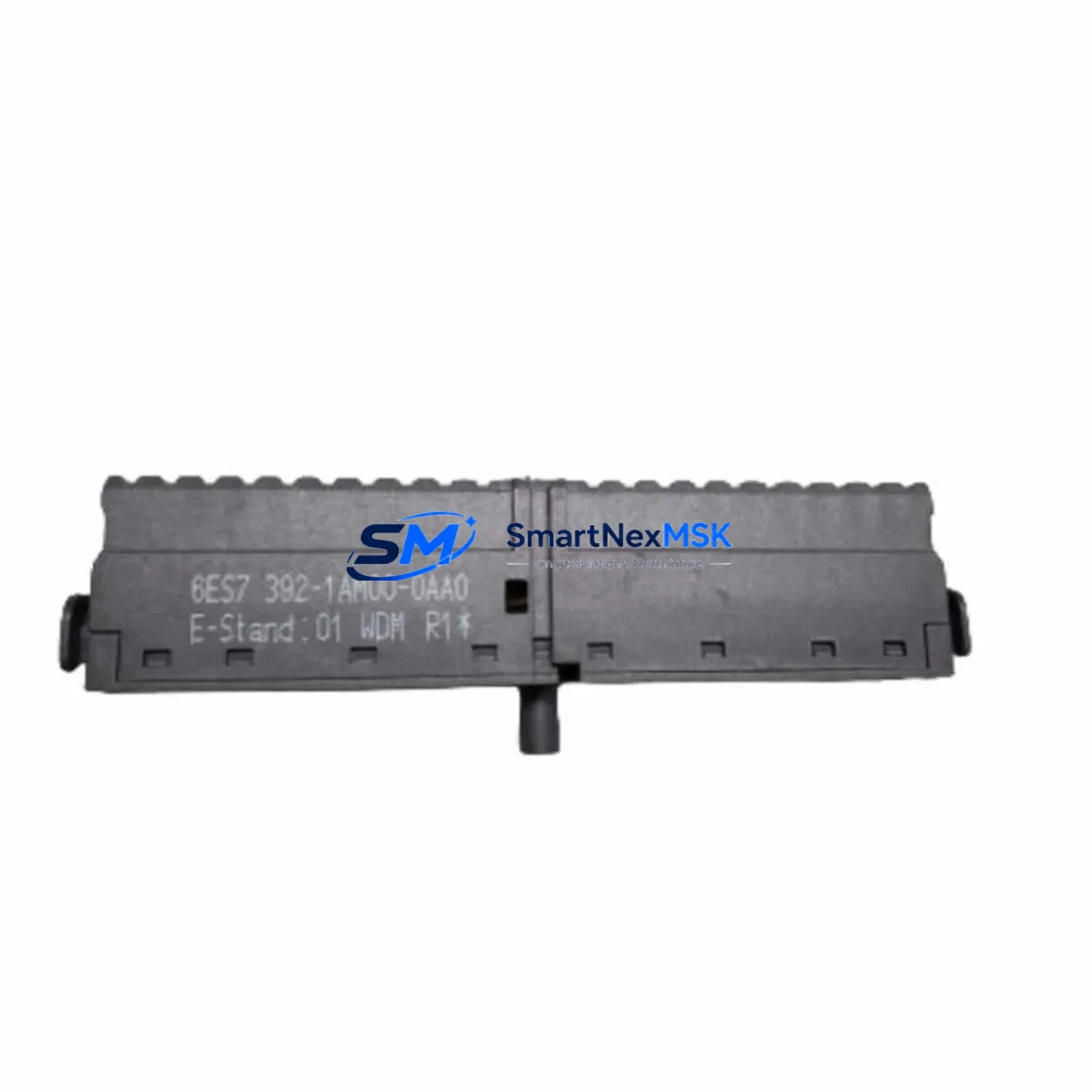

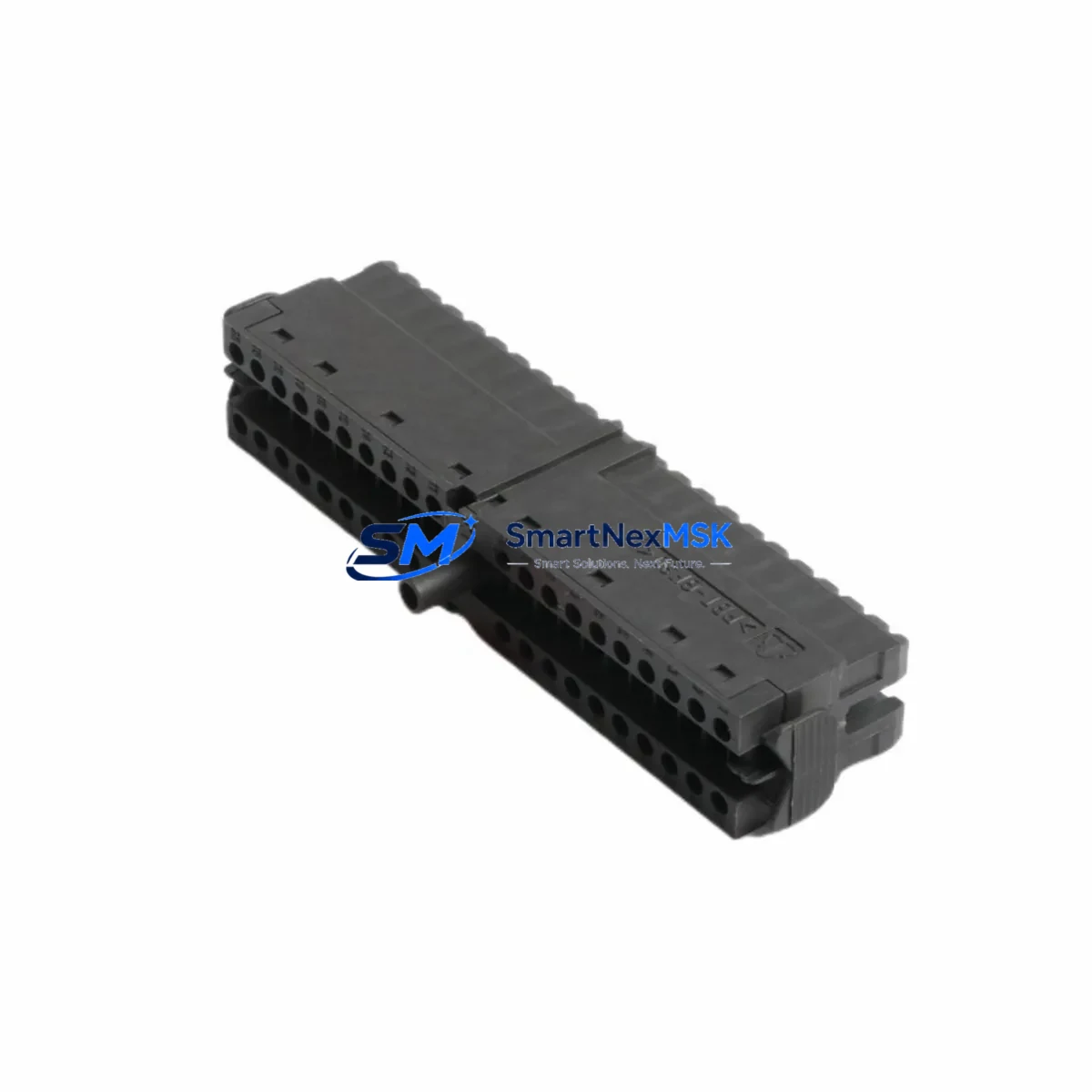

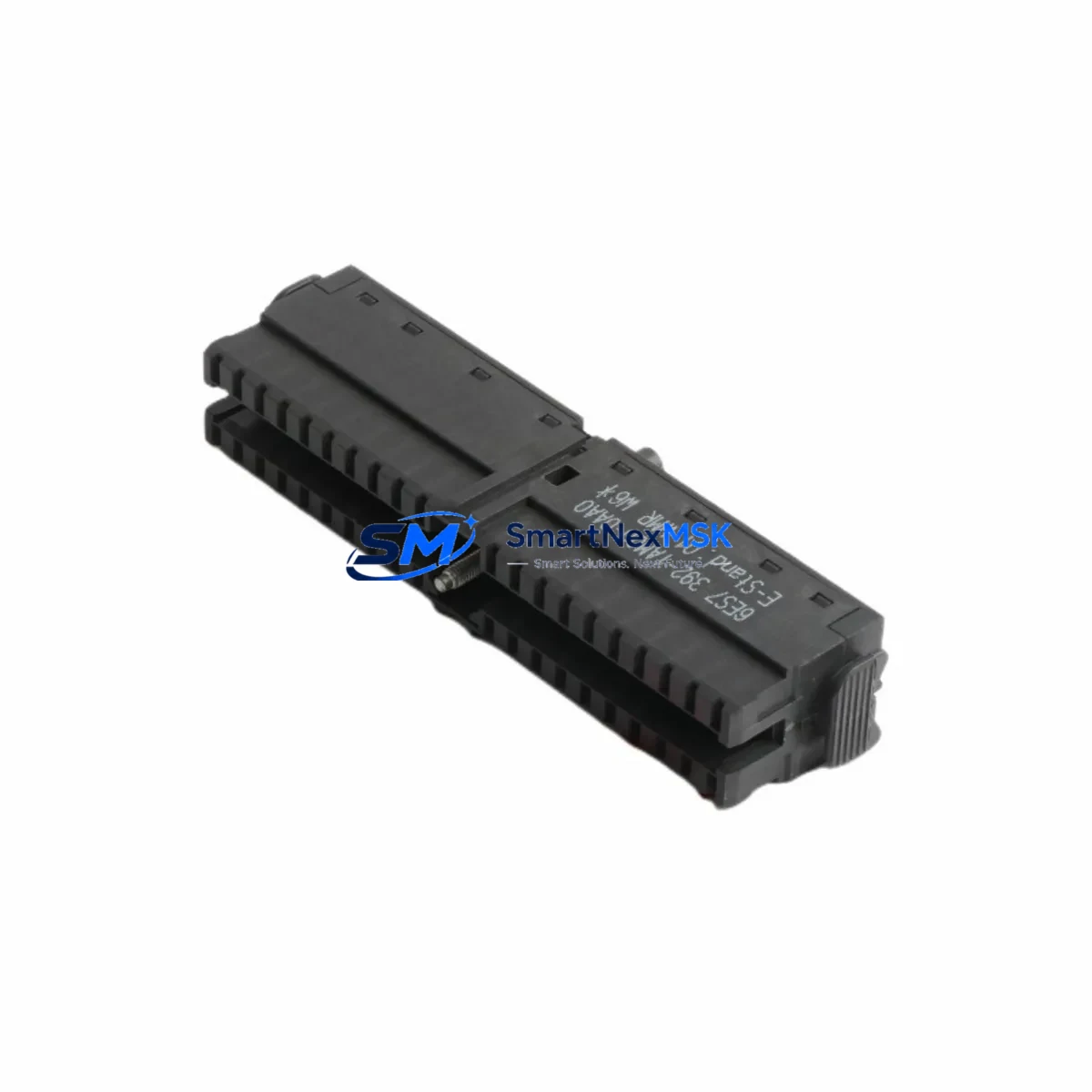

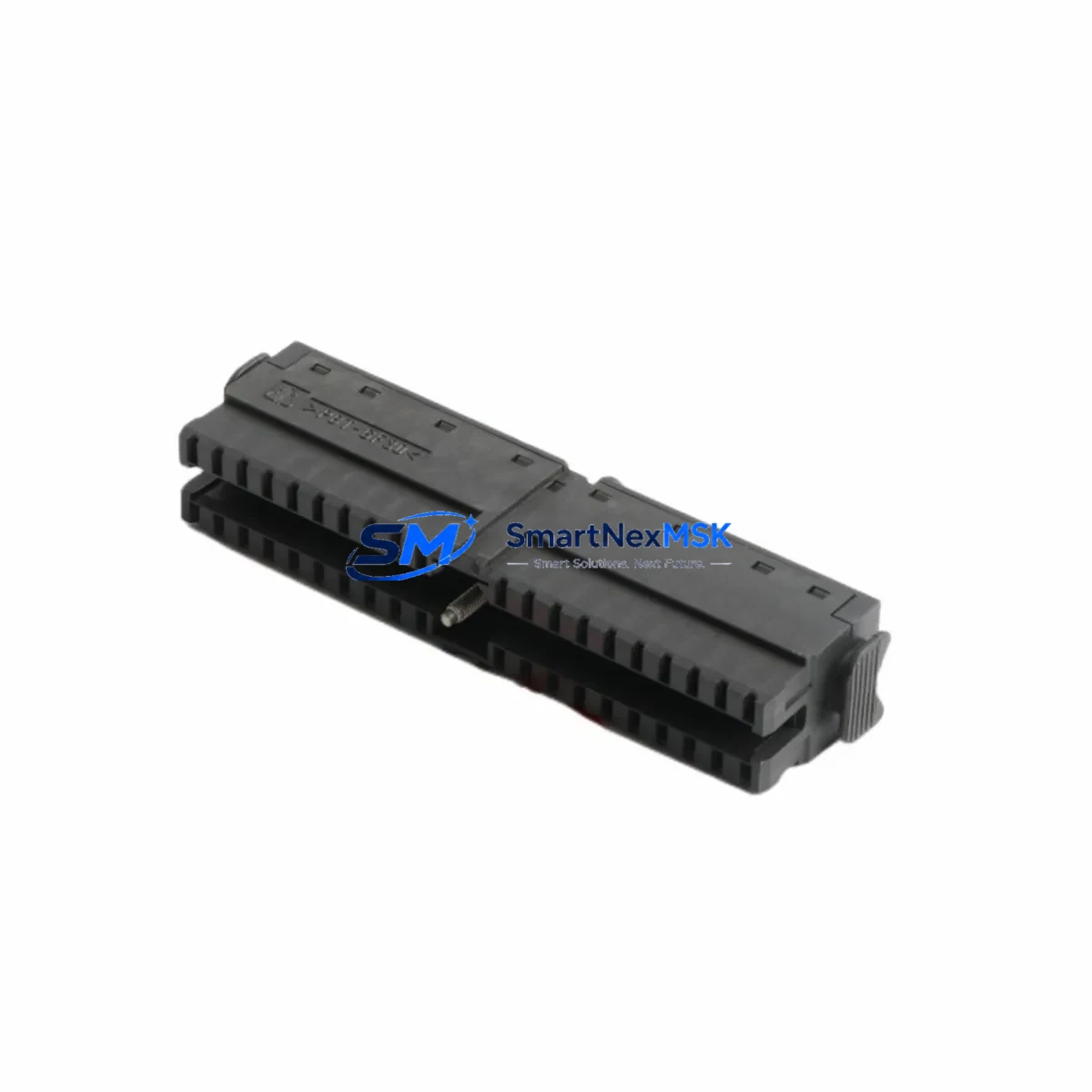

The SIEMENS 6ES7392-1AM00-0AA0 is a 20-pin screw-type front connector designed for SIMATIC S7-300 signal modules. As legacy S7-300 installations approach end-of-life or require panel upgrades, this connector remains a critical interface component for both direct replacement and phased modernization projects. Whether you are restoring a failed control cabinet, expanding I/O capacity, or migrating field wiring to a new rack configuration, the 6ES7392-1AM00-0AA0 provides a reliable, specification-matched termination point that preserves existing wiring harnesses and minimizes re-engineering effort.

Sourced from verified supply channels and subject to pre-shipment functional inspection, each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial conditions. Stock is maintained to support urgent retrofit timelines, with same-day dispatch available for in-stock orders.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

In a typical S7-300 retrofit scenario, the 6ES7392-1AM00-0AA0 front connector is one of several components that must be evaluated before field wiring can be safely transferred to a new or replacement module. Engineers planning a control cabinet upgrade should begin by auditing the existing rack layout, confirming the positions of the SM 321 digital input module and SM 322 digital output module, and verifying that the replacement modules share the same slot addressing scheme as the originals.

Power distribution within the cabinet must also be reviewed. The PS 307 power supply module (or its equivalent, such as the PS 305 for 24 VDC applications) must provide sufficient current headroom for any additional I/O modules added during the expansion. If the retrofit involves adding analog measurement points, the SM 331 analog input module and SM 332 analog output module will each require their own front connectors — making the 6ES7392-1AM00-0AA0 a recurring line item across the bill of materials.

For systems that include PROFIBUS DP communication, the existing CP 342-5 communications processor or the onboard DP port of a CPU 315-2 DP must be verified for address conflicts before the new rack is brought online. If the retrofit involves migrating from PROFIBUS to PROFINET, a CPU 317-2 PN/DP or a dedicated CP 343-1 Ethernet module may be introduced, requiring corresponding updates to the STEP 7 or TIA Portal hardware configuration.

HMI panels connected to the existing system — typically a SIMATIC TP 177B or MP 277 — should have their screen tags and variable tables reviewed against the new I/O addressing before the cutover. Any address remapping in the PLC program must be reflected in the HMI project to prevent alarm suppression or incorrect process visualization after restart.

Where the retrofit involves replacing a failed IM 360 / IM 361 interface module pair in a multi-rack configuration, the front connectors on all affected expansion rack modules must be inspected and replaced if terminal corrosion or mechanical wear is detected. The 6ES7392-1AM00-0AA0 is compatible across all standard S7-300 expansion racks and does not require rack-specific variants.

Programming cable access during commissioning is typically handled via a PC Adapter USB A2 or MPI/DP interface, allowing online monitoring of I/O states and force-table verification without interrupting the running process — a critical capability when performing partial cutover in live production environments.

Downtime Control During System Migration

Minimizing unplanned downtime during an S7-300 retrofit requires a structured cutover plan that separates mechanical preparation from live switching. The recommended approach is to pre-wire all replacement front connectors — including the 6ES7392-1AM00-0AA0 units — on the bench before the maintenance window begins. Each connector should be wired, labeled, and torque-verified against the original as-built drawings, so that the field swap is reduced to a module-level plug-and-play operation.

Before the cutover window opens, the existing PLC program should be uploaded and archived from the CPU using STEP 7 or TIA Portal. A full hardware configuration backup, including the I/O module addresses, DP slave parameters, and any special function module configurations, must be saved to a secure location. This ensures that if the replacement CPU or module requires a fresh download, the original logic and parameter sets are immediately available without manual re-entry.

During the live cutover, outputs should be forced to safe states before the front connectors are unplugged. For processes with interlock dependencies — such as motor starters controlled by SM 322 outputs or valve positioners driven by SM 332 analog outputs — the field devices should be placed in local manual mode to prevent uncontrolled actuation during the connector swap interval.

After reconnection, a structured I/O checkout sequence should be performed: verify each digital input channel using the STEP 7 online monitor, confirm analog input scaling against a known reference signal, and test each output channel against its field device before releasing the system to automatic mode. This process, when executed with pre-wired and pre-tested front connectors, typically reduces the live switching window to under 30 minutes per rack — preserving production continuity and reducing the risk of wiring errors under time pressure.

Retrofit Support FAQ

Q1: Is the 6ES7392-1AM00-0AA0 a direct replacement for all S7-300 signal module front connectors?
The 6ES7392-1AM00-0AA0 is the 20-pin screw-type variant and is compatible with all S7-300 signal modules that accept a 20-pin front connector, including the SM 321, SM 322, SM 323, SM 331, SM 332, SM 334, and SM 335. Modules requiring a 40-pin connector (such as high-density I/O variants) use a different part number and are not interchangeable with this unit.

Q2: Can the front connector be transferred from the old module to the replacement module without re-wiring?
Yes. The 6ES7392-1AM00-0AA0 is designed to be unplugged from the module face while retaining all field wiring. The connector — with wires attached — can be transferred directly to the replacement module, provided the replacement module is of the same type and the terminal assignments are identical. This is the primary advantage of the S7-300 front connector system and is the recommended procedure for minimizing downtime during module swap-outs.

Q3: What commissioning checks are required after installing a new front connector?
After installation, verify terminal torque (0.6–0.8 Nm for screw terminals), confirm that all wire ferrules are fully seated, and perform an I/O channel-by-channel verification using the STEP 7 or TIA Portal online diagnostic view. For analog modules, apply a known reference signal to confirm scaling and offset parameters are intact. Check that no short-circuit or open-circuit faults are reported in the CPU diagnostic buffer before releasing the system to automatic operation.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including terminal contact failure, housing cracking under rated torque, and locking mechanism defects. Warranty claims are initiated by contacting our sales team with the order reference and a description of the fault. Units confirmed defective under warranty are replaced at no charge, with priority dispatch to minimize impact on production schedules.
