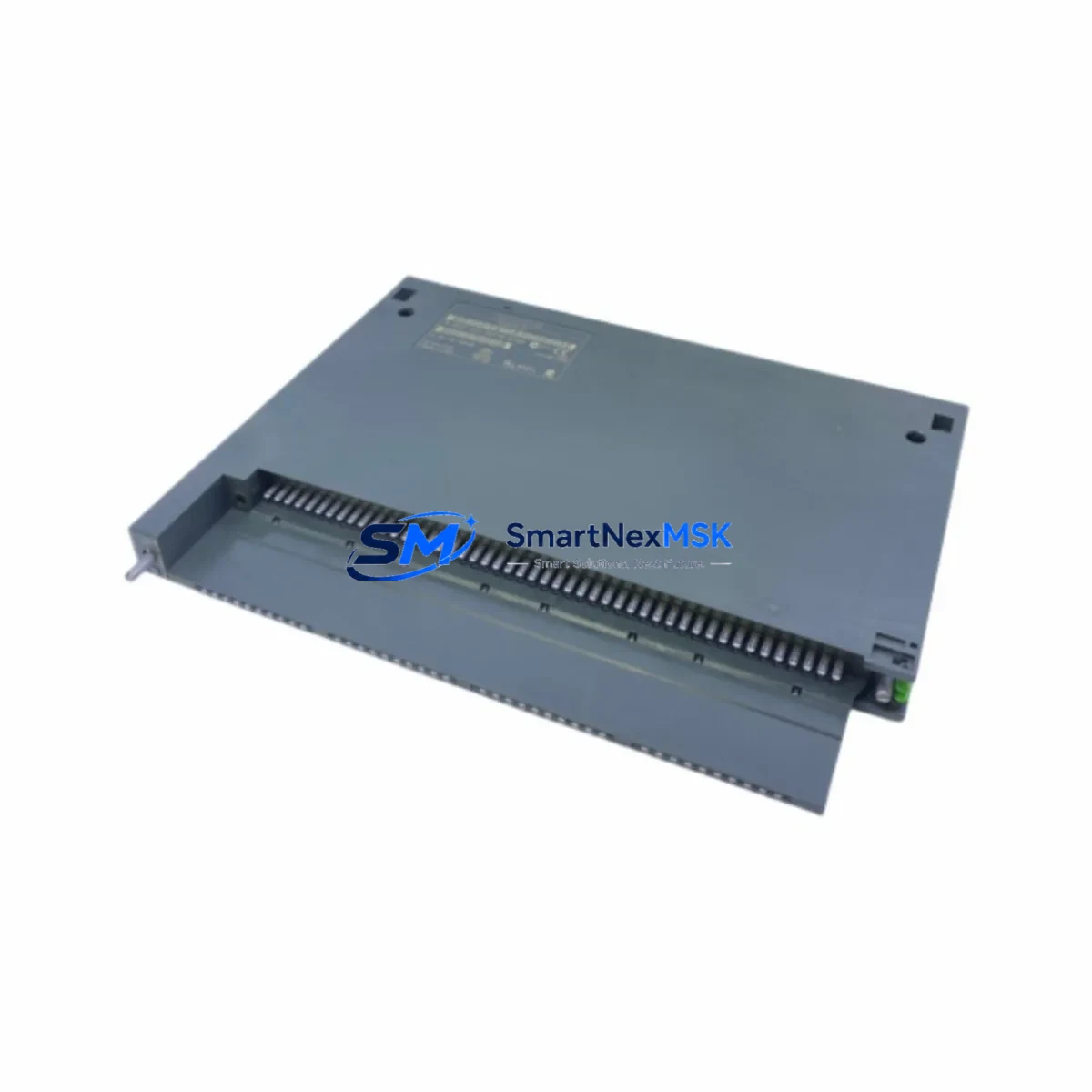

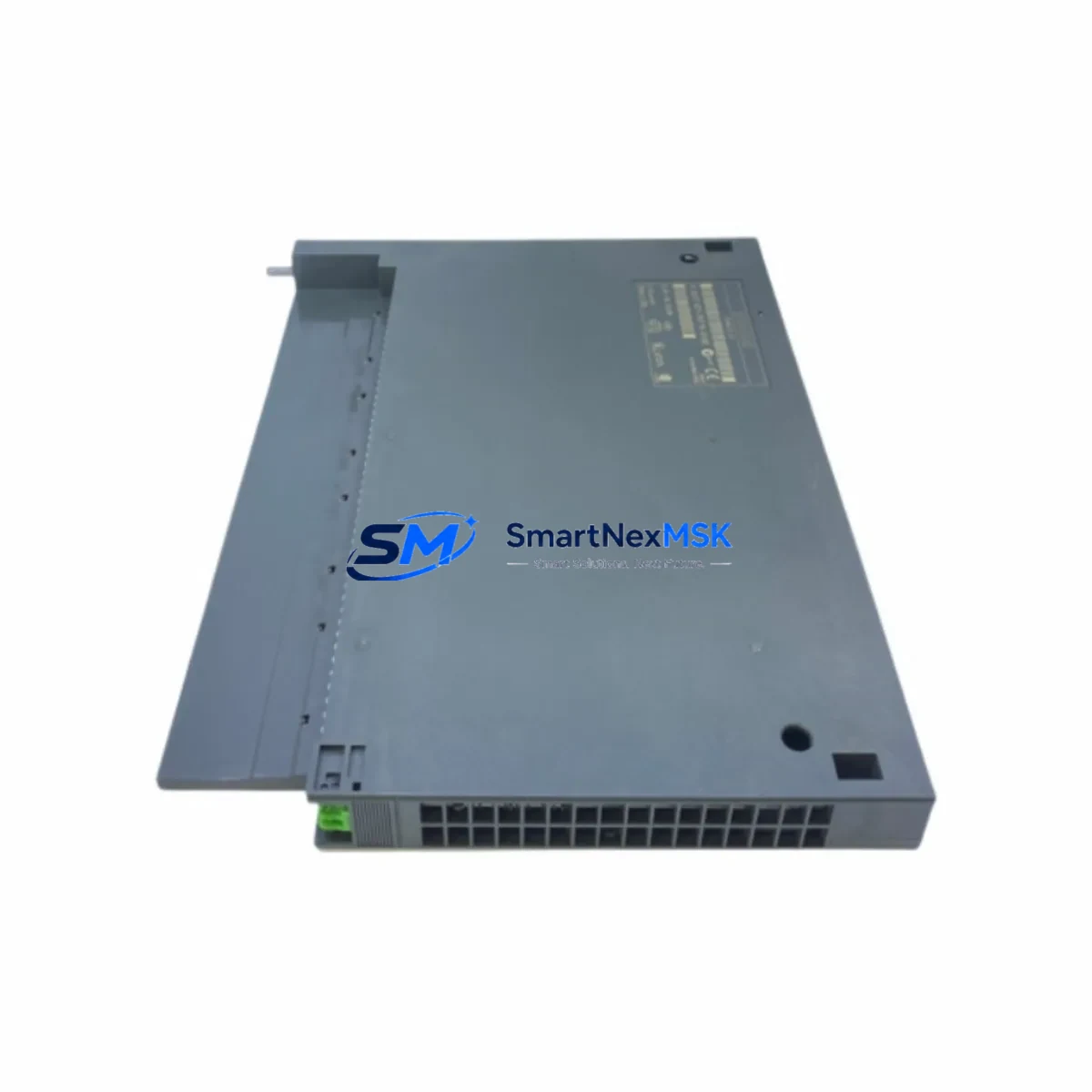

Siemens 6ES7431-7KF10-0AB0 Safety RTD Analog Input Module

Siemens 6ES7431-7KF10-0AB0 Safety RTD Analog Input Module: Precision Control for Harsh Industrial Sites

The Siemens 6ES7431-7KF10-0AB0 is an 8-channel RTD analog input module from the SM431 series, engineered for the SIMATIC S7-400 programmable logic controller platform. Designed to operate reliably in high-load, high-interference industrial environments, this module delivers accurate resistance temperature detector (RTD) signal acquisition across demanding continuous-process applications — including petrochemical plants, power generation facilities, metallurgical furnaces, water treatment stations, and heavy mining operations.

In critical control loops where signal integrity directly determines process safety, the 6ES7431-7KF10-0AB0 provides galvanically isolated input channels that suppress common-mode interference and protect against ground loops. Its robust EMI shielding and surge-tolerant input circuitry ensure stable measurement even when installed adjacent to high-voltage drives, contactors, or transformer banks inside the same control cabinet. This makes it a preferred choice for engineers designing safety instrumented systems (SIS) and critical interlock circuits where sensor signal drift or module malfunction could trigger unplanned shutdowns or hazardous process deviations.

When integrated into an S7-400 rack alongside the CPU 414-3 PN/DP or CPU 416-3 PN/DP, the 6ES7431-7KF10-0AB0 participates in high-speed cyclic data exchange via the S7-400 backplane bus, ensuring that temperature readings from RTD sensors reach the controller within deterministic scan cycles. This is essential in applications such as reactor temperature monitoring, furnace zone control, and turbine bearing temperature supervision — where delayed or corrupted analog values can cascade into safety system activations or equipment damage.

The module supports multiple RTD sensor types including Pt100, Pt200, Pt500, Pt1000, Ni100, and Ni1000, providing flexibility across diverse field instrumentation configurations without requiring additional signal conditioners. Its configurable measurement range and resolution allow engineers to fine-tune input sensitivity for each channel independently, reducing the risk of range overflow or under-range faults that could mask real process anomalies.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 6ES7431-7KF10-0AB0 as part of a comprehensive control cabinet protection strategy requires careful attention to the surrounding hardware ecosystem. In a typical S7-400-based safety cabinet, the module operates alongside the PS407 10A power supply module, which provides stable 24 VDC and 5 VDC rails to the rack. Voltage fluctuations or power supply ripple from the PS407 can directly affect analog measurement accuracy; therefore, ensuring the power supply is within specification is a prerequisite for reliable RTD signal acquisition.

For cabinets handling both analog and digital I/O, the SM421 digital input module and SM422 digital output module are commonly installed in adjacent slots. Proper slot assignment and shielding separation between digital and analog modules reduce cross-coupling noise that could introduce measurement errors in the 6ES7431-7KF10-0AB0’s RTD channels. Cable shielding should be terminated at the S7-400 shield connection terminal to provide a low-impedance path for induced interference currents.

In distributed control architectures, the S7-400 CPU communicates with remote I/O stations via PROFIBUS DP or PROFINET. The IM460-1 send interface module and IM461-1 receive interface module extend the S7-400 rack across multiple expansion units, allowing the 6ES7431-7KF10-0AB0 to be positioned closer to field sensors while maintaining high-speed data exchange with the central CPU. This reduces analog signal cable runs, minimizing the risk of signal attenuation and interference pickup over long cable distances.

For applications requiring redundant power or hot-standby CPU configurations, the 6ES7400-1JA01-0AA0 redundancy module ensures seamless CPU switchover without interrupting analog data acquisition. This is critical in continuous process plants where even a brief control interruption during a CPU fault could result in process upsets or safety system activation. Surge protection devices installed at the field terminal strip — such as SIMATIC ET 200 surge arresters — provide an additional layer of protection against lightning-induced transients reaching the module’s input terminals.

Communication integrity is maintained through the CP443-1 Ethernet communication processor, which enables the S7-400 system to transmit real-time analog data to SCADA platforms and historian servers. Ensuring the CP443-1 is correctly configured with watchdog timers and redundant network paths prevents communication timeouts that could cause the controller to enter a safe state unnecessarily.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the 6ES7431-7KF10-0AB0 monitors reactor inlet and outlet temperatures, heat exchanger performance, and distillation column profiles. Accurate RTD measurement is essential for maintaining process temperatures within safe operating limits and for triggering emergency shutdown (ESD) sequences when thermal excursions are detected. The module’s galvanic isolation prevents ground faults in hazardous-area field wiring from propagating into the control system.

Power Generation and Substation Control: Turbine bearing temperature monitoring, generator winding temperature supervision, and transformer oil temperature measurement rely on precise RTD inputs. The 6ES7431-7KF10-0AB0’s high-resolution 15-bit measurement ensures that early-stage thermal anomalies are detected before they escalate into equipment failures or forced outages. Its EMI tolerance is particularly valuable in substations where high-voltage switching generates intense electromagnetic transients.

Metallurgical and Smelting Operations: Furnace zone temperature control in electric arc furnaces, ladle preheating stations, and continuous casting lines demands reliable analog input performance under extreme thermal and electromagnetic stress. The module’s wide operating temperature range and robust construction allow it to function correctly even when installed in control rooms adjacent to high-power induction heating equipment.

Mining and Mineral Processing: Conveyor drive motor temperature monitoring, crusher bearing supervision, and flotation cell temperature control are typical applications in mining environments. The 6ES7431-7KF10-0AB0 provides the measurement stability needed to detect overheating conditions before they cause motor burnout or mechanical failure, reducing unplanned downtime in continuous mining operations.

Water and Wastewater Treatment: Process temperature monitoring in biological treatment reactors, sludge digesters, and UV disinfection systems requires reliable analog input performance across extended operating periods. The module’s long-term measurement stability and 12-month warranty support the low-maintenance operational requirements of water utility infrastructure.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6ES7431-7KF10-0AB0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified RTD measurement functions within the warranty period, we provide replacement or repair at no additional cost. Warranty claims are processed promptly to minimize control system downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 6ES7431-7KF10-0AB0 unit undergoes full functional verification prior to shipment, including backplane communication testing, channel-by-channel RTD measurement accuracy verification, and isolation integrity checks. This ensures that the module arrives ready for installation without requiring additional bench testing on-site.

Q3: Is the 6ES7431-7KF10-0AB0 compatible with all S7-400 rack configurations?
Yes. The module is compatible with all standard SIMATIC S7-400 rack types including UR1, UR2, UR2-H, CR2, and CR3. It integrates directly with S7-400 CPUs via the backplane bus and is configurable through STEP 7 or TIA Portal engineering software. No additional interface hardware is required for standard rack installations.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated stock of the 6ES7431-7KF10-0AB0 to support both immediate replacement needs and planned maintenance programs. Our inventory management ensures consistent availability for customers operating S7-400 systems in long-lifecycle industrial applications where spare parts continuity is critical to plant reliability planning.
