Siemens 6ES7431-7QH00-0AB0 Safety-Enhanced Analog Input Module: Reliable Control in Harsh Industrial Sites

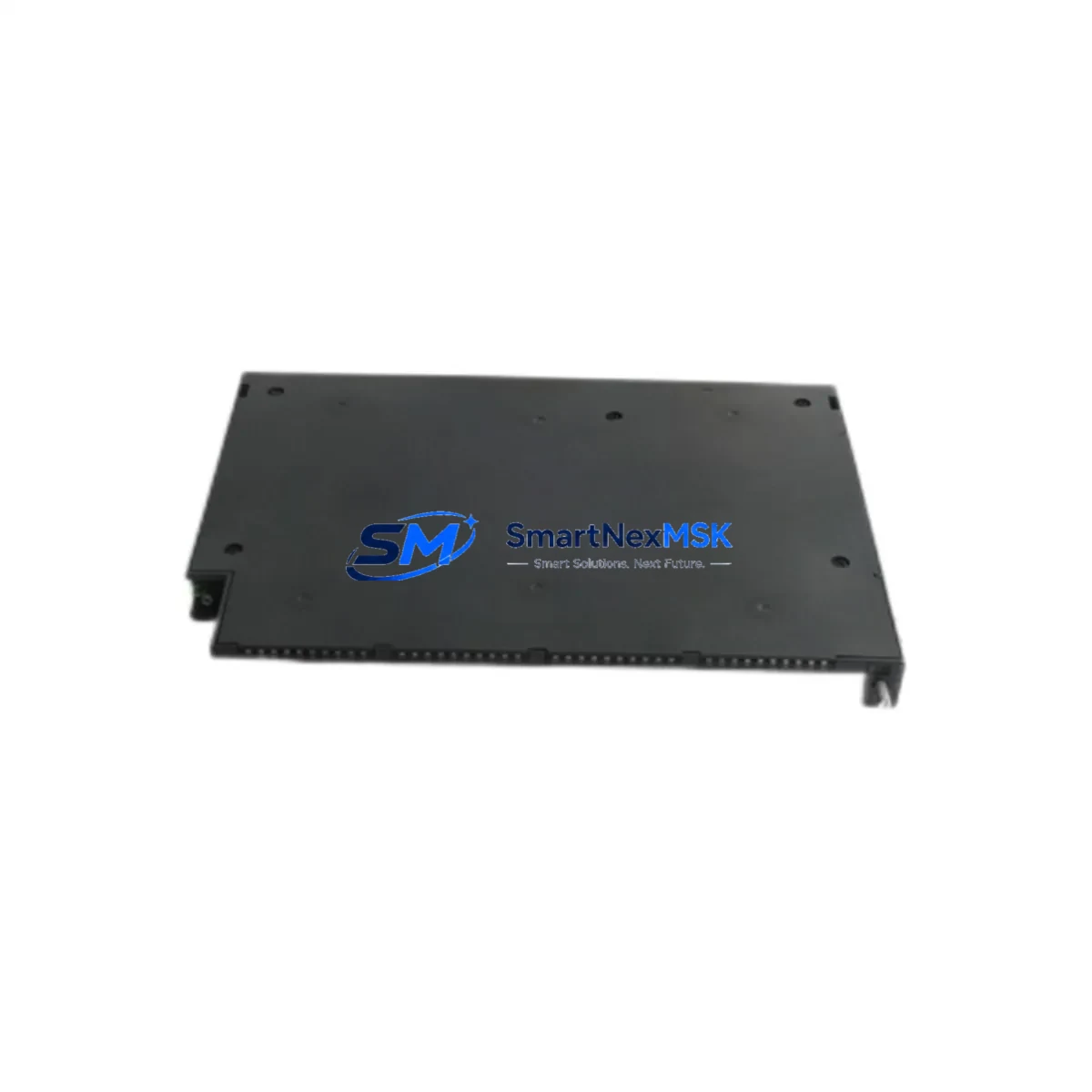

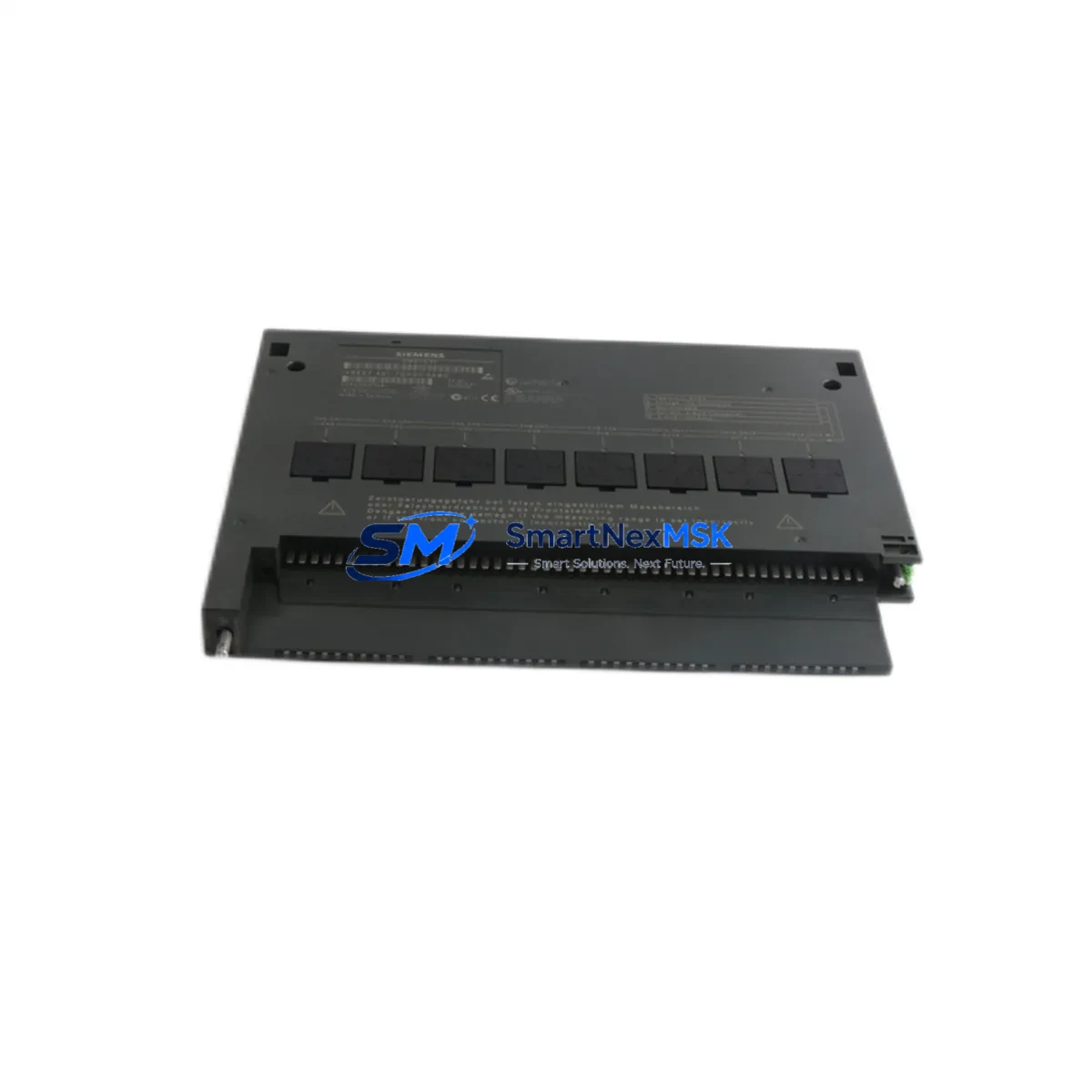

The Siemens 6ES7431-7QH00-0AB0 is a high-performance SM431 series 16-channel analog input module engineered for the SIMATIC S7-400 programmable logic controller platform. Designed to operate reliably in the most demanding industrial environments — including petrochemical plants, power generation facilities, metallurgical operations, mining control rooms, and continuous process manufacturing lines — this module delivers the signal integrity and operational stability that safety-critical control loops demand.
In high-load, high-interference industrial sites, analog signal accuracy is not a convenience — it is a safety requirement. The 6ES7431-7QH00-0AB0 addresses this directly through its ruggedized hardware design, wide operating temperature tolerance, and robust EMI shielding. Whether deployed in a heavy-duty control cabinet alongside SIMATIC S7-400 power supply modules such as the PS407 6ES7407-0KA02-0AA0, or integrated into a distributed I/O rack with IM461 interface modules, this analog input module maintains measurement fidelity even under sustained electrical noise, ground loops, and voltage transients common to industrial bus environments.
Signal drift and measurement error in analog input channels are among the leading causes of process upsets, false alarms, and unplanned shutdowns in continuous production facilities. The SM431 6ES7431-7QH00-0AB0 mitigates these risks through its 16-bit resolution analog-to-digital conversion, configurable input ranges (voltage and current), and hardware-level channel isolation that prevents cross-channel interference. When paired with SIMATIC S7-400 CPU modules such as the CPU 414-3 6ES7414-3XM05-0AB0 or CPU 416-3 6ES7416-3XS07-0AB0, the module enables deterministic scan cycles and rapid fault detection — essential for interlock and emergency shutdown (ESD) logic in safety instrumented systems.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | 6ES7431-7QH00-0AB0 |
| Series | SM431 — SIMATIC S7-400 |
| Brand | Siemens |
| Module Type | Analog Input Module (AI) |
| Number of Channels | 16 channels |
| Input Signal Types | Voltage (±10 V, ±5 V, ±2.5 V, 1–5 V) / Current (0–20 mA, 4–20 mA, ±20 mA) |
| Resolution | 16-bit (including sign) |
| Isolation | Channel-to-backplane isolation; galvanic separation |
| EMI / Surge Protection | Compliant with IEC 61000-4 series; surge-protected inputs |
| Operating Temperature | 0 °C to +60 °C (horizontal installation) |
| Storage Temperature | −40 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Degree of Protection | IP20 |
| Backplane Bus Compatibility | SIMATIC S7-400 central rack / expansion rack |
| Power Consumption | Approx. 1.2 W (from backplane bus) |
| Country of Origin | Germany |
| Weight | Approx. 500 g |
| Warranty | 12 Months — Covered by SMARTNEXMSK Quality Guarantee |
| Pre-shipment Testing | Full functional test performed before dispatch |
| Stock Status | In Stock — Ready for immediate shipment |
Control Cabinet Protection Strategy
A robust S7-400 control cabinet is only as reliable as its weakest component. The 6ES7431-7QH00-0AB0 is designed to be a dependable anchor in multi-module racks where power quality, signal integrity, and communication continuity must all be maintained simultaneously. In practice, this module is commonly deployed alongside SIMATIC S7-400 digital output modules such as the SM422 6ES7422-1BL00-0AA0 for actuator control, and SM421 digital input modules for discrete sensor feedback — forming a complete I/O layer that covers both analog process variables and binary safety signals within the same rack.
Power stability is a prerequisite for analog measurement accuracy. Voltage ripple and micro-interruptions on the 24 VDC supply rail can introduce offset errors in analog channels. For this reason, the 6ES7431-7QH00-0AB0 is best supported by a dedicated SITOP PSU300S 6EP1437-3BA10 or equivalent regulated industrial power supply, which provides the clean, stable DC power that high-resolution analog conversion requires. Surge protection devices installed at the cabinet entry point — such as DEHN or Phoenix Contact SPD modules — further protect the analog input channels from transient overvoltages caused by nearby motor starts, welding equipment, or lightning-induced surges on field wiring.
Communication reliability is equally critical. In S7-400 systems handling safety-related data, the CP443-1 6GK7443-1EX30-0XE0 Industrial Ethernet communication processor ensures that process values acquired by the 6ES7431-7QH00-0AB0 are transmitted to SCADA systems and historian servers without packet loss or latency spikes. For PROFIBUS-based architectures, the CP443-5 6GK7443-5DX05-0XE0 provides equivalent deterministic communication performance. In distributed configurations, IM460/IM461 expansion interface modules extend the S7-400 rack across multiple physical enclosures while maintaining synchronous I/O scanning — a key requirement in large-scale process control systems where the analog input module may be located remotely from the CPU rack.
For applications requiring functional safety compliance, the 6ES7431-7QH00-0AB0 can be integrated into architectures that include SIMATIC S7-400H redundant CPU pairs and F-modules from the S7-400F/FH safety series, providing a layered defense against single-point failures in critical measurement loops.
Critical Industrial Safety Applications
Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the 6ES7431-7QH00-0AB0 monitors pressure transmitters, temperature sensors, and flow meters in reactor feed, distillation column, and heat exchanger control loops. Its high channel count and isolation characteristics make it suitable for hazardous area control panels where signal integrity directly impacts process safety and regulatory compliance.
Power Generation and Substation Automation: Thermal and hydroelectric power plants rely on precise analog measurement for turbine speed control, generator excitation regulation, and boiler combustion optimization. The SM431 module’s EMI resistance is particularly valuable in high-voltage switchgear environments where electromagnetic interference from bus bars and transformers can corrupt analog signals in lesser-grade modules.
Mining and Mineral Processing: Continuous mining operations — including conveyor systems, crusher controls, and flotation cell management — demand control hardware that withstands vibration, dust ingress, and wide temperature swings. The 6ES7431-7QH00-0AB0‘s industrial-grade construction and wide storage temperature range support reliable operation in surface and underground mining control rooms.
Water and Wastewater Treatment: Municipal and industrial water treatment facilities use analog input modules to monitor pH, dissolved oxygen, turbidity, and flow rate across multiple treatment stages. The module’s multi-channel capability reduces rack space requirements while maintaining the measurement accuracy needed for chemical dosing control and effluent compliance monitoring.
Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate extreme electromagnetic interference. The 6ES7431-7QH00-0AB0‘s surge-protected inputs and galvanic isolation protect measurement integrity in these environments, supporting temperature control, tension regulation, and thickness measurement in safety-critical production sequences.
Port and Material Handling Automation: Ship-to-shore cranes, automated stacking cranes, and conveyor transfer systems require reliable analog feedback from load cells, position encoders, and hydraulic pressure sensors. The module’s deterministic response time and compatibility with the S7-400 high-speed CPU variants ensure that load monitoring and anti-sway control loops operate within required cycle times.
Safety and Quality FAQ
Q1: What warranty coverage is provided for the 6ES7431-7QH00-0AB0?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options, minimizing downtime impact on your production facility.
Q2: How is each module tested before shipment?
Every 6ES7431-7QH00-0AB0 unit undergoes a comprehensive pre-shipment functional test that verifies channel accuracy, isolation integrity, backplane communication, and power consumption within specification. Test records are available upon request for quality audit purposes.
Q3: Is this module compatible with existing S7-400 racks and CPU configurations?
Yes. The SM431 6ES7431-7QH00-0AB0 is fully compatible with all standard SIMATIC S7-400 central racks (UR1, UR2) and expansion racks (ER1, ER2), and is supported by STEP 7 v5.x and TIA Portal engineering environments. It operates alongside all S7-400 CPU variants without hardware modification.
Q4: Can long-term supply and spare part availability be guaranteed?
SMARTNEXMSK maintains dedicated stock of the 6ES7431-7QH00-0AB0 and related S7-400 I/O modules to support ongoing maintenance, planned replacements, and emergency spare requirements. We provide stable supply commitments for industrial customers with multi-year maintenance contracts, ensuring your control system spares strategy is never compromised by market shortages.
