Siemens 6ES7521-1BH10-0AA0 Retrofit-Ready DI Module S7-1500

Siemens 6ES7521-1BH10-0AA0 Retrofit-Ready DI Module for S7-1500 Control Systems

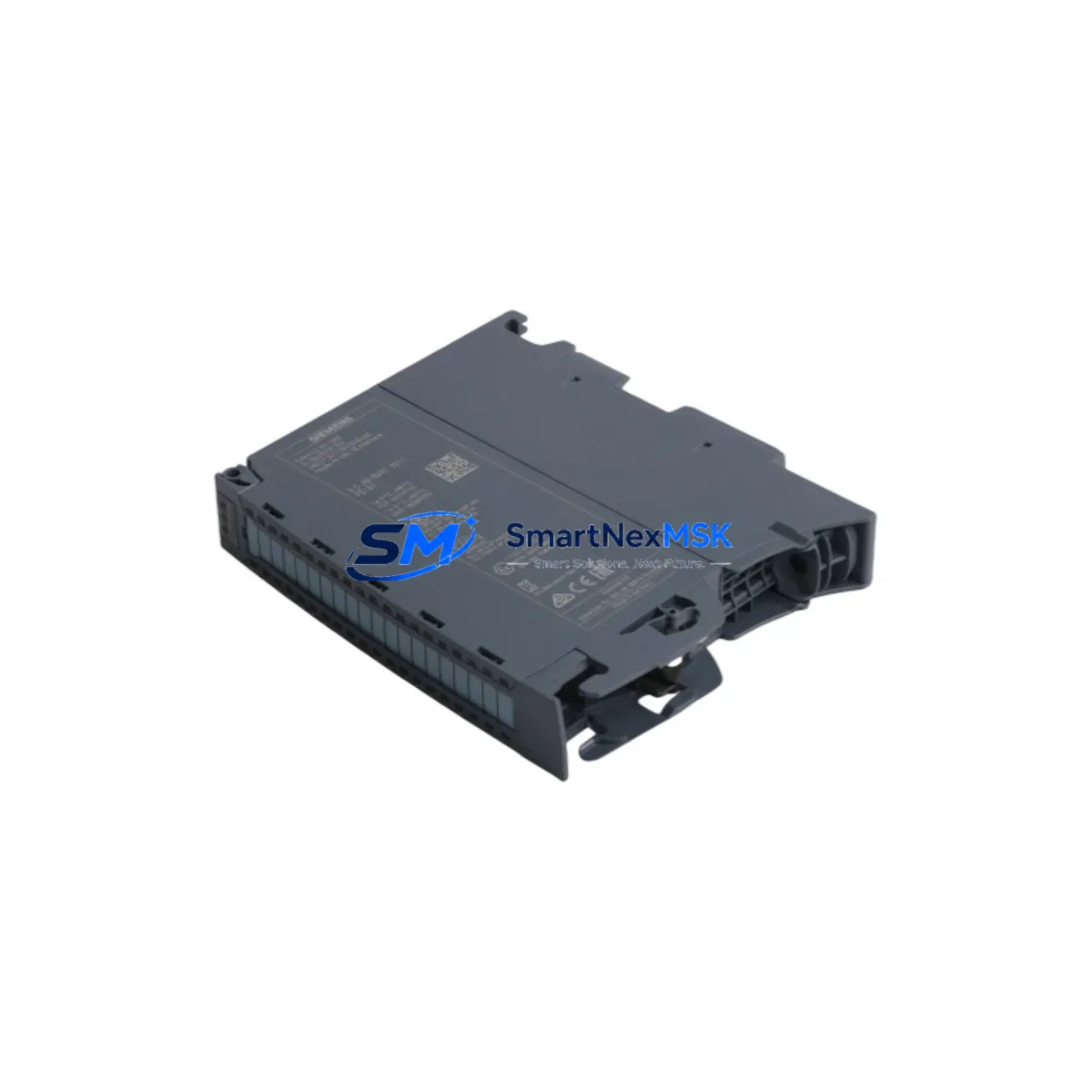

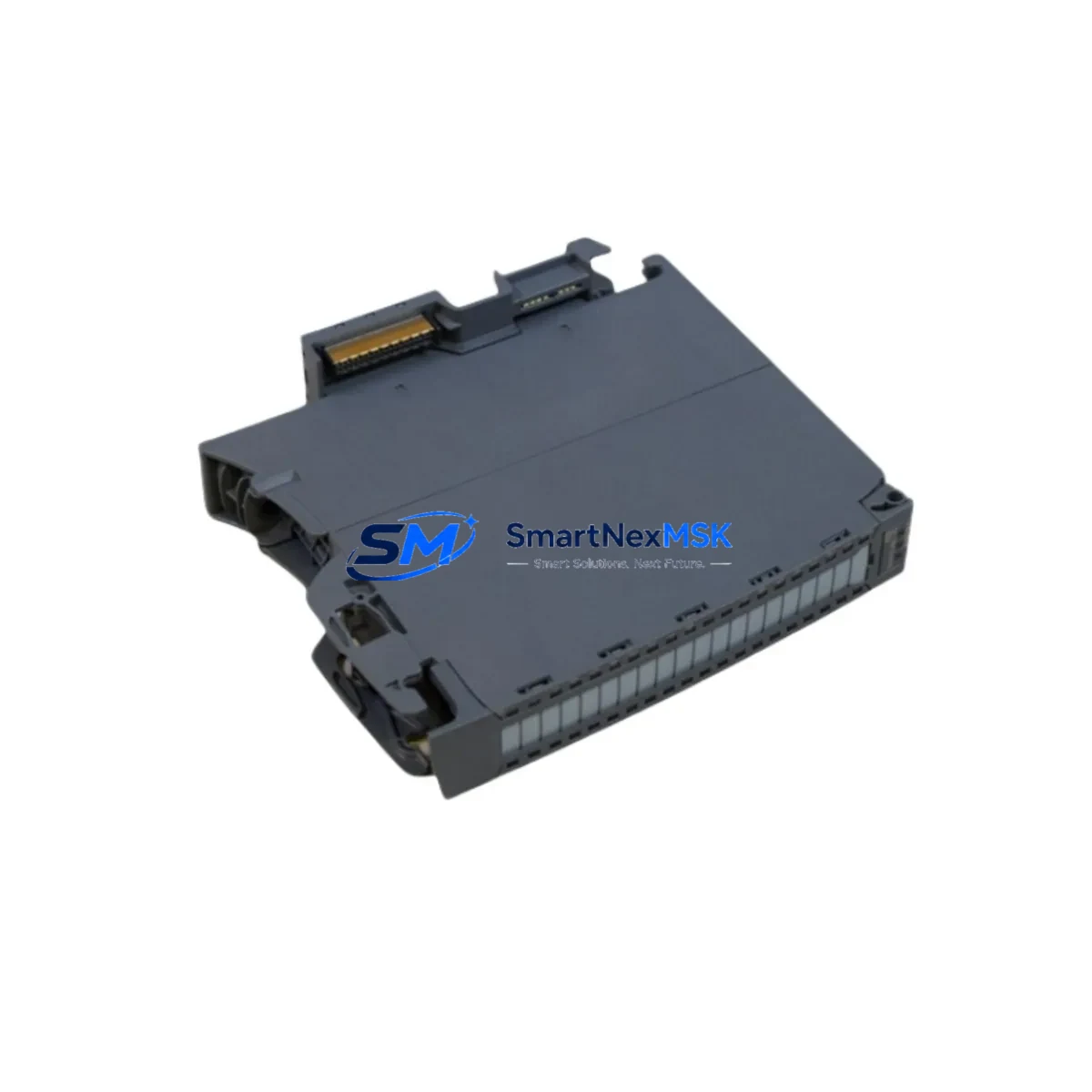

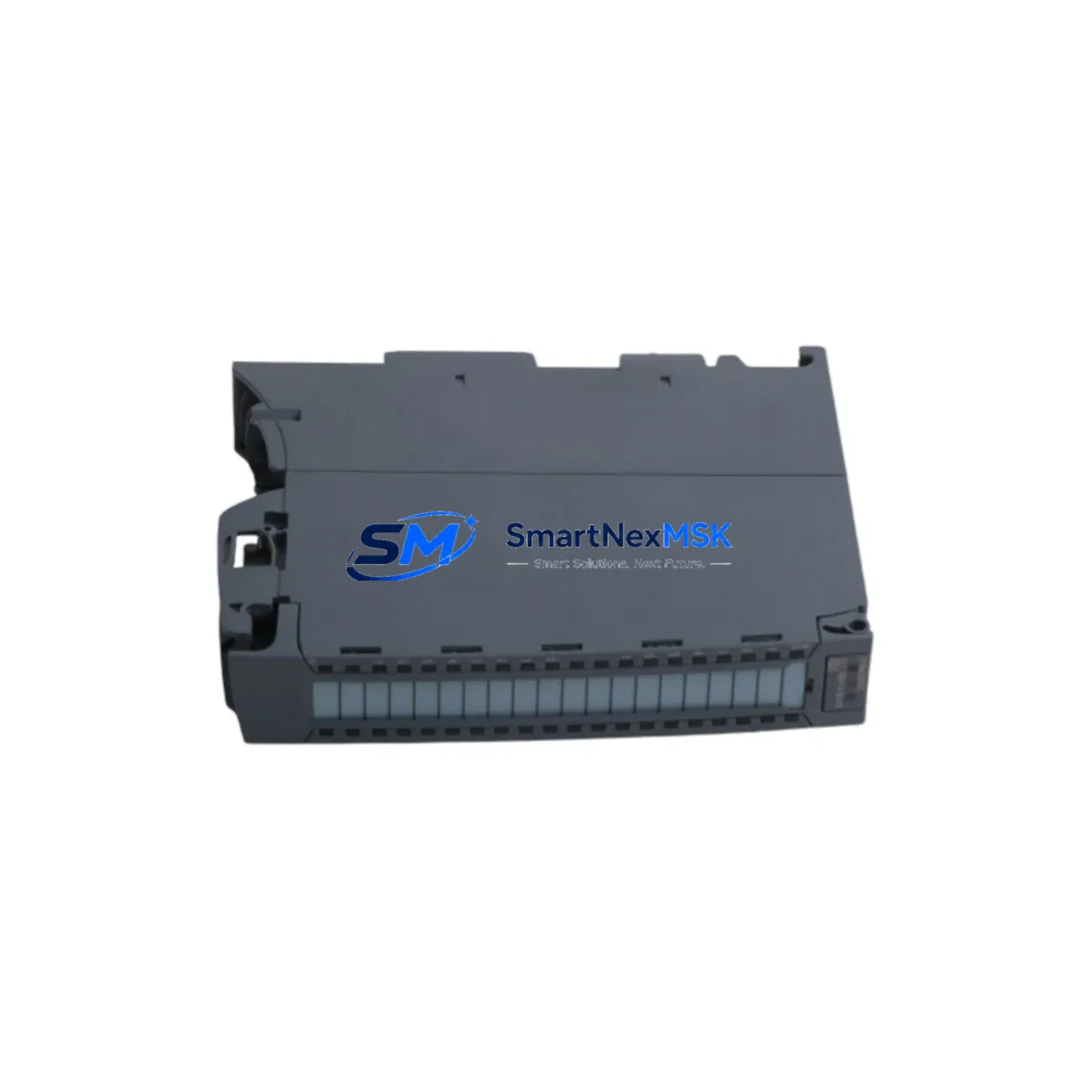

The Siemens 6ES7521-1BH10-0AA0 is a high-feature digital input module (SM521 DI 16×24VDC HF) designed for the SIMATIC S7-1500 programmable logic controller platform. As legacy S7-300 and S7-400 systems approach end-of-life, this module serves as the cornerstone of a smooth, validated migration path — enabling engineers to modernize control architectures without rebuilding field wiring from scratch.

With 16 digital inputs rated at 24 VDC, the 6ES7521-1BH10-0AA0 supports high-speed signal acquisition, hardware interrupt capability, and diagnostic functions that far exceed the capabilities of older SM321 modules used in S7-300 racks. For facilities running aging SIMATIC S7-300 systems with ET 200M distributed I/O or S7-400 central racks, this module provides a direct functional upgrade path when combined with the appropriate S7-1500 CPU — such as the CPU 1511-1 PN or CPU 1515-2 PN — and a compatible IM 155-5 PN ST interface module for distributed configurations.

Procurement teams and system integrators sourcing this module for retrofit projects benefit from SMARTNEXMSK’s verified inventory, pre-shipment functional testing, and 12-month warranty coverage — critical assurances when replacing discontinued spare parts in production-critical environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6ES7521-1BH10-0AA0 begins well before the module arrives on-site. Engineers must audit the existing S7-300 or S7-400 control cabinet to assess power supply capacity. The SITOP PSU8600 or PS 60W 24VDC power supply modules used in S7-1500 systems have different load profiles than the PS 307 units common in S7-300 panels — a load calculation must confirm that the new rack’s power budget accommodates all installed I/O modules, including any SM522 digital output modules and SM531 analog input modules planned for the same chassis.

Terminal wiring is a critical checkpoint. The 6ES7521-1BH10-0AA0 uses a 40-pin front connector (6ES7592-1AM00-0XB0 or equivalent), which differs from the 20-pin connectors on older SM321 modules. Field cables must be re-terminated or adapted. Where the existing installation uses shielded cable runs for noise immunity, the shield termination points on the new S7-1500 front connector must be verified against the original wiring diagram.

For distributed I/O architectures previously built around ET 200M with IM 153-2 interface modules over PROFIBUS DP, the migration path typically involves replacing the IM 153-2 with an IM 155-5 PN ST interface module and transitioning the network backbone from PROFIBUS to PROFINET. This protocol migration requires updating the GSD/GSDML device files in TIA Portal and re-mapping all I/O addresses in the CPU program. The 6ES7521-1BH10-0AA0 will appear as a new hardware object in the TIA Portal hardware catalog and must be configured with the correct slot address and diagnostic settings before download.

Where HMI panels — such as the SIMATIC TP700 Comfort or TP1200 Comfort — are connected to the existing system, screen tags referencing S7-300 data blocks or memory bits must be remapped to the new S7-1500 tag structure. This is best handled in parallel with the PLC program migration to avoid HMI communication faults during commissioning. Programming cables such as the PC Adapter USB A2 or standard PROFINET Ethernet cables are used for online connection during the TIA Portal download and first-run diagnostics.

Rack and backplane integrity should also be confirmed. The S7-1500 mounting rail (6ES7590-1AB60-0AA0) and system power module (PM 70W 120/230VAC) must be sized for the full module complement. If the retrofit involves expanding I/O beyond the original S7-300 configuration, additional slots on the S7-1500 rack or a second ET 200MP station with IM 155-5 PN HF may be required to accommodate the 6ES7521-1BH10-0AA0 alongside additional SM522 output modules.

Downtime Control During System Migration

Minimizing production downtime during a control system migration requires a structured cutover strategy. The recommended approach is a parallel-run method: the new S7-1500 CPU and 6ES7521-1BH10-0AA0 module are installed and wired in the control cabinet alongside the existing S7-300 system, with field signals temporarily cross-connected. This allows the new program logic to be validated against live process signals before the final switchover.

Before cutover, the existing S7-300 program should be exported from STEP 7 Classic and converted using the TIA Portal migration tool. While automatic conversion handles most standard function blocks, manual review is required for any organization blocks (OBs), interrupt routines, and hardware-specific instructions that reference S7-300 system data. The hardware interrupt capability of the 6ES7521-1BH10-0AA0 — triggered on rising or falling edges of any of its 16 input channels — must be mapped to the correct OB40 or OB41 interrupt organization blocks in the migrated program.

During the final cutover window, the sequence should follow: power down the S7-300 CPU, disconnect field terminals from the old front connectors, reconnect to the new S7-1500 front connectors, power up the new CPU, perform a warm restart, and verify all input channel states in the TIA Portal online diagnostics view. The 6ES7521-1BH10-0AA0’s channel-level diagnostic LEDs provide immediate visual confirmation of signal integrity at each input point, significantly reducing fault-finding time during the first-run phase. A well-prepared cutover of this type can be completed within a planned maintenance window of four to eight hours for a single-rack S7-300 system.

Retrofit Support FAQ

Q1: Can the 6ES7521-1BH10-0AA0 directly replace an SM321 DI 16×24VDC module in an S7-300 system?
The 6ES7521-1BH10-0AA0 is a SIMATIC S7-1500 module and is not physically or electrically compatible with an S7-300 rack. It cannot be inserted into an S7-300 backplane. A full platform migration to S7-1500 — including a new CPU, mounting rail, and system power module — is required. However, the field wiring and sensor signals connected to the original SM321 can be reused with appropriate front connector adaptation.

Q2: What TIA Portal version is required to configure this module?
TIA Portal V16 or later is required to configure the 6ES7521-1BH10-0AA0 within an S7-1500 project. The module’s hardware support package (HSP) must be installed if it does not appear in the hardware catalog. Siemens recommends TIA Portal V17 or V18 for projects that also include PROFINET IRT configuration and advanced diagnostic functions.

Q3: How is the module wired, and what front connector is required?
The 6ES7521-1BH10-0AA0 uses a 40-pin front connector. The 6ES7592-1AM00-0XB0 (40-pin, screw terminals) is the standard compatible connector. Input signals are wired to the numbered terminals on the front connector, with the 24VDC supply and common ground connected to the designated power terminals. Detailed terminal assignments are provided in the Siemens SIMATIC S7-1500 SM521 module manual (document A5E03484347).

Q4: Does SMARTNEXMSK test modules before shipment, and what warranty is provided?
Yes. All modules sourced through SMARTNEXMSK undergo pre-shipment functional verification to confirm power-up integrity and channel response. Each 6ES7521-1BH10-0AA0 unit is covered by a 12-month warranty from the date of shipment. In the event of a confirmed module fault within the warranty period, SMARTNEXMSK provides replacement or credit resolution. Contact our technical team at sales@smartnexmsk.com for warranty claims or pre-sales compatibility verification.
