Siemens 6ES7522-1BH10-0AA0 Safety-Enhanced Digital Output

Siemens 6ES7522-1BH10-0AA0 Safety-Enhanced Digital Output for Harsh Industrial Control

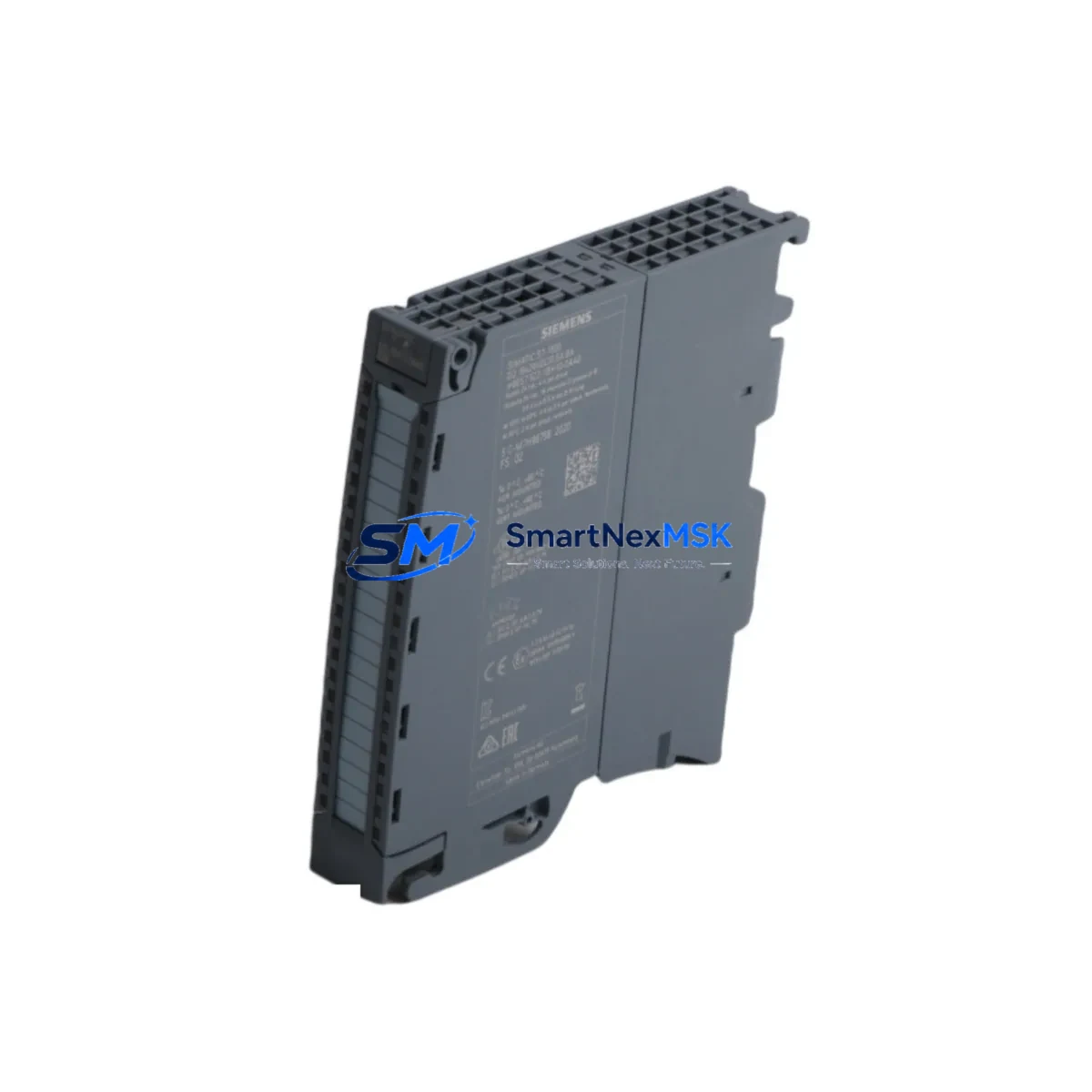

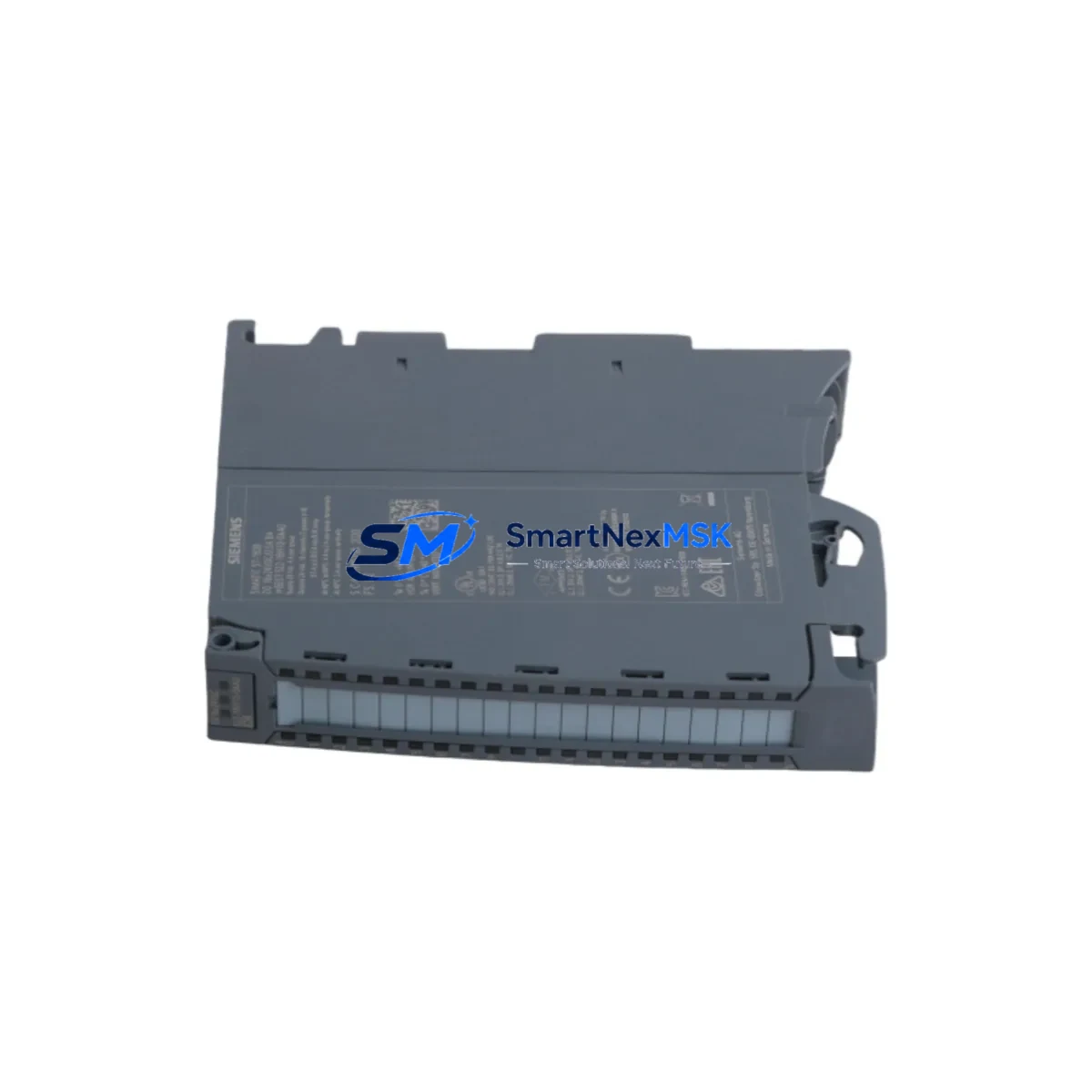

The Siemens 6ES7522-1BH10-0AA0 is a high-performance Digital Output module (DQ 16×24VDC/0.5A ST) engineered for the SIMATIC S7-1500 programmable logic controller platform. Designed to operate reliably in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines — this module delivers consistent, interference-resistant output switching that is critical to maintaining safe and uninterrupted process control.

In high-load control cabinets where dozens of I/O modules share a common backplane, signal integrity is paramount. The 6ES7522-1BH10-0AA0 provides 16 digital output channels at 24 VDC / 0.5 A per channel, with robust short-circuit protection and diagnostic capabilities that immediately flag faults to the CPU — preventing silent failures that could cascade into process shutdowns or safety incidents. Its ST (Standard) firmware variant is fully compatible with the S7-1500 CPU family, including the CPU 1511-1 PN, CPU 1513-1 PN, CPU 1515-2 PN, and CPU 1517-3 PN/DP, ensuring seamless integration into existing or new automation architectures.

When deployed alongside the Siemens 6ES7521-1BH10-0AA0 Digital Input module (DI 16×24VDC HF), the 6ES7522-1BH10-0AA0 forms a complete I/O pair capable of handling critical interlock and permissive logic in safety-relevant control loops. In applications where emergency shutdown (ESD) sequences must execute within milliseconds, the module’s fast output response time and deterministic behavior under PROFINET IRT communication ensure that actuator commands — to solenoid valves, motor contactors, or relay coils — are delivered without delay or ambiguity.

Power supply stability is a foundational concern in any industrial control cabinet. The 6ES7522-1BH10-0AA0 is designed to tolerate load-side voltage fluctuations and transient surges that are common in heavy industrial environments. When paired with a Siemens SITOP PSU8200 24VDC power supply and a 6EP1961-2BA00 redundancy module, the output module benefits from a conditioned, surge-protected power rail that eliminates the risk of module brownout or spurious output activation during grid disturbances. This combination is especially important in arc furnace control, compressor drive panels, and high-inrush motor starter circuits.

Communication reliability is equally critical. The S7-1500 system communicates over PROFINET, and the 6ES7522-1BH10-0AA0 participates in the deterministic I/O update cycle managed by the CPU. In plants where network segments carry both process control and safety data, proper PROFINET topology design — using Siemens SCALANCE X208 managed switches — ensures that output module update cycles are not disrupted by broadcast storms or network congestion. The module’s integrated diagnostics report communication faults, wire-break conditions, and short-circuit events directly to the TIA Portal engineering environment, enabling rapid fault isolation without requiring physical inspection of the cabinet.

For applications requiring functional safety up to SIL 2 or PLd, the 6ES7522-1BH10-0AA0 can be used in conjunction with Siemens ET 200SP F-DQ modules and the S7-1500F fail-safe CPU to implement a layered safety architecture. In this configuration, the standard output module handles non-safety-critical actuator commands while the F-DQ modules manage safety-instrumented functions — such as de-energizing burner igniters, closing emergency isolation valves, or tripping high-voltage circuit breakers — under the supervision of the fail-safe CPU and its certified safety program.

Thermal management is another key reliability factor. The module is rated for operation from 0°C to +60°C ambient, with a storage range of −40°C to +70°C, making it suitable for outdoor control rooms in desert or arctic climates when housed in appropriately rated enclosures. In high-density rack configurations, the module’s low power dissipation reduces the thermal load on the cabinet, extending the service life of adjacent components such as the 6ES7590-1AB60-0AA0 U-connector and the 6ES7592-1AM00-0XB0 front connector with push-in terminals, which are recommended for reliable field wiring termination in vibration-prone environments.

Spare parts availability and supply continuity are critical considerations for plant maintenance teams operating on long asset lifecycles. SMARTNEXMSK maintains verified stock of the 6ES7522-1BH10-0AA0 with full traceability, supporting rapid replacement during planned maintenance windows or unplanned breakdowns. Every unit undergoes pre-shipment functional testing to confirm output channel integrity, diagnostic response, and firmware version compatibility before dispatch. This eliminates the risk of receiving a non-functional module during a critical production outage.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust S7-1500 control cabinet deployment built around the 6ES7522-1BH10-0AA0 requires a coordinated selection of protective and supporting components. On the power side, the Siemens SITOP PSU8200 10A (6EP1334-2BA20) provides a regulated 24 VDC supply with active power boost, while the 6EP1961-2BA00 redundancy module enables dual-feed operation to eliminate single-point power failure. Surge protection at the cabinet entry point — using a Siemens 5SD7 series surge arrester — prevents transient overvoltages from reaching the backplane.

On the I/O side, the 6ES7521-1BL10-0AA0 Digital Input module (DI 32×24VDC HF) complements the output module by providing high-speed field signal acquisition with input filter times as low as 0.05 ms, enabling fast interlock response. For analog process variables — pressure, temperature, flow — the 6ES7531-7KF00-0AB0 Analog Input module (AI 8×U/I/RTD/TC ST) feeds process data to the CPU for continuous safety monitoring. The 6ES7532-5HD00-0AB0 Analog Output module (AQ 4×U/I ST) handles proportional valve and positioner commands where precise modulation is required.

Network integrity is maintained through SCALANCE X208 (6GK5208-0BA10-2AA3) managed switches with PROFINET diagnostics, ring redundancy (MRP), and port-level fault detection. For remote I/O expansion in distributed control architectures, the Siemens ET 200SP IM 155-6 PN ST (6ES7155-6AU01-0BN0) interface module extends the I/O network to field junction boxes while maintaining PROFINET communication integrity. Cabinet-level grounding and shielding discipline — using Siemens shield connection clamps on all analog and high-speed digital cables — further reduces susceptibility to electromagnetic interference from variable frequency drives and high-current switching equipment operating in the same facility.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 6ES7522-1BH10-0AA0 is deployed in burner management systems (BMS) and emergency shutdown (ESD) panels where output module reliability directly affects process safety integrity. A single spurious output activation — or failure to activate — can trigger unplanned flaring events, pressure relief valve actuation, or compressor trip sequences with significant production and safety consequences. The module’s per-channel diagnostics and deterministic PROFINET update cycle make it a dependable choice for these high-consequence applications.

In power generation and substation automation, the module controls circuit breaker trip coils, transformer tap changers, and auxiliary relay panels. The 24 VDC output voltage is compatible with standard substation relay logic, and the module’s short-circuit protection prevents coil burnout in the event of a wiring fault — a common failure mode in aging substation infrastructure.

In mining and mineral processing, the module drives conveyor belt starters, crusher interlock relays, and ventilation fan contactors in environments characterized by heavy vibration, coal dust, and wide ambient temperature swings. Its robust construction and diagnostic transparency allow maintenance teams to identify and resolve faults during scheduled inspection windows rather than during unplanned production stoppages.

In water and wastewater treatment, the module controls pump station motor starters, chemical dosing pump relays, and UV disinfection system enable signals. Continuous 24/7 operation with minimal maintenance access makes module reliability and remote diagnostic capability essential. The 6ES7522-1BH10-0AA0’s integration with TIA Portal’s online diagnostics allows plant operators to monitor output channel health from the SCADA workroom without dispatching field technicians to the pump station.

In metallurgical and steel mill applications, the module operates in close proximity to induction furnaces, arc furnaces, and rolling mill drives — environments with extreme electromagnetic interference levels. Proper cabinet shielding, PROFINET fiber optic segments using SCALANCE X204IRT (6GK5204-0BA00-2BA3), and rigorous cable segregation practices ensure that the output module maintains signal integrity even under worst-case EMI conditions.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 6ES7522-1BH10-0AA0?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround to minimize plant downtime. Replacement units are dispatched from verified stock upon fault confirmation.

Q2: What pre-shipment testing is performed on each module?
Every 6ES7522-1BH10-0AA0 unit undergoes a structured functional test protocol prior to shipment: output channel activation verification across all 16 channels, diagnostic response confirmation, firmware version check, and visual inspection for physical damage or counterfeit indicators. Test records are available upon request for quality-critical procurement processes.

Q3: Is this module compatible with existing S7-1500 installations using TIA Portal V14 or V15?
Yes. The 6ES7522-1BH10-0AA0 is backward and forward compatible with TIA Portal V13 SP1 through the current release. It can be inserted into an existing S7-1500 rack without hardware configuration changes, provided the firmware version is consistent with the CPU’s project configuration. SMARTNEXMSK technical support can advise on firmware alignment for specific project versions.

Q4: Can long-term supply continuity be guaranteed for maintenance and MRO procurement?
SMARTNEXMSK maintains a dedicated inventory buffer of high-demand S7-1500 I/O modules, including the 6ES7522-1BH10-0AA0, to support plant maintenance schedules, annual MRO contracts, and emergency breakdown orders. Customers with critical spare parts programs are encouraged to contact our sales team to discuss consignment stock arrangements and priority allocation agreements.
