Siemens 6ES7952-1AP00-0AA0 Maintenance-Ready Spare for S7-400 Automation

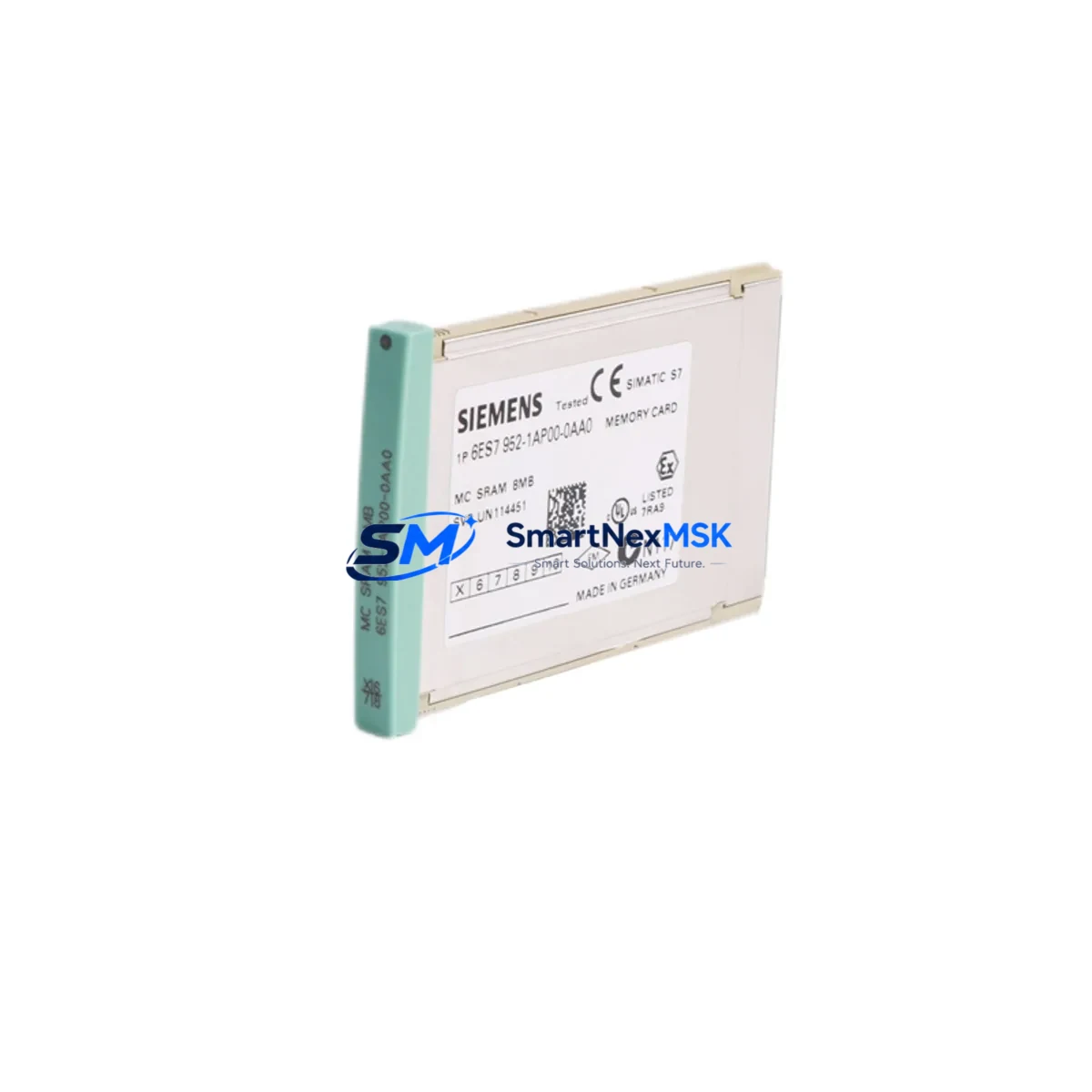

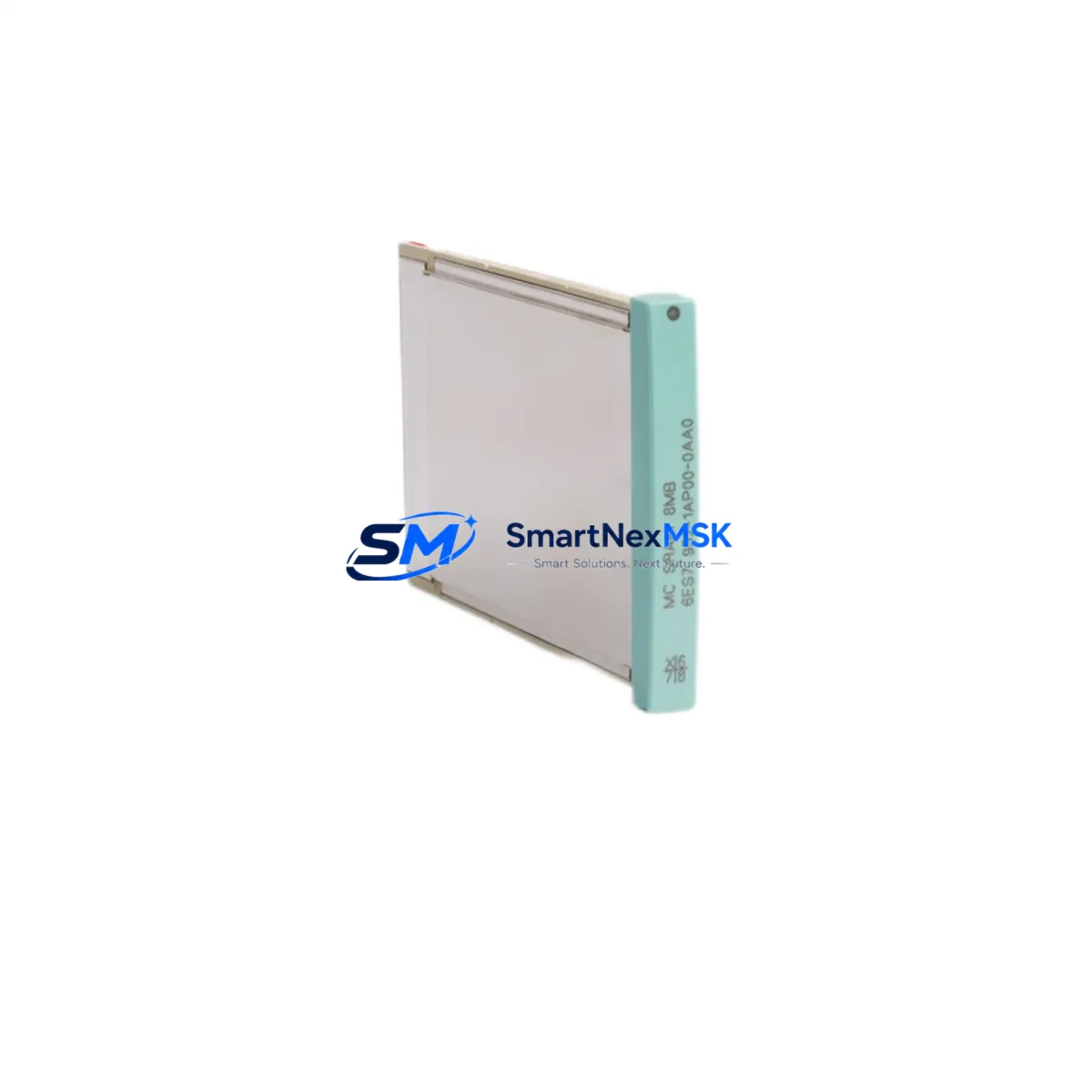

The Siemens 6ES7952-1AP00-0AA0 is an 8MB RAM memory card designed for the SIMATIC S7-400 programmable logic controller platform — one of the most widely deployed process automation architectures in heavy industry, power generation, chemical processing, and manufacturing. When this memory card fails or reaches end-of-service life, the entire CPU module loses its user program and data block retention, resulting in an unplanned shutdown that can cascade across the entire control loop. Stocking a verified replacement is not optional for any site running S7-400 infrastructure — it is a fundamental element of a responsible maintenance strategy.
This unit is sourced as an original Siemens spare, individually tested prior to dispatch, and shipped with a 12-month warranty. Every card undergoes read/write verification and compatibility confirmation against the S7-400 CPU family before leaving our facility. Lead times are minimized to support emergency replacement scenarios where every hour of downtime carries measurable production cost.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 6ES7952-1AP00-0AA0 |
| Brand | Siemens |
| Series | SIMATIC S7-400 |
| Memory Type | RAM (Random Access Memory) |
| Memory Capacity | 8 MB |
| Compatible CPUs | S7-400 CPU 41x, 41xH, 412, 414, 416, 417 series |
| Form Factor | SIMATIC Memory Card (plug-in module) |
| Operating Voltage | 5 VDC (supplied via CPU backplane) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | IP20 (installed in CPU slot) |
| Origin | Germany |
| Installation | Hot-swap capable (CPU-dependent); insert into designated memory card slot on S7-400 CPU front panel |
| Application Environment | Industrial automation, process control, SCADA, DCS integration, power distribution |
| Maintenance Recommendation | Inspect card seating and contacts during scheduled cabinet maintenance; replace if read errors or CPU fault codes appear |
| Warranty | 12 Months — tested and verified before shipment |
Maintenance Planning for Continuous Operation
A memory card failure in an S7-400 system rarely occurs in isolation. Maintenance engineers responding to a CPU fault or program loss event should treat the replacement of the 6ES7952-1AP00-0AA0 as the starting point of a broader cabinet inspection, not the end of it. The following components are commonly implicated in the same fault event or are at elevated risk of degradation in aging S7-400 control cabinets:
Begin with the CPU module itself — the 6ES7414-2XK05-0AB0 or 6ES7416-3XR05-0AB0 are common host CPUs for this memory card. Verify that the CPU’s internal battery (typically a 6ES7971-0BA00 lithium backup battery) is within its service life; a depleted battery will cause RAM content loss even when the memory card is functional. Next, inspect the power supply module — the PS 407 series (e.g., 6ES7407-0DA02-0AA0) should be checked for output voltage stability, as undervoltage events are a leading cause of memory card corruption.
Review the I/O modules connected to the same rack. Digital input modules such as the SM 421 series and analog input modules from the SM 431 family should be checked for blown fuses, loose terminal connections, and signal drift. If the system uses PROFIBUS DP communication, inspect the CP 443-5 communication processor and verify bus termination resistors are correctly installed — a PROFIBUS fault can trigger CPU STOP mode and appear as a memory-related fault.
For systems with ET 200M remote I/O distributed across the plant, check the IM 153-2 interface modules for firmware compatibility and physical connector wear. In cabinets with signal isolation requirements, inspect any installed signal isolators or barriers between field instruments and the S7-400 I/O cards — degraded isolation can introduce noise that corrupts data block values stored in RAM. Finally, review the UR2 or UR1 backplane rack for corrosion on the bus connectors, and confirm that all module retaining screws are torqued correctly to prevent intermittent contact faults.
Proactive replacement of the 6ES7952-1AP00-0AA0 during a planned shutdown window — alongside battery replacement and I/O module inspection — is significantly less costly than an emergency response to an unplanned CPU STOP event.
Site Replacement Workflow
Replacing the 6ES7952-1AP00-0AA0 in a live S7-400 installation requires a structured approach to avoid data loss and minimize downtime. Before removing the existing card, confirm that the CPU’s user program has been backed up to a programming device (PG/PC) using STEP 7 or TIA Portal in S7-400 compatibility mode. If the CPU supports online backup, perform a full upload of the current program and data blocks.
Power down the CPU module or switch it to STOP mode before extracting the memory card — forced removal during RUN mode can corrupt the card’s file system. Insert the replacement 6ES7952-1AP00-0AA0, ensuring the card is fully seated in the slot with the locking tab engaged. Power the CPU back on and observe the STOP/RUN LED sequence; the CPU should transition to STOP, load the program from the new card, and then enter RUN mode if the program is intact.
If the replacement card is blank, download the backed-up program from the PG/PC to the CPU, then perform a memory reset (MRES) followed by a full download to initialize the card correctly. This workflow is compatible with all S7-400 CPU variants that accept the 952-series memory cards, including redundant H-system configurations using the 6ES7400-1JA01-0AA0 UR2-H rack. Document the replacement date, card serial number, and post-replacement test results in the site maintenance log to support future lifecycle planning.
Spare Parts Support FAQ
Q1: Is the 6ES7952-1AP00-0AA0 compatible with all S7-400 CPU models?
The 6ES7952-1AP00-0AA0 is compatible with the majority of SIMATIC S7-400 CPU modules that accept plug-in RAM memory cards, including the CPU 412, 414, 416, and 417 families. Compatibility should always be verified against the specific CPU order number and firmware version listed in the Siemens hardware configuration documentation before installation. We provide pre-shipment compatibility confirmation upon request.
Q2: What is your inventory and lead time policy for emergency orders?
We maintain buffer stock of high-demand S7-400 spare parts including the 6ES7952-1AP00-0AA0 to support emergency replacement scenarios. Standard orders are processed and dispatched within 1–2 business days. For critical downtime situations, contact our sales team directly at sales@smartnexmsk.com or +86 18259474341 to confirm real-time availability and expedited shipping options.
Q3: How is each unit tested before shipment?
Every 6ES7952-1AP00-0AA0 unit undergoes a read/write functional test and physical inspection prior to dispatch. Cards are verified for correct capacity, contact integrity, and absence of file system errors. A test report is available upon request for quality-critical procurement processes. All units are covered by a 12-month warranty from the date of shipment.
Q4: Can you supply other S7-400 spare parts for a complete maintenance kit?
Yes. We supply a broad range of SIMATIC S7-400 components including CPU modules, PS 407 power supplies, SM 421/431 I/O modules, CP 443 communication processors, IM 153 interface modules, and backup batteries. If you are building a site spare parts list or planning a scheduled maintenance shutdown, contact us with your BOM and we will confirm availability and pricing for the complete kit.
