Siemens 6ES7953-8LG11-0AA0 Safety-Enhanced Memory Card

Siemens 6ES7953-8LG11-0AA0 Safety-Enhanced Memory Card for Harsh Industrial Sites

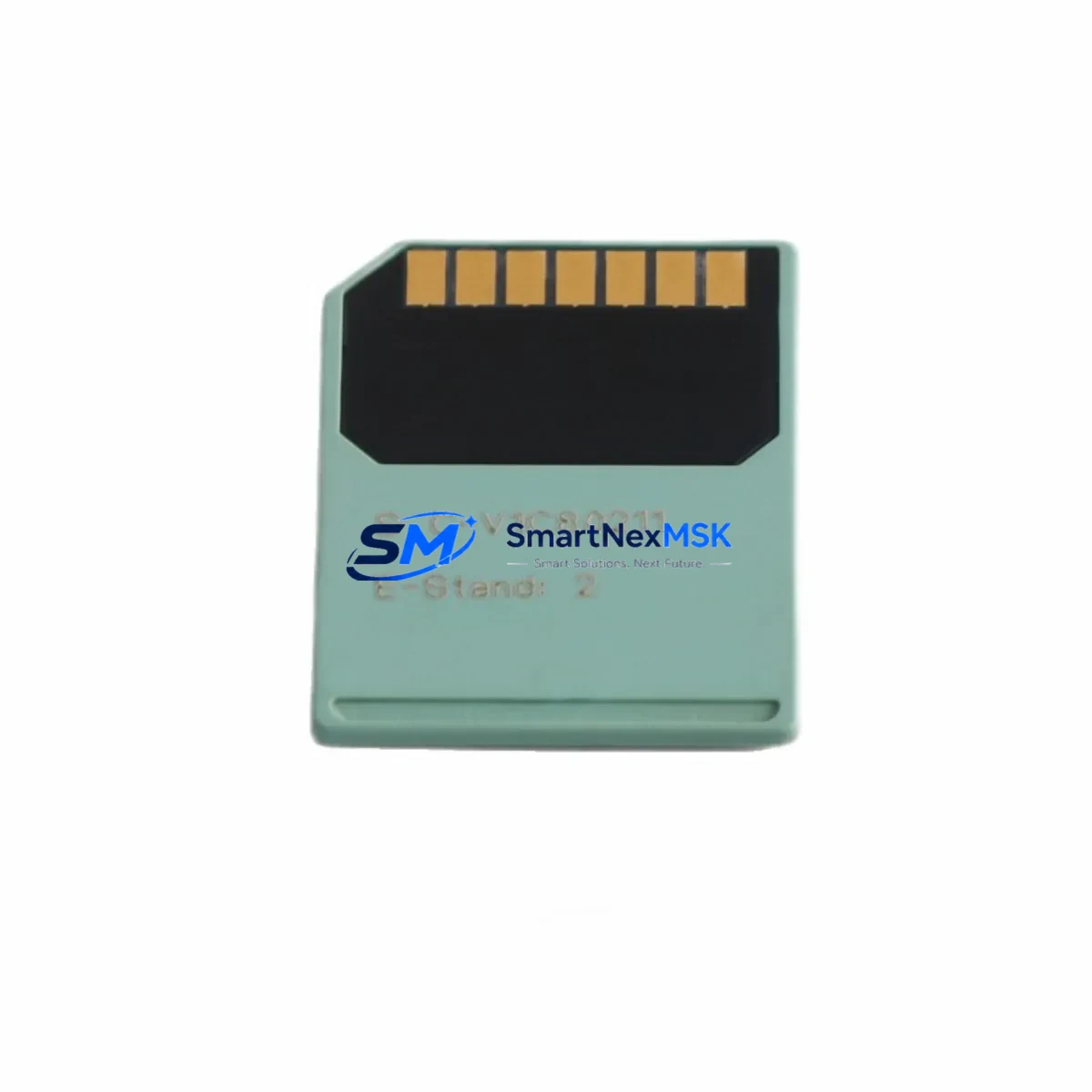

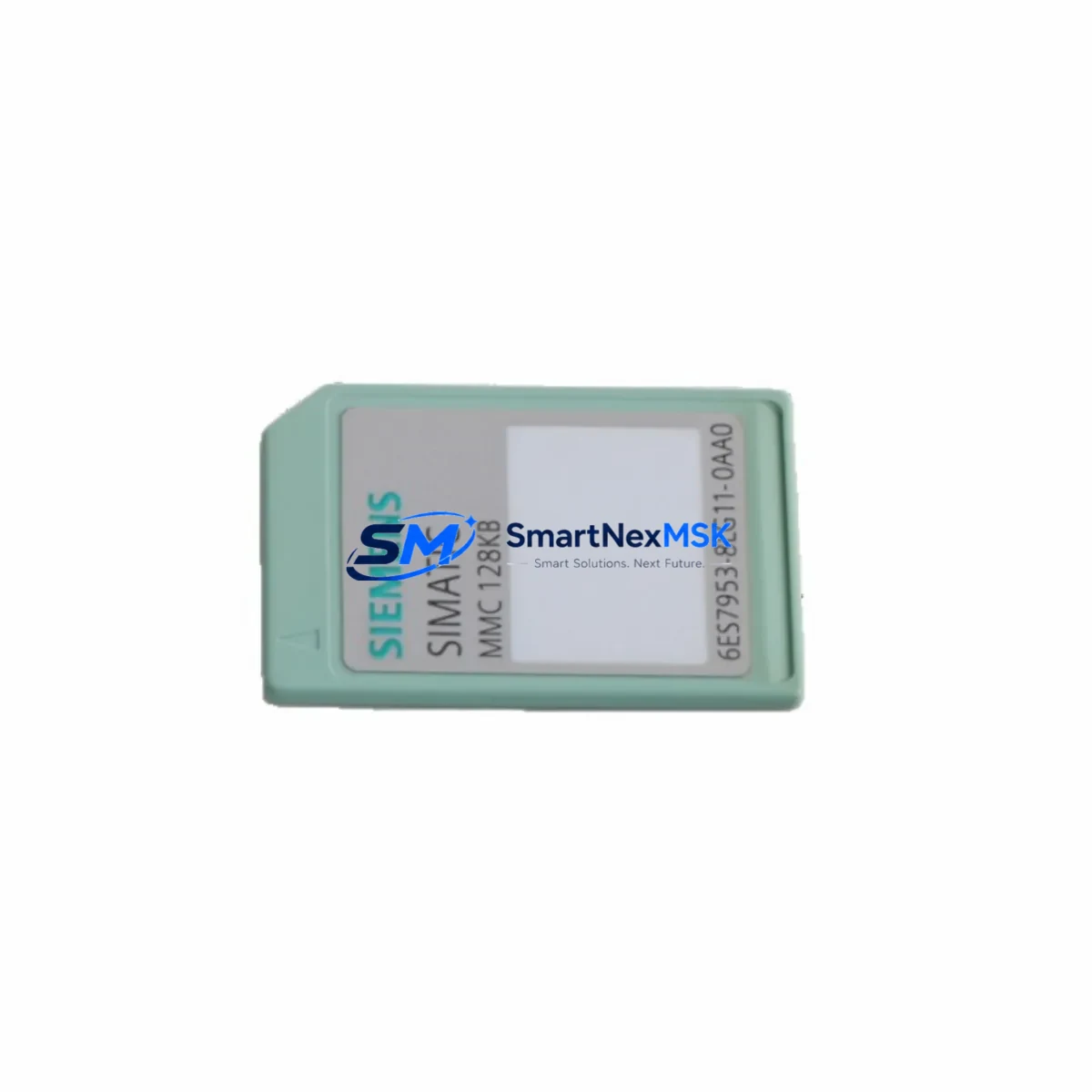

The Siemens 6ES7953-8LG11-0AA0 is a 128KB Micro Memory Card (MMC) engineered for the SIMATIC S7-300 PLC series, purpose-built to sustain reliable program and data retention in the most demanding industrial environments. In continuous-production facilities — where control interruption carries direct safety and financial consequences — this memory card serves as the critical data backbone of the CPU module, preserving ladder logic, function blocks, and safety-relevant parameter sets even through unexpected power loss, voltage fluctuation, or system restart cycles.

Unlike standard flash storage, the 6ES7953-8LG11-0AA0 is designed to withstand the electromagnetic interference (EMI) levels typical of heavy-industry control cabinets housing variable frequency drives, high-current contactors, and motor starters. Signal drift and data corruption risks — common failure modes in electrically noisy environments — are mitigated by the card’s robust write-protection architecture and non-volatile memory design. When paired with a Siemens CPU 315-2 DP (6ES7315-2AH14-0AB0) or CPU 317-2 PN/DP (6ES7317-2EK14-0AB0), the MMC ensures that program integrity is maintained across every power cycle, eliminating the risk of a cold-start with corrupted or missing logic — a scenario that can trigger uncontrolled process states in petrochemical or metallurgical plants.

In safety interlock circuits and emergency shutdown (ESD) systems, data persistence is non-negotiable. The 6ES7953-8LG11-0AA0 retains all safety-relevant configurations without battery dependency, reducing the maintenance burden associated with battery-backed RAM modules. This is particularly valuable in remote or hazardous-area installations — such as offshore platforms, mining headframes, or chemical reactor control rooms — where unplanned maintenance access is restricted or costly.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust S7-300 control cabinet deployment extends well beyond the CPU and memory card. To ensure system-level safety and uptime, the 6ES7953-8LG11-0AA0 is typically deployed alongside a coordinated set of protection and communication components. The Siemens PS 307 power supply module (6ES7307-1EA01-0AA0) provides stable 24VDC rail power with built-in overload protection, preventing voltage sag events from propagating into the CPU backplane — a common root cause of memory card read/write errors during load transients.

On the I/O side, digital input modules such as the SM 321 (6ES7321-1BH02-0AA0) and analog input modules like the SM 331 (6ES7331-7KF02-0AA0) feed process signals into the CPU, where the MMC-stored program executes control logic. Any corruption of that stored program — caused by a failed or incompatible memory card — would render these I/O modules operationally blind, making the 6ES7953-8LG11-0AA0 a foundational safety component rather than a peripheral accessory.

For communication-intensive installations, the CP 343-1 Ethernet communication processor (6GK7343-1EX30-0XE0) and PROFIBUS DP interface modules rely on the CPU’s MMC-resident configuration data to establish and maintain network topology. A corrupted or missing memory card in such architectures can cascade into full network partition failures, isolating remote I/O stations and triggering unplanned shutdowns. Surge protection devices installed on the PROFIBUS trunk — such as Siemens SITOP surge filters — further protect the communication layer from transient overvoltage events that could otherwise stress the CPU’s MMC interface.

In safety-rated applications, the 6ES7953-8LG11-0AA0 is also used in conjunction with Siemens F-CPU modules from the S7-300F range, where it stores the safety program alongside the standard user program. Proper MMC selection and pre-shipment verification are mandatory in these configurations to ensure that the safety integrity level (SIL) of the overall system is not compromised by a substandard or counterfeit memory component.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous cracking and distillation processes, the S7-300 PLC controls critical valve actuators, pressure relief interlocks, and emergency isolation systems. The 6ES7953-8LG11-0AA0 ensures that ESD logic and process setpoints survive any power interruption without requiring manual re-programming — a requirement that directly supports SIL 2 interlock integrity.

Electric Power Generation & Substation Automation: Turbine governor control and transformer protection relay coordination systems demand zero-tolerance for program loss. The MMC’s non-volatile architecture eliminates the battery-failure risk that has historically caused unplanned outages in aging DCS and PLC installations at power plants.

Mining & Mineral Processing: Conveyor belt interlocks, crusher control panels, and ventilation safety systems in underground mines operate in high-vibration, high-dust environments. The 6ES7953-8LG11-0AA0’s compliance with IEC 60068-2-6 vibration standards makes it a dependable spare for these harsh-duty applications.

Water & Wastewater Treatment: SCADA-integrated pump station controllers and chemical dosing systems require persistent program storage to maintain safe operation during grid outages. The MMC supports seamless warm-restart capability, ensuring treatment processes resume within seconds of power restoration.

Metallurgy & Steel Mills: Rolling mill automation and ladle furnace control systems subject PLCs to extreme thermal cycling and electromagnetic interference from high-power induction equipment. The 6ES7953-8LG11-0AA0’s industrial-grade flash memory withstands these conditions, supporting uninterrupted production campaigns.

Port & Bulk Material Handling: Ship-to-shore crane PLCs and stacker-reclaimer control systems require reliable memory modules that can survive coastal humidity, salt-laden air, and continuous 24/7 duty cycles. The MMC’s sealed form factor and non-volatile design make it a preferred spare part for port automation engineers.

Safety and Quality FAQ

Q1: What warranty does the 6ES7953-8LG11-0AA0 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or refund options.

Q2: What pre-shipment testing is performed?
Every 6ES7953-8LG11-0AA0 unit undergoes functional verification prior to dispatch, including read/write integrity checks and compatibility confirmation against S7-300 CPU firmware requirements. Units that do not pass inspection are not shipped.

Q3: Is this MMC compatible with all S7-300 CPU variants?
The 6ES7953-8LG11-0AA0 (128KB) is compatible with the full range of SIMATIC S7-300 CPUs that accept the standard Micro Memory Card format, including CPU 312, 314, 315-2 DP, 317-2 PN/DP, and 319-3 PN/DP. Always verify the required memory size against your CPU’s program footprint before ordering.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains standing inventory of the 6ES7953-8LG11-0AA0 and its capacity variants to support ongoing spare-part programs. For customers managing multi-site PLC fleets, bulk procurement and reserved-stock arrangements are available upon request. Contact our team to discuss your supply continuity requirements.
