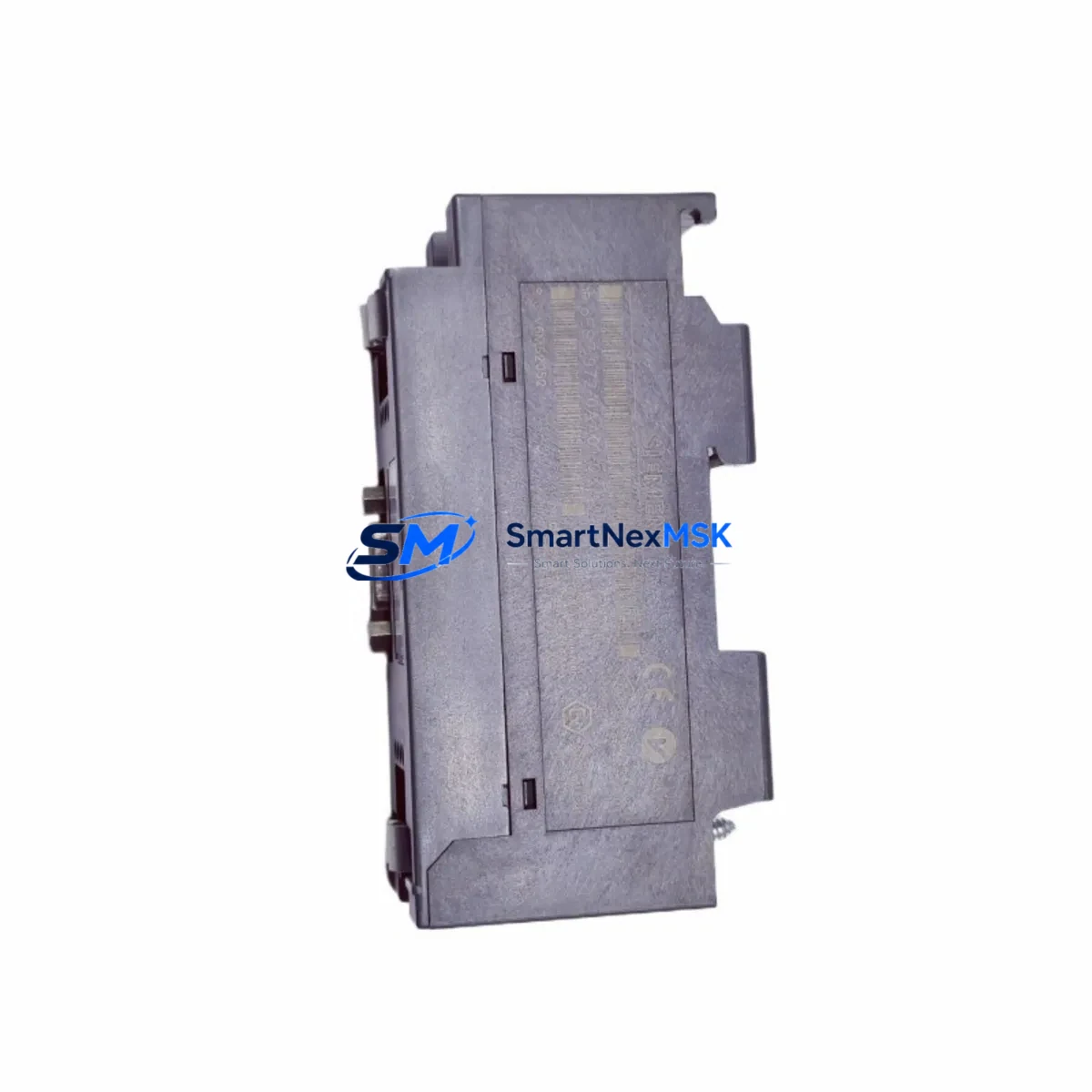

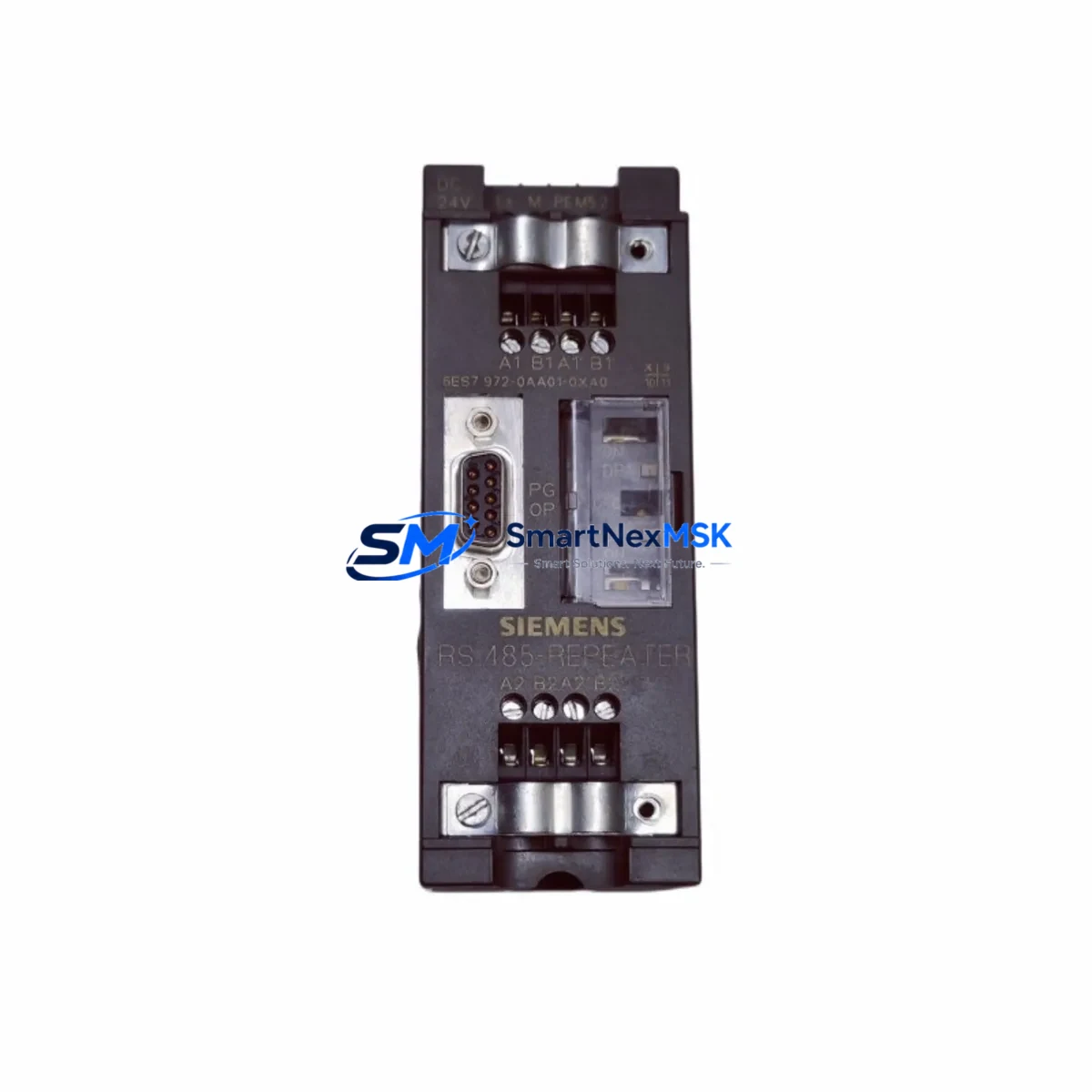

The Siemens 6ES7972-0AB01-0XA0 PROFIBUS DP Diagnose-Repeater is a critical communication infrastructure component for SIMATIC S7-300, S7-400, and S7-1500 automation systems. In industrial environments where PROFIBUS DP networks form the backbone of field device communication — connecting drives, remote I/O stations, valve manifolds, and intelligent sensors — a failed or degraded repeater can cascade into full-line shutdowns. Sourcing a verified, original spare of the 6ES7972-0AB01-0XA0 is the single most effective step a maintenance team can take to reduce mean time to repair (MTTR) and protect production continuity.

At SMARTNEXMSK, every unit of the 6ES7972-0AB01-0XA0 is sourced from authorized supply channels, subjected to functional verification prior to dispatch, and backed by a 12-month warranty. Whether you are replenishing a critical-spares cabinet, responding to an unplanned fault, or executing a planned overhaul of an aging PROFIBUS segment, this module ships ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a PROFIBUS DP segment experiences intermittent communication errors or a complete loss of slave devices, the 6ES7972-0AB01-0XA0 Diagnose-Repeater is typically the first component a maintenance engineer should inspect and, if necessary, replace. However, a thorough site assessment should extend beyond the repeater itself. The 24 V DC power supply feeding the PROFIBUS segment — often a Siemens SITOP PSU100S or equivalent regulated rail-mount supply — must be verified for voltage stability and ripple, as power quality directly affects bus integrity at higher baud rates.

Downstream of the repeater, the PROFIBUS DP cable termination resistors and bus connectors (such as the Siemens 6ES7972-0BA52-0XA0 or 6ES7972-0BB52-0XA0 90° connectors) should be inspected for oxidation, mechanical damage, or incorrect termination settings. A single improperly terminated segment end can produce reflection-induced errors that mimic a repeater fault. Similarly, the CP 342-5 or CP 443-5 communication processor cards installed in the S7-300 or S7-400 rack should be checked for firmware currency and diagnostic buffer entries that may indicate upstream network issues.

For systems using ET 200M or ET 200S distributed I/O racks connected via PROFIBUS, the IM 153-2 or IM 151-3 interface modules should be included in the inspection checklist. These modules are frequent wear items in high-cycle environments and can produce slave-dropout symptoms that are incorrectly attributed to the repeater. Alongside these, the SM 321 digital input modules and SM 322 digital output modules in the ET 200 racks should be verified for correct addressing and signal integrity.

In control cabinets housing older S7-400 systems, the PS 407 power supply module and the UR2 or UR1 universal rack backplane should be assessed for capacitor aging and contact reliability. A proactive spare inventory for the 6ES7972-0AB01-0XA0, combined with at least one spare CP communication module and a set of PROFIBUS bus connectors, represents a minimum viable critical-spares strategy for any facility running PROFIBUS-dependent production lines. For plants operating legacy systems beyond their standard product lifecycle, maintaining this inventory is not optional — it is a direct operational risk mitigation measure.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use STEP 7 or TIA Portal diagnostics to confirm the PROFIBUS segment fault. Check the diagnostic buffer of the CPU (e.g., CPU 315-2 DP or CPU 416-3 DP) for slave communication errors referencing the affected segment. Note the station addresses of all slaves on the segment served by the 6ES7972-0AB01-0XA0.

Step 2 — Safe Isolation: Place the affected CPU in STOP mode or isolate the segment using the repeater’s built-in segment switching capability if the upstream segment remains operational. This limits the fault impact to the downstream segment while the replacement is prepared.

Step 3 — Physical Replacement: Remove the faulty 6ES7972-0AB01-0XA0 from the DIN rail. The module requires no parameter assignment in hardware configuration — it is a transparent repeater. Install the replacement unit, reconnect the PROFIBUS cables to the correct segment ports (observe upstream/downstream labeling), and verify termination resistor settings on both segment ends.

Step 4 — Restoration and Verification: Return the CPU to RUN mode. Monitor the PROFIBUS diagnostic LEDs on the new repeater for stable green indication. Confirm all slave devices return to cyclic data exchange using the online diagnostics view in TIA Portal or STEP 7 HW Config. Document the replacement in the maintenance log with the date, replaced part number, and post-replacement test results.

Compatibility Note: The 6ES7972-0AB01-0XA0 is a direct replacement for earlier Diagnose-Repeater variants in the same product line. It is fully compatible with all PROFIBUS DP baud rates from 9.6 kbit/s to 12 Mbit/s and does not require any software configuration changes in the PLC program or hardware configuration file.

Spare Parts Support FAQ

Q1: What is the expected service life of the 6ES7972-0AB01-0XA0, and when should I plan a proactive replacement?
The PROFIBUS DP Diagnose-Repeater is rated for continuous industrial operation. In practice, units installed in high-vibration or thermally stressed environments (near motor drives or in poorly ventilated cabinets) may show degraded performance after 8–12 years. Proactive replacement is recommended during planned shutdowns if the unit has been in service for more than 10 years or if diagnostic logs show increasing bus error frequency over a 3–6 month trend.

Q2: How do I verify compatibility before installation in my existing S7-300 or S7-400 system?
The 6ES7972-0AB01-0XA0 is compatible with all SIMATIC S7-300, S7-400, and S7-1500 systems using PROFIBUS DP. No hardware configuration changes are required in TIA Portal or STEP 7 — the repeater is transparent to the network. Verify the physical PROFIBUS connector type (9-pin Sub-D) and confirm the segment cable type (shielded twisted pair, PROFIBUS-specific) matches the installation standard.

Q3: What pre-shipment testing does SMARTNEXMSK perform on this module?
Every 6ES7972-0AB01-0XA0 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation, LED diagnostic check, and segment port continuity verification. Units are packed in ESD-safe anti-static bags with protective foam inserts. A 12-month warranty from the date of shipment covers any functional defects identified under normal operating conditions.

Q4: Can I source this module for long-term inventory if it is approaching end-of-life status?
Yes. SMARTNEXMSK maintains stock of legacy and current-production Siemens PROFIBUS components specifically to support facilities running systems beyond the standard Siemens product lifecycle. We recommend purchasing a minimum of 2–3 units for critical PROFIBUS segments to ensure immediate availability during unplanned outages. Long-term supply agreements and volume pricing are available — contact our team directly to discuss your facility’s spare parts strategy.
