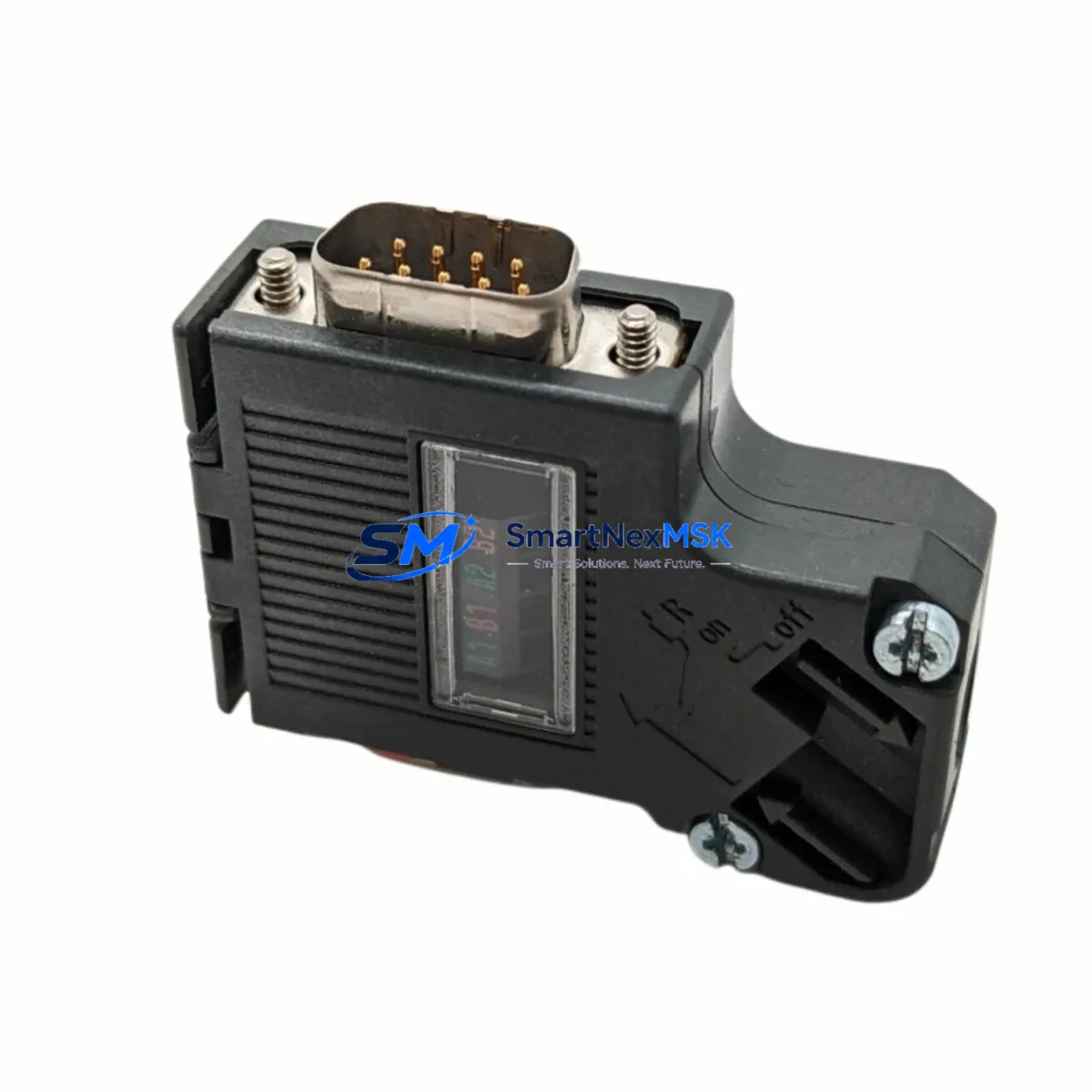

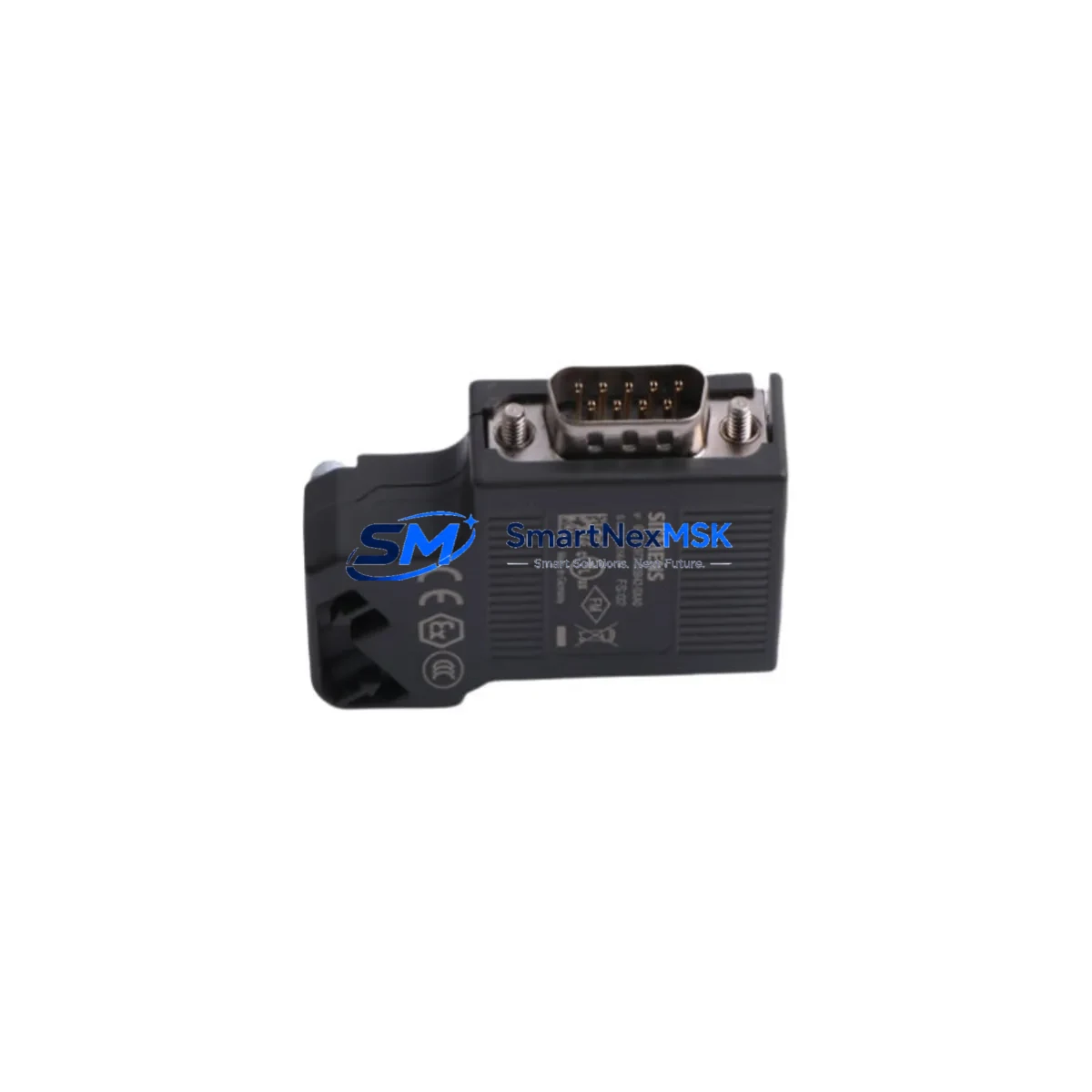

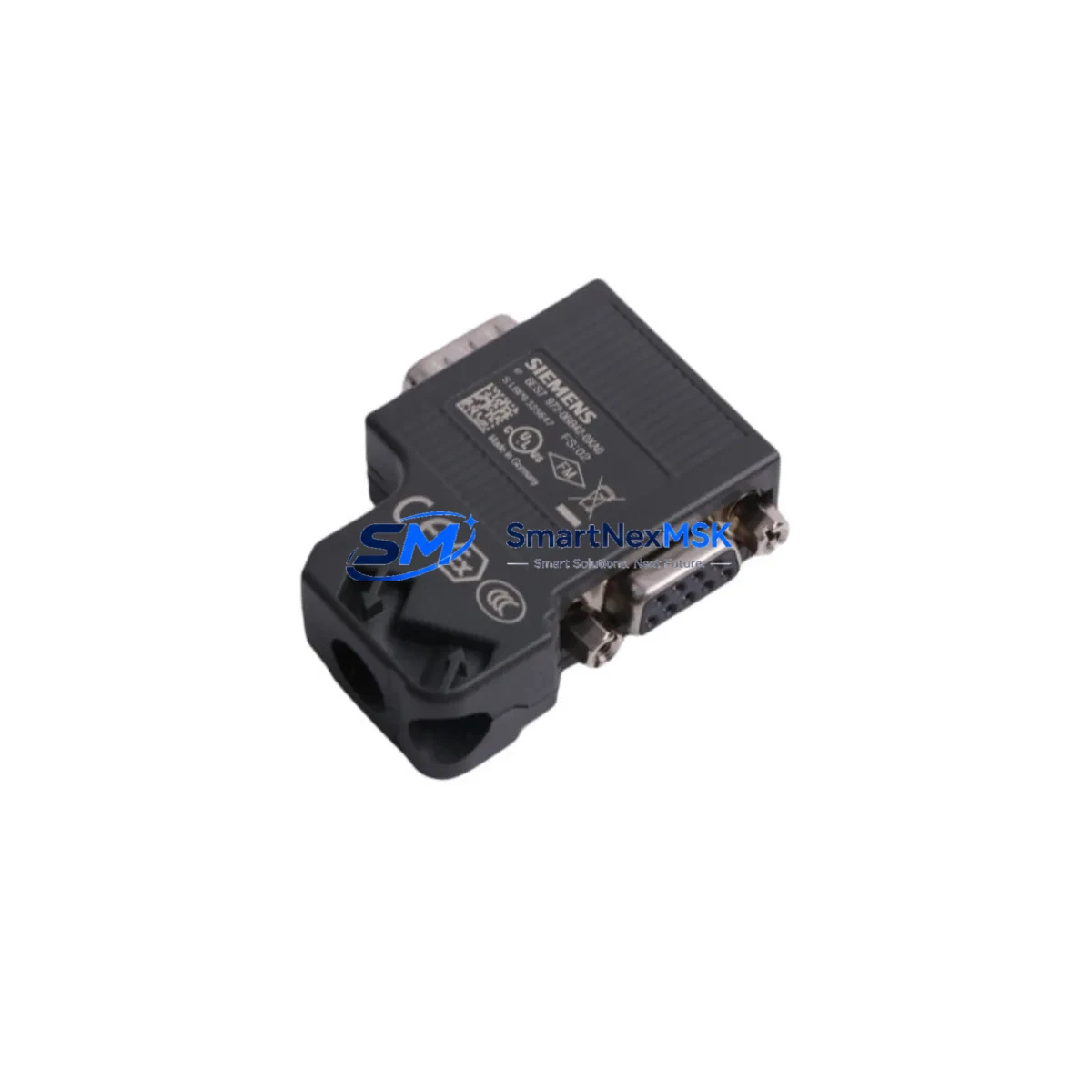

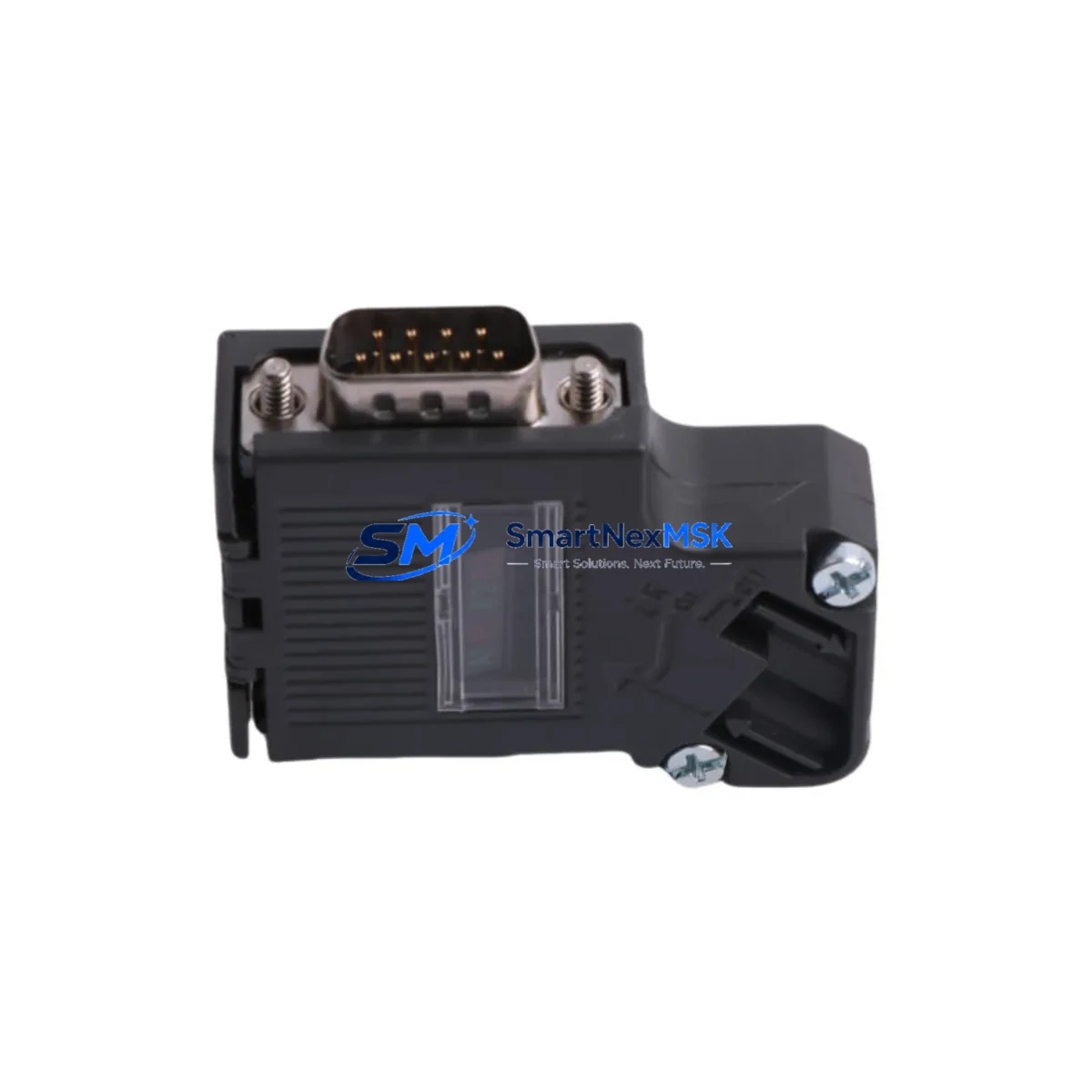

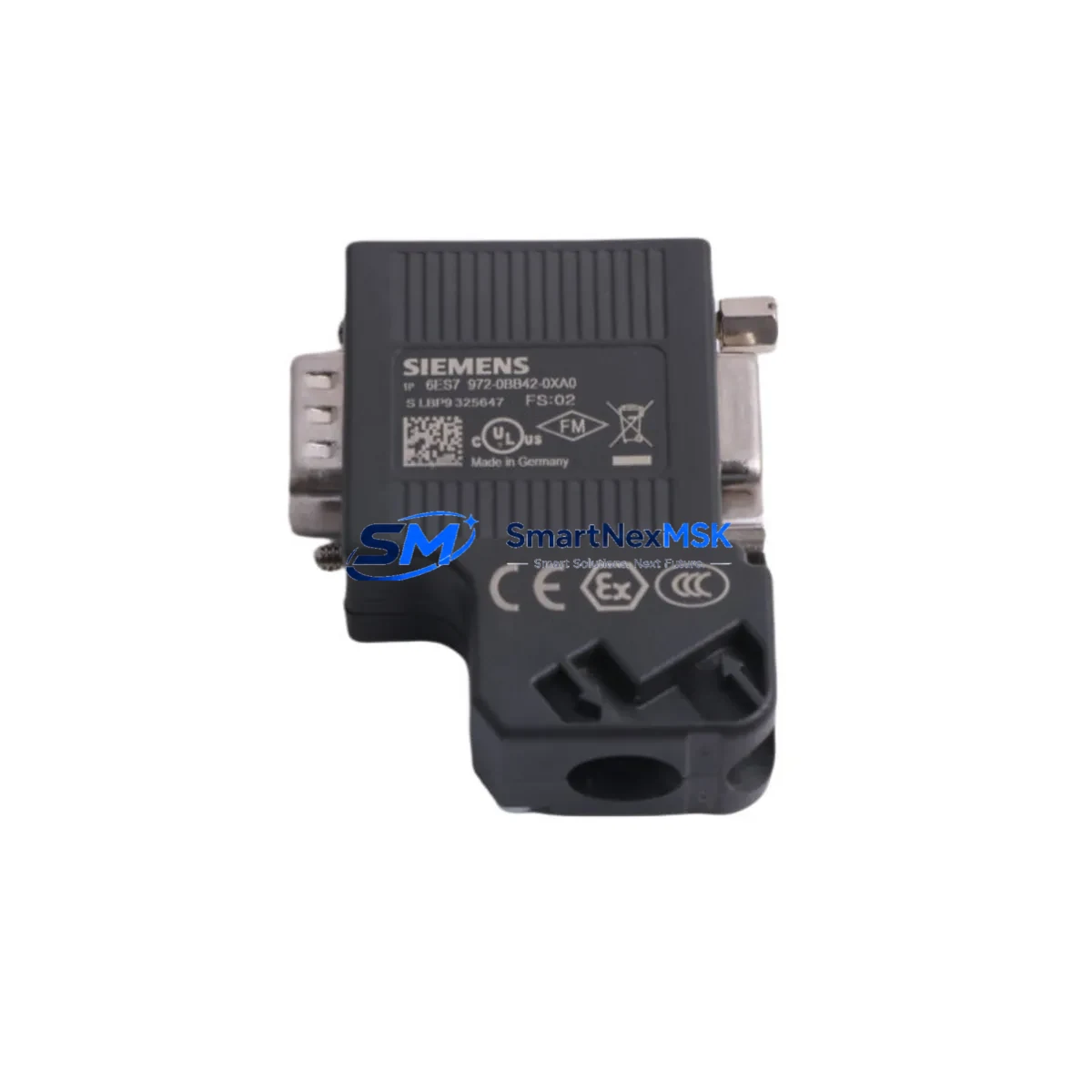

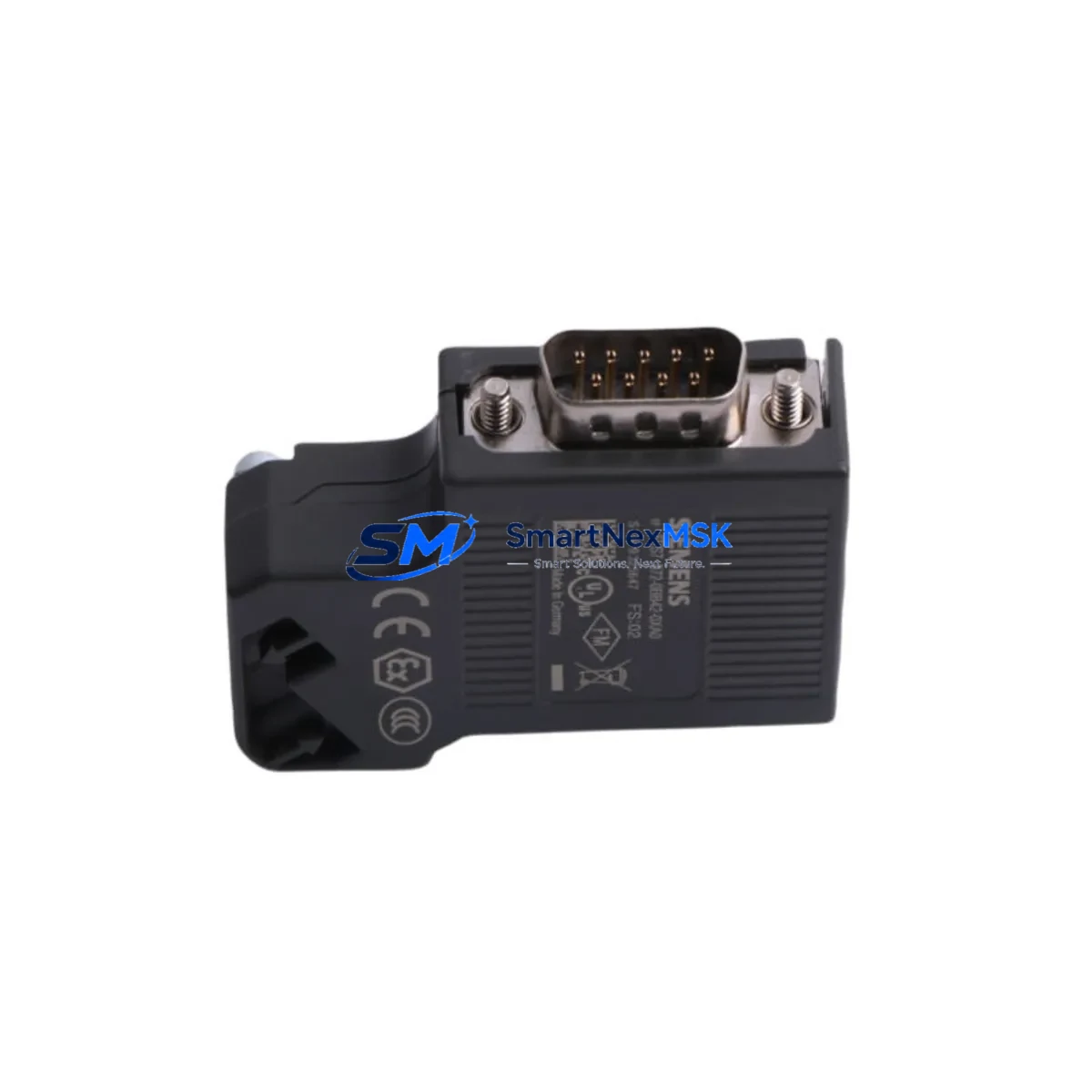

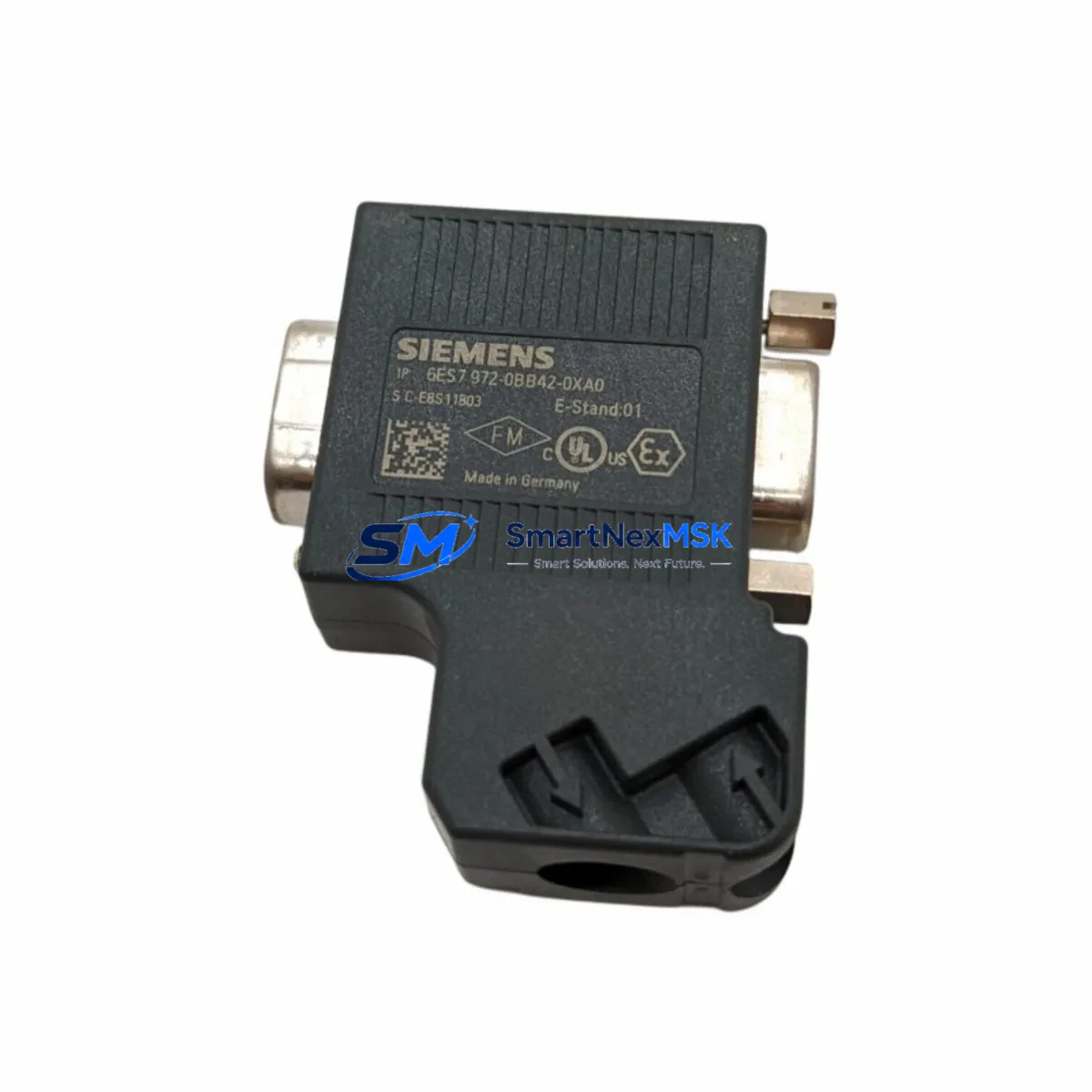

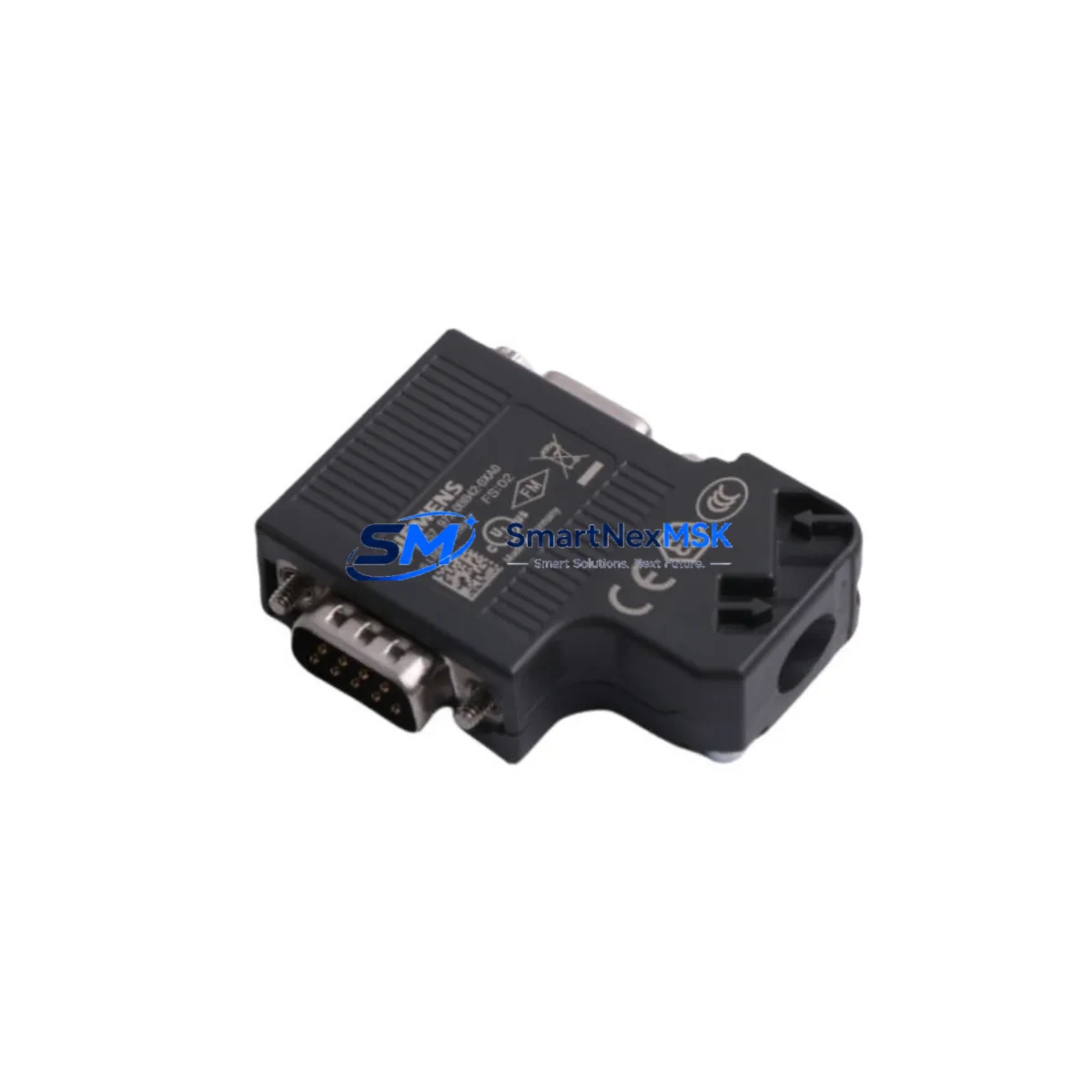

Siemens 6ES7972-0BB42-0XA0 Retrofit-Ready Connector for S7 Control Systems
The Siemens 6ES7972-0BB42-0XA0 is a PROFIBUS DP bus connector with a 45° cable outlet, designed as a direct retrofit replacement for aging SIMATIC S7-300 and S7-400 control systems. As industrial facilities push to extend the operational life of legacy automation platforms, maintaining reliable PROFIBUS DP communication links is critical. This connector serves as the physical interface between field devices, distributed I/O stations, and the central PLC — making it one of the most frequently replaced components during control cabinet upgrades and network re-cabling projects.
Whether you are modernizing a production line, replacing a failed connector on an active PROFIBUS segment, or building a retrofit spare kit for a multi-drop network, the 6ES7972-0BB42-0XA0 delivers the mechanical and electrical compatibility required for seamless integration. Its 45° cable entry angle is optimized for tight cabinet installations where straight connectors would create excessive cable bend radius or obstruct adjacent modules.
Upgrade Compatibility Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | 6ES7972-0BB42-0XA0 |
| Brand | Siemens |
| Series | SIMATIC S7 / PROFIBUS DP |
| Connector Type | PROFIBUS DP Bus Connector, 45° Cable Outlet |
| Compatible Systems | SIMATIC S7-300, S7-400, ET 200M, ET 200S, DP/PA Coupler |
| Replaces / Upgrades | 6ES7972-0BB41-0XA0, 6ES7972-0BA42-0XA0 (straight outlet variant) |
| Bus Termination | Integrated switchable terminating resistor |
| Cable Entry Angle | 45° |
| Transmission Rate | Up to 12 Mbit/s |
| Installation | Tool-free screw terminal, snap-on to DP port |
| Operating Temperature | -20°C to +60°C |
| Origin | Germany |
| Retrofit Recommendation | Direct drop-in replacement; verify cable shielding and termination switch position |
| Commissioning Note | Set termination ON only at first and last node of PROFIBUS segment |
| Warranty | 12-Month Warranty |
Retrofit Planning for Existing Automation Systems
A successful PROFIBUS DP retrofit requires more than swapping a connector. Maintenance and procurement engineers should treat the 6ES7972-0BB42-0XA0 replacement as an opportunity to audit the entire communication segment. Begin by verifying the PROFIBUS cable — typically a Siemens 6XV1830-0EH10 or equivalent shielded twisted-pair — for insulation damage, improper shield grounding, or excessive segment length that may have accumulated over years of patchwork repairs.
At the PLC end, confirm that the CPU module — such as a 6ES7315-2EH14-0AB0 (CPU 315-2 DP) or 6ES7416-3XR05-0AB0 (CPU 416-3 DP/PN) — has its DP port firmly seated and that the bus address configuration in STEP 7 or TIA Portal matches the physical node address set on each slave device. A mismatch here will cause the CPU to report BF (Bus Fault) even after a connector replacement.
On the distributed I/O side, ET 200M stations using IM 153-2 interface modules and ET 200S stations with IM 151-1 interface modules are common retrofit targets. When replacing connectors at these nodes, inspect the terminal block wiring and verify that the 24 VDC power supply — often a SITOP PSU100S or SITOP modular — is delivering stable voltage within the 20.4–28.8 VDC tolerance range. Voltage sag on the backplane power rail is a frequent root cause of intermittent PROFIBUS faults that are misdiagnosed as connector failures.
For systems that include DP/PA couplers linking PROFIBUS DP to PROFIBUS PA field instruments, the connector replacement should be coordinated with a segment resistance check. PA segment terminators and coupler settings must remain undisturbed during the DP-side retrofit. Additionally, if the cabinet houses a CP 342-5 or CP 443-5 communications processor for peer-to-peer PROFIBUS links, verify that the connector replacement does not inadvertently shift the bus termination configuration on that segment.
HMI panels — such as a Siemens TP700 Comfort or MP377 — connected via PROFIBUS DP should be placed in offline mode before the connector is swapped to prevent spurious alarm triggers or screen freezes that could confuse operators. After reconnection, perform a full communication test from the HMI to confirm tag updates are live before returning the system to automatic mode.
Downtime Control During System Migration
Minimizing unplanned downtime during a PROFIBUS connector retrofit requires a structured hot-swap protocol. First, document the current PROFIBUS segment topology — node addresses, cable lengths, and termination points — before touching any hardware. This baseline allows rapid restoration if a fault occurs mid-replacement.
Where the process permits, isolate the affected PROFIBUS segment by switching the CPU to STOP mode or using the DP diagnostic buffer to identify which slave is generating faults, rather than shutting down the entire rack. For multi-segment systems, only the affected segment needs to go offline; other segments connected via additional DP master ports or CP modules can continue operating.
Keep the original connector and cable end intact until the new 6ES7972-0BB42-0XA0 is ready to install. Transfer the cable shield connection carefully — improper shield grounding after reinstallation is the leading cause of post-retrofit EMI-induced communication errors. Once the new connector is seated, set the termination switch to match the original position, power up the segment, and monitor the CPU diagnostic buffer for BF or SF LED status. A clean restart with no bus faults within 30 seconds confirms a successful retrofit.
For planned maintenance windows, pre-stage a complete retrofit kit: one or more 6ES7972-0BB42-0XA0 connectors, a length of spare PROFIBUS cable, and a PROFIBUS tester or PC adapter such as the 6GK1571-0BA00-0AA0 USB adapter for live segment diagnostics. This preparation reduces mean time to repair (MTTR) from hours to minutes and protects the original PLC program logic from any risk of corruption during the physical swap.
Retrofit Support FAQ
Q1: Is the 6ES7972-0BB42-0XA0 a direct replacement for the older 6ES7972-0BB41-0XA0?
Yes. The -0BB42- revision is the current production version and is mechanically and electrically compatible with the -0BB41- variant. No wiring changes or address reconfiguration are required. Simply transfer the PROFIBUS cable to the new connector, verify the termination switch position, and reconnect.
Q2: How do I verify compatibility with my existing PROFIBUS segment before ordering?
Confirm that your system uses standard PROFIBUS DP (IEC 61158) with a 9-pin Sub-D connector interface. The 6ES7972-0BB42-0XA0 is compatible with all Siemens SIMATIC S7-300, S7-400, ET 200M, and ET 200S DP ports. Check the cable outlet angle required by your cabinet layout — this part provides a 45° exit; a 90° variant is available if your installation requires it.
Q3: What pre-shipment testing is performed on this connector?
Each unit undergoes functional verification including contact resistance measurement, termination resistor switching test, and mechanical fit check on a reference DP port before shipment. Units are shipped in original or equivalent protective packaging to prevent pin damage in transit.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, contact failure, and termination resistor malfunction under normal industrial operating conditions. Warranty claims are supported with replacement or refund. Contact sales@smartnexmsk.com with your order number and fault description to initiate a claim.
