Siemens 6EW1860-3AA Safety-Enhanced DC Voltage Regulator

Siemens 6EW1860-3AA Safety-Enhanced DC Voltage Regulator for Harsh Industrial Sites

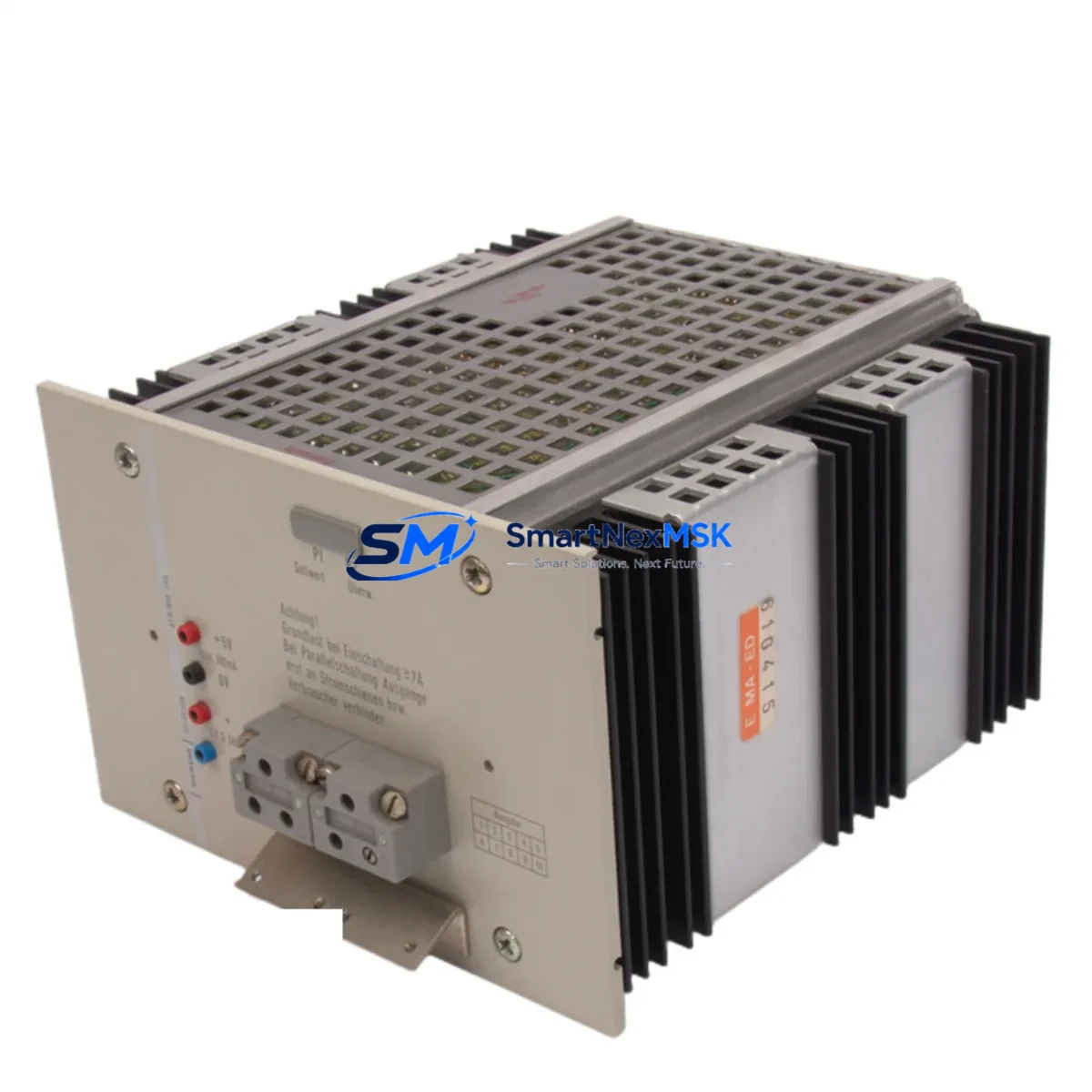

The Siemens 6EW1860-3AA is a ruggedized DC voltage regulator module engineered for the SIMATIC S5 programmable logic controller platform. Designed to operate reliably in high-load, high-interference, and continuous-production environments, this module plays a critical role in maintaining stable power delivery across the entire control cabinet. In heavy industrial applications — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, port logistics systems, and continuous manufacturing lines — uninterrupted, clean DC power is not a convenience but a safety imperative. The 6EW1860-3AA addresses this need with precision voltage regulation, robust surge suppression, and a thermally stable design that resists the degradation caused by vibration, humidity, and electromagnetic interference common in field environments.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered SIMATIC S5 control cabinet, the 6EW1860-3AA voltage regulator module serves as the electrical backbone that protects every downstream component from power-related faults. When paired with the Siemens 6ES5 955-3LC41 power supply unit, the regulator ensures that rail voltage remains within tolerance even during grid fluctuations or load spikes caused by large motor starts. The Siemens 6ES5 374-1AA21 memory module and 6ES5 470-8MA12 analog output module both depend on stable DC rails to prevent data corruption and signal drift — conditions that can trigger false process shutdowns or, worse, undetected output errors in safety-critical loops.

For communication integrity, the 6EW1860-3AA supports the stable operation of SINEC L1 and SINEC H1 network interface modules used in distributed S5 architectures. Voltage instability is a leading cause of communication timeouts and CRC errors on industrial fieldbus segments; a regulated, clean supply eliminates this failure mode. In cabinets that also house Siemens 6ES5 316-8MA12 CPU modules or 6ES5 451-8MR12 digital output modules driving solenoid valves and relay coils, the inductive kickback and switching transients generated by these loads are absorbed and isolated by the regulator’s suppression circuitry, preventing upstream propagation into the CPU backplane.

Where surge protection at the cabinet entry point is provided by a Siemens SITOP power surge filter or a third-party DIN-rail SPD (Surge Protective Device), the 6EW1860-3AA provides a second layer of protection at the module level — a defense-in-depth approach recommended for IEC 62443-compliant industrial installations. In systems that include Siemens 6ES5 700-series expansion racks connected via the SIMATIC S5 bus cable, the regulator’s stable output prevents ground potential differences from inducing communication errors across rack boundaries. For installations in hazardous areas requiring ATEX-rated enclosures, the 6EW1860-3AA is typically installed in the safe-area marshalling cabinet, feeding intrinsically safe barriers and isolators that interface with field instruments in Zone 1 or Zone 2 environments.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process control environments, the 6EW1860-3AA supports SIMATIC S5 PLCs managing reactor temperature loops, pressure relief interlocks, and emergency shutdown (ESD) sequences. Voltage instability in these systems can cause spurious trips or, critically, missed trips — both of which carry severe safety and financial consequences. The module’s regulated output ensures that safety relay outputs and analog transmitter loops remain within calibrated ranges throughout the production cycle.

Power Generation & Substation Control: Electrical substations and power plant auxiliary control systems demand the highest levels of power quality. The 6EW1860-3AA is used in legacy SIMATIC S5 installations managing turbine auxiliaries, transformer protection relays, and bus-tie switching sequences. Its ability to maintain output stability during grid disturbances — including voltage sags caused by nearby fault clearing — makes it a trusted component in critical power infrastructure.

Mining & Mineral Processing: Underground and surface mining operations expose control equipment to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the 6EW1860-3AA allows it to maintain reliable operation in conveyor control panels, crusher automation cabinets, and ventilation safety systems where equipment failure can endanger personnel.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on SIMATIC S5 systems for pump sequencing, chemical dosing control, and alarm management. The 6EW1860-3AA ensures that these systems remain operational during utility power fluctuations, preventing uncontrolled discharge events or treatment process interruptions that could have environmental and regulatory consequences.

Metallurgy & Steel Production: Rolling mills, arc furnaces, and continuous casting lines generate severe electrical noise and voltage transients. The 6EW1860-3AA’s interference immunity and surge suppression capabilities make it suitable for control cabinets in these environments, where maintaining PLC uptime directly impacts production throughput and worker safety.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6EW1860-3AA?
The 12-month warranty covers all functional defects arising under normal operating conditions from the date of shipment. If the module fails to perform its specified voltage regulation function within this period due to a manufacturing or component defect, we will provide a replacement or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage beyond rated input limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each unit?
Every 6EW1860-3AA unit undergoes a full functional load test prior to dispatch. This includes verification of output voltage regulation accuracy, short-circuit protection response, and thermal stability under rated load conditions. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 6EW1860-3AA compatible with all SIMATIC S5 rack configurations?
The 6EW1860-3AA is designed for use within the Siemens SIMATIC S5 power supply and rack ecosystem. It is compatible with standard S5 central racks and expansion racks that accept the corresponding power supply form factor. For specific rack models or mixed-generation configurations, please contact our technical team with your existing rack part number to confirm compatibility before ordering.

Q4: Can long-term supply continuity be guaranteed for this legacy module?
Yes. We maintain dedicated stock of the 6EW1860-3AA and other SIMATIC S5 legacy components to support customers operating installed base systems beyond the standard product lifecycle. Our sourcing network covers certified refurbished and new-old-stock (NOS) units, all subject to the same pre-shipment testing and 12-month warranty. We recommend contacting us for volume or blanket order arrangements to secure supply for planned maintenance cycles.
