Siemens 6GK1502-3CB10 Retrofit-Ready PROFIBUS OLM/G12

Siemens 6GK1502-3CB10 Retrofit-Ready PROFIBUS OLM/G12: Seamless Compatibility for Legacy System Upgrades

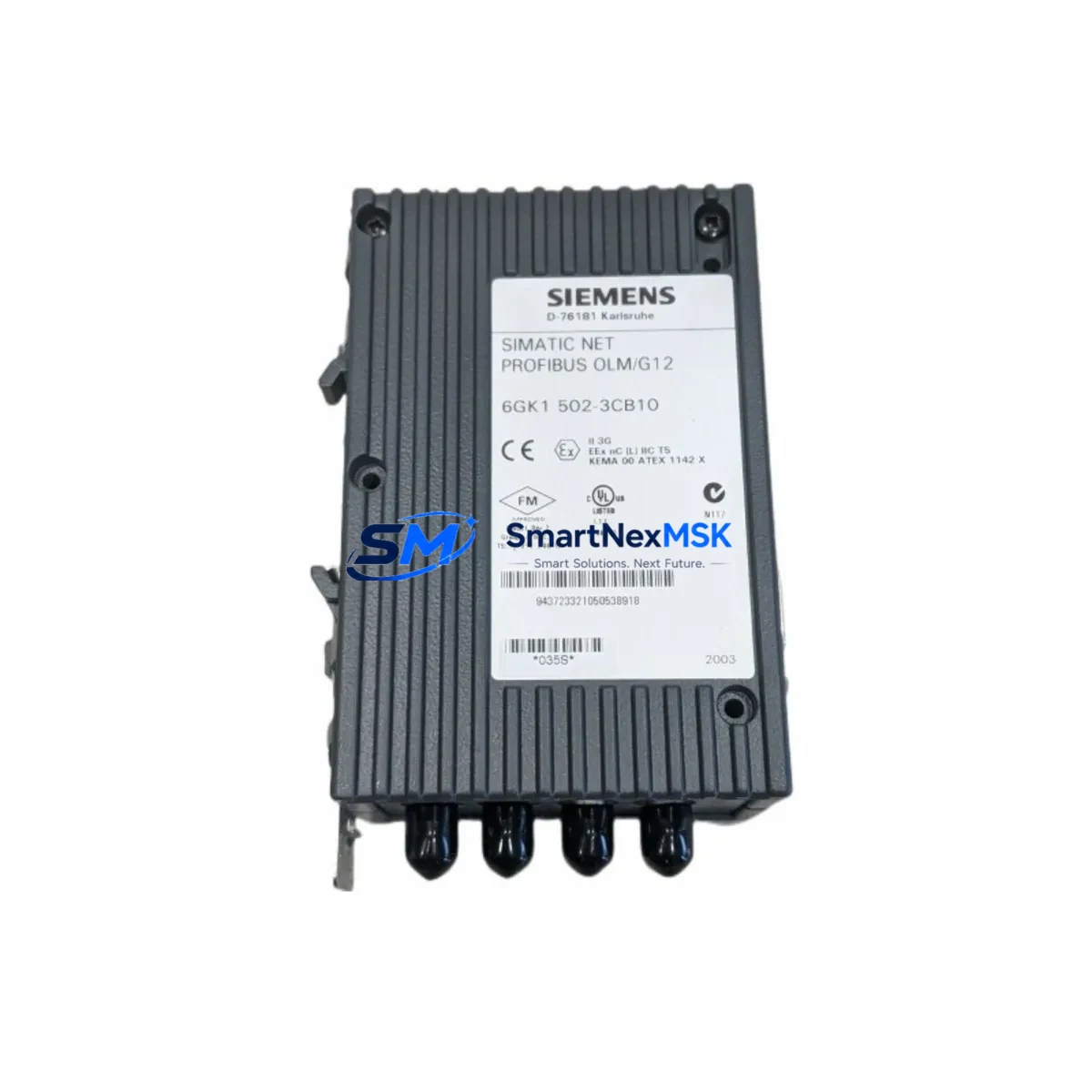

The Siemens 6GK1502-3CB10 is a PROFIBUS Optical Link Module (OLM/G12) designed for glass fiber-optic ring and line topologies operating at up to 12 Mbit/s. As a retrofit-ready replacement component, it serves as a direct substitute for discontinued or end-of-life optical link modules in SINEC L2 and PROFIBUS DP networks. Whether you are modernizing a legacy control cabinet, recovering a failed communication node, or expanding an existing fiber ring, the 6GK1502-3CB10 delivers the electrical isolation, noise immunity, and protocol transparency required for uninterrupted industrial operation.

This module supports two glass fiber-optic ports (ST connectors) and one RS-485 PROFIBUS port, making it fully compatible with existing PROFIBUS DP masters such as the Siemens CP 5611 or CP 5613 communication processors installed in S7-300 and S7-400 racks. When replacing a failed OLM in a live ring topology, the 6GK1502-3CB10 restores the optical segment without requiring changes to the GSD file, network address, or PLC program logic — a critical advantage for minimizing unplanned downtime on production lines.

For engineers managing brownfield automation environments, the 6GK1502-3CB10 is frequently deployed alongside the Siemens 6GK1500-0FC10 (OLM/G11) in mixed ring-line hybrid topologies, and pairs naturally with the 6GK1501-0AA00 (OBT) optical bus terminal for segment termination. In control cabinet upgrades where the existing Siemens ET 200M distributed I/O rack communicates over PROFIBUS DP, this module maintains the fiber link between the IM 153-x interface module and the upstream S7-400 CPU without any re-engineering of the I/O configuration.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

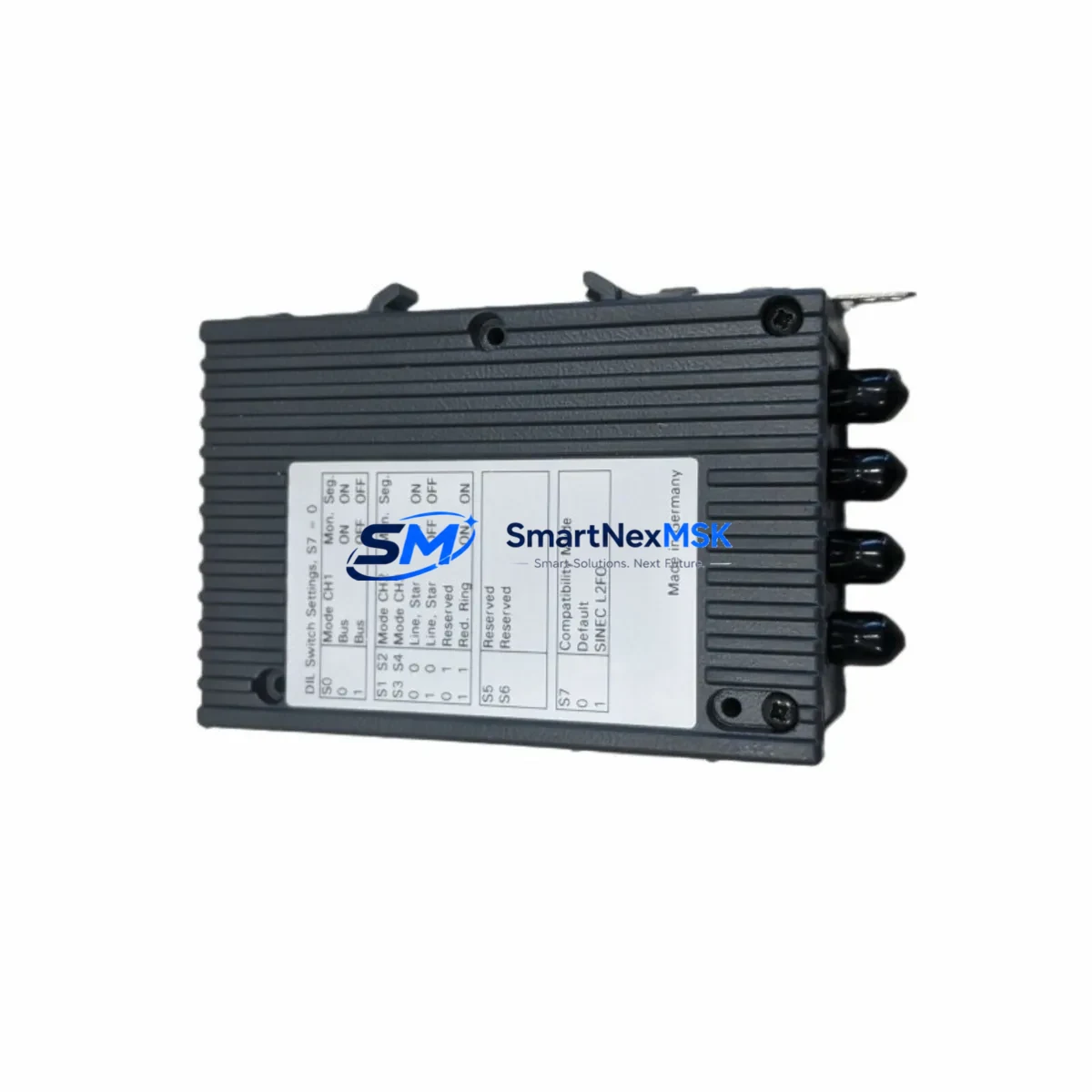

Successful integration of the 6GK1502-3CB10 into a brownfield system begins with a thorough audit of the existing PROFIBUS segment. Before removing the failed or obsolete OLM, document the current DIP switch settings — particularly the baud rate lock and redundant ring enable switches — so the replacement module can be configured identically. In most S7-300 and S7-400 installations, the PROFIBUS network is managed through STEP 7 (SIMATIC Manager) or TIA Portal, and the OLM itself is transparent to the PLC program; no software changes are required when swapping like-for-like.

Power supply verification is essential before installation. The 6GK1502-3CB10 requires a stable 24 V DC supply within the 18–32 V DC range. In control cabinets where a Siemens SITOP PSU100S 24V/5A or equivalent regulated power supply feeds multiple PROFIBUS components — including ET 200S distributed I/O stations, IM 151-1 interface modules, and RS-485 repeaters — confirm that the available current budget accommodates the additional 4 W load of the new OLM without causing voltage droop on the bus.

Fiber cable inspection is equally critical. The OLM/G12 uses ST-type connectors on 62.5/125 µm or 50/125 µm multimode glass fiber. If the existing fiber patch cables show physical damage, contamination, or excessive bend radius, replace them before commissioning the new module. Optical power budget calculations should confirm that the link loss between any two OLMs in the ring does not exceed the module’s receiver sensitivity threshold. For longer segments, verify attenuation values against the fiber run length and connector count.

In systems where the PROFIBUS ring also carries communication to Siemens S7-300 CPU 315-2 DP or CPU 317-2 DP controllers, the ring redundancy switchover time of the OLM/G12 (typically under 1 ms) is well within the watchdog timeout of most DP slaves, ensuring that a single fiber break does not trigger a CPU STOP condition. This makes the 6GK1502-3CB10 particularly suitable for retrofit projects in continuous-process industries where control continuity is non-negotiable.

For projects involving protocol migration from PROFIBUS DP to PROFINET, the 6GK1502-3CB10 can remain in service during a phased transition, maintaining the legacy PROFIBUS segment while new PROFINET devices — connected via a Siemens IE/PB Link PN IO (6GK1411-5AB00) — are commissioned in parallel. This hybrid approach allows engineers to validate the new network segment without taking the entire production line offline.

Downtime Control During System Migration

Minimizing unplanned downtime during an OLM replacement requires preparation before the maintenance window begins. The recommended procedure is to pre-configure the replacement 6GK1502-3CB10 on a bench — setting DIP switches to match the failed unit, verifying LED behavior with a loopback fiber connector, and confirming the module powers up correctly on 24 V DC — so that the swap can be completed in under five minutes at the machine.

In redundant ring topologies, the ring can tolerate a single break without loss of communication. This means the failed OLM can be identified and isolated while the ring continues to operate in line mode, giving maintenance teams a controlled window to perform the replacement without stopping the PLC or interrupting HMI communication. After installing the 6GK1502-3CB10, reconnect both fiber ports and confirm that the RM LED (Ring Monitor) extinguishes, indicating that the ring has closed successfully and redundancy is restored.

For systems where the OLM failure has already broken the ring and caused a communication fault, the priority is to restore the RS-485 PROFIBUS segment first by temporarily bypassing the fiber section, then replacing the OLM and re-establishing the fiber ring. Throughout this process, the PLC program logic, HMI tag connections, and PROFIBUS slave addresses remain unchanged — the 6GK1502-3CB10 is fully transparent to the network layer, so no re-download of the hardware configuration is required in most cases.

All units supplied by SMARTNEXMSK are function-tested prior to shipment, with power-on verification and port-level optical continuity checks performed to reduce the risk of commissioning failures on site. Each module ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Retrofit Support FAQ

Q1: Is the 6GK1502-3CB10 a direct drop-in replacement for the 6GK1502-3CA10?
A: Yes, in most applications. Both are OLM/G12 variants with identical fiber port types (ST) and the same PROFIBUS DP interface. The primary difference is the revision level. Verify DIP switch positions on the original unit before replacement, as baud rate and ring mode settings must match the network configuration.

Q2: Do I need to modify my STEP 7 or TIA Portal hardware configuration after replacing the OLM?
A: No. The OLM/G12 is a transparent media converter and does not appear as a node in the PROFIBUS hardware configuration. No GSD file, network address, or program download is required. Simply replace the module, restore fiber connections, and confirm ring closure via the front panel LEDs.

Q3: What should I check during commissioning after installing the replacement module?

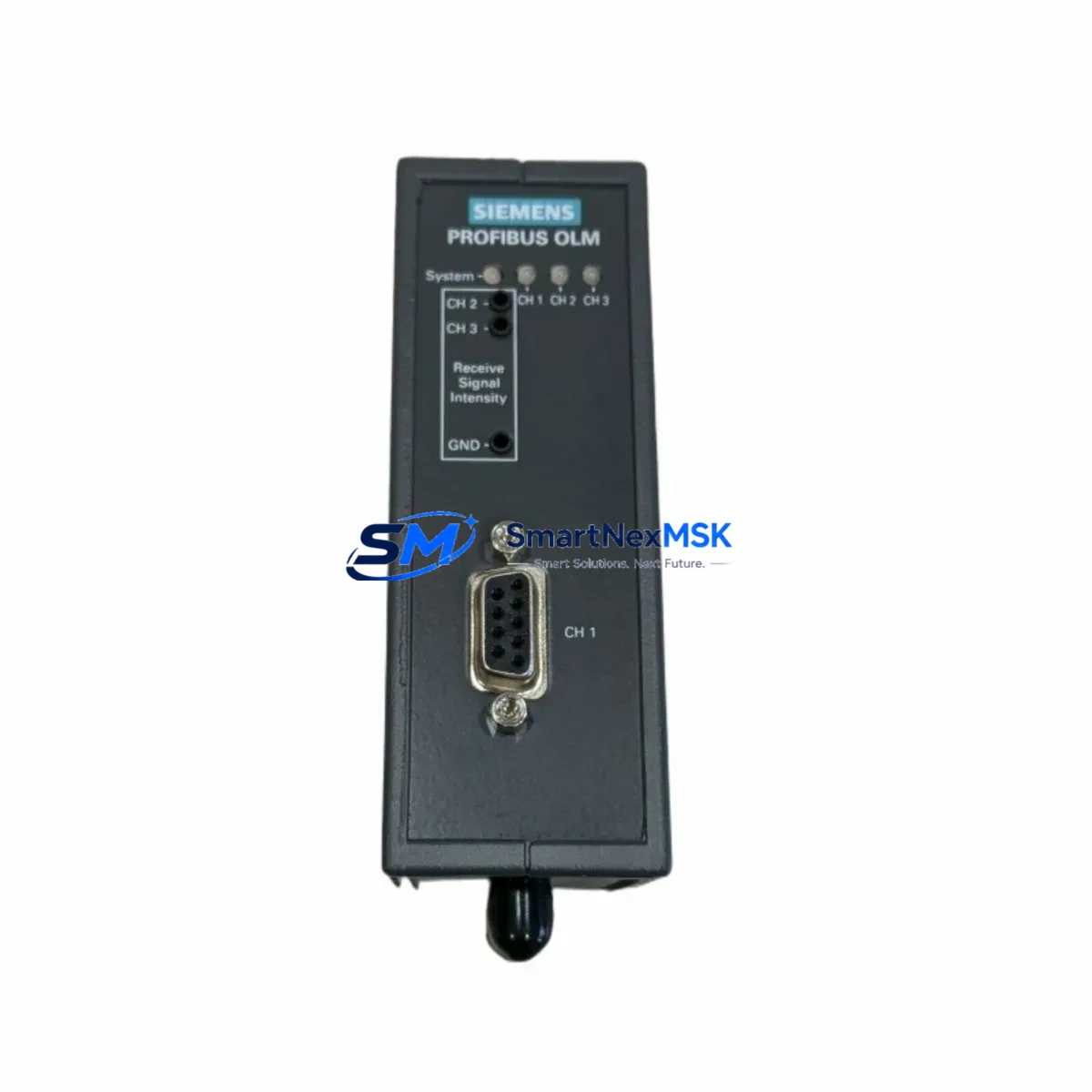

A: Confirm 24 V DC supply is within range (18–32 V DC), verify both fiber ST connectors are fully seated and clean, check that DIP switch S1 is set correctly for ring or line mode, and observe the RM and BF LEDs. The BF (Bus Fault) LED should extinguish within seconds of ring closure. If it remains lit, check fiber continuity and connector cleanliness on both ports.

Q4: What warranty and testing does SMARTNEXMSK provide with this module?
A: Every 6GK1502-3CB10 unit is function-tested before shipment, including power-on verification and optical port continuity checks. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for urgent retrofit and breakdown recovery situations.
