Siemens 6GK5208-0BA00-2AF2 Safety-Enhanced Managed Switch: Reliable Control in Harsh Industrial Sites

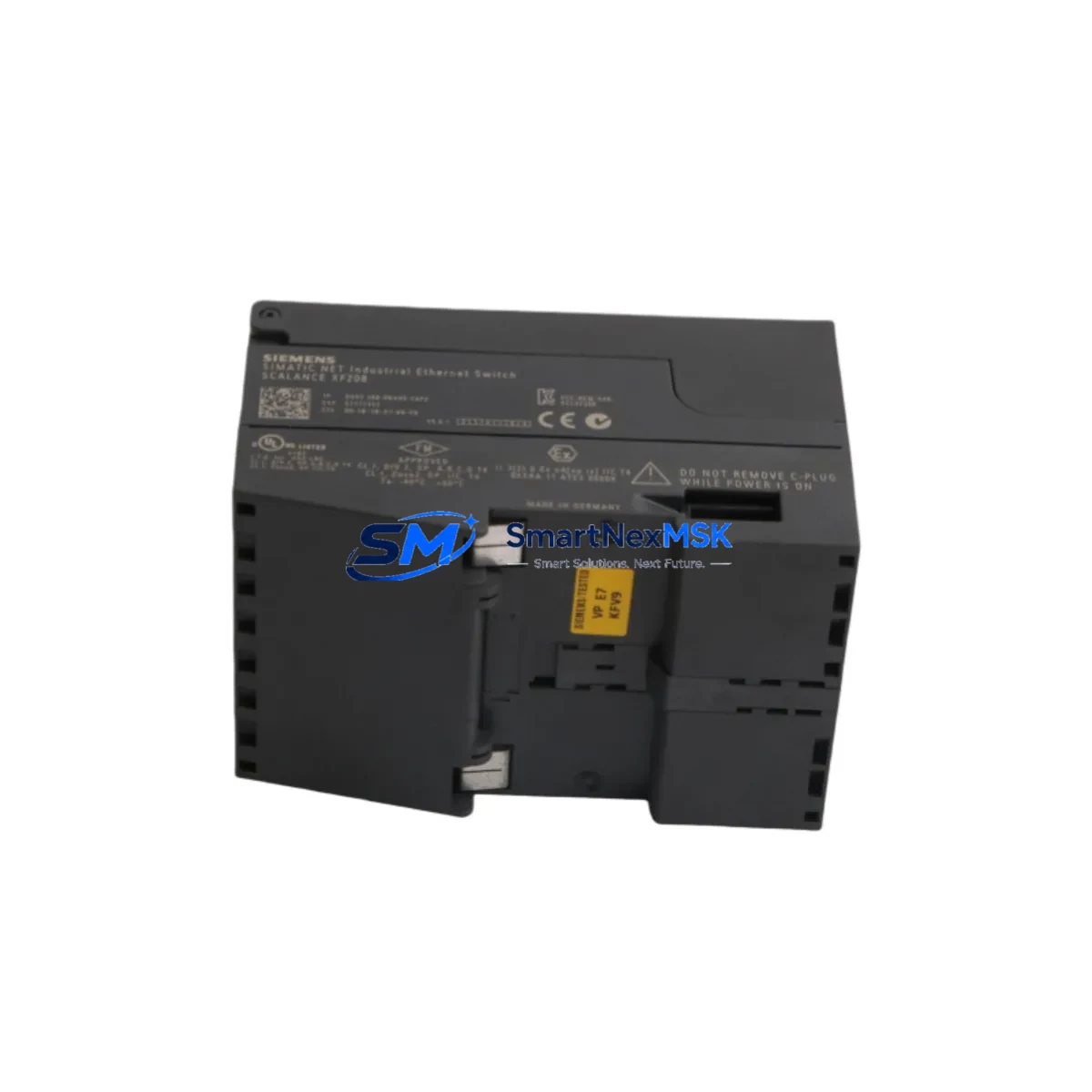

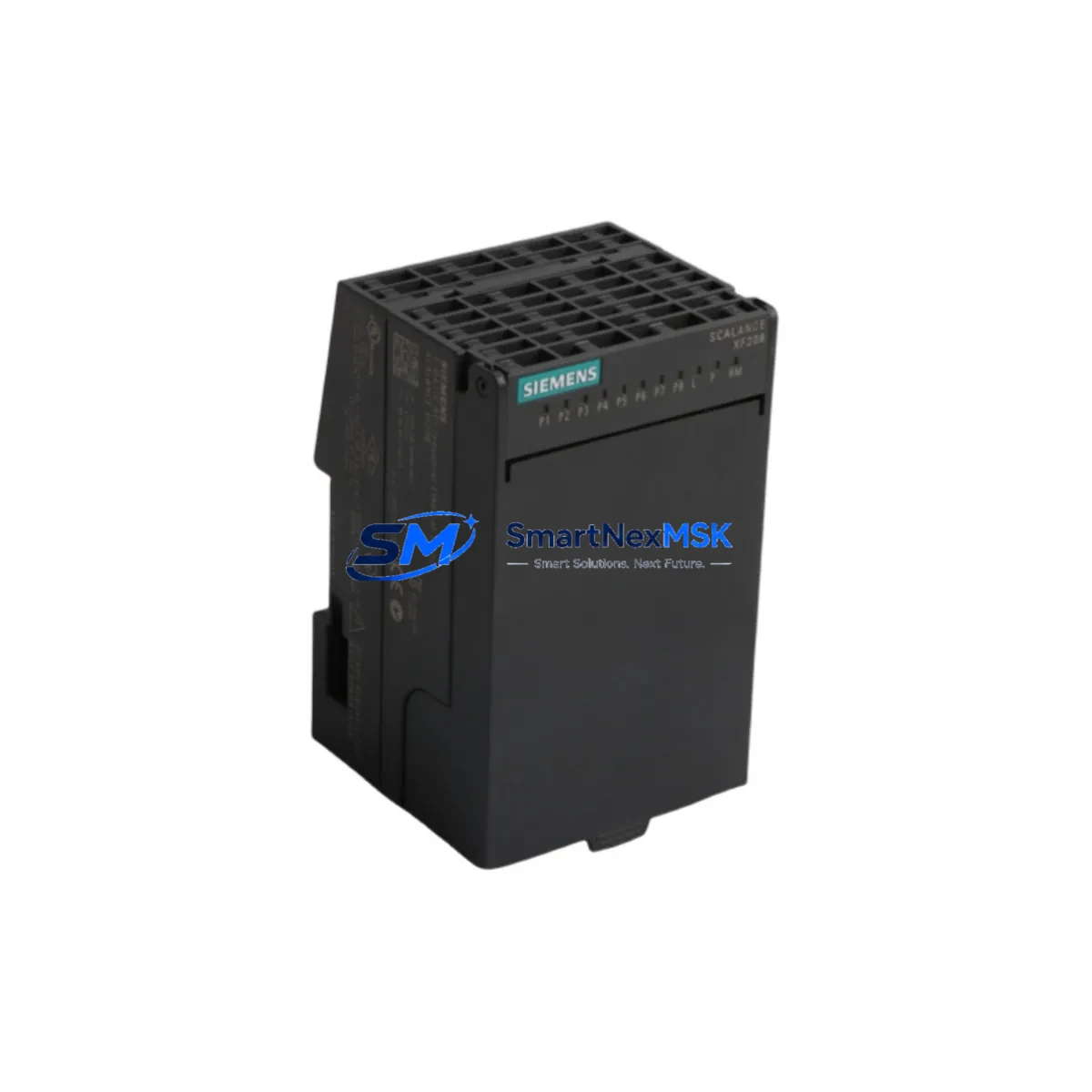

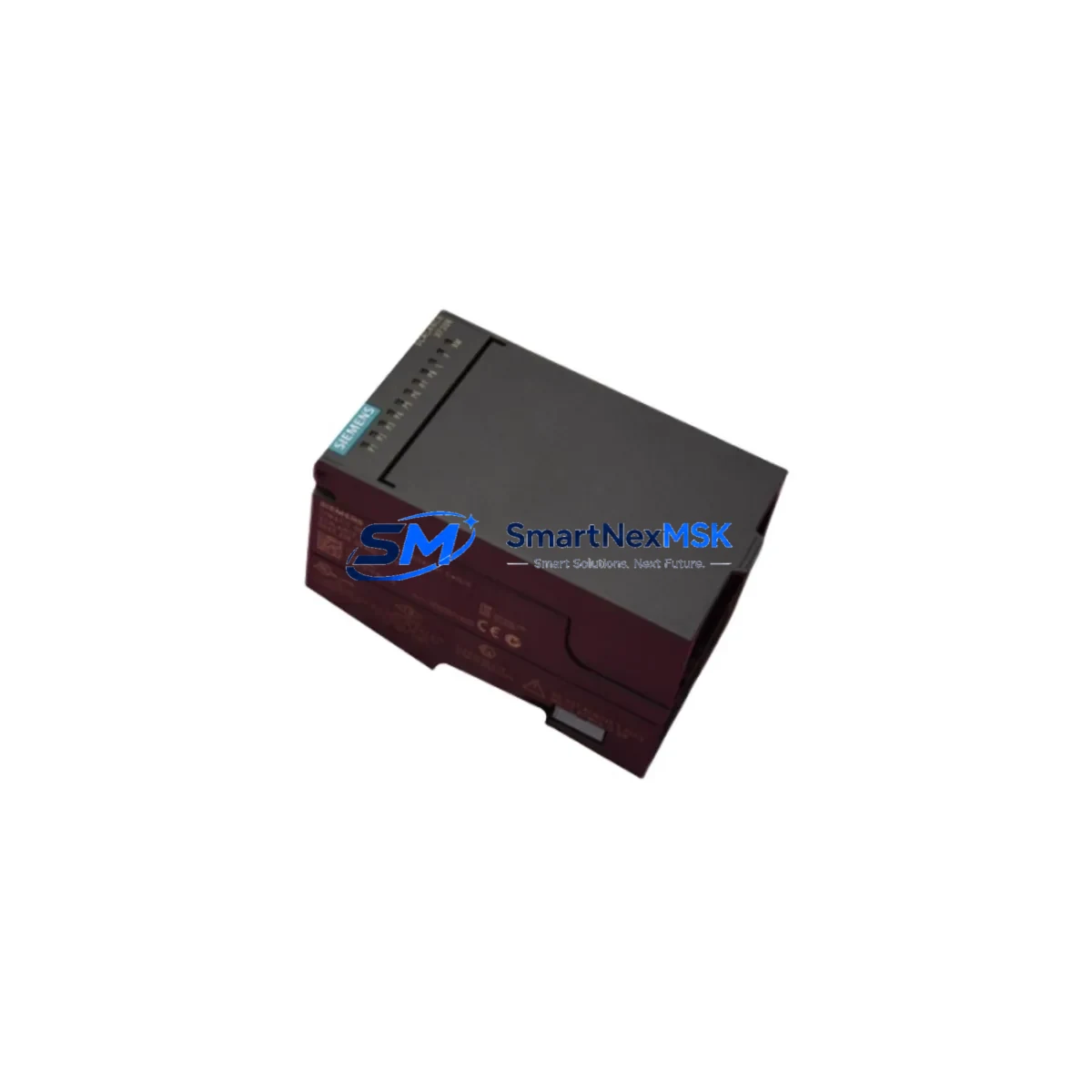

The Siemens 6GK5208-0BA00-2AF2, part of the SCALANCE X208 series, is an 8-port managed industrial Ethernet switch engineered for mission-critical communication in demanding automation environments. Designed to operate continuously in high-interference, high-load, and hazardous industrial sites, this switch delivers the network stability that safety-critical control loops and real-time PROFINET architectures demand. Whether deployed in a DCS backbone, a PLC-driven production cell, or a safety interlock network, the 6GK5208-0BA00-2AF2 provides the deterministic, low-latency communication that prevents control interruptions, signal drift, and unplanned downtime.

Industrial Ethernet infrastructure is the nervous system of modern automation. A single point of network failure can cascade into emergency shutdowns, process deviations, or safety system activations. The SCALANCE X208 is built to eliminate that risk. Its ruggedized metal housing, wide operating temperature range, and redundant power input design ensure continuous operation even when ambient conditions — vibration, EMI, humidity, and thermal cycling — would compromise commercial-grade equipment. For engineers specifying components in petrochemical plants, power generation facilities, mining operations, or continuous manufacturing lines, the 6GK5208-0BA00-2AF2 represents a proven, field-tested choice.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the Siemens 6GK5208-0BA00-2AF2 sits at the heart of the communication architecture, linking PLCs, I/O modules, HMIs, and safety controllers into a coherent, fault-tolerant network. Its dual redundant 24 V DC power inputs work in tandem with a Siemens SITOP PSU100S 24V power supply to ensure that a single power rail failure does not interrupt network communication. When paired with a Siemens S7-300 CPU 315-2 PN/DP or a S7-1500 CPU 1516-3 PN/DP, the switch enables high-speed PROFINET IO cycles that keep process data synchronized across all field devices without latency spikes.

For surge and transient protection at the cabinet entry point, engineers typically install Phoenix Contact TRABTECH surge protection devices upstream of the switch’s power feed, shielding the 6GK5208-0BA00-2AF2 from voltage spikes caused by nearby motor starts, welding equipment, or lightning-induced transients on cable runs. Within the same cabinet, Siemens ET 200SP distributed I/O modules connect to the switch’s RJ45 ports, extending the PROFINET network to remote field panels without requiring additional managed switches at each drop point.

Communication integrity is further reinforced by configuring MRP ring redundancy between the 6GK5208-0BA00-2AF2 and a secondary SCALANCE X204-2 switch, creating a self-healing ring topology that recovers from a single cable break in under 200 ms — well within the tolerance of most safety interlock response times. For applications requiring fiber optic backbone connections, the switch integrates cleanly with SCALANCE X-200IRT fiber variants, extending the protected network across long cable runs in electrically noisy environments such as motor control centers or high-voltage switchgear rooms.

In safety-instrumented systems (SIS), the switch supports the communication layer between a Siemens S7-300F fail-safe CPU and ET 200S F-modules, ensuring that safety-relevant process values — emergency stop signals, pressure trip setpoints, flame detector outputs — are transmitted reliably without packet loss or communication timeout faults. Complementary components such as Siemens SCALANCE S615 security modules can be deployed alongside the X208 to enforce network segmentation and firewall rules, preventing unauthorized access to the safety network from the plant IT layer.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments where a network fault can trigger emergency depressurization or flare system activation, the 6GK5208-0BA00-2AF2 provides the deterministic Ethernet backbone that keeps DCS controllers, field transmitters, and safety shutdown systems in constant, reliable communication. Its wide temperature tolerance and EMI immunity make it suitable for installation in junction boxes adjacent to heat exchangers, compressor skids, and reactor control panels.

Power Generation and Substation Automation: Electrical substations and power plant control rooms expose network equipment to severe electromagnetic interference from high-voltage switching events. The SCALANCE X208’s compliance with EN 61000-6-2 industrial EMC standards ensures that protection relay communication, SCADA polling, and interlocking signals remain intact during bus fault events and transformer energization transients.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to continuous vibration, dust ingress, and wide temperature swings. The 6GK5208-0BA00-2AF2’s IEC 60068-compliant mechanical ratings and sealed metal enclosure allow it to operate reliably in conveyor drive control panels, crusher automation cabinets, and ventilation safety systems where commercial switches would fail within months.

Water and Wastewater Treatment: Municipal water treatment facilities rely on uninterrupted SCADA communication to manage dosing pumps, aeration blowers, and UV disinfection systems. The switch’s MRP redundancy capability ensures that a cable fault in a wet, corrosive pump room does not result in a loss of supervisory control, protecting both process continuity and public safety compliance.

Metallurgy and Steel Production: Rolling mills, arc furnaces, and continuous casting lines generate extreme electromagnetic noise and thermal stress. The SCALANCE X208 is rated for these environments, maintaining stable PROFINET communication between drive controllers, pyrometers, and safety light curtains even when installed in close proximity to high-current bus bars and induction heating equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6GK5208-0BA00-2AF2?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform its specified switching and management functions within the warranty period, we provide replacement or repair at no additional cost. Warranty claims are processed promptly to minimize your site downtime.

Q2: What outgoing inspection and testing is performed before shipment?
Every 6GK5208-0BA00-2AF2 unit undergoes a full functional test prior to dispatch. This includes power-on verification, port communication testing across all 8 RJ45 interfaces, management interface access confirmation, and visual inspection for physical integrity. Units that do not pass all test criteria are not shipped.

Q3: Is the 6GK5208-0BA00-2AF2 compatible with existing Siemens PROFINET and S7 architectures?
Yes. The SCALANCE X208 is fully compatible with Siemens TIA Portal engineering environments, S7-300, S7-400, and S7-1500 PLC families, and standard PROFINET IO device configurations. It supports SNMP v1/v2c for integration with third-party network management systems and can be configured via web browser or CLI without requiring proprietary software licenses.

Q4: Can long-term supply and spare part replacement be guaranteed?
We maintain dedicated stock of the 6GK5208-0BA00-2AF2 to support ongoing spare part requirements for installed base maintenance. For customers with critical infrastructure dependencies, we recommend discussing scheduled procurement agreements to ensure availability during planned maintenance shutdowns and emergency replacement scenarios. Contact our team to confirm current stock levels and lead times.
