Siemens 6GK5216-0BA00-2AA3 Spare SCALANCE X216 Automation

Siemens 6GK5216-0BA00-2AA3 Spare SCALANCE X216 Automation

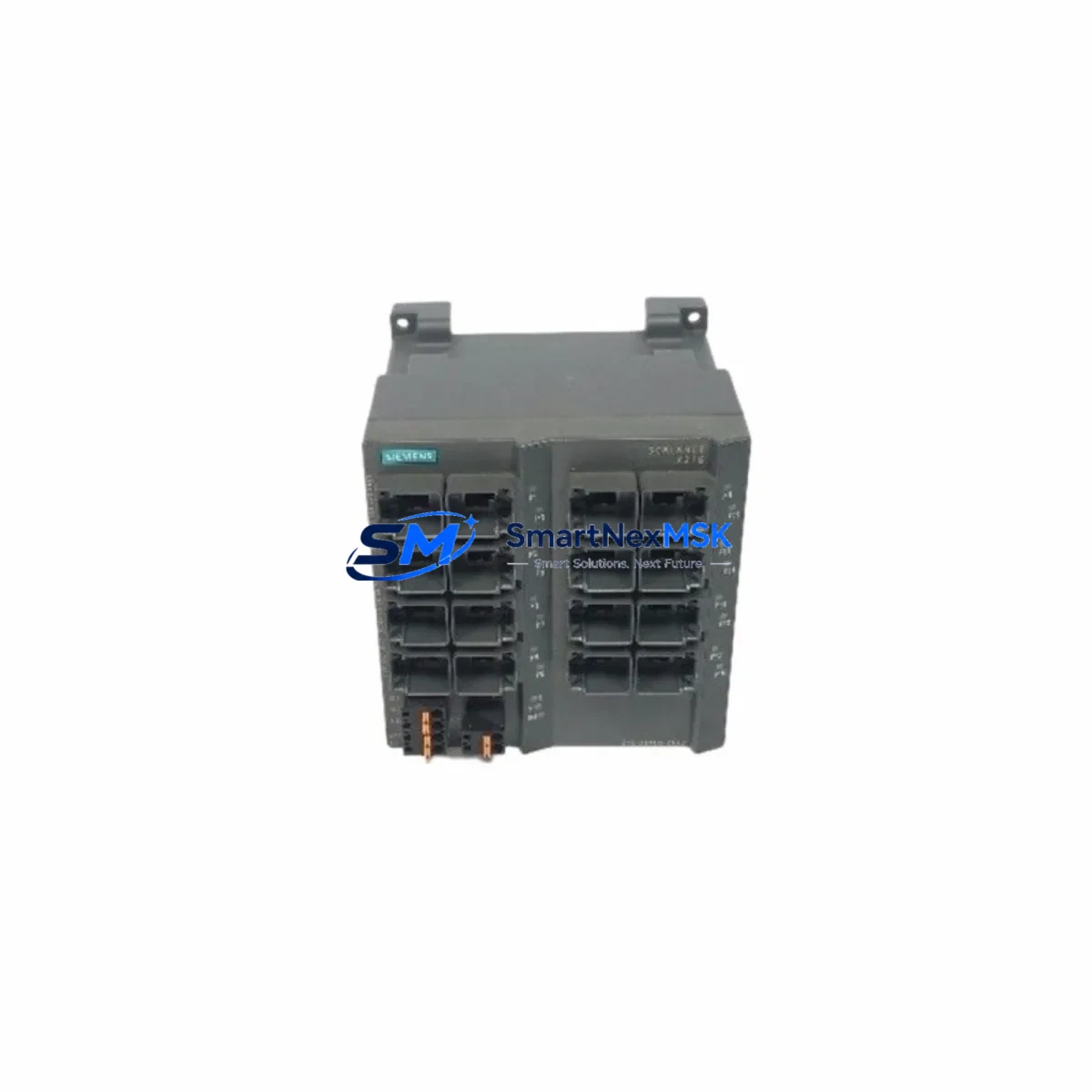

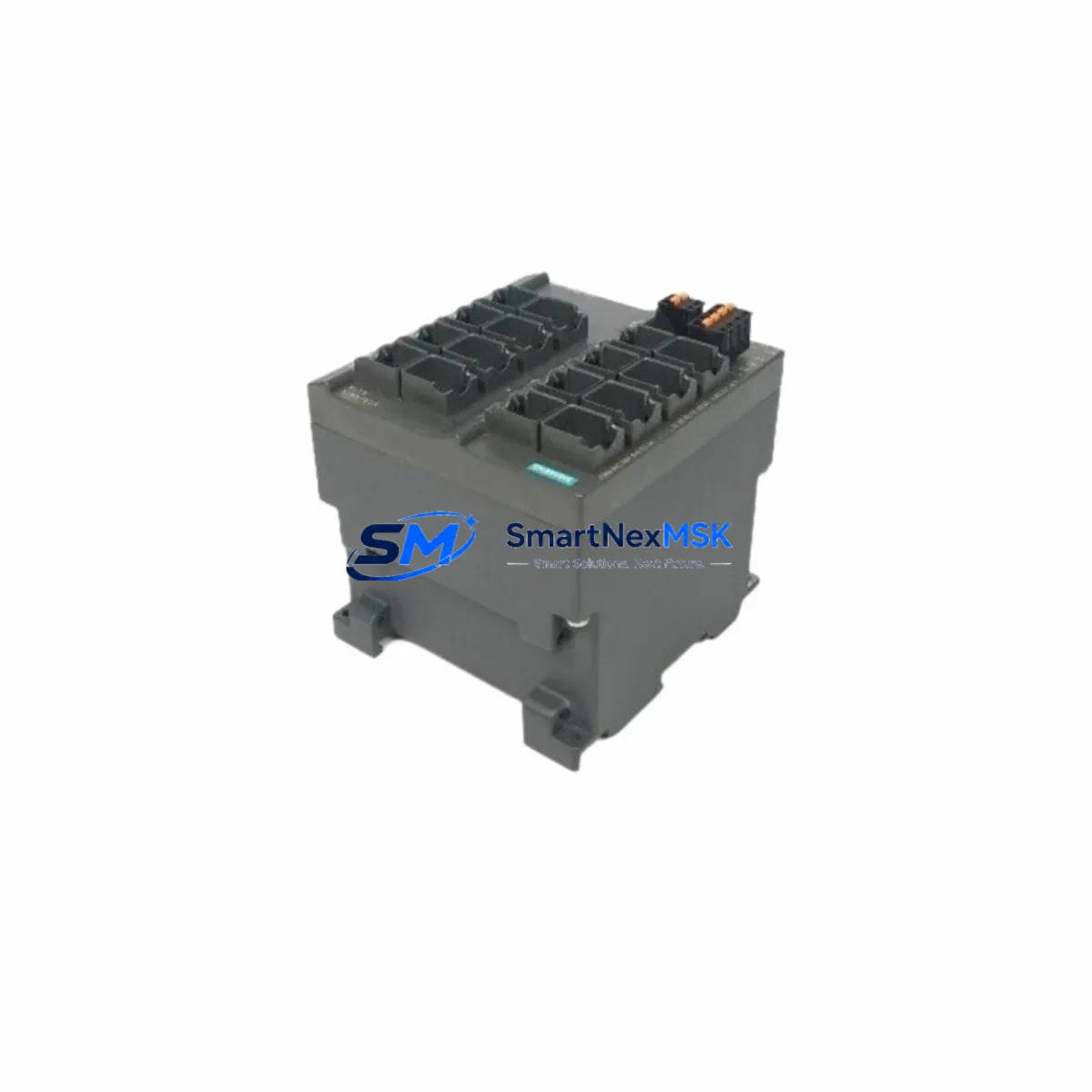

The Siemens 6GK5216-0BA00-2AA3 is a 16-port managed Industrial Ethernet switch from the SCALANCE X-200 series, engineered for demanding automation environments where network reliability directly determines production uptime. As a maintenance-ready spare, this unit is sourced, inspected, and dispatched to support rapid fault recovery in PROFINET-based control architectures, distributed I/O networks, and legacy SIMATIC system extensions. Whether you are managing a planned shutdown, responding to an unscheduled network fault, or building a strategic spare parts inventory for a critical production line, the 6GK5216-0BA00-2AA3 delivers the compatibility, performance, and traceability that maintenance and procurement engineers require.

Industrial Ethernet infrastructure is often the silent backbone of a control system. When a managed switch fails, the downstream impact can cascade across PROFINET segments, disabling SIMATIC S7-300 or S7-400 PLCs, ET 200 distributed I/O stations, and operator HMI panels simultaneously. Stocking a verified replacement unit of the 6GK5216-0BA00-2AA3 eliminates the lead-time risk associated with sourcing from OEM channels during an active downtime event.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6GK5216-0BA00-2AA3 switch is flagged for replacement during a control cabinet inspection or PROFINET diagnostic scan, experienced maintenance engineers treat the event as a trigger for a broader system health review. The switch sits at the intersection of multiple electrical and communication circuits, and its failure mode often reveals stress on adjacent components.

Begin by verifying the 24 V DC power supply feeding the switch — a Siemens SITOP PSU100S or equivalent 24 V regulated power supply should be checked for output ripple and load capacity before the new unit is installed. Inspect the terminal blocks and DIN rail mounting hardware for corrosion or mechanical fatigue, particularly in high-vibration environments. If the cabinet uses a Siemens SCALANCE X208 or SCALANCE XB208 as a secondary switch in the same PROFINET ring, verify its firmware version and MRP role configuration to ensure ring redundancy is restored correctly after the swap.

For sites running SIMATIC S7-300 CPUs with CP 343-1 communication processors, confirm that the PROFINET device name and IP address assignment for the replacement switch are pre-configured in the TIA Portal project before the maintenance window begins. This eliminates re-engineering time during the outage. Similarly, if the network segment includes ET 200SP or ET 200M distributed I/O racks, validate that their PROFINET connections are re-established within the watchdog timeout parameters after the switch is powered up.

Maintenance teams should also inspect the fiber optic patch cables or Cat6 industrial Ethernet cables connected to the switch ports. Bent connectors, damaged shielding, or contaminated SFP slots on adjacent SCALANCE X-300 or X-400 series uplink switches can cause intermittent faults that are misdiagnosed as switch failures. Including a set of pre-tested industrial Ethernet patch cables and RJ45 field-assembly connectors in the spare parts kit alongside the 6GK5216-0BA00-2AA3 reduces diagnostic time significantly.

For cabinets that also house Siemens SIRIUS 3RK3 safety relays, 3RT contactors, or 3NJ4 fuse switch disconnectors on the same 24 V DC bus, a power quality check is recommended before and after the switch replacement to rule out transient voltage spikes as the root cause of the original failure. Signal isolators on analog I/O channels connected to the same cabinet should also be verified for correct loop integrity.

Site Replacement Workflow

Replacing the 6GK5216-0BA00-2AA3 on-site follows a structured sequence designed to minimize downtime and preserve system configuration integrity:

1. Pre-Replacement Preparation: Export the current switch configuration using STEP 7 or TIA Portal’s device configuration backup function. Document all port assignments, VLAN settings, MRP role (Manager or Client), and PROFINET device name. Confirm the replacement unit’s firmware version matches or is compatible with the existing network project.

2. Safe Isolation: Notify the control room of the planned network interruption. Place the affected PROFINET segment into a safe state using the PLC’s program hold or safe-state function. De-energize the switch by disconnecting the 24 V DC supply at the terminal block — do not pull the power connector under load if avoidable.

3. Physical Swap: Label all Ethernet cables before disconnection. Remove the faulty unit from the DIN rail. Mount the replacement 6GK5216-0BA00-2AA3, reconnect cables in the documented port sequence, and restore 24 V DC power.

4. Configuration Restore: Use PRONETA or TIA Portal to assign the PROFINET device name and IP address to the new switch. Restore the saved configuration file. Verify MRP ring closure and check all port link states in the switch’s web interface.

5. System Validation: Bring the PLC back online and monitor the PROFINET diagnostic buffer for any residual alarms. Confirm all ET 200 stations and HMI panels are communicating normally. Log the replacement event in the maintenance management system with the new unit’s serial number and installation date.

This workflow is compatible with both hot-standby and cold-standby spare strategies and supports the transition from legacy SIMATIC NET configurations to TIA Portal-managed architectures without requiring a full network re-engineering cycle.

Spare Parts Support FAQ

Q1: Is the 6GK5216-0BA00-2AA3 a direct replacement for earlier SCALANCE X216 revisions?
Yes. The -2AA3 hardware revision is backward compatible with earlier -2AA0 and -2AA1 variants in terms of port count, DIN rail form factor, and PROFINET IO device behavior. Configuration files from earlier revisions can typically be restored after a firmware alignment step. Always verify the firmware version in TIA Portal before going live.

Q2: How is the unit tested before shipment?
Each 6GK5216-0BA00-2AA3 unit undergoes a power-on functional test, port link verification, and management interface access check prior to dispatch. Units are packaged in anti-static ESD-safe materials with individual serial number documentation. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended spare parts stocking strategy for SCALANCE X216 switches?
For production lines with more than four SCALANCE X216 units in a PROFINET ring, maintaining at least one cold-standby spare on-site is recommended. For critical 24/7 operations, a 1:4 spare ratio (one spare per four installed units) is a common industry benchmark. Pairing the switch spare with a pre-configured backup of the network project file and a set of tested patch cables ensures the fastest possible recovery time.

Q4: Can this unit be used in a PROFINET IRT (Isochronous Real-Time) application?
The SCALANCE X216 (6GK5216-0BA00-2AA3) supports PROFINET RT (Real-Time) but is not certified for PROFINET IRT, which requires switches with hardware-based forwarding such as the SCALANCE X-300 or X-500 series. For IRT applications, please confirm your network topology requirements before ordering. For standard RT applications including motion control with S7-300/400 and ET 200 I/O, this unit is fully compatible.
