Siemens 6GK7542-1AX00-0XE0 PROFINET Module S7-1500

Siemens 6GK7542-1AX00-0XE0 PROFINET Module S7-1500: Retrofit-Ready Upgrade for Legacy Control Systems

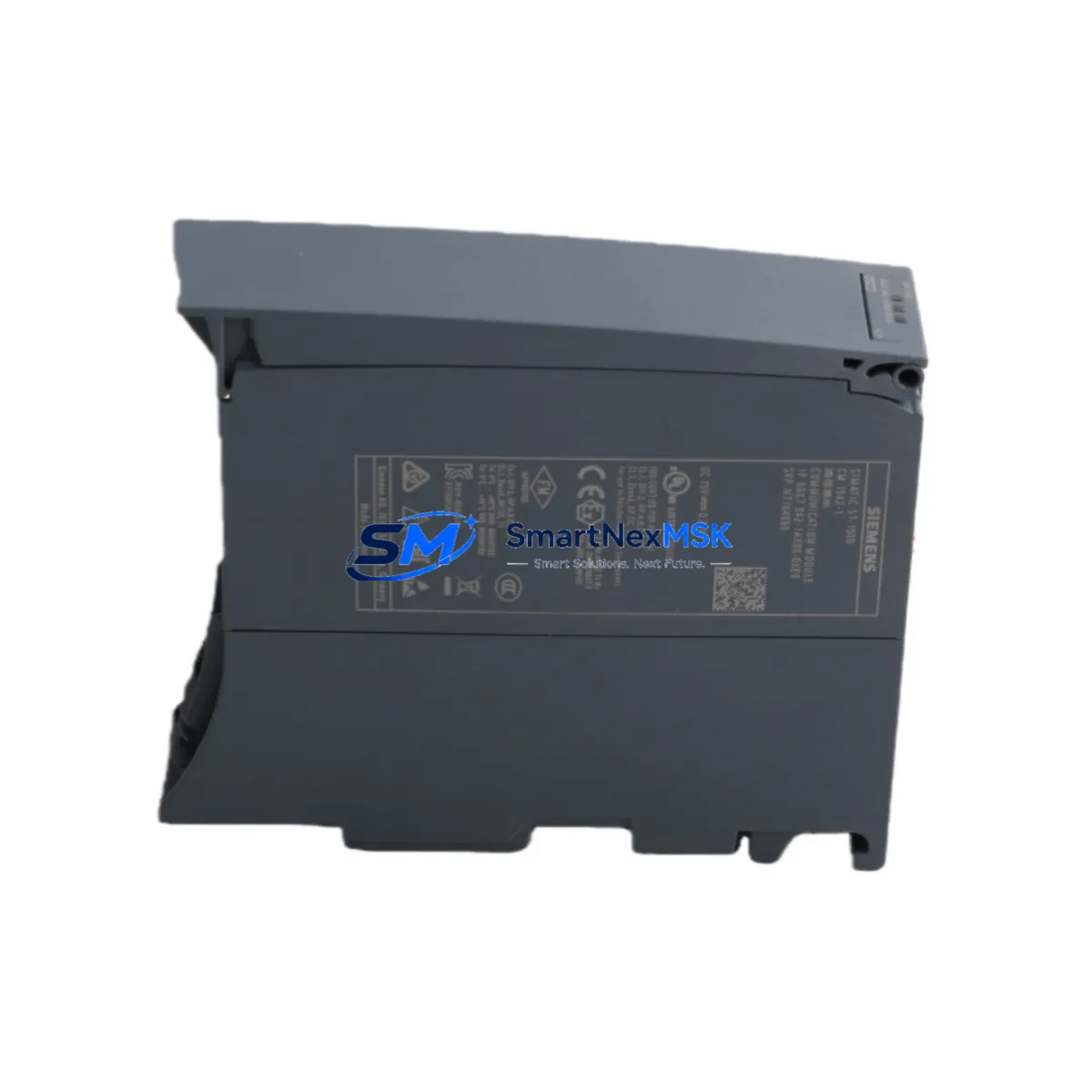

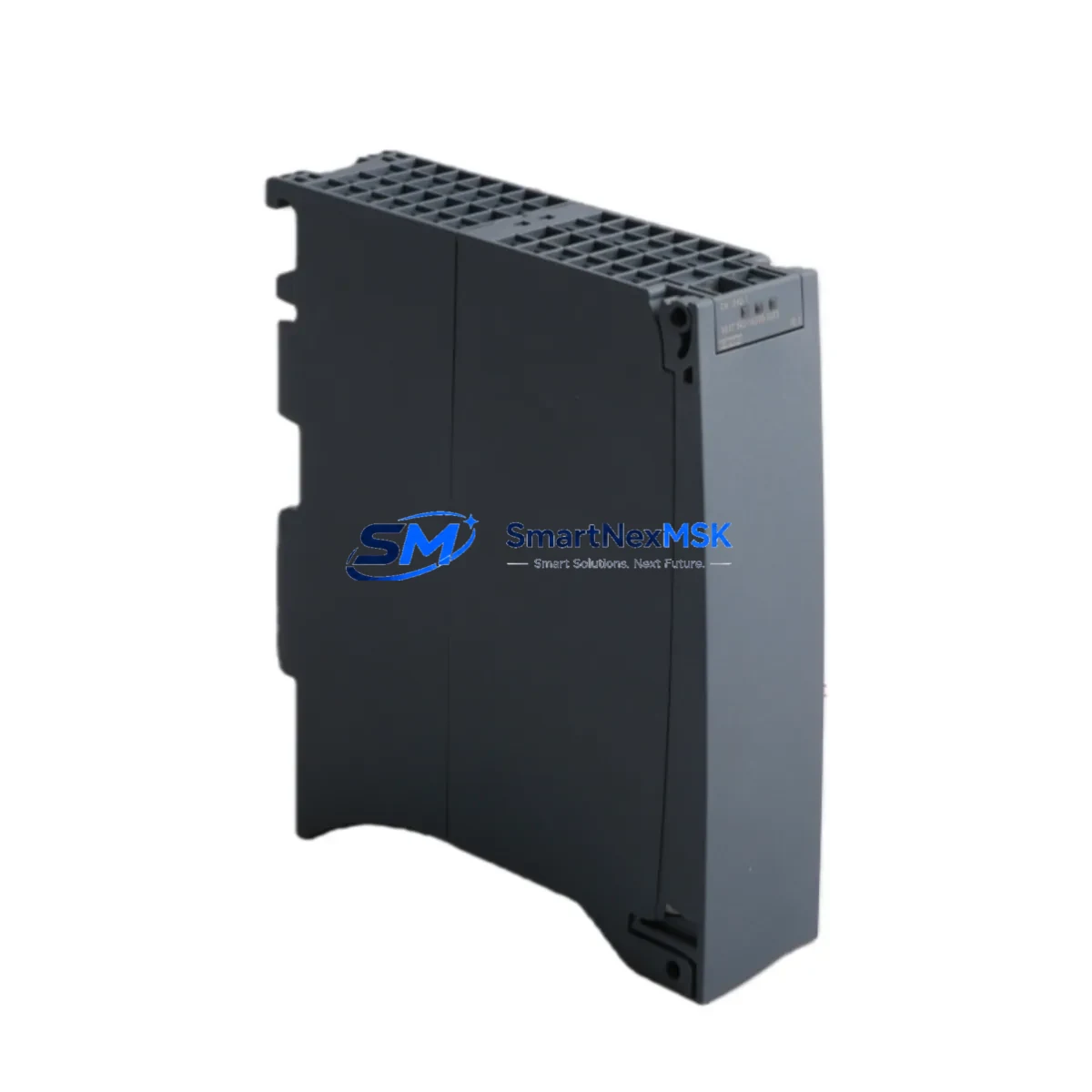

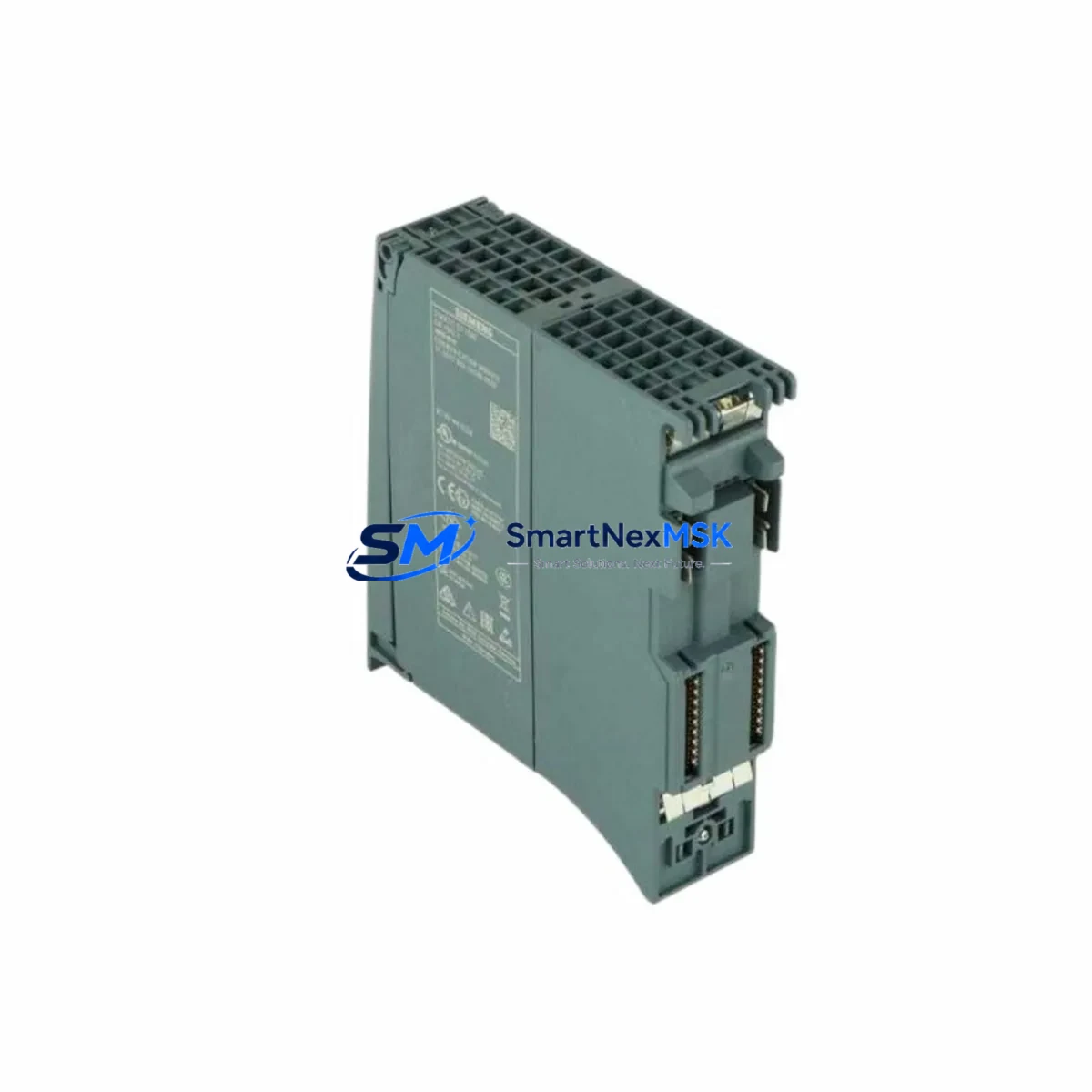

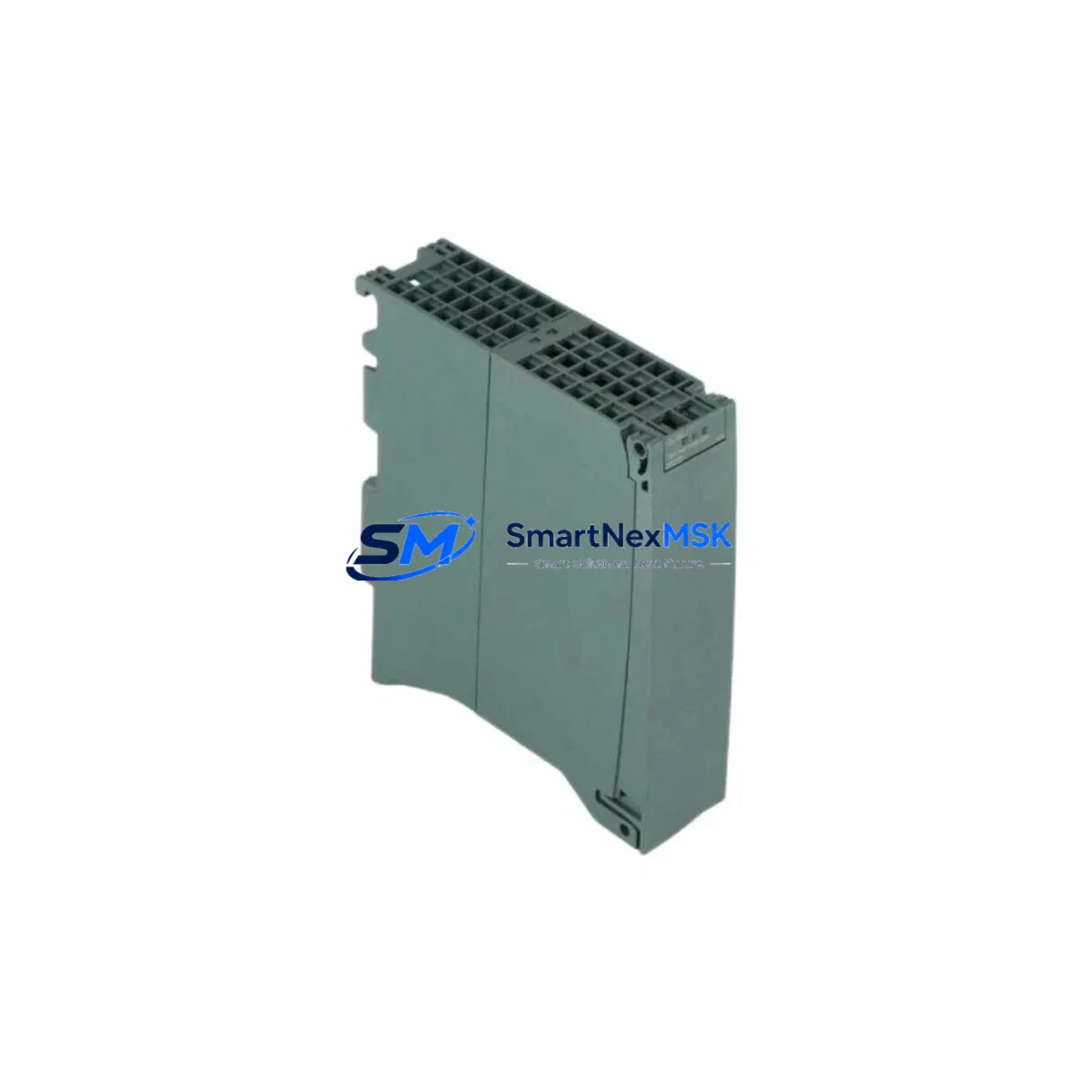

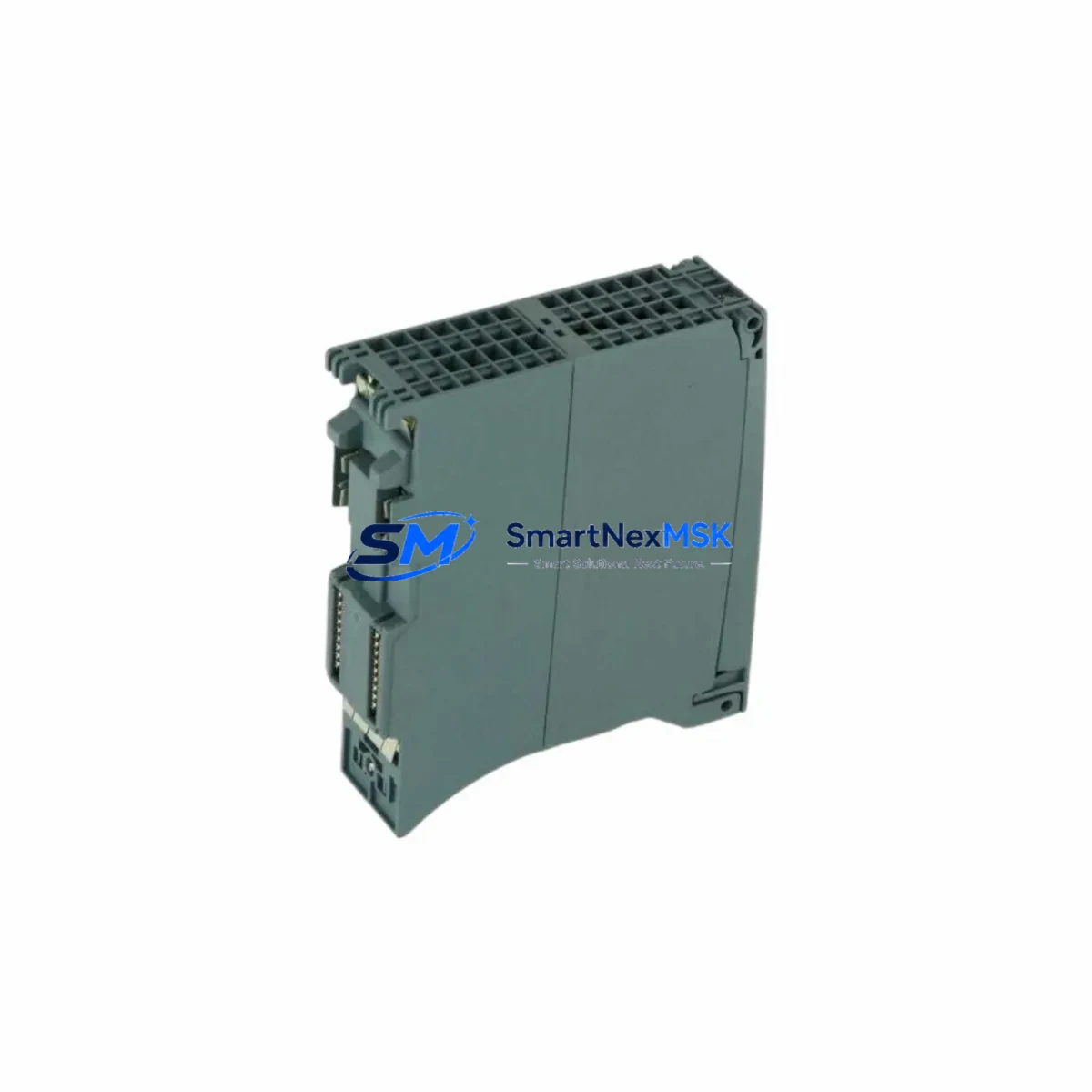

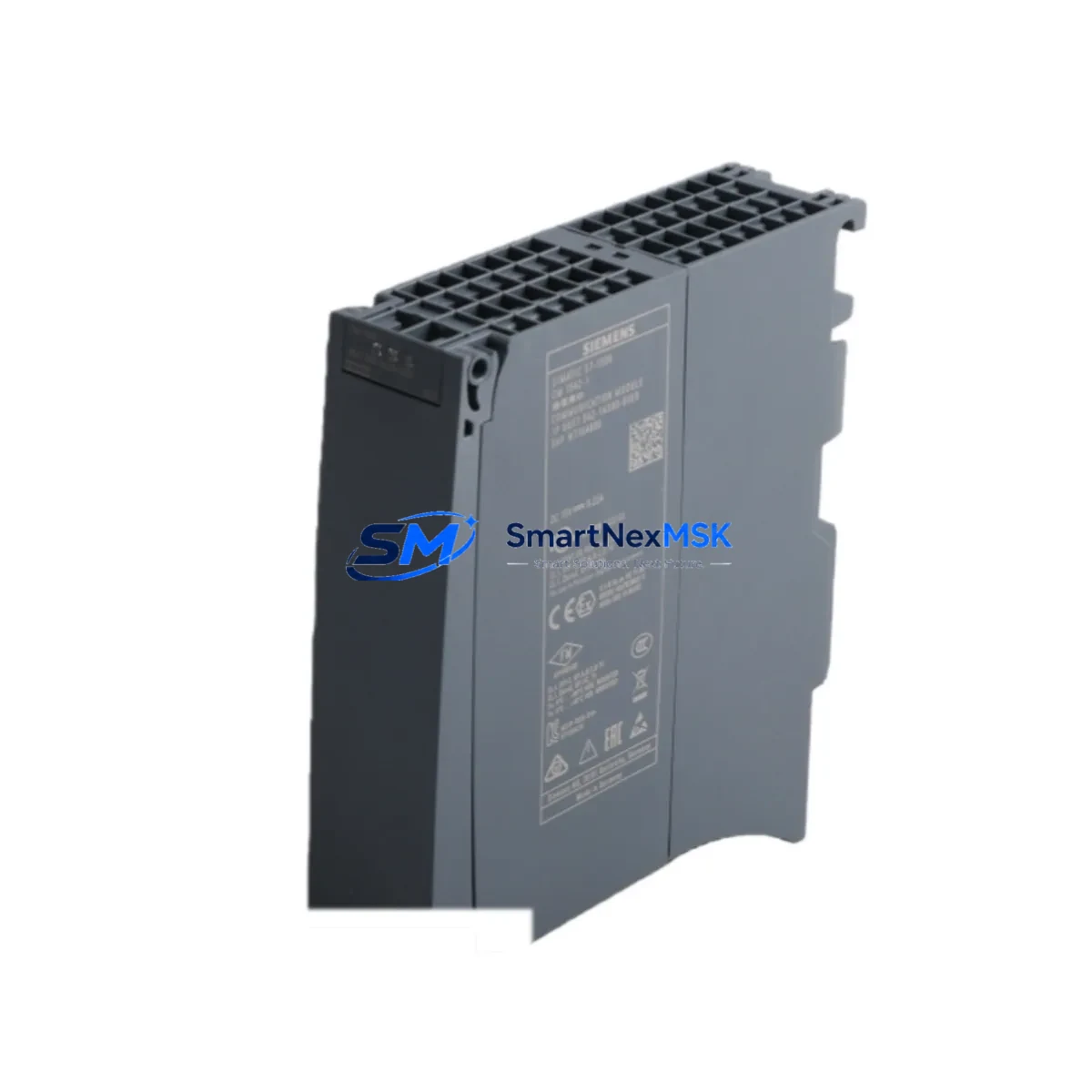

The Siemens 6GK7542-1AX00-0XE0 — commercially designated as the CM 1542-1 — is a high-performance PROFINET communication module engineered for the S7-1500 controller platform. Designed to serve as a direct upgrade path from aging S7-300 and S7-400 communication infrastructure, this module enables industrial facilities to modernize their control architecture without replacing the entire control cabinet. Whether you are retiring a CP 343-1 Advanced, decommissioning a CP 443-1, or migrating a distributed I/O network from PROFIBUS DP to PROFINET IO, the 6GK7542-1AX00-0XE0 provides a validated, field-proven replacement solution backed by a 12-month warranty and pre-shipment functional testing.

For engineers managing legacy automation systems, the transition from S7-300 to S7-1500 represents one of the most common modernization challenges in the industry. The CM 1542-1 addresses this directly by supporting dual-port PROFINET IO with IRT (Isochronous Real-Time) capability, enabling deterministic communication across existing Ethernet infrastructure. Unlike the CP 343-1 which required separate configuration via NCM S7, the 6GK7542-1AX00-0XE0 is fully integrated into TIA Portal V15 and above, streamlining commissioning and reducing engineering hours during retrofit projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 6GK7542-1AX00-0XE0 begins well before the module arrives on site. Engineers must audit the existing control cabinet to confirm available slot positions on the S7-1500 rack, verify that the 24 VDC power supply module — such as the PM 70W 120/230VAC or the PS 60W 24/48/60VDC — can support the additional current draw of the CM 1542-1 (typically 0.9 A at 3.3 V backplane). If the existing rack is a 4-slot or 8-slot S7-1500 mounting rail, slot assignment must be planned to avoid conflicts with existing CPU 1511-1 PN or CPU 1515-2 PN modules already occupying communication-priority slots.

Terminal wiring adaptation is a critical step when migrating from a CP 343-1 environment. The legacy module used a 15-pin Sub-D connector for AUI or a direct RJ45 for 10/100 Ethernet, while the CM 1542-1 uses standard RJ45 ports compatible with Cat5e or Cat6 patch cables. In facilities where structured cabling was installed for the S7-300 era, existing Ethernet runs can typically be reused without re-pulling cable, significantly reducing retrofit labor costs.

For distributed I/O migration, engineers transitioning from ET 200M with IM 153-2 interface modules to ET 200SP or ET 200MP will find that the CM 1542-1 natively supports PROFINET IO device discovery and address assignment via DCP (Discovery and Configuration Protocol). This eliminates the need for manual IP address configuration at each remote I/O station. The module also supports SNMP and LLDP for network topology detection, which is invaluable when documenting a modernized plant network.

HMI integration must be re-validated after the communication module swap. Existing SIMATIC HMI panels — including TP700 Comfort, KTP900 Basic, or legacy OP 177B units — may require updated connection parameters in WinCC Flexible or TIA Portal WinCC if the CPU’s PROFINET interface IP address changes during the migration. It is strongly recommended to export and archive all HMI project files before beginning the retrofit, and to perform a full tag communication test after the CM 1542-1 is commissioned.

Programming cable access during the retrofit window is equally important. Engineers should ensure a standard PROFINET/Ethernet programming connection to the CPU 1511 or CPU 1516 is maintained throughout the process, avoiding reliance on the CM 1542-1 port for PG/PC communication until the module is fully configured and verified. A SIMATIC Memory Card pre-loaded with the updated project can accelerate CPU recovery if a firmware reload is required during the upgrade.

Downtime Control During System Migration

Minimizing production downtime during a communication module replacement requires a structured migration sequence. The recommended approach is to perform all TIA Portal configuration changes — including adding the 6GK7542-1AX00-0XE0 to the hardware configuration, assigning PROFINET device names, and compiling the updated project — in offline mode before the scheduled maintenance window. This allows the download to the CPU to be completed in a single operation, reducing the live intervention time to under 30 minutes in most cases.

To protect existing program logic, engineers should use the TIA Portal “Upload from Device” function to capture the current CPU program state before any hardware changes are made. This backup, stored on a SIMATIC Memory Card or engineering workstation, ensures that the original ladder logic, function block diagrams, and safety program segments can be restored immediately if the retrofit encounters an unexpected compatibility issue.

For systems where continuous process control is required, a phased migration strategy is advisable: maintain the legacy CP 343-1 in parallel with the new CM 1542-1 during an initial validation period, routing non-critical PROFINET IO devices to the new module first while critical control loops remain on the established communication path. Once the CM 1542-1 has demonstrated stable operation across a full production cycle, the remaining devices can be migrated and the legacy module decommissioned. This approach is particularly effective in food processing, water treatment, and chemical plant environments where unplanned shutdowns carry significant operational risk.

Field commissioning of the 6GK7542-1AX00-0XE0 should include verification of PROFINET IO cycle times, confirmation that all IO devices have received correct PROFINET device names via TIA Portal’s “Assign Device Name” function, and a communication link test using the integrated diagnostics buffer in the S7-1500 CPU. All modules supplied by SMARTNEXMSK are pre-tested for basic communication functionality before shipment, and each unit is covered by a 12-month warranty against manufacturing defects.

Retrofit Support FAQ

Q1: Can the 6GK7542-1AX00-0XE0 directly replace a CP 343-1 Advanced in an S7-300 system?
No — the CM 1542-1 is designed exclusively for the S7-1500 backplane and cannot be physically installed in an S7-300 rack. However, it is the correct replacement module when the overall migration path involves upgrading the CPU from a CPU 315-2 PN/DP or CPU 317-2 PN/DP to an S7-1500 controller. In this scenario, the 6GK7542-1AX00-0XE0 assumes all PROFINET IO communication responsibilities previously handled by the CP 343-1 Advanced.

Q2: What wiring changes are required when installing the CM 1542-1?
The 6GK7542-1AX00-0XE0 connects to the S7-1500 rack via the U-connector backplane interface — no separate power wiring is required for the module itself. Network connections use standard RJ45 Cat5e/Cat6 cables. If your existing plant network uses fiber optic segments, a media converter compatible with 100BASE-FX or 1000BASE-SX should be installed at the cabinet entry point. Terminal block wiring for field devices connected via ET 200SP or ET 200MP remote I/O stations remains unchanged.

Q3: Is the module compatible with TIA Portal V16 and V17?
Yes. The 6GK7542-1AX00-0XE0 is supported in TIA Portal V15, V16, V17, and V18. The hardware support package (HSP) for the CM 1542-1 is included in the standard TIA Portal hardware catalog from V15.1 onwards. No additional HSP download is required for V16 or V17 installations. Firmware updates for the module can be performed directly from TIA Portal using the “Update Firmware” function in the online device view.

Q4: What does the 12-month warranty cover, and how is the pre-shipment test performed?
Every 6GK7542-1AX00-0XE0 unit supplied by SMARTNEXMSK undergoes a pre-shipment functional test that verifies backplane communication integrity, PROFINET port link establishment, and basic IO device discovery. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail in service within the warranty period are replaced or repaired at no charge. Warranty claims should be initiated by contacting sales@smartnexmsk.com with the order reference and a description of the observed fault.
