Siemens 6SC6100-0ND20 Safety-Enhanced DC Drive Control

Siemens 6SC6100-0ND20 Safety-Enhanced DC Drive Control for Harsh Industrial Sites

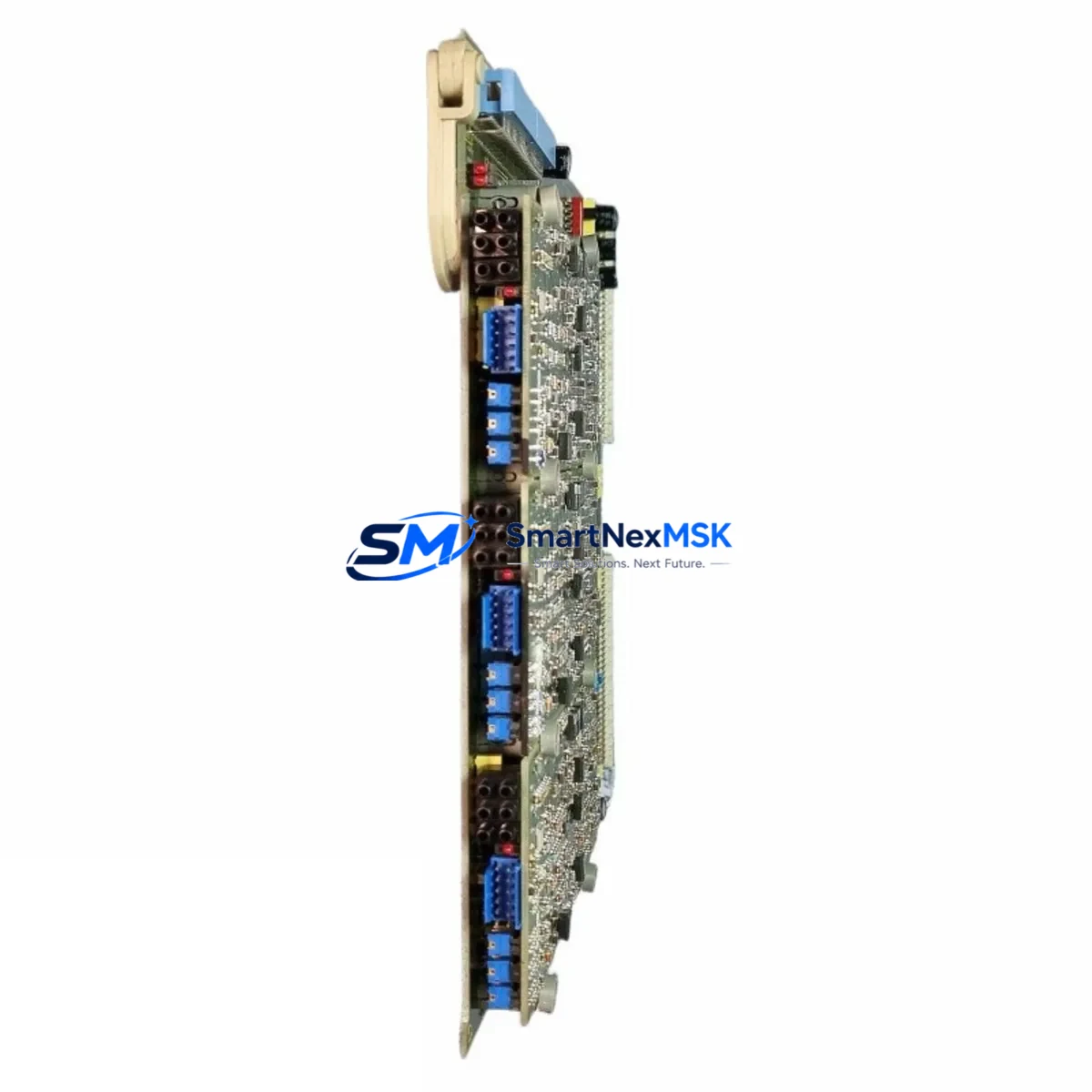

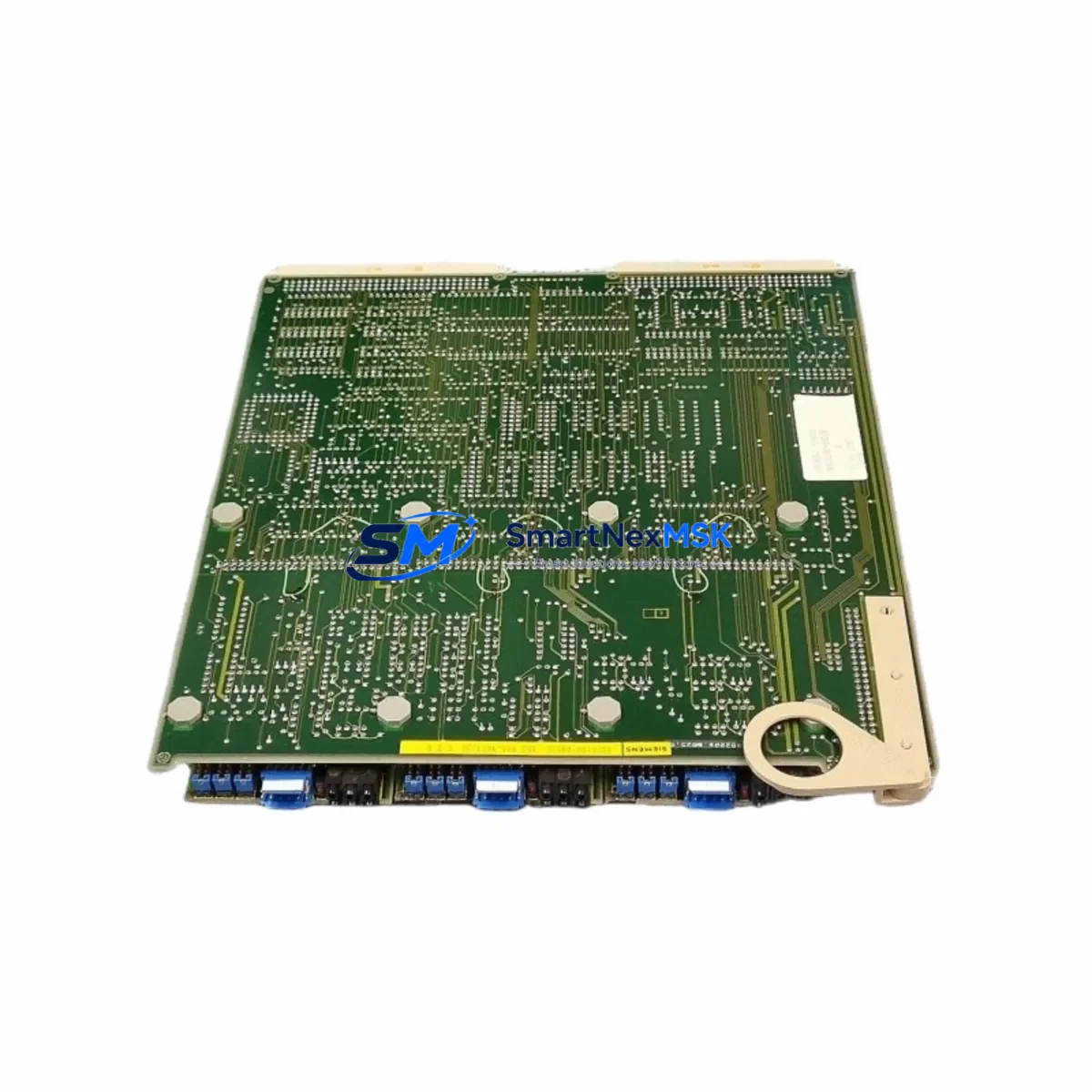

The Siemens 6SC6100-0ND20 is a high-reliability DC Drive Control Module from the SIMOREG 6SC61 series, engineered to deliver uninterrupted motor control performance in the most demanding industrial environments. Designed for continuous-duty operation in heavy industry, this module addresses the core safety challenges of modern control cabinets: control loop interruption, signal drift, power fluctuation, module misoperation, surge impact, communication anomalies, and unplanned field shutdowns.

In high-load, high-interference production lines — including petrochemical plants, metallurgical facilities, mining operations, port crane systems, and water treatment stations — the 6SC6100-0ND20 serves as a critical component within the DC drive interlock circuit. Its robust design ensures that motor speed regulation and torque control remain stable even under severe electromagnetic interference (EMI), voltage transients, and ambient temperature extremes. Every unit shipped by SMARTNEXMSK undergoes full functional testing and burn-in verification before dispatch, backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered DC drive control cabinet, the 6SC6100-0ND20 does not operate in isolation. Its safety and reliability are maximized when integrated with a coordinated set of protection and power-conditioning components. On the power supply side, a Siemens SITOP PSU100S 24V DC power supply provides stable auxiliary voltage to the control board, preventing logic errors caused by power rail fluctuations. Upstream, a Siemens 3RV motor protection circuit breaker guards against overload and short-circuit conditions that could propagate into the drive control loop.

For surge and transient protection, a Siemens SIPROTEC surge arrester module or equivalent Type 2 SPD installed at the cabinet entry point significantly reduces the risk of thyristor gate damage from lightning-induced or switching transients. The tachometer feedback signal — critical for closed-loop speed regulation — should be routed through shielded cable and, where necessary, through a Siemens SM 331 analog input module or equivalent signal conditioner to eliminate ground loop interference.

Communication integrity between the 6SC6100-0ND20 and the supervisory PLC — typically a Siemens SIMATIC S7-300 or S7-400 CPU — is maintained through a dedicated CP 342-5 PROFIBUS communication processor, which isolates drive-side noise from the PLC backplane. For safety interlock circuits in SIL-rated applications, a Siemens SIRIUS 3SK1 safety relay provides the hardwired emergency stop and safe torque-off (STO) path, ensuring that a drive fault does not cascade into a process safety event. Thermal management within the cabinet is supported by a Siemens SINAMICS cooling fan module or equivalent forced-air unit, maintaining the 6SC6100-0ND20 within its rated operating temperature range during continuous high-load cycles.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where motor stoppage can trigger hazardous material release or pressure buildup, the 6SC6100-0ND20 provides stable closed-loop speed control for pump and compressor drives. Its resistance to EMI from variable-frequency equipment and high-current bus bars makes it a preferred replacement module in legacy SIMOREG drive systems that must remain operational without full drive replacement.

Metallurgical & Steel Mills: Rolling mill main drives and coiler/decoiler systems demand precise torque regulation under rapidly varying load conditions. The 6SC6100-0ND20’s high-precision firing pulse generation ensures smooth thyristor commutation, reducing mechanical stress on drive trains and minimizing the risk of uncontrolled runaway during tension control transitions.

Mining & Hoisting Systems: Winder and hoist drives in underground mining operations are subject to extreme duty cycles and safety-critical interlock requirements. The module’s compatibility with hardwired safety relay circuits and its stable analog feedback processing make it suitable for use in hoist control systems where drive failure has direct personnel safety implications.

Water Treatment & Pumping Stations: Municipal and industrial water treatment facilities rely on continuous pump operation. The 6SC6100-0ND20 supports uninterrupted flow control in multi-pump configurations, with its signal drift compensation ensuring consistent pressure regulation even during grid voltage fluctuations common in remote pumping stations.

Port Crane & Heavy Lifting Equipment: Container cranes and ship-to-shore loaders require precise speed and torque control during load handling. The module’s robust design withstands the vibration, humidity, and salt-air corrosion typical of port environments, providing reliable control performance throughout extended operational cycles.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6SC6100-0ND20?
The 12-month warranty covers all functional failures arising under normal industrial operating conditions, including control board component failure, firing pulse output faults, and feedback signal processing errors. Physical damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded. Warranty claims are processed with priority dispatch of a replacement unit to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6SC6100-0ND20 supplied by SMARTNEXMSK undergoes a full functional test that includes power-on verification, firing pulse output measurement, analog feedback signal calibration check, and a burn-in cycle under load simulation. A test report is available upon request. This process ensures that no latent defects reach your facility.

Q3: Is the 6SC6100-0ND20 compatible with my existing SIMOREG 6SC61 drive chassis?
Yes. The 6SC6100-0ND20 is a direct-fit control module for the SIMOREG 6SC61 series drive chassis. It is also compatible with the interlock and feedback wiring conventions used in Siemens SIMATIC S5 and S7 PLC-based control systems. If you are replacing a failed module in an existing installation, no chassis modification is required. For non-standard configurations, our technical team can advise on compatibility before shipment.

Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains dedicated stock of SIMOREG 6SC61 series control modules and related spare parts to support planned maintenance, emergency replacement, and multi-unit procurement programs. We work with industrial facilities that require guaranteed spare part availability over multi-year maintenance contracts. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your plant’s maintenance calendar.
