Siemens 6SE6420-2UD21-5AA1 Retrofit-Ready VFD for MM420

Siemens 6SE6420-2UD21-5AA1 Retrofit-Ready VFD for MICROMASTER 420 Control Systems

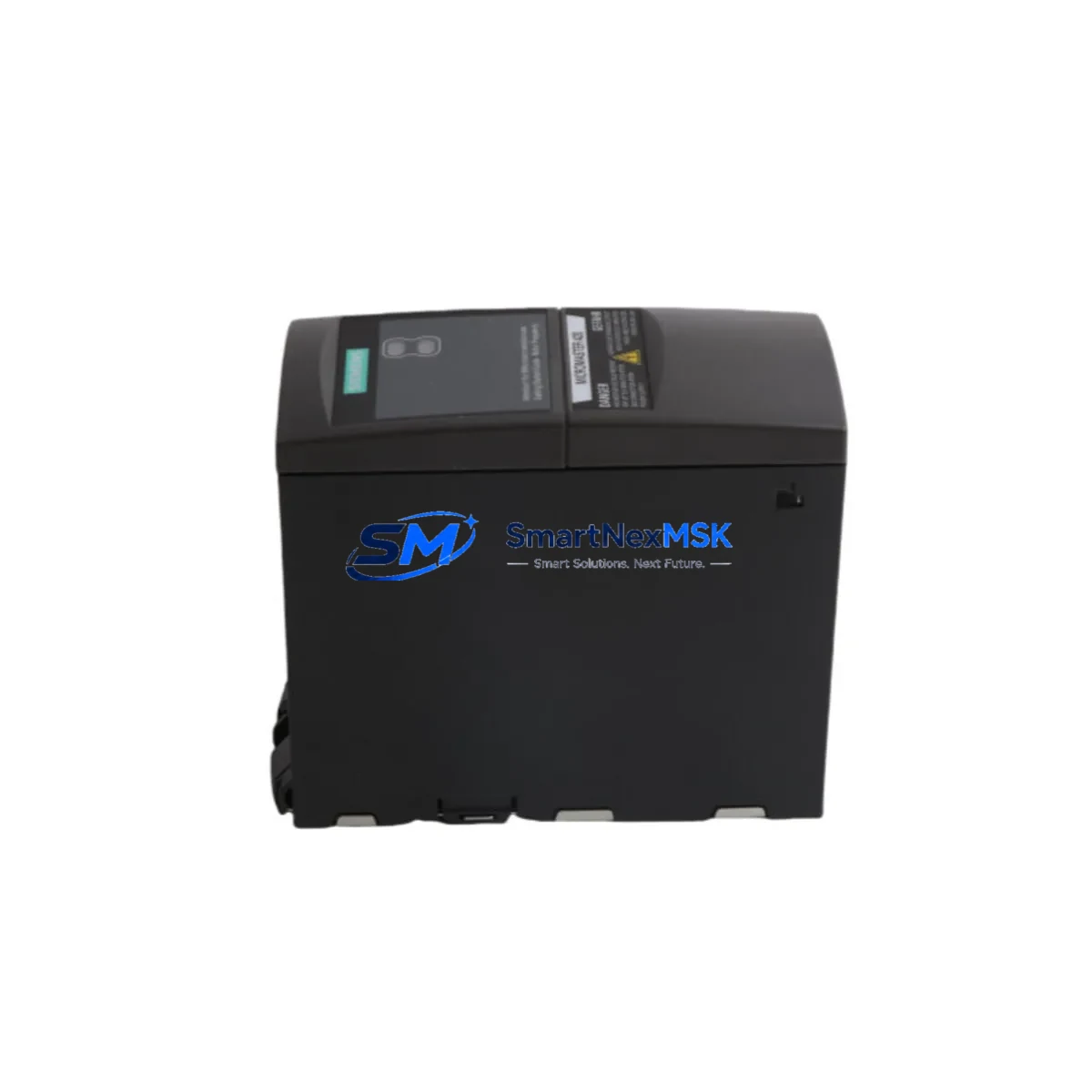

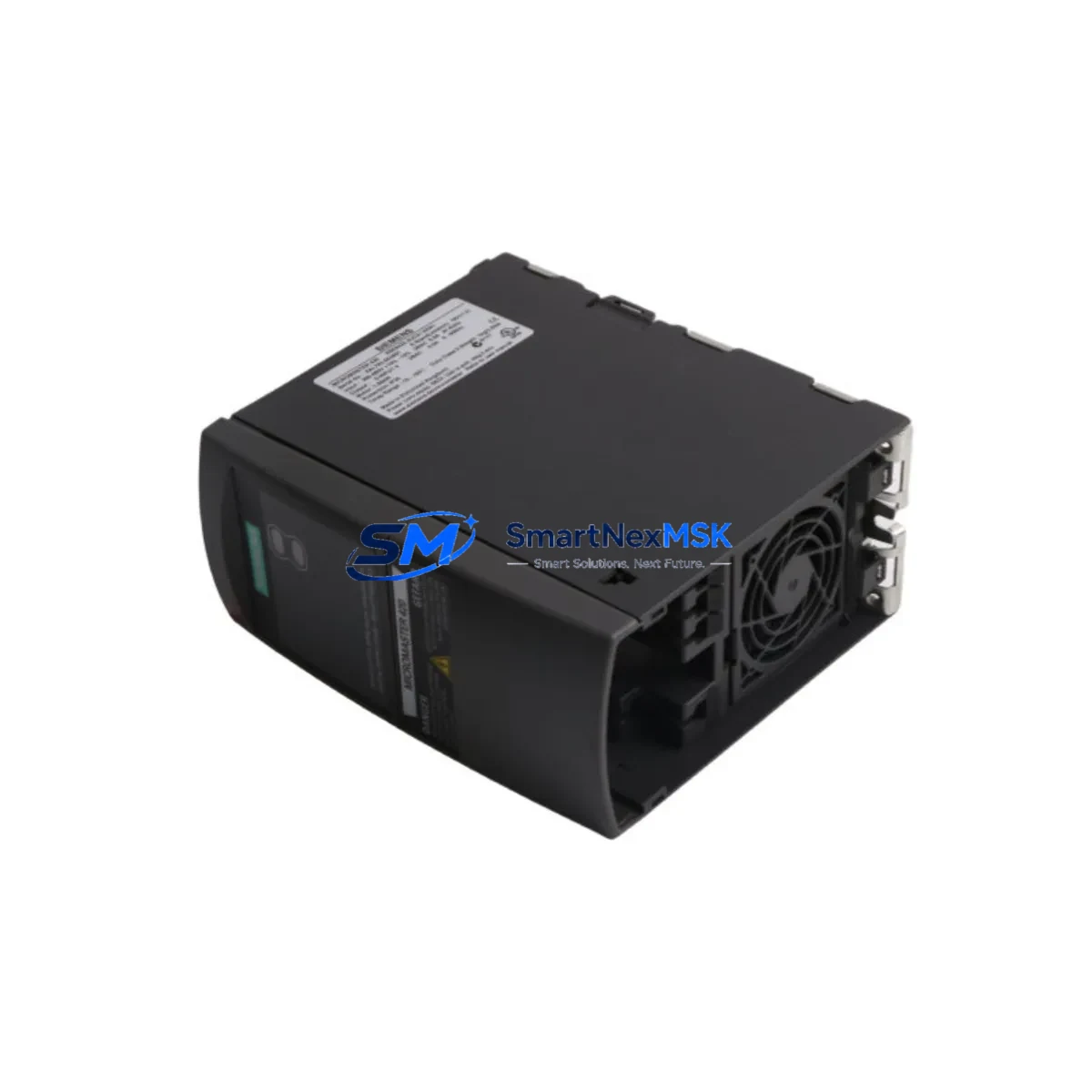

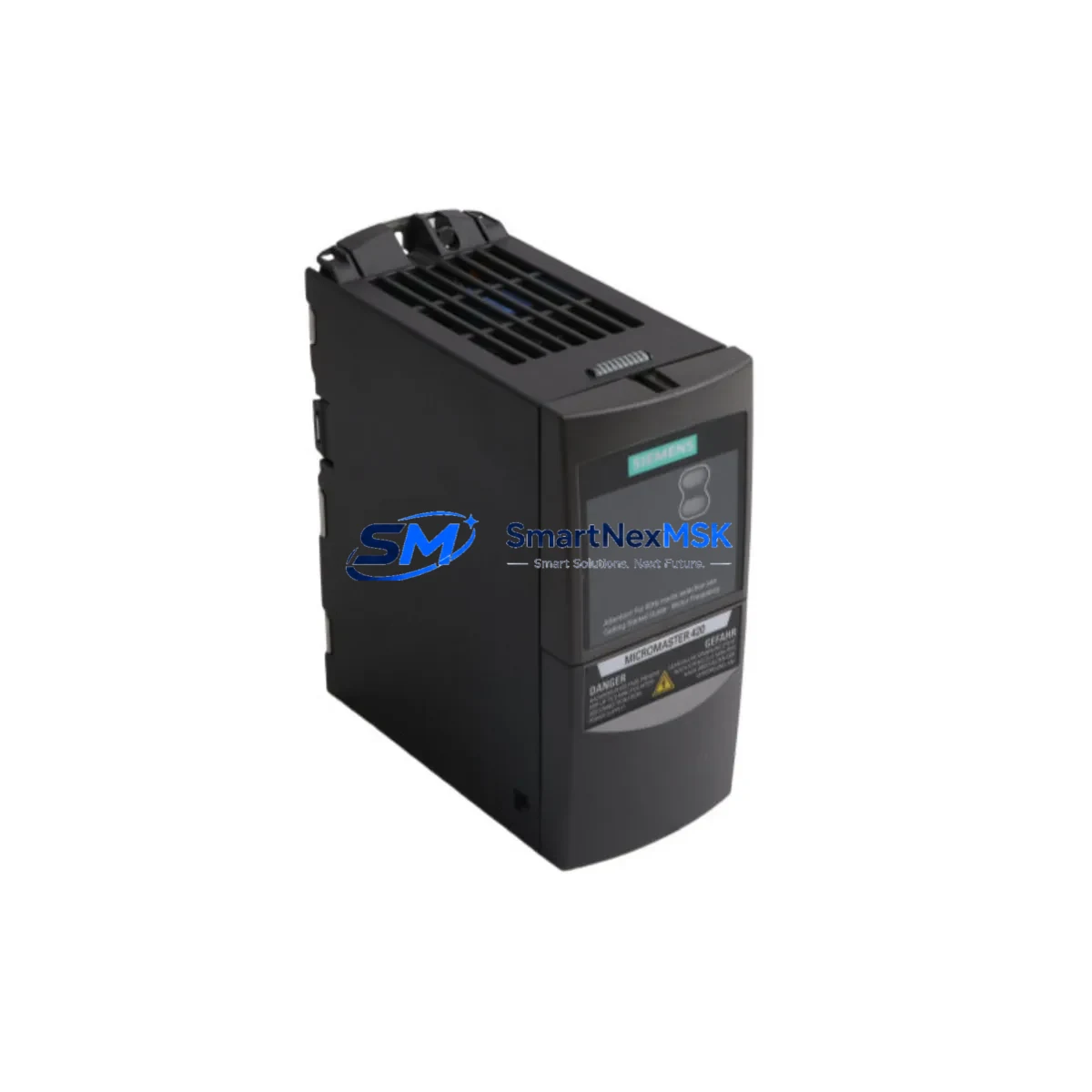

The Siemens 6SE6420-2UD21-5AA1 is a 1.5 kW, 3-phase 200–240 V AC variable frequency drive from the MICROMASTER 420 series — one of Siemens’ most widely deployed compact drive platforms in industrial automation. As legacy MM420 units reach end-of-service life, this module serves as the primary retrofit and drop-in replacement solution for existing control cabinets, conveyor lines, pump stations, HVAC systems, and general-purpose motor control applications. Whether you are upgrading a single drive or modernizing an entire production line, the 6SE6420-2UD21-5AA1 provides a technically compatible, cost-effective path forward without requiring full system redesign.

This unit supports USS protocol communication over RS-485, making it directly compatible with existing Siemens S7-200, S7-300, and S7-1200 PLC platforms without protocol conversion hardware. Engineers migrating from older MICROMASTER 420 installations can retain existing parameter sets (P-number configurations) with minimal reprogramming, significantly reducing commissioning time and the risk of logic errors during cutover.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6SE6420-2UD21-5AA1 into an existing MICROMASTER 420 installation begins with a thorough pre-replacement audit. Engineers should verify the incoming power supply capacity — the unit draws up to 8.8 A input current at full load — and confirm that the existing circuit breaker and contactor ratings in the control cabinet remain adequate. Terminal wiring on the MM420 follows a standardized layout: L1/L2/L3 for three-phase input, U/V/W for motor output, and a dedicated PE terminal for protective earth. These assignments are preserved in the 6SE6420-2UD21-5AA1, allowing direct re-termination without rewiring the motor cable.

For installations using the 6SE6400-0BE00-0AA0 BOP (Basic Operator Panel), parameter backup should be performed before removal of the old unit. The BOP supports parameter upload and download, enabling engineers to clone the existing drive configuration and restore it to the replacement unit within minutes. If the site uses an AOP (Advanced Operator Panel, 6SE6400-0AP00-0AA0), the same upload/download workflow applies with additional parameter documentation capability.

In multi-drive cabinet configurations — common in conveyor systems and pump banks — the 6SE6420-2UD21-5AA1 shares the same backplane footprint as other MM420 frame-size-A drives, including the 6SE6420-2UD13-7AA1 (0.37 kW) and 6SE6420-2UD17-5AA1 (0.75 kW). This means existing cable management, DIN rail spacing, and cabinet door cutouts require no modification. When replacing multiple drives in a single cabinet, it is advisable to replace one unit at a time, verify motor operation, and then proceed to the next — minimizing the risk of simultaneous faults across the production line.

For sites running USS communication networks, the RS-485 bus address (P2011) and baud rate (P2010) must be matched to the existing network configuration. The 6SE6420-2UD21-5AA1 supports up to 31 drives on a single USS segment, and the replacement unit must be assigned the same slave address as the removed drive to avoid PLC communication errors. If the existing STEP 7 or TIA Portal program references drive parameters by USS address, no program modification is required — only the physical drive swap and parameter restore.

Sites using analog setpoint control (0–10 V or 4–20 mA via terminals 3/4 and 9/10) should verify that the analog input scaling parameters (P0757–P0760) are correctly restored from the backup. HMI screens built on WinCC or SIMATIC HMI panels that display drive status via PLC tags will continue to function without modification, provided the PLC program and USS address remain unchanged. If the site uses a SIMATIC S7-1200 with CM 1241 RS-485 communication module, the USS library blocks in TIA Portal require no changes after the drive swap.

For applications involving 6SE6400-1PC00-0AA0 PC-to-drive parameter cable and STARTER or Drive Monitor software, engineers can perform a full parameter comparison between the old and new drive before energizing the motor — a best practice that catches any parameter discrepancy before it causes a process fault. All units shipped by SMARTNEXMSK undergo pre-shipment functional testing and are supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Downtime Control During System Migration

Minimizing production downtime during a MICROMASTER 420 drive replacement requires a structured cutover plan. The recommended approach is to schedule the physical swap during a planned maintenance window, with all parameter backups completed in advance using the BOP or AOP. Before de-energizing the old drive, document the current parameter set (P0010 through P1900 range), motor nameplate data, and any site-specific tuning values such as ramp-up time (P1120), ramp-down time (P1121), and minimum/maximum frequency limits (P1080/P1082).

Once the 6SE6420-2UD21-5AA1 is installed and wired, perform a quick commissioning sequence: set P0010=1 (commissioning mode), enter motor data (P0304–P0311), run the motor identification routine (P1910=1 if applicable), and restore the backed-up parameter set. For USS-networked drives, confirm communication link status via the PLC diagnostic buffer before returning the line to production. In most MM420 retrofit scenarios, the total physical swap and recommissioning time is under 60 minutes per drive — significantly less than the downtime associated with a full control system replacement.

To further protect original program logic, ensure that the PLC is placed in STOP mode before the drive is de-energized, preventing any watchdog or communication fault from triggering unintended outputs on adjacent I/O modules such as the SM 321 digital input module or SM 322 digital output module in S7-300 racks. After the replacement drive is online and verified, return the PLC to RUN mode and monitor the first production cycle closely for any deviation in motor speed, torque response, or fault codes.

Retrofit Support FAQ

Q1: Is the 6SE6420-2UD21-5AA1 a direct drop-in replacement for my existing MICROMASTER 420 unit?
Yes. The 6SE6420-2UD21-5AA1 uses the same terminal layout, DIN rail footprint, and parameter structure as all MM420 Frame Size A drives. In most installations, replacement requires only re-termination of existing cables and parameter restore — no cabinet modification or rewiring is needed.

Q2: Can I reuse my existing BOP or AOP panel with the replacement drive?
Yes. The BOP (6SE6400-0BE00-0AA0) and AOP (6SE6400-0AP00-0AA0) are fully compatible with the 6SE6420-2UD21-5AA1. Use the BOP’s upload function on the old drive before removal, then download the parameter set to the new unit after installation.

Q3: Will my PLC program and HMI screens need to be modified after the drive swap?
No modification is required, provided the replacement drive is assigned the same USS slave address (P2011) and baud rate (P2010) as the original. PLC programs referencing drive status via USS or analog signals will continue to operate without change. HMI screens displaying drive data through PLC tags are unaffected.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
All units are covered by a 12-month warranty from the shipment date, covering manufacturing defects and operational failures under normal industrial use. Pre-shipment functional testing is performed on every unit. Standard lead time is 3–7 business days for in-stock items, with expedited options available. Contact sales@smartnexmsk.com or +86 18259474341 for availability confirmation.
