Siemens 6SE6440-2UD17-5AA1 Safety-Enhanced VFD Drive: Reliable Motor Control for Harsh Industrial Sites

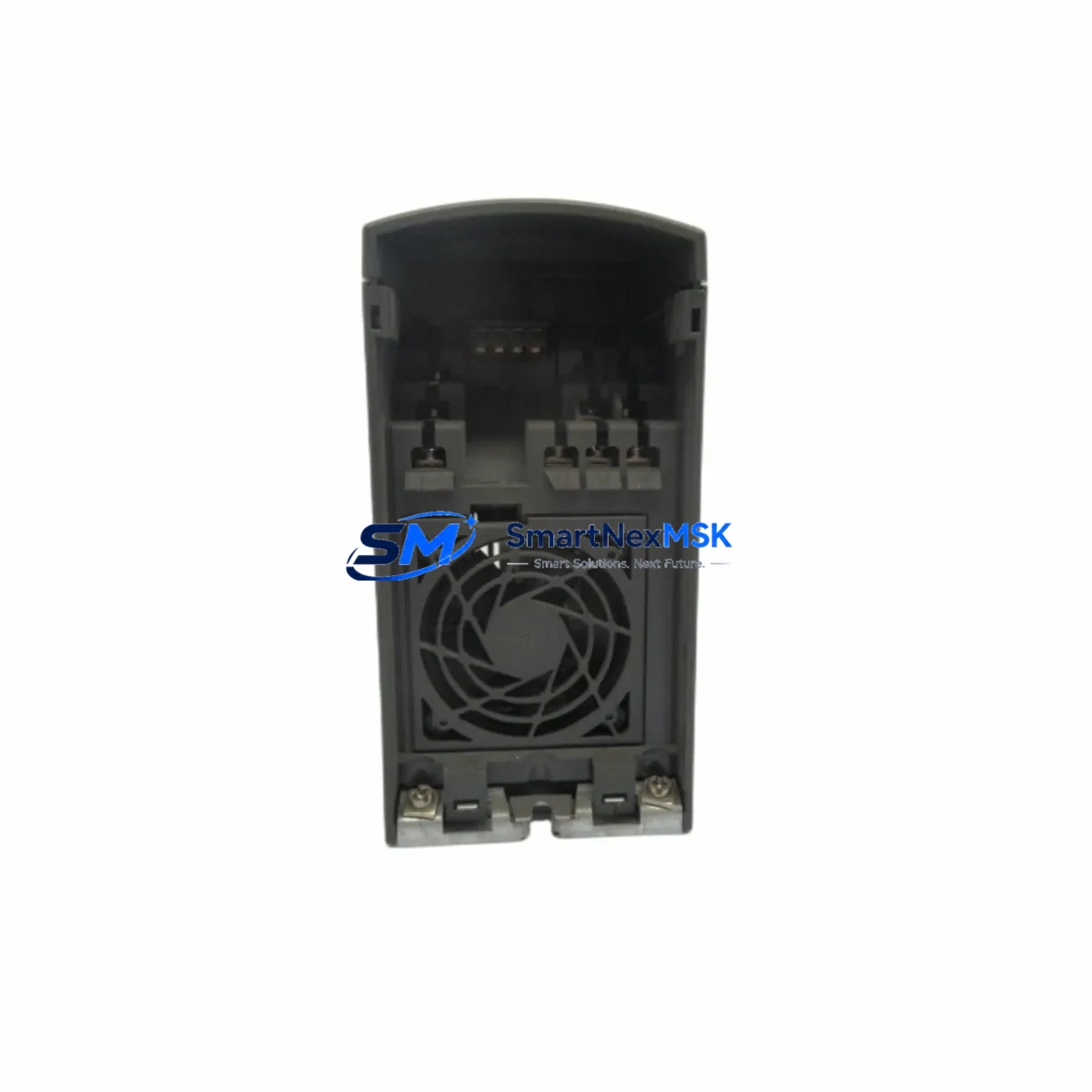

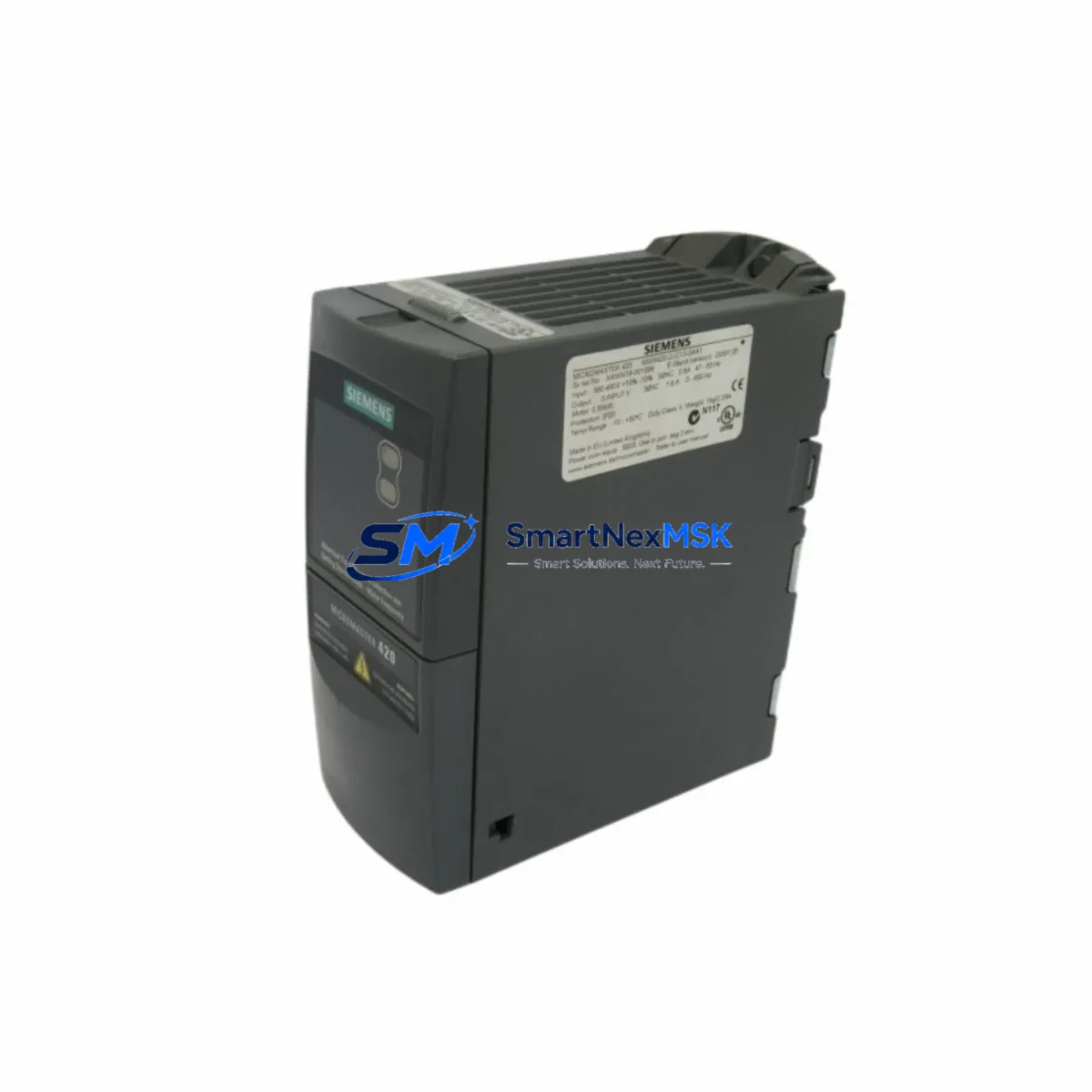

The Siemens 6SE6440-2UD17-5AA1 is a 0.75 kW (1 HP) three-phase variable frequency drive from the proven MICROMASTER 440 (MM440) series, engineered for continuous, safety-critical motor control in demanding industrial environments. Designed to operate reliably under high electrical noise, voltage fluctuations, and mechanical stress, this drive is a trusted solution for engineers specifying automation components in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, port logistics systems, and continuous manufacturing environments where unplanned downtime carries serious operational and safety consequences.

At SMARTNEXMSK, every unit of the 6SE6440-2UD17-5AA1 is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Long-term stock availability is maintained to support both planned maintenance schedules and emergency spare-part replacement requirements.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 6SE6440-2UD17-5AA1 does not operate in isolation — it functions as part of an integrated protection and control architecture. To maintain signal integrity and prevent nuisance tripping in high-interference environments, engineers typically pair this drive with a Siemens SITOP PSU100S 24 V DC stabilized power supply, which ensures clean, regulated DC power to the control logic even during upstream AC line disturbances.

On the motor output side, a Siemens 6SL3000-0BE21-6AA0 output reactor (dU/dt filter) is recommended to suppress voltage spikes on long cable runs, protecting motor winding insulation and reducing bearing current erosion — a common failure mode in VFD-driven systems. For installations in environments with significant conducted EMI, an external Siemens 6SE6400-2FA00-6AD0 EMC line filter complements the drive’s built-in Class A filter to achieve Class B compliance.

Safety interlock circuits in the same cabinet often incorporate Siemens 3SK1 safety relays or SIRIUS 3RQ3 safety relay modules, which monitor E-stop chains, light curtains, and door interlock switches. These devices communicate safe-state signals to the MM440’s digital inputs (DIN terminals), enabling Safe Torque Off (STO)-equivalent behavior through the drive’s standard enable logic. For motor branch protection, Siemens 3RV2 motor circuit breakers provide coordinated short-circuit and overload protection upstream of the drive input, while 3RT2 contactors handle bypass or star-delta switching in multi-motor configurations.

Where PROFIBUS DP communication is required for integration with a Siemens S7-300 or S7-400 PLC, the optional CB15 PROFIBUS communication board mounts directly into the MM440 option slot, enabling full parameter access and process data exchange over the fieldbus. In newer installations migrating to PROFINET, a Siemens PN/DP coupler bridges legacy MM440 drives into modern TIA Portal-based control architectures without requiring drive replacement.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous-area pump and compressor control, the 6SE6440-2UD17-5AA1 provides precise speed regulation for cooling water pumps, chemical dosing pumps, and ventilation fans. Its robust overvoltage and ground-fault protection prevents control interruptions that could compromise process containment or trigger safety instrumented system (SIS) responses.

Power Generation Facilities: Auxiliary motor drives in thermal and hydroelectric power stations demand continuous availability. This MM440 unit’s overload capacity (150% for 60 seconds) and thermal protection functions allow it to handle transient load surges during startup sequences without tripping, maintaining auxiliary system availability during critical generation periods.

Mining and Mineral Processing: Conveyor drives, crusher auxiliaries, and ventilation fan controls in underground and open-pit mining environments are subject to extreme dust, vibration, and voltage sag events. The drive’s wide input voltage tolerance (380–480 V ±10%) and built-in stall prevention logic maintain motor control stability under these conditions.

Water and Wastewater Treatment: Variable-speed control of submersible pumps, aeration blowers, and sludge transfer pumps reduces energy consumption and mechanical wear. The MM440’s PID control function enables closed-loop pressure and flow regulation, eliminating the need for separate process controllers in simple pump station applications.

Metallurgical and Steel Processing: Rolling mill auxiliary drives, cooling system pumps, and fume extraction fans in steel plants operate in environments with high ambient temperatures and significant electromagnetic interference from arc furnaces and induction heaters. The drive’s EMC filter and wide operating temperature range support reliable performance in these conditions.

Port and Material Handling Logistics: Crane hoist auxiliaries, conveyor indexing drives, and automated guided vehicle (AGV) charging systems in port terminals require drives that can handle frequent start-stop cycles and regenerative braking loads. The MM440’s dynamic braking chopper interface supports connection of external braking resistors for energy dissipation during deceleration.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance identified during installation. To initiate a claim, contact SMARTNEXMSK at [email protected] with the order reference and a description of the fault. Replacement or repair is coordinated within agreed lead times to minimize site downtime.

Q2: What pre-shipment testing is performed on the 6SE6440-2UD17-5AA1?
Each unit undergoes functional power-on verification, output voltage balance check across all three phases, and insulation resistance testing before dispatch. Units that do not meet Siemens factory performance benchmarks are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is this drive compatible with existing MM440 installations and Siemens parameter sets?
Yes. The 6SE6440-2UD17-5AA1 is fully compatible with the MM440 parameter structure (P-number system) and can be configured using the BOP-2 basic operator panel, AOP-2 advanced operator panel, or STARTER/SCOUT commissioning software. Existing parameter sets from other MM440 variants can be uploaded via the operator panel or USS/PROFIBUS interface, significantly reducing recommissioning time during spare-part replacement.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare-part programs?
SMARTNEXMSK maintains standing inventory of the 6SE6440-2UD17-5AA1 and related MM440 series components to support planned maintenance programs and emergency replacement requirements. For facilities with critical spare-part strategies, consignment stock arrangements and scheduled replenishment agreements are available. Contact our technical sales team to discuss supply continuity planning for your site.
