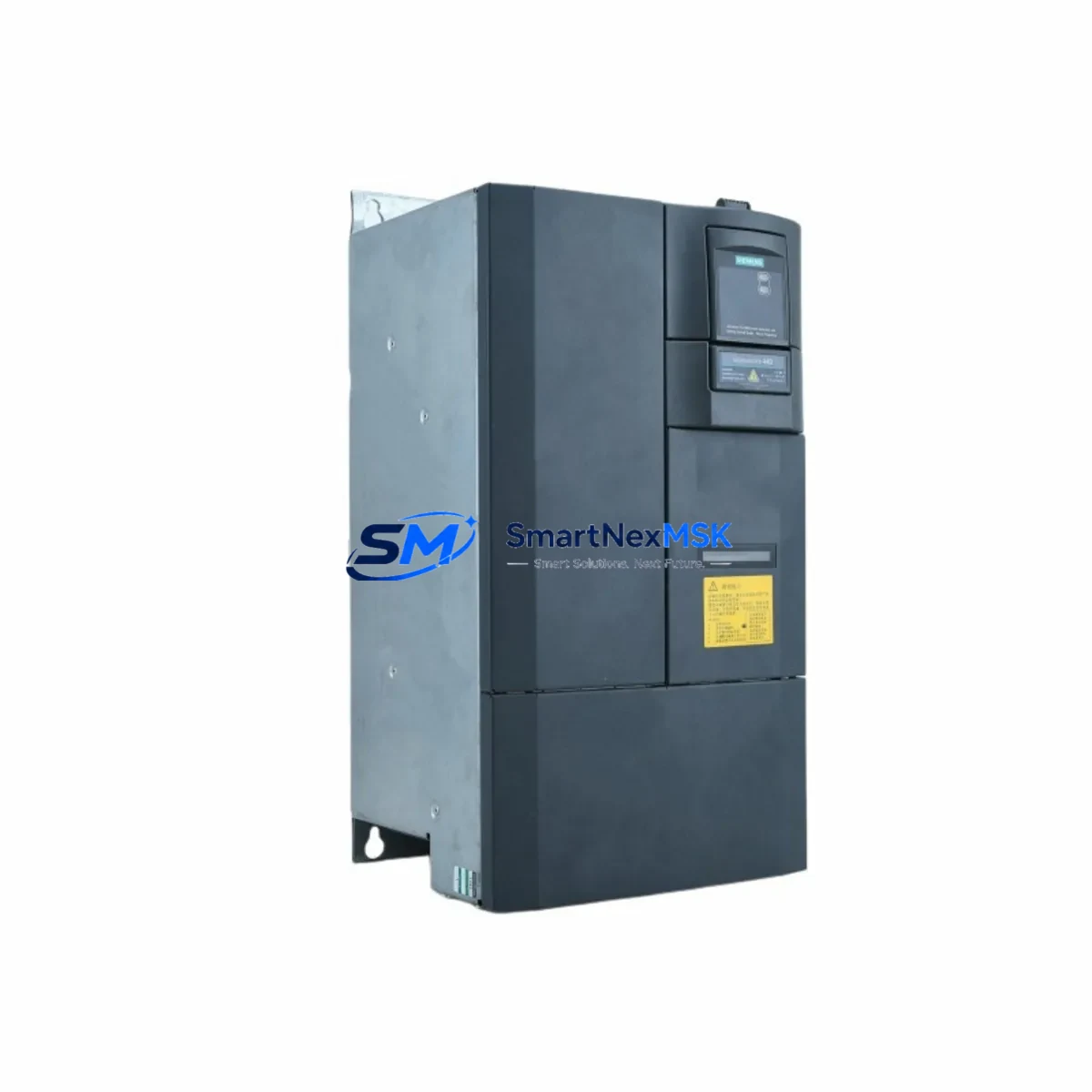

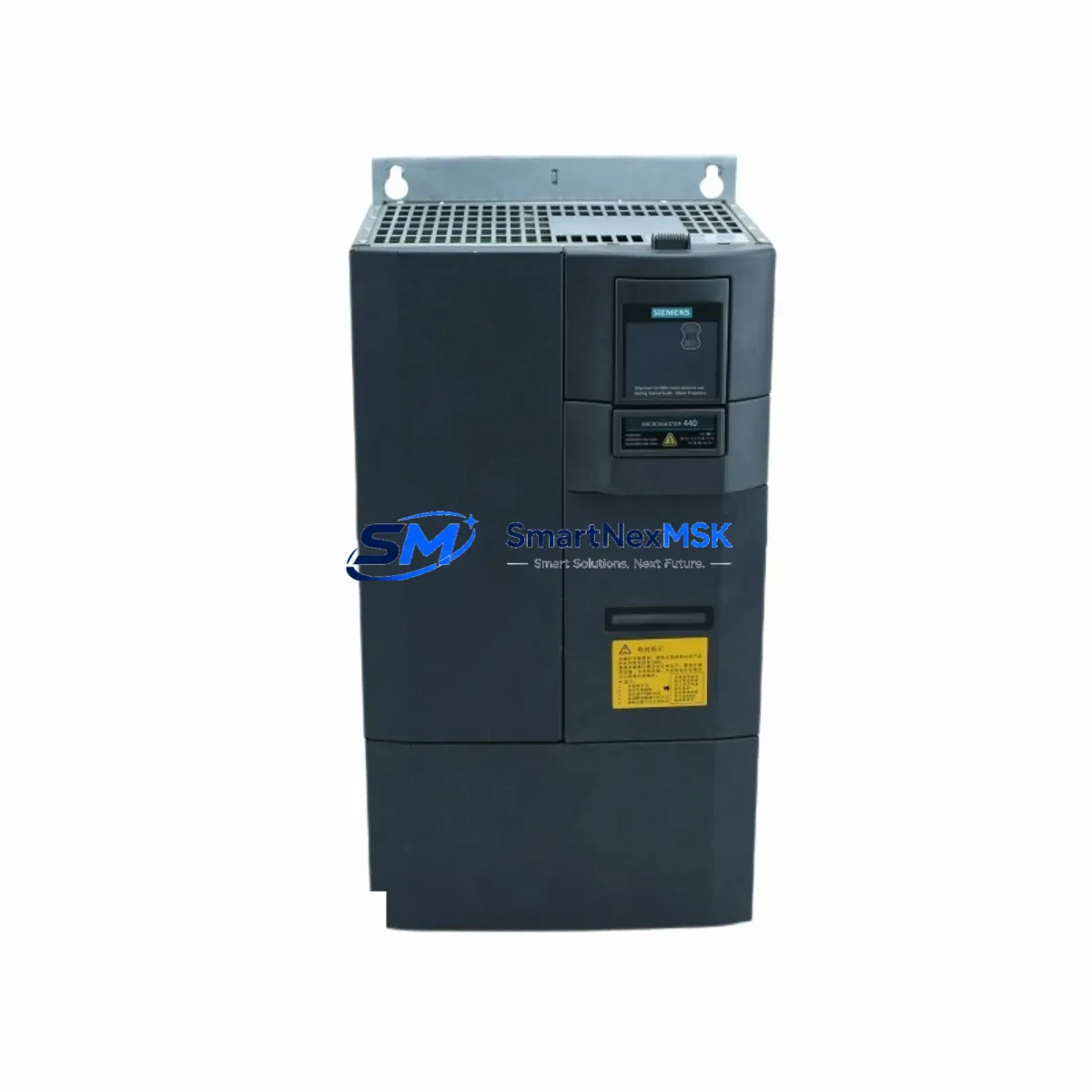

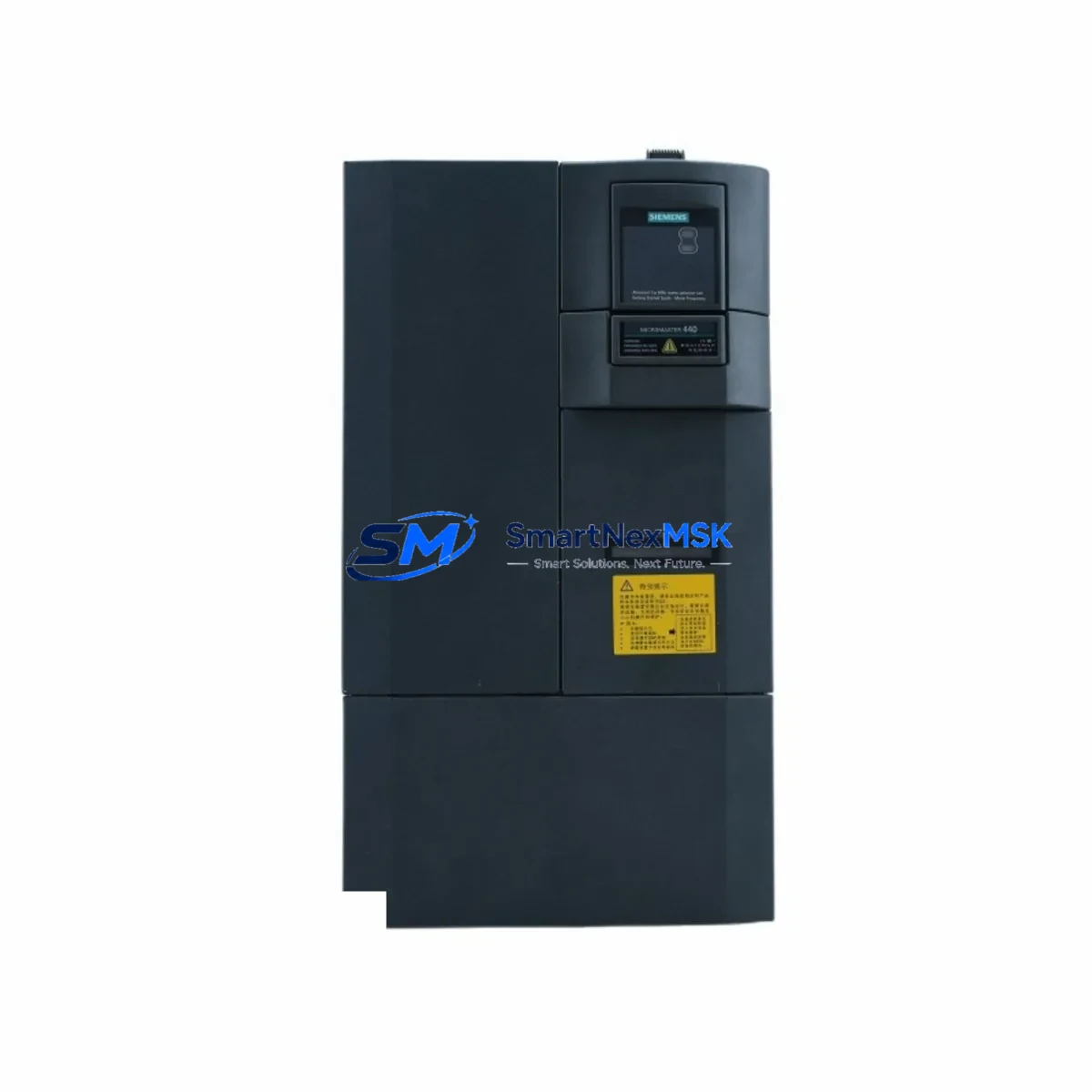

Siemens 6SE6440-2UD31-8DA1 Safety-Enhanced VFD for Harsh Industrial Sites
The Siemens 6SE6440-2UD31-8DA1 is an 18.5 kW three-phase variable frequency drive from the MICROMASTER 440 series — one of Siemens’ most proven and widely deployed drive platforms in heavy industrial environments. Engineered for continuous operation under high electrical load, strong electromagnetic interference, and demanding ambient conditions, this VFD delivers the control precision and fault resilience required in safety-critical motor drive applications across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and continuous process manufacturing facilities.
In high-load production environments where motor control interruptions carry serious operational and safety consequences, the 6SE6440-2UD31-8DA1 provides robust protection against the most common field failure modes: voltage sags, supply transients, output phase loss, motor overtemperature, ground faults, and communication dropouts. Its integrated PID controller, programmable digital and analog I/O, and multi-protocol fieldbus compatibility make it a reliable node within distributed control architectures — whether integrated with a Siemens S7-300 PLC, a Siemens S7-400 CPU, or a third-party DCS via PROFIBUS-DP using the 6SE6400-1PB00-0AA0 PROFIBUS option board.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | 6SE6440-2UD31-8DA1 |
| Series | MICROMASTER 440 (MM440) |
| Brand | Siemens |
| Rated Output Power | 18.5 kW (25 HP) |
| Input Voltage | 3-Phase AC 380–480 V (±10%) |
| Output Frequency Range | 0 – 650 Hz |
| Control Mode | V/f, Sensorless Vector (FVC), Closed-Loop Vector |
| Overload Capacity | 150% for 60 s / 200% for 3 s |
| Protection Class | IP20 (chassis); IP54 available with filter option |
| EMC Compliance | Class A / Class B (with integrated EMC filter) |
| Ambient Operating Temperature | -10°C to +50°C (derated above 40°C) |
| Humidity | ≤ 95% RH, non-condensing |
| Altitude | Up to 1000 m (derated above) |
| Built-in Protections | Overvoltage, undervoltage, overcurrent, phase loss, motor overtemperature (PTC/KTY), ground fault, stall prevention |
| Fieldbus / Communication | USS protocol (standard); PROFIBUS-DP, DeviceNet, CANopen (via option board) |
| Digital Inputs | 6 × programmable DI (PNP/NPN selectable) |
| Analog Inputs | 2 × AI (0–10 V / 0–20 mA) |
| Relay Outputs | 3 × programmable relay outputs |
| Braking | DC injection braking; dynamic braking (with external resistor) |
| Certifications | CE, UL, cUL, C-Tick |
| Country of Origin | Germany |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
| Pre-Shipment Testing | Full functional and parameter verification test performed before dispatch |
Control Cabinet Protection Strategy
Deploying the 6SE6440-2UD31-8DA1 within a well-engineered control cabinet is essential to maximizing its safety contribution in harsh industrial sites. In high-interference environments — such as those found in arc furnace control rooms, variable-load compressor stations, or high-cycle conveyor systems — the drive should be paired with a dedicated Siemens 6SE6400-2FA00-6AD0 line reactor on the input side to suppress voltage spikes and reduce harmonic distortion that can destabilize upstream protection devices.
On the output side, a Siemens 6SE6400-2FL00-6AD0 output reactor or dV/dt filter protects motor winding insulation from high-frequency switching transients, particularly critical in applications with long cable runs exceeding 50 meters. For cabinet-level power quality, a Siemens SITOP PSU100S 24V DC power supply provides stable auxiliary power to the drive’s control board and connected safety relays, ensuring that control logic remains operational even during brief supply interruptions.
In safety interlock circuits, the 6SE6440-2UD31-8DA1’s programmable relay outputs can be wired directly to a Siemens 3SK1 safety relay or integrated into a Siemens SIRIUS 3RK3 modular safety system to enforce emergency stop (E-stop) and safe torque off (STO) logic without requiring additional PLC intervention. For motor protection upstream of the drive, a Siemens 3RV2 motor circuit breaker provides short-circuit and overload protection at the feeder level, forming a coordinated protection chain from the MCC to the motor terminals.
Communication integrity in distributed control systems is maintained by connecting the drive via its PROFIBUS-DP option board to the main automation network, where a Siemens S7-300 CP 342-5 communications processor manages cyclic data exchange with the drive. In installations where network redundancy is required, the drive’s USS serial interface can serve as a backup communication path, ensuring that speed references and fault status remain accessible even during primary network disruptions. For parameter backup and rapid replacement support, a Siemens BOP-2 Basic Operator Panel or AOP Advanced Operator Panel allows on-site parameter cloning, reducing drive replacement downtime from hours to minutes.
Critical Industrial Safety Applications
Petrochemical and Refinery Plants: In continuous process environments where pump and compressor drives must maintain precise flow control under varying back-pressure conditions, the 6SE6440-2UD31-8DA1’s closed-loop vector control mode delivers stable speed regulation even as process loads fluctuate. Its built-in PID controller eliminates the need for an external process controller in single-loop applications, reducing panel complexity and potential failure points in hazardous area control cabinets.
Power Generation and Substation Auxiliaries: Cooling fan drives, boiler feed pump auxiliaries, and forced-draft fan applications in thermal power plants demand drives capable of sustained operation at high ambient temperatures with minimal maintenance intervention. The MM440’s robust thermal management, combined with its configurable overload response and motor thermal model, ensures that auxiliary drives remain operational during peak generation periods without nuisance tripping.
Mining and Mineral Processing: Belt conveyor drives, crusher feed systems, and slurry pump applications in underground and open-pit mining environments expose drive equipment to extreme dust loading, vibration, and supply voltage instability. The 6SE6440-2UD31-8DA1’s integrated EMC filter and programmable slip compensation maintain stable motor control even as supply quality degrades, reducing the risk of unplanned conveyor stoppages that can create material pile-up hazards.
Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on variable-speed pump drives to maintain precise flow and pressure control across wide demand ranges. The drive’s sleep/wake function and PID feedback control enable energy-efficient operation during low-demand periods while ensuring rapid response to demand surges, protecting downstream process equipment from pressure transients.
Metallurgy and Steel Production: Rolling mill auxiliary drives, cooling water pumps, and fume extraction fan systems in steel plants operate in environments characterized by heavy electrical noise, high ambient temperatures, and continuous duty cycles. The 6SE6440-2UD31-8DA1’s robust overcurrent and overvoltage protection, combined with its configurable restart-on-the-fly capability, ensures that production-critical drives recover automatically from brief supply disturbances without requiring manual operator intervention.
Port and Material Handling: Crane hoist drives, conveyor transfer systems, and ship loader applications in port logistics require drives capable of handling high inertia loads with precise speed and torque control. The MM440’s dynamic braking capability, when combined with an appropriately sized braking resistor, provides controlled deceleration of high-inertia loads, preventing overvoltage trips during rapid deceleration cycles that are common in automated material handling systems.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the 6SE6440-2UD31-8DA1?
The 12-month warranty covers manufacturing defects, component failures, and functional faults that arise under normal operating conditions within the drive’s rated specifications. It includes technical support for fault diagnosis and, where applicable, unit replacement or repair. The warranty period begins from the date of shipment. Damage resulting from incorrect installation, operation outside rated parameters, or unauthorized modification is excluded.
Q2: What pre-shipment testing is performed on each unit?
Every 6SE6440-2UD31-8DA1 unit undergoes a full functional verification test prior to dispatch. This includes power-on self-test, parameter integrity check, input/output signal verification, and confirmation of protection function response. Units that do not pass all test criteria are not shipped. A test record is available upon request for quality documentation purposes.
Q3: Is the 6SE6440-2UD31-8DA1 compatible with existing MICROMASTER 440 installations?
Yes. The 6SE6440-2UD31-8DA1 is a direct form-fit-function replacement within the MICROMASTER 440 18.5 kW / 480 V product family. It accepts the same option boards, operator panels, and parameter sets as other MM440 units of the same power rating. Parameter transfer via BOP or AOP panel allows rapid commissioning during planned or emergency replacement, minimizing control system downtime.
Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated stock of the 6SE6440-2UD31-8DA1 and related MICROMASTER 440 components to support ongoing maintenance and emergency replacement requirements. For facilities with critical spare parts programs, we can discuss reserved stock arrangements and lead time commitments. Contact our technical sales team to discuss your site’s specific inventory and supply continuity requirements.
