Siemens 6SE7012-0TP50 Maintenance-Ready Spare for Simovert Automation

Siemens 6SE7012-0TP50 Maintenance-Ready Spare for Simovert Automation

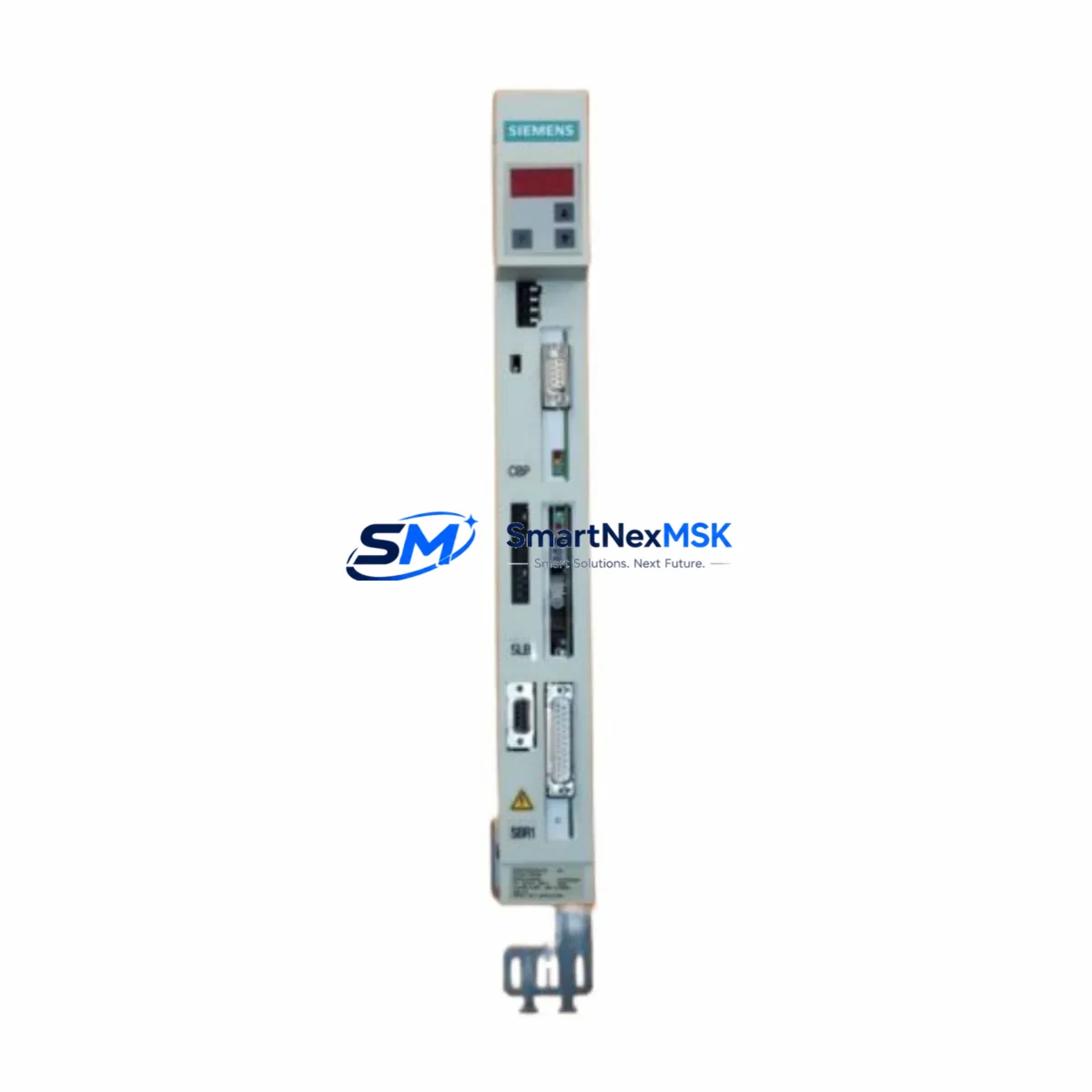

The Siemens 6SE7012-0TP50 is a variable frequency drive (VFD) module from the Simovert Masterdrives / Compact Plus series, engineered for precise speed and torque control in industrial automation environments. For maintenance engineers managing aging production lines, conveyor systems, pump stations, or HVAC installations, sourcing a verified replacement unit is critical to minimizing unplanned downtime and restoring system availability within the shortest possible window.

This listing provides a maintenance-ready spare of the 6SE7012-0TP50, sourced from authorized industrial supply channels, pre-tested before dispatch, and backed by a 12-month warranty. Whether you are executing a planned overhaul, responding to an emergency fault, or building a strategic spare parts buffer for a Simovert-based control cabinet, this unit is ready for immediate deployment.

Maintenance and procurement engineers working with Siemens Simovert Compact Plus drives will recognize the 6SE7012-0TP50 as a 0.75 kW / 1.0 HP class inverter unit operating on a three-phase 380–480 V AC supply, with an output frequency range suitable for standard induction motor applications. Its compact form factor and DIN-rail or panel-mount compatibility make it a practical fit for both retrofit and greenfield control cabinet installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6SE7012-0TP50 drive fault is identified during routine inspection or triggered by an alarm in the control system, experienced maintenance engineers know that replacing the drive unit alone is rarely sufficient for a complete and reliable restoration. A thorough site assessment should accompany every VFD replacement to prevent repeat failures and ensure long-term system stability.

Begin by inspecting the 24 V DC control power supply feeding the drive’s control board — an unstable or undersized SITOP PSU8200 or equivalent power supply module is a common root cause of drive faults that are incorrectly attributed to the inverter itself. Check the input line filter (EMC filter) and input choke upstream of the drive for signs of overheating or insulation degradation, as these components protect the drive from line-side disturbances.

Inspect all terminal block connections (Phoenix Contact or Weidmüller type) on the control wiring side — loose or corroded terminals on the analog input (AI), digital input (DI), and digital output (DO) circuits are a frequent source of intermittent faults. If the drive communicates over PROFIBUS DP, verify the integrity of the CBP2 communication board and the PROFIBUS cable termination resistors at both ends of the segment.

For drives integrated with a Simatic S7-300 or S7-400 PLC, confirm that the CPU module and the relevant SM321/SM322 digital I/O modules are reading and writing the correct process values. A faulty I/O module can mask a drive fault or generate spurious enable/disable signals that cause premature drive trips. Similarly, check the relay output modules (e.g., SM322 relay type) that carry the drive’s run/fault feedback signals back to the PLC.

If the installation includes a Simatic HMI panel (TP700, KTP900, or similar), verify that the drive status tags are updating correctly and that no communication timeout alarms are active. For older installations using OP7 or OP17 operator panels, check the MPI/PROFIBUS connection integrity.

Finally, review the motor protection circuit breaker (MPCB) and any fuse elements (NH or cylindrical type) in the motor feeder circuit. A weakened fuse or a tripped MPCB that is reset without investigation can allow an overcurrent condition to damage the replacement drive shortly after commissioning. Documenting all findings in the maintenance log before closing the control cabinet is essential for traceability and future planned maintenance cycles.

Site Replacement Workflow

Replacing a 6SE7012-0TP50 on-site follows a structured sequence designed to minimize downtime and ensure system compatibility from the first power-on:

1. Isolation and Lockout/Tagout (LOTO): De-energize the control cabinet and apply LOTO procedures. Wait a minimum of 5 minutes after power-off before opening the drive enclosure to allow DC bus capacitors to discharge fully.

2. Parameter Backup: If the existing drive is still partially functional, use a Siemens MMC memory card or the STARTER / SCOUT commissioning software to export the current parameter set (P-list). This eliminates the need for full recommissioning and reduces restart time significantly.

3. Mechanical Removal: Disconnect all power cables (L1/L2/L3 input, U/V/W motor output), control wiring (terminal strip), and the PROFIBUS or USS communication cable. Label all connections before removal. Unmount the drive from the DIN rail or panel.

4. Installation of Replacement Unit: Mount the 6SE7012-0TP50 replacement, reconnect all cables in reverse order, and verify torque on all power terminals per Siemens installation guidelines (typically 0.5–0.6 Nm for control terminals, 1.2–1.5 Nm for power terminals).

5. Parameter Restore and Verification: Load the saved parameter set via MMC card or STARTER software. Verify motor nameplate data (rated voltage, current, frequency, speed) against the parameter settings. Perform a no-load test run before reconnecting the mechanical load.

6. Functional Test: Execute a controlled ramp-up under load, monitor output current and frequency on the HMI or STARTER, and confirm that all digital I/O signals (run, fault, ready) are correctly reflected in the PLC and HMI. Log the replacement in the site maintenance record.

This workflow is applicable whether the 6SE7012-0TP50 is replacing a failed unit in an emergency or being installed as part of a scheduled preventive maintenance program. The same procedure supports legacy system life extension strategies where original Simovert Compact Plus drives are being maintained beyond their standard product lifecycle.

Spare Parts Support FAQ

Q1: Is the 6SE7012-0TP50 still available as a new original spare, or only as a reconditioned unit?
The 6SE7012-0TP50 belongs to the Simovert Masterdrives Compact Plus series, which has reached end-of-standard-production. Units available through specialist industrial spare parts suppliers like SMARTNEXMSK may be new old stock (NOS) or professionally reconditioned to OEM specification. Each unit undergoes functional and electrical testing before shipment. Contact our sales team to confirm current stock status and condition grade.

Q2: How do I verify compatibility before ordering?
Confirm the following from your existing installation: (1) input voltage and phase configuration, (2) rated motor power and current, (3) control interface type (PROFIBUS DP, USS/RS-485, or analog), and (4) any option boards installed (e.g., CBP2, SBP encoder board). Share your existing drive’s nameplate data or parameter list with our technical team for pre-order compatibility verification at no charge.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the Siemens technical datasheet. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside rated parameters. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference, fault description, and any available fault codes from the drive or PLC. Replacement or repair will be arranged within the agreed lead time.

Q4: Can I order multiple units for a spare parts buffer stock program?
Yes. SMARTNEXMSK supports B2B bulk procurement for maintenance departments and MRO (Maintenance, Repair & Operations) programs. Volume pricing, reserved stock agreements, and scheduled delivery options are available for customers managing multiple Simovert-based installations. Contact sales@smartnexmsk.com or call +86 18259474341 to discuss your inventory requirements.
