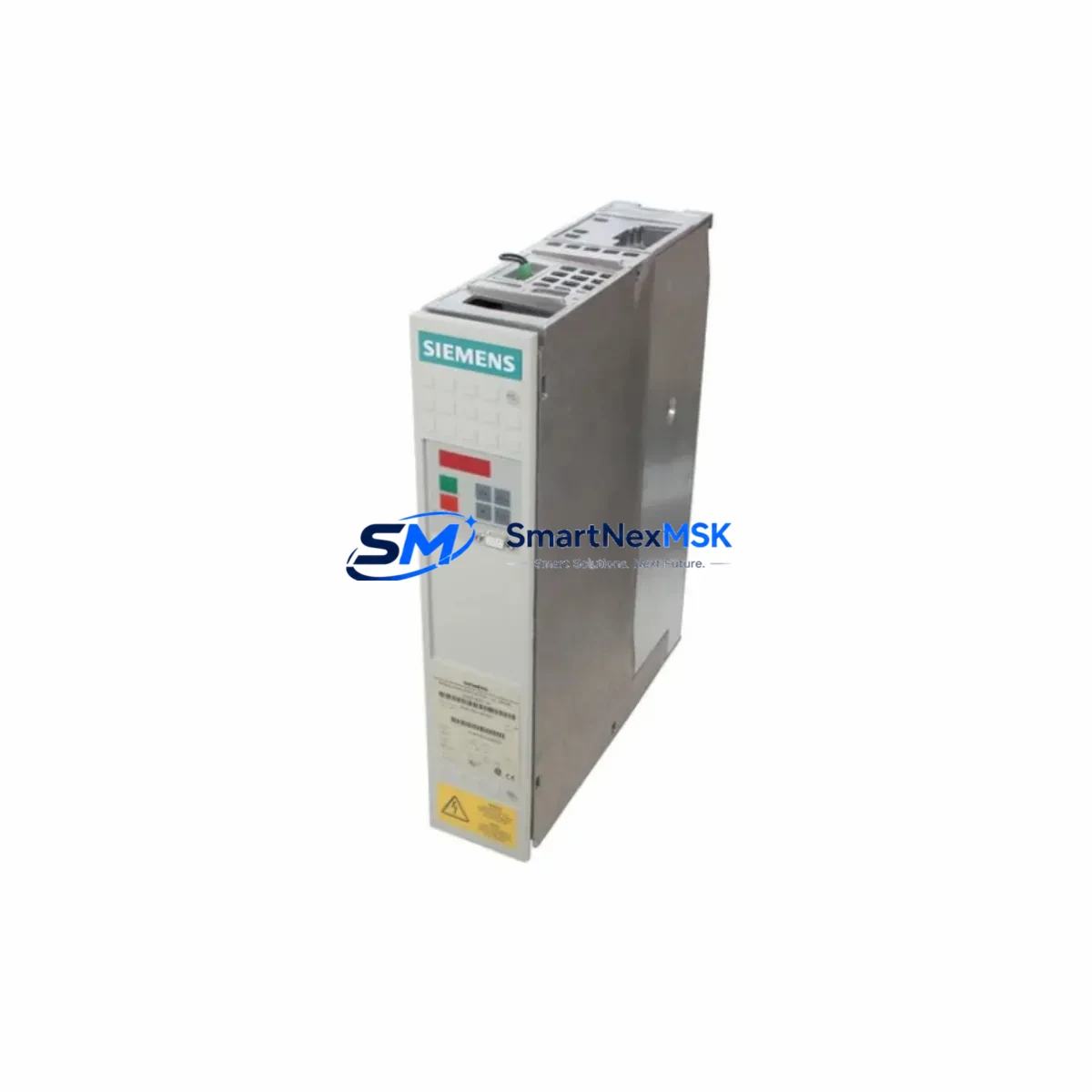

The Siemens 6SE7021-3TB61 is a 5.5 kW vector-control AC variable frequency drive from the Simovert Masterdrive series — engineered for continuous, safety-critical operation in the most demanding industrial environments. Designed to meet the rigorous uptime and protection requirements of heavy industry, this drive delivers stable motor control under conditions of high electrical noise, voltage fluctuation, thermal stress, and mechanical vibration. Whether deployed in a petrochemical control cabinet, a mining hoist circuit, a water treatment pump station, or a metallurgical rolling mill, the 6SE7021-3TB61 provides the control precision and fault resilience that safety-conscious engineers demand.

In high-load continuous production environments, control interruptions caused by drive instability can trigger cascading failures across an entire process line. The 6SE7021-3TB61 addresses this risk through its closed-loop vector control architecture, which maintains accurate torque and speed regulation even under sudden load transients. Its integrated DC bus design allows it to work in coordinated multi-drive configurations alongside other Simovert Masterdrive units — such as the 6SE7022-6TC61 and 6SE7023-4TC61 — sharing a common DC link to reduce regenerative braking stress and improve overall system energy stability.

Signal integrity is a persistent challenge in industrial environments where variable speed drives operate near high-current switchgear, contactors, and transformer banks. The 6SE7021-3TB61 incorporates robust EMC shielding and supports the use of external line reactors and Siemens 6SE7090-0XX84-0AB0 output filters to suppress conducted and radiated interference, protecting adjacent PLC I/O modules, safety relays, and field instrumentation from signal drift and false triggering. When integrated with a Simatic S7-300 or S7-400 PLC via PROFIBUS-DP using the 6SE7090-0XX84-2FK0 CBP2 communication board, the drive participates in deterministic control loops that are essential for safety interlock and emergency stop sequences.

Power quality is a critical factor in drive longevity and process safety. The 6SE7021-3TB61 is rated for operation on 3-phase 380–480 V AC supplies and tolerates the voltage sags, harmonic distortion, and transient surges common in industrial power distribution systems. For installations where supply quality is particularly poor — such as sites fed from diesel generators or shared with large motor starters — pairing the drive with a Siemens 6SE7090-0XX84-0FA0 line filter and an upstream 3RT1 series contactor provides an additional layer of surge and inrush protection. The drive’s internal braking chopper interface supports connection of external braking resistors, enabling safe deceleration of high-inertia loads without overvoltage trips that could compromise process continuity.

Thermal management is addressed through the drive’s forced-air cooling system, rated for ambient temperatures up to 40°C with derating available to 50°C — suitable for enclosed control cabinets in foundries, cement plants, and offshore platforms. The drive’s protection class and robust power module design reduce the risk of nuisance trips caused by thermal overload, a common source of unplanned downtime in continuous process industries. For cabinet installations requiring additional thermal protection, integration with Siemens 3RN1 series thermistor motor protection relays provides a coordinated thermal safety chain from motor to drive to PLC.

In safety-critical interlock circuits — such as those protecting conveyor systems, compressor stations, or hazardous area ventilation — the 6SE7021-3TB61 supports safe torque off (STO) functionality when configured with appropriate safety option boards, enabling the drive to be incorporated into IEC 62061 or EN ISO 13849 compliant safety architectures. This makes it a viable component in functional safety designs where motor de-energization must be achieved without opening the main power circuit, reducing wear on contactors and improving response time in emergency stop scenarios.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including power-on verification, parameter integrity check, and insulation resistance measurement. Units are shipped in anti-static, shock-protected packaging with full parameter backup documentation where available. Our inventory is sourced from verified industrial surplus and OEM channels, and each drive is covered by a 12-month warranty against manufacturing defects and operational failure under normal industrial use conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the 6SE7021-3TB61 requires a coordinated approach to power quality, signal integrity, and thermal protection. At the incoming supply level, a Siemens 3RV2 series motor protection circuit breaker provides short-circuit and overload protection upstream of the drive, while a 3RT1 series main contactor handles controlled energization and de-energization sequences. Line reactors — such as the 4EP3600-8US — reduce harmonic injection into the supply network and protect the drive’s rectifier bridge from voltage notching caused by nearby thyristor converters.

On the output side, a 6SE7090-0XX84-0AB0 dV/dt output filter limits the rate of voltage rise at the motor terminals, protecting motor winding insulation in installations with long cable runs — a common scenario in mining, water treatment, and port crane applications. The drive’s PROFIBUS-DP interface, enabled via the 6SE7090-0XX84-2FK0 CBP2 board, connects to the plant’s Simatic S7-400 PLC backbone, enabling real-time fault diagnostics, parameter monitoring, and remote reset without requiring local panel access. For installations requiring analog speed reference, the drive’s onboard analog I/O interfaces directly with Simatic ET 200S distributed I/O modules, maintaining signal accuracy even in high-noise environments.

Safety relay modules — such as the Siemens 3SK1 series — can be wired into the drive’s digital input circuit to implement emergency stop and safety gate interlock functions compliant with PLd/SIL 2 requirements. A 3RN1 thermistor relay monitors motor winding temperature, feeding a protective trip signal back to the drive and PLC to prevent thermal damage during blocked rotor or overload conditions. Together, these components form a layered protection strategy that addresses the full spectrum of electrical, thermal, and functional safety risks in continuous industrial operation.

Critical Industrial Safety Applications

The Siemens 6SE7021-3TB61 is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery facilities, it controls pump and compressor drives in hazardous area control rooms, where stable speed regulation prevents pressure surges that could compromise pipeline integrity or trigger safety relief systems. In electric power generation plants, it drives cooling water pumps and auxiliary fan systems where unplanned stops can affect turbine thermal management and grid stability.

In underground mining operations, the drive controls conveyor belt systems and ventilation fans in environments characterized by coal dust, high humidity, and frequent voltage fluctuations from diesel generator sets. Its tolerance for supply disturbances and its ability to restart under load make it a preferred choice for mine operators who cannot afford extended restart delays. In water and wastewater treatment plants, it drives submersible pump motors and aeration blowers in continuous 24/7 operation, where its vector control capability ensures consistent flow rates regardless of varying head pressure conditions.

In metallurgical and steel mill environments, the drive is used in rolling mill auxiliary drives and cooling system pumps, where it must withstand intense electromagnetic interference from large DC drives and arc furnaces. Its robust EMC design and PROFIBUS-DP connectivity allow it to remain reliably integrated into the plant’s distributed control system even under these extreme electrical conditions. In port and bulk material handling facilities, it controls grab crane hoisting and slewing drives, where precise torque control during load pickup and the ability to safely hold loads during communication interruptions are essential safety requirements.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the Siemens 6SE7021-3TB61?
A: The 12-month warranty covers all manufacturing defects and operational failures under normal industrial use conditions from the date of shipment. It includes free repair or replacement of the drive unit. Damage caused by incorrect installation, supply voltage outside rated limits, or physical impact is not covered. SMARTNEXMSK provides warranty support directly — no third-party authorization required.

Q: What pre-shipment testing is performed on each unit?
A: Every 6SE7021-3TB61 unit undergoes a structured pre-shipment inspection that includes power-on functional verification, parameter integrity check, output voltage balance measurement across all three phases, insulation resistance testing, and visual inspection of power terminals, control connectors, and cooling fan operation. Units that do not pass all test criteria are quarantined and not shipped.

Q: Is the 6SE7021-3TB61 compatible with existing Simovert Masterdrive installations and Simatic PLC systems?
A: Yes. The 6SE7021-3TB61 is fully compatible with the Simovert Masterdrive VC product family and can be integrated into existing multi-drive DC bus configurations. It supports PROFIBUS-DP communication via the CBP2 option board, making it directly compatible with Simatic S7-300, S7-400, and ET 200 distributed I/O systems. Parameter sets from existing drives of the same series can be transferred using the Siemens DriveMonitor or Starter commissioning tools.

Q: Can long-term supply and replacement support be guaranteed for this model?
A: SMARTNEXMSK maintains a dedicated inventory of Simovert Masterdrive series components, including the 6SE7021-3TB61 and related option boards, filters, and communication modules. We support both immediate replacement orders and scheduled maintenance procurement programs for industrial operators who require guaranteed spare parts availability. Contact our technical sales team to discuss consignment stock arrangements or long-term supply agreements.
