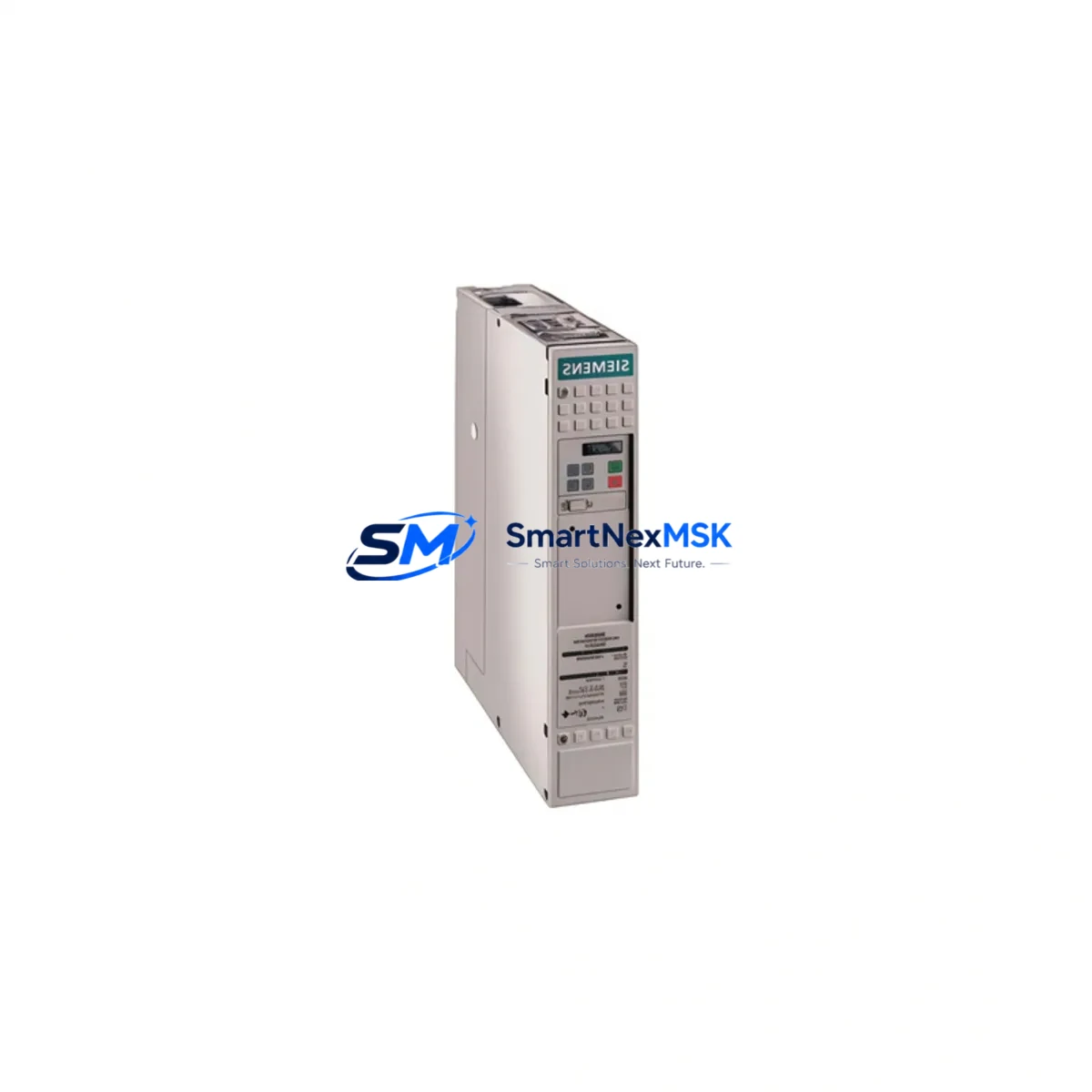

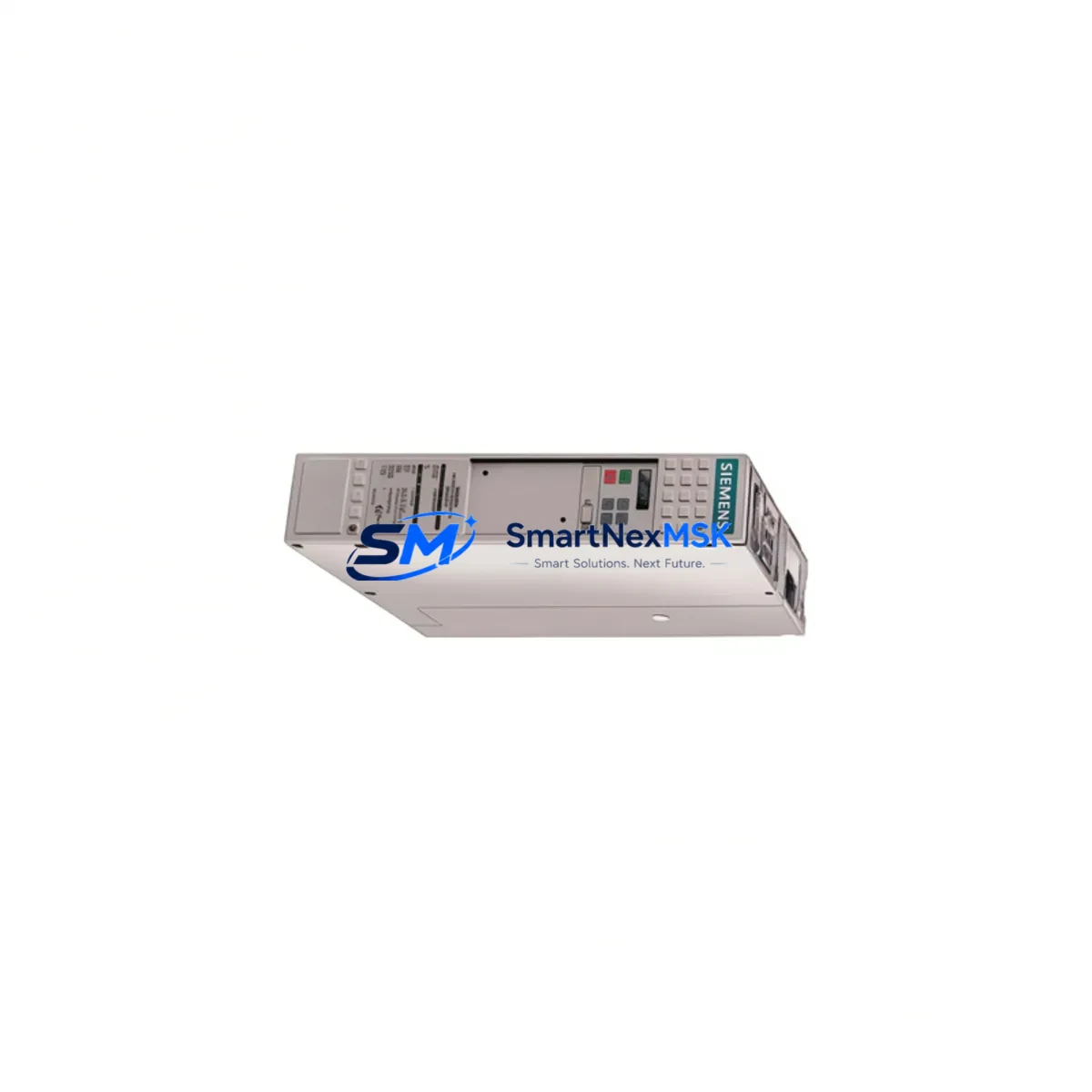

Siemens 6SE7031-5EF60-Z Retrofit-Ready VFD for Masterdrives VC

Siemens 6SE7031-5EF60-Z Retrofit-Ready VFD for Masterdrives VC Control Systems

The Siemens 6SE7031-5EF60-Z G41+G93+K80 is a high-performance variable frequency drive from the SIMOVERT Masterdrives VC series, purpose-built for demanding industrial motion control applications. As legacy Masterdrives VC installations reach end-of-service milestones, this unit serves as a verified retrofit solution for engineers and maintenance teams managing controlled system migrations, emergency replacements, and planned control cabinet upgrades. With full compatibility across the Masterdrives VC hardware platform, this drive minimizes engineering rework and reduces total downtime during changeover.

Whether you are replacing a failed unit on an active production line, upgrading an aging drive cabinet to extend operational life, or migrating a legacy system to a more maintainable configuration, the 6SE7031-5EF60-Z G41+G93+K80 delivers the electrical and mechanical compatibility required for a smooth transition. The G41 option enables the integrated brake chopper for dynamic braking applications, G93 provides the external fan supply for high-ambient or continuous-duty environments, and K80 activates the PROFIBUS-DP communication interface — a critical feature for plants running SIMATIC S7-300 or S7-400 controllers with existing DP network topologies.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6SE7031-5EF60-Z into an existing control architecture requires a structured pre-installation review. Begin by auditing the existing control cabinet layout: confirm that the Masterdrives VC power supply module (such as the 6SE7031 rectifier/regenerative unit) can support the combined load of the replacement drive alongside any co-installed 6SE7032 or 6SE7033 inverter modules sharing the same DC bus. DC bus capacity is a common bottleneck in multi-axis Masterdrives cabinets and must be recalculated when substituting drives with different power ratings or option configurations.

Terminal block wiring should be verified against the original 6SE7031-5EF60-Z wiring diagram stored in the plant documentation system. Pay particular attention to the control terminal strip (X100/X101 connectors), analog input scaling for speed reference signals, and digital I/O assignments for fault acknowledgment, enable signals, and external brake control. If the original installation used a Siemens SLB (Serial Link Board) or CBC (Communication Board CBP2) for PROFIBUS connectivity, the K80 option on this unit provides an equivalent integrated DP interface, eliminating the need for a separate communication board and freeing a slot in the option board rack.

For plants running SIMATIC S7-300 with CP 342-5 PROFIBUS masters, the existing GSD file and hardware configuration in STEP 7 or TIA Portal can typically be reused with minor address adjustments. Confirm the DP slave address on the replacement drive matches the original node address before powering the DP segment. If the system also includes a Siemens OP7 or OP17 HMI panel connected via MPI or PROFIBUS, verify that the drive’s process data word (PZD) mapping aligns with the HMI screen variable assignments to avoid display errors or incorrect status readbacks after commissioning.

Encoder feedback wiring — particularly for HTL or TTL incremental encoders connected via the SBP (Sensor Board Pulse) or SBM (Sensor Board Motor) — must be checked for signal integrity and correct differential pair termination. Closed-loop vector control (VC mode) is highly sensitive to encoder signal quality, and any wiring degradation introduced during the swap can cause speed regulation instability. Where the original system used a 6SX7010-0FF00 encoder cable assembly, inspect the connector and shield termination at both the motor junction box and the drive terminal before final commissioning.

Downtime Control During System Migration

Minimizing production downtime during a Masterdrives VC drive replacement requires preparation before the maintenance window opens. The most effective approach is to export the complete parameter set from the existing drive using DriveMonitor or SIMOVIS while the unit is still operational. Save the parameter file (.par or .upl format) to a secure location and document the motor data set (P100–P130 range), ramp times, current limits, and any application-specific function block assignments within the BICO (Binector/Connector) parameterization structure.

During the physical swap, label all control wiring before disconnection and photograph the terminal strip layout. The 6SE7031-5EF60-Z G41+G93+K80 uses the same mechanical footprint and mounting hole pattern as equivalent Masterdrives VC units, so mechanical installation is typically completed within 30–60 minutes for a trained technician. After installation, restore the saved parameter set, verify motor nameplate data, and perform a no-load test run before reconnecting the mechanical load. Confirm that the PROFIBUS DP communication link is established and that the S7 controller is receiving valid process values (speed actual, current actual, status word) before releasing the axis to automatic mode.

For critical production lines where even brief interruptions are costly, consider staging the replacement drive in a test bench environment using a spare motor of equivalent rating. Pre-commission the drive off-line, load the parameter file, and verify basic speed control response before bringing the unit to the plant floor. This approach compresses the on-site commissioning window to under two hours in most cases and significantly reduces the risk of parameter-related faults during the live cutover.

Retrofit Support FAQ

Q: Is the 6SE7031-5EF60-Z G41+G93+K80 a direct replacement for my existing Masterdrives VC unit?
A: Yes, for same-frame Masterdrives VC installations with equivalent power ratings and compatible option codes. Verify that the DC bus voltage range, output current rating, and option board configuration match your existing unit before ordering. Minor differences in option codes (e.g., G41 brake chopper, K80 PROFIBUS) are additive features and do not affect base drive compatibility.

Q: Can I reuse my existing PROFIBUS wiring and GSD configuration?
A: In most cases, yes. The K80 PROFIBUS-DP interface on this unit is compatible with standard Masterdrives VC GSD files. Set the DP slave address to match the original node, and verify the PZD telegram type (typically PPO Type 3 or 4) matches the configuration in your S7 hardware catalog. No rewiring of the DP segment is required if the existing cable and termination resistors are in good condition.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. It includes free replacement or repair for units that fail due to component or assembly defects. The warranty does not cover damage resulting from incorrect installation, overvoltage events, environmental contamination beyond the unit’s IP rating, or unauthorized modification.

Q: How is the unit tested before shipment?
A: Each unit undergoes functional power-on testing prior to dispatch. Testing includes DC bus charge verification, output phase balance check, control terminal I/O response, and PROFIBUS communication link validation where applicable. Units are shipped with protective packaging and include a test record upon request.
