Siemens 6SE7090-0XX84-0AF0 Safety-Enhanced Inverter Control

Siemens 6SE7090-0XX84-0AF0 Safety-Enhanced Inverter Control for Harsh Industrial Sites

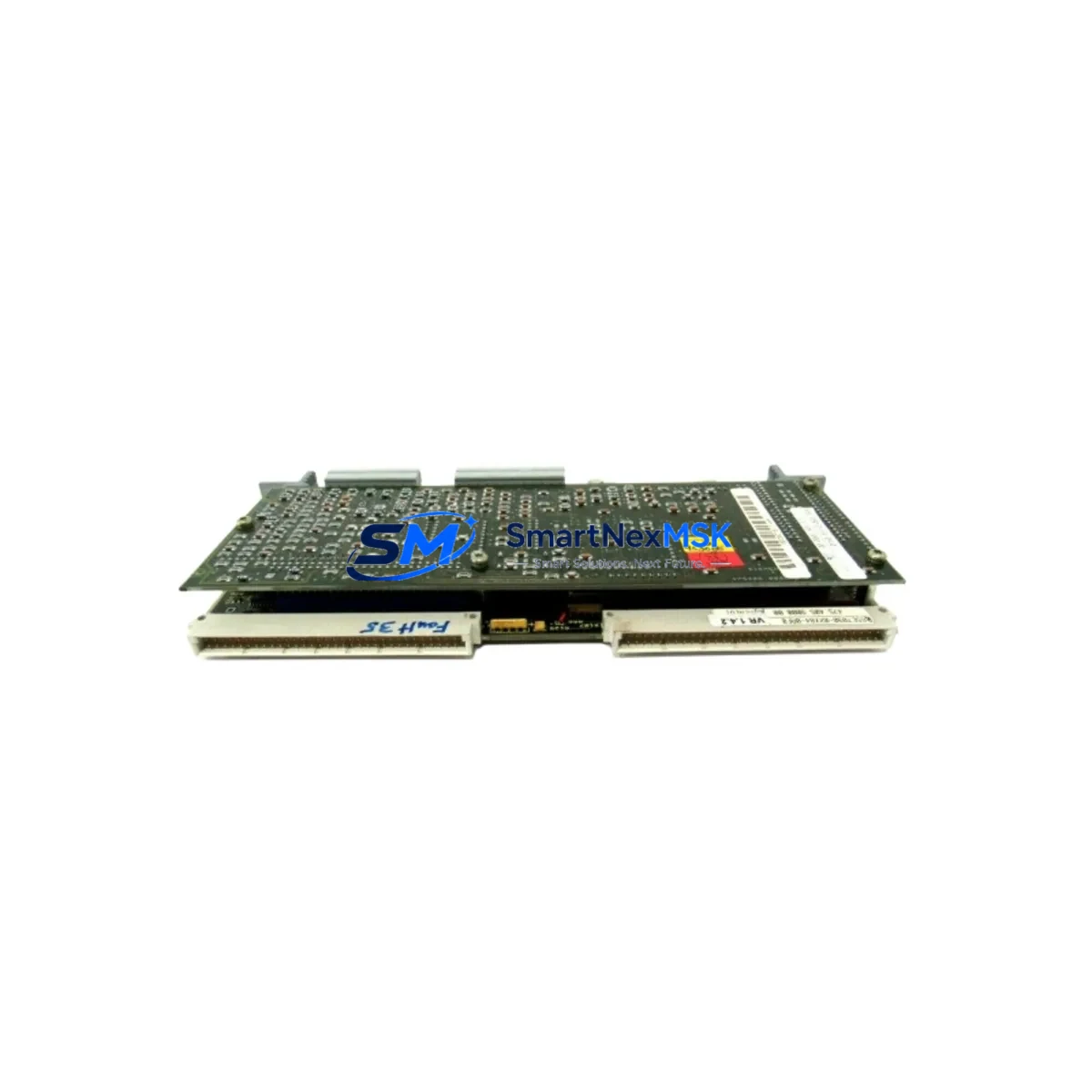

The Siemens 6SE7090-0XX84-0AF0 is a ruggedized inverter control board engineered for the SIMOVERT MASTERDRIVE series, purpose-built to sustain safe, uninterrupted drive operation in the most demanding industrial environments. Whether deployed in continuous-process petrochemical plants, high-voltage power distribution substations, underground mining conveyors, municipal water treatment facilities, or heavy metallurgical rolling mills, this control module delivers the signal integrity, thermal resilience, and fault-isolation capability that mission-critical automation demands.

In high-load drive cabinets where variable-frequency drives must respond to rapid torque changes without control dropout, the 6SE7090-0XX84-0AF0 maintains stable closed-loop regulation by preserving the integrity of speed feedback, current reference, and gate-firing signals even under severe electromagnetic interference. Its ruggedized PCB construction and conformal coating protect against humidity ingress, conductive dust, and corrosive atmospheres — conditions routinely encountered in port crane control rooms, cement kiln drives, and offshore pump stations.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable SIMOVERT MASTERDRIVE installation depends on more than a single control board — it requires a coordinated protection architecture across the entire drive cabinet. The 6SE7090-0XX84-0AF0 operates at the heart of this architecture, interfacing directly with the Siemens 6SE7090-0XX84-0FF5 power interface board to ensure that gate-drive signals reach the IGBT stack without distortion or timing error. Upstream, a properly rated Siemens 6SE7031 line filter module suppresses conducted EMI from the supply network, preventing noise from propagating into the control board’s analog reference circuits.

On the DC bus side, coordinated operation with the Siemens 6SE7018 braking chopper module and its associated braking resistor assembly ensures that regenerative energy during motor deceleration is safely dissipated rather than reflected back as a voltage surge that could latch or reset the control board. The Siemens 6SE7090-0XX84-0KA0 technology option board — when fitted — extends the control board’s capability to handle encoder feedback from high-resolution incremental encoders used in precision positioning and tension-control applications.

For cabinet-level power quality, a Siemens SITOP PSU100S 24 V DC power supply provides a clean, regulated auxiliary voltage rail to the control board’s logic section, isolating it from the fluctuations and inrush events that occur on the main AC supply during motor starts. Complementing this, a Siemens 3RT2 contactor in the main circuit provides safe electrical isolation during maintenance, while a Siemens 3RV2 motor protection circuit breaker upstream guards against sustained overcurrent conditions that could thermally stress the drive and its control electronics. Communication integrity between the 6SE7090-0XX84-0AF0 and the plant DCS is maintained through a Siemens CP 342-5 PROFIBUS communication processor, which buffers and retries telegrams during momentary network disturbances, preventing spurious drive trips caused by communication timeouts.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous-area pump and compressor drives, the 6SE7090-0XX84-0AF0 sustains precise speed regulation of process-critical motors where an uncontrolled stop or runaway condition could trigger a safety interlock shutdown across an entire process train. Its parameter-retention capability ensures that drive configuration survives power interruptions without requiring manual re-commissioning — a key requirement in facilities operating under IEC 61511 functional safety frameworks.

Power Generation and Substation Auxiliaries: Boiler feed pump drives, induced-draft fan drives, and cooling water pump drives in thermal power stations demand continuous, fault-tolerant operation. The control board’s EMI-hardened signal paths resist the high-frequency interference generated by nearby high-voltage switching equipment, maintaining stable PID control of flow and pressure loops without nuisance trips.

Mining and Mineral Processing: Underground conveyor drives and surface crusher drives operate in environments with heavy vibration, conductive coal or mineral dust, and frequent voltage sags caused by large motor starts elsewhere on the mine power network. The ruggedized construction and surge-clamping capability of the 6SE7090-0XX84-0AF0 make it a dependable choice for these conditions, reducing unplanned downtime that carries significant safety and production cost implications.

Water and Wastewater Treatment: Variable-speed pump drives in water treatment facilities must operate reliably around the clock. The non-volatile parameter storage of this control board ensures that pump speed curves, ramp rates, and protection thresholds are preserved through power outages, allowing automatic restart without operator intervention — critical for maintaining continuous disinfection and pressure in municipal supply networks.

Metallurgy and Rolling Mills: In steel and aluminum rolling mill main drives, precise torque and speed control is a direct safety requirement — loss of drive control during a rolling pass can cause material cobbles, equipment damage, and personnel hazards. The 6SE7090-0XX84-0AF0 provides the stable, low-latency control response that rolling mill automation demands, and its compatibility with the broader SIMOVERT MASTERDRIVE ecosystem simplifies spare-parts management across multi-drive mill lines.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers functional failure of the 6SE7090-0XX84-0AF0 under normal operating conditions. If the board fails to perform its specified control functions within the warranty period, we will repair or replace the unit at no charge. The warranty period begins from the date of shipment and is supported by our pre-shipment test records.

Q2: How is each unit tested before shipment?
Every 6SE7090-0XX84-0AF0 undergoes a full functional test prior to dispatch. This includes power-on verification, communication interface checks, I/O signal validation, and visual inspection for physical integrity. Test results are logged and available upon request, providing traceability for quality-critical procurement processes.

Q3: Is this board compatible with all SIMOVERT MASTERDRIVE variants?
The 6SE7090-0XX84-0AF0 is designed for the SIMOVERT MASTERDRIVE MC and VC series. Compatibility depends on the specific drive power rating and firmware version. We recommend confirming your drive’s order number and firmware revision before ordering. Our technical team can assist with compatibility verification based on your existing drive documentation.

Q4: Can long-term supply and replacement support be guaranteed?
Yes. We maintain dedicated stock of SIMOVERT MASTERDRIVE control boards and related components to support ongoing maintenance and emergency replacement requirements. For facilities operating aging MASTERDRIVE installations, we can discuss scheduled spare-parts provisioning to ensure that critical replacement boards are available when needed, minimizing the risk of extended downtime due to parts unavailability.
