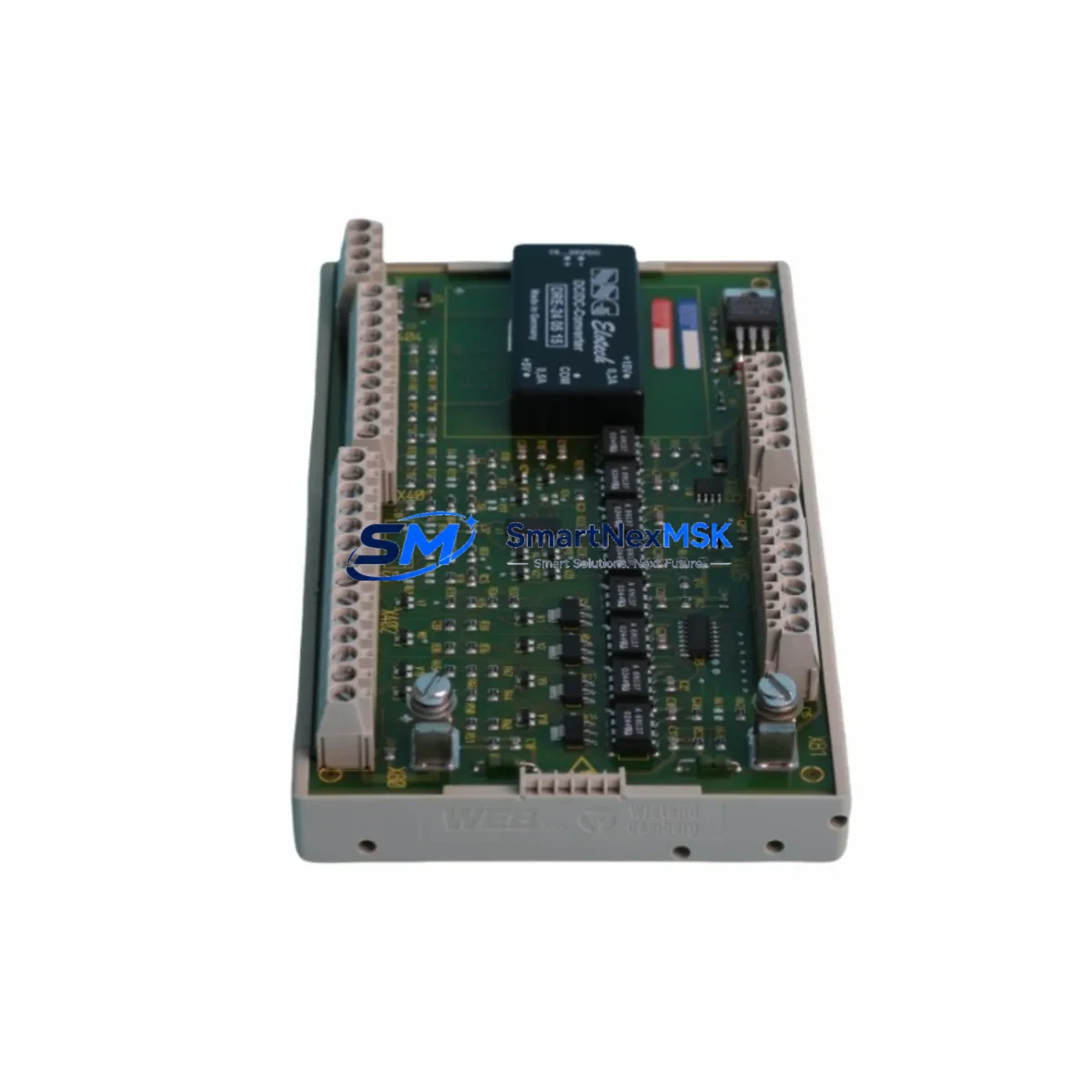

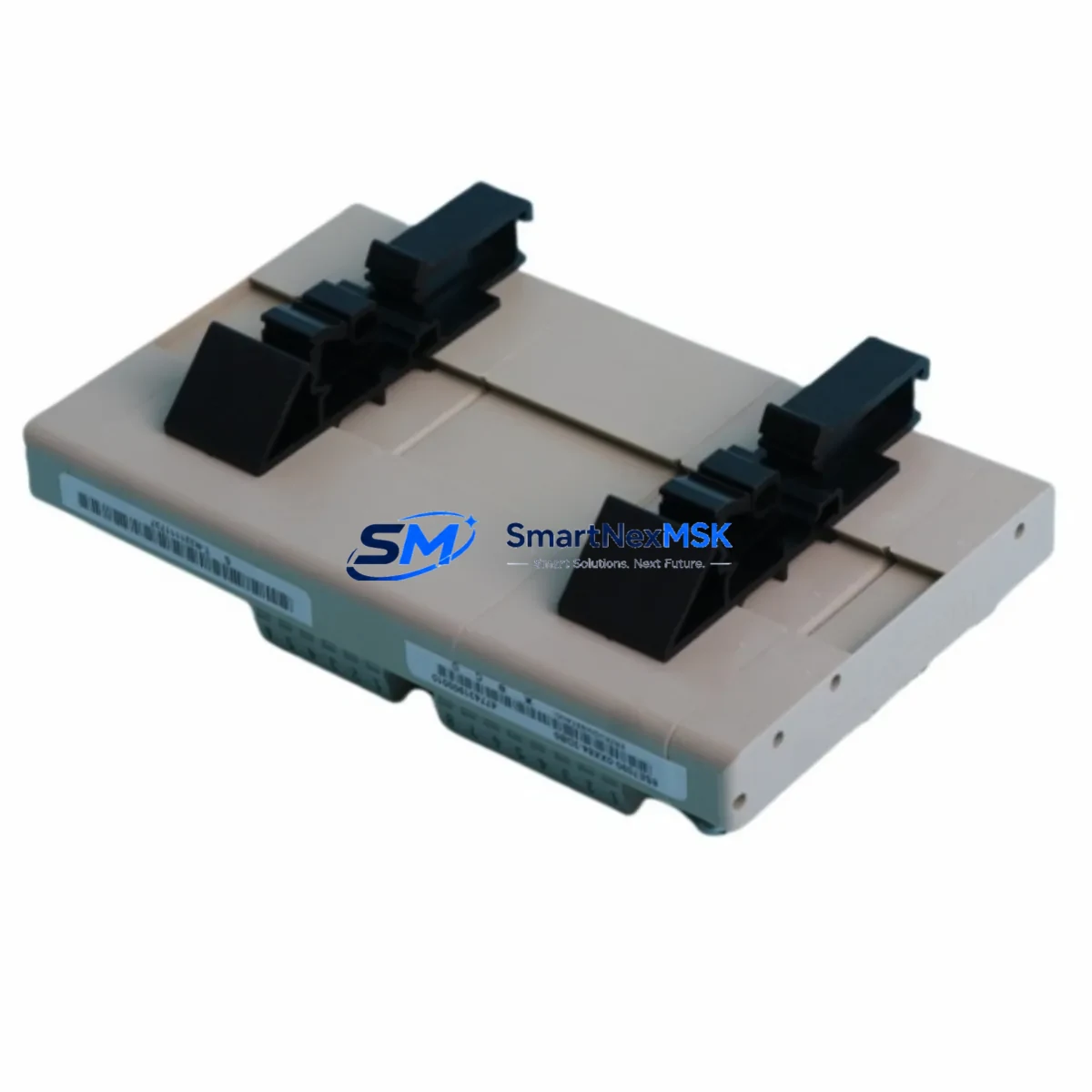

Siemens 6SE7090-0XX84-0FJ0 Safety-Enhanced Motion Control Option Board

Siemens 6SE7090-0XX84-0FJ0 Safety-Enhanced Motion Control Option Board for Harsh Industrial Sites

The Siemens 6SE7090-0XX84-0FJ0 is a high-reliability motion control option board engineered for the SIMOVERT MASTERDRIVES MC drive platform. Designed to operate continuously in demanding industrial environments — including high-vibration machinery floors, high-EMI control cabinets, and safety-critical drive systems — this option board delivers stable, interference-resistant motion control performance where uptime is non-negotiable.

In heavy industrial applications such as petrochemical processing, metallurgical rolling mills, port crane systems, and continuous mining conveyors, drive control interruptions can cascade into costly production stoppages or, worse, safety incidents. The 6SE7090-0XX84-0FJ0 addresses these risks directly by providing a robust communication and control interface layer within the MASTERDRIVES MC drive unit, ensuring that motion commands are executed reliably even under fluctuating power supply conditions, surge events, and high-frequency electromagnetic interference.

Every unit shipped from our inventory undergoes pre-delivery functional testing, verifying signal integrity, communication handshake performance, and board-level power stability before dispatch. This testing protocol is part of our commitment to zero-defect supply for safety-relevant automation components.

Safety Reliability Table

Control Cabinet Protection Strategy

The 6SE7090-0XX84-0FJ0 does not operate in isolation — it functions as a critical node within a broader drive and safety architecture. In a properly configured SIMOVERT MASTERDRIVES MC control cabinet, this option board works in coordination with the Siemens 6SE7090-0XX84-0AB0 base drive unit and the 6SY7000-0AC82 IGBT power module to ensure that motion commands are executed with full electrical isolation and fault-tolerant signal routing.

For power quality protection upstream of the drive, engineers typically pair the MASTERDRIVES MC system with a Siemens 6SE7031 line filter module and a 6SE7090 braking resistor assembly to absorb regenerative energy and suppress voltage spikes that could otherwise propagate into the option board’s logic circuitry. In high-inertia load applications — such as large centrifugal pumps or heavy conveyor drives — this braking energy management is essential to prevent overvoltage trips and protect the motion control board from transient damage.

On the communication side, the 6SE7090-0XX84-0FJ0 integrates with Siemens PROFIBUS DP communication boards (such as the CBP2 option board) and SIMATIC S7-300 / S7-400 PLC systems to form a closed-loop safety and control architecture. In safety-critical interlock circuits — for example, emergency stop sequences in chemical reactor agitator drives or mine hoist systems — the option board’s reliable command execution prevents nuisance trips and ensures that safety PLC outputs are faithfully translated into drive actions without signal latency or dropout.

For installations in particularly harsh environments, such as outdoor substations or dusty cement plant control rooms, the drive cabinet is often supplemented with Siemens 3RT2 contactor assemblies and 3RV2 motor protection circuit breakers on the output side, providing an additional layer of overcurrent and short-circuit protection that shields the option board from downstream fault currents. Pairing these protective devices with a SITOP PSU300S 24V DC power supply on the control voltage rail ensures that the option board’s logic power remains stable even during mains voltage dips or momentary supply interruptions.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where drive trips can trigger emergency shutdowns and environmental release events, the 6SE7090-0XX84-0FJ0 provides the motion control stability needed to maintain pump and compressor drives within safe operating envelopes. Its EMI resistance is particularly valuable in environments with high-voltage switchgear and variable-frequency interference sources.

Power Generation & Utilities: Cooling water pump drives, induced draft fan drives, and boiler feed pump systems in thermal power stations demand zero-tolerance for control board failures. The MASTERDRIVES MC option board’s robust design supports continuous duty cycles at elevated ambient temperatures, making it suitable for turbine hall and boiler house installations.

Mining & Mineral Processing: Underground conveyor drives, crusher motor controls, and mine hoist systems operate in environments with extreme vibration, coal dust, and high humidity. The 6SE7090-0XX84-0FJ0’s solid-state construction and conformal-coated PCB design resist moisture ingress and particulate contamination, maintaining reliable motion control in these demanding conditions.

Water & Wastewater Treatment: Variable-speed pump drives in water treatment facilities require consistent, interference-free control to maintain precise flow rates and pressure profiles. The option board’s stable communication interface prevents the signal drift and command errors that can lead to process upsets or pump cavitation damage.

Metallurgy & Steel Mills: Rolling mill main drives and continuous casting machine drives operate under extreme load cycling and high electromagnetic interference from arc furnaces and induction heating systems. The 6SE7090-0XX84-0FJ0’s proven performance in SIMOVERT MASTERDRIVES MC platforms makes it a trusted replacement and spare part for these high-stakes applications.

Port & Heavy Lifting Equipment: Crane hoist and trolley drives in port terminals require precise speed and torque control with rapid response to safety interlock signals. The option board’s low-latency command processing supports the tight control loop timing required for safe load handling operations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6SE7090-0XX84-0FJ0?
The 12-month warranty covers all manufacturing defects, functional failures, and component-level faults identified under normal operating conditions consistent with Siemens SIMOVERT MASTERDRIVES MC installation guidelines. Warranty claims are processed with priority dispatch of a replacement unit to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 6SE7090-0XX84-0FJ0 unit undergoes a multi-point functional test prior to dispatch, including power-on verification, communication interface handshake testing, and signal output integrity checks. Test records are available upon request for quality-critical procurement processes.

Q3: Is this option board compatible with all SIMOVERT MASTERDRIVES MC variants?
The 6SE7090-0XX84-0FJ0 is designed for the SIMOVERT MASTERDRIVES MC option slot architecture. Compatibility should be verified against your specific drive firmware version and hardware revision. Our technical team can assist with compatibility confirmation based on your drive nameplate data before order placement.

Q4: Can you guarantee long-term supply and replacement support for this part?
Yes. We maintain dedicated inventory of Siemens SIMOVERT MASTERDRIVES MC option boards and related components to support long-term maintenance programs. For customers with planned maintenance schedules or multi-site installations, we offer reserved stock arrangements and priority fulfillment agreements to ensure continuity of spare parts supply throughout your equipment lifecycle.
