Siemens 6SL3040-1MA00-0AA0 Retrofit-Ready CU for S120 Systems

Siemens 6SL3040-1MA00-0AA0 Retrofit-Ready CU for S120 Control Systems

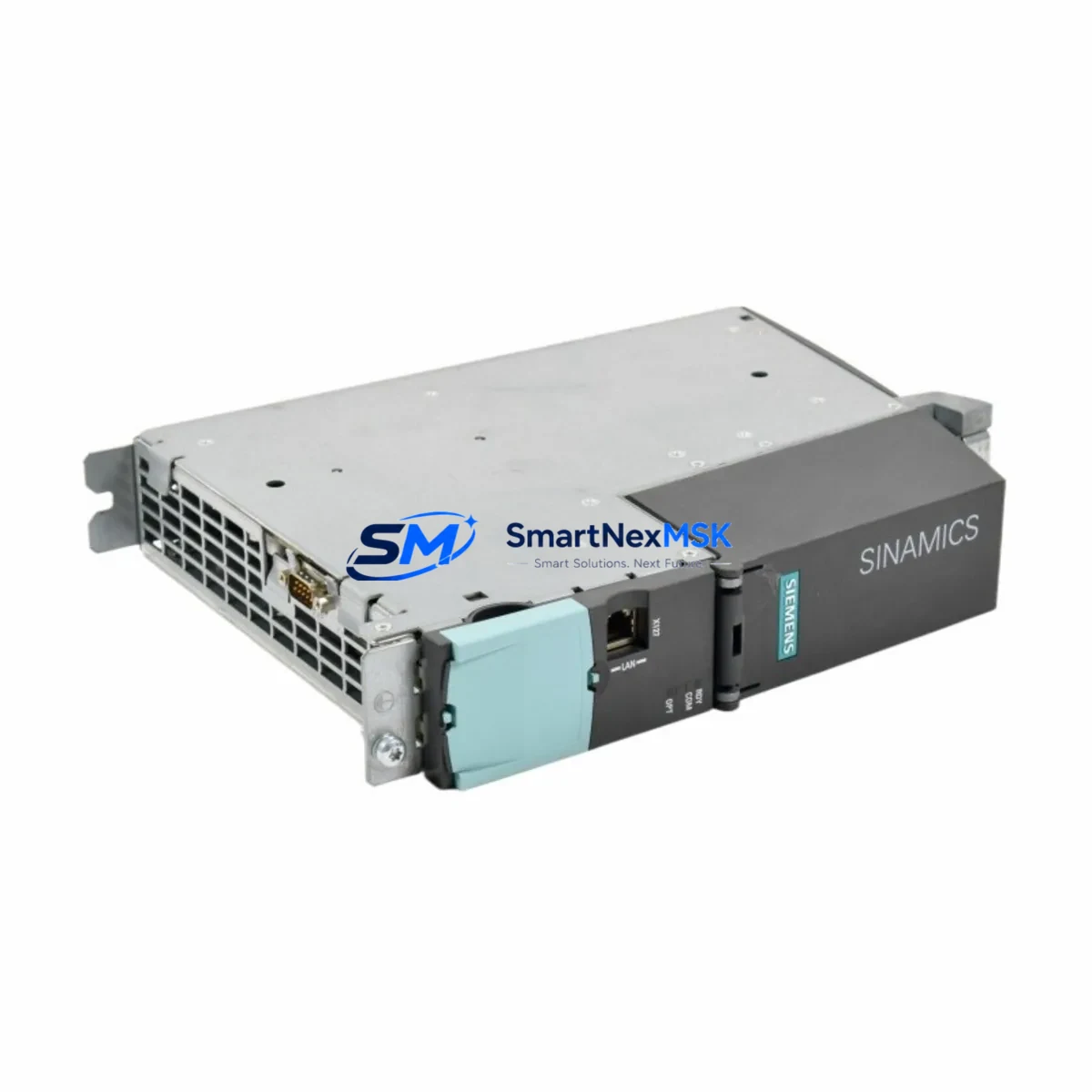

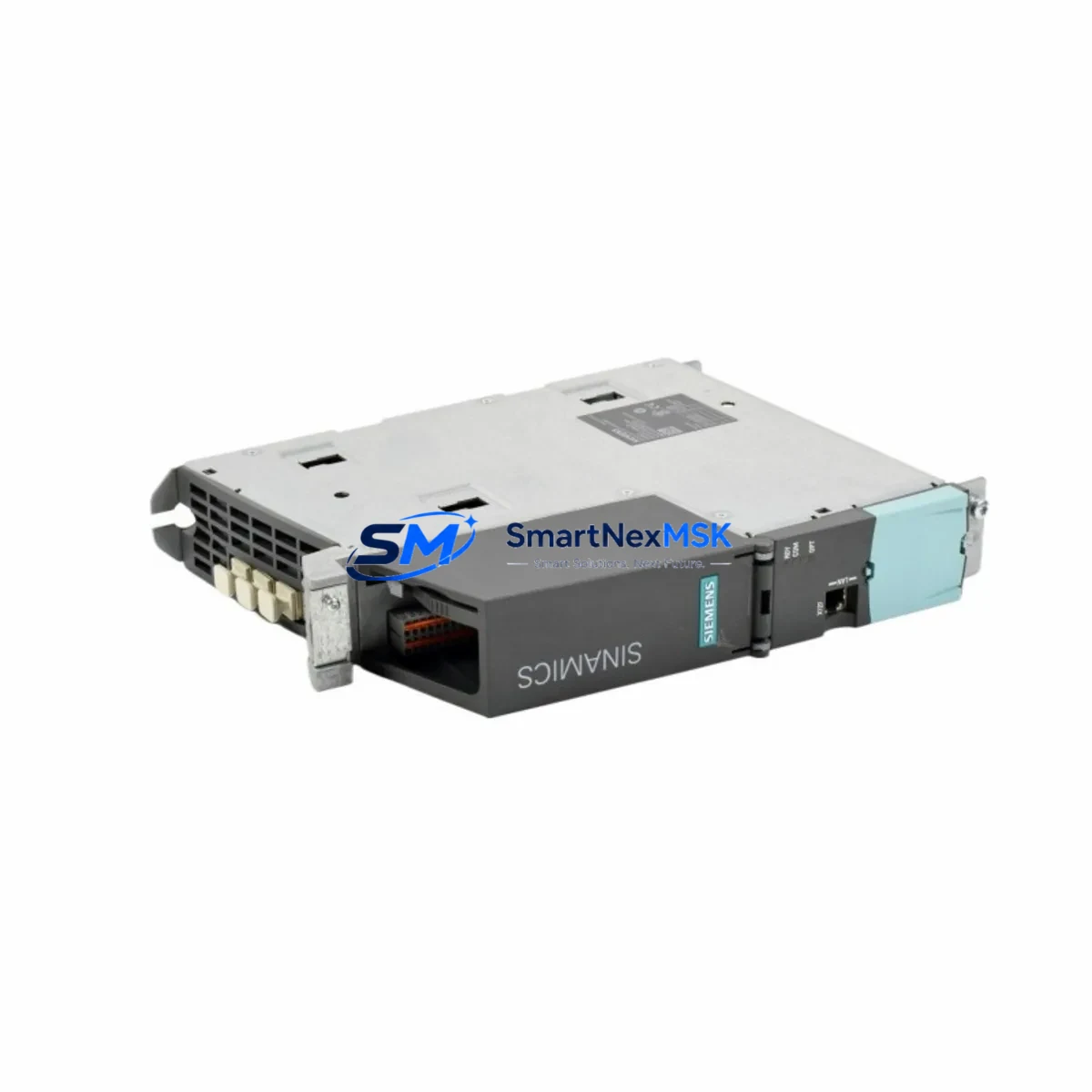

The Siemens 6SL3040-1MA00-0AA0 is the CU320-2 DP Control Unit for the SINAMICS S120 drive platform — one of the most widely deployed motion control architectures in industrial automation. As legacy CU320 (first-generation) units reach end-of-life and spare parts become increasingly scarce, the 6SL3040-1MA00-0AA0 serves as the primary retrofit and replacement solution for engineers managing existing S120 drive lines, multi-axis servo systems, and coordinated motion applications across manufacturing, packaging, metals, and process industries.

SMARTNEXMSK maintains verified stock of the 6SL3040-1MA00-0AA0, fully tested prior to shipment, with a 12-month warranty covering hardware defects. Each unit is dispatched with original firmware compatibility documentation to support your commissioning team.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6SL3040-1MA00-0AA0 into an existing S120 installation begins well before the unit arrives on site. Engineers should first audit the existing control cabinet to confirm the 24 VDC supply capacity at terminal X124 — the CU320-2 DP draws up to 0.8 A at 24 V, and shared power rails feeding the Smart Line Module (SLM) or Active Line Module (ALM) must be verified for headroom. The DRIVE-CLiQ wiring topology should be documented: each Motor Module, such as the 6SL3120-1TE21-0AA3 Single Motor Module or the 6SL3120-2TE21-0AA3 Double Motor Module, connects to the CU via DRIVE-CLiQ cables, and the topology must be re-established in the commissioning tool after the swap.

Terminal block wiring on X122 and X132 (digital I/O) and X126 (PROFIBUS) carries over from the legacy CU320 with minimal modification. However, engineers should cross-reference the existing wiring diagram against the CU320-2 DP terminal assignment sheet, as minor pin-function differences exist for the enable and safe torque off (STO) signals. If the installation uses a Sensor Module Cabinet-Mounted (SMC30) for encoder feedback, the DRIVE-CLiQ connection from the SMC30 to the new CU must be re-mapped in the drive project.

For multi-axis systems using a CX32-2 Controller Extension, the axis expansion module connects directly to the CU320-2 DP via DRIVE-CLiQ and requires re-addressing during commissioning. Sites running coordinated motion with a SIMOTION D or an S7-300/S7-400 PLC over PROFIBUS must verify that the GSD file version loaded in the PLC project matches the firmware revision on the replacement CU. Mismatched GSD files are a common source of communication faults during first power-up after a swap.

If the control cabinet also houses a Braking Module (6SL3100-1BE31-0AA0) or a DC link capacitor module, these components are unaffected by the CU swap and do not require reconfiguration. Similarly, the 6SL3000-0BE23-6AA0 Line Filter and the associated line reactor remain in service without modification. The operator panel interface — whether a BOP20 Basic Operator Panel or an AOP30 Advanced Operator Panel — reconnects to the CU320-2 DP via the same RS232/USS interface, though panel parameter sets should be backed up before the swap as a precaution.

All units supplied by SMARTNEXMSK are pre-tested against Siemens factory acceptance criteria and shipped with a 12-month warranty. Stock is maintained for immediate dispatch, minimizing procurement lead time for urgent retrofit projects.

Downtime Control During System Migration

Minimizing production downtime during a CU320-2 DP swap requires a structured pre-outage preparation sequence. Before the planned maintenance window, the existing drive project should be uploaded from the CU using STARTER or TIA Portal and saved to a secure backup location — this preserves all drive object parameters, safety function configurations, and axis-specific tuning data. The PROFIBUS node address assigned to the CU must be recorded, as the replacement unit ships with a default address that must be reassigned before the PLC can re-establish communication.

During the outage, the physical swap is straightforward: the CU320-2 DP mounts in the same booksize slot, and the DRIVE-CLiQ, PROFIBUS, and 24 VDC connections are re-terminated in sequence. After power-up, the commissioning engineer downloads the backed-up project to the new CU, re-enables the DRIVE-CLiQ topology scan, and verifies that all Motor Modules and Sensor Modules are recognized. Safety functions — including STO (Safe Torque Off) and SS1 (Safe Stop 1) — must be re-commissioned and acceptance-tested per IEC 62061 or EN ISO 13849 requirements before the machine is returned to production.

For sites where a cold standby strategy is preferred, SMARTNEXMSK can supply a pre-parameterized spare unit loaded with the customer’s drive project, reducing on-site commissioning time to under two hours. This approach is particularly effective for high-availability lines where extended downtime carries significant production cost. Contact [email protected] to discuss pre-parameterization options.

Retrofit Support FAQ

Q1: Is the 6SL3040-1MA00-0AA0 a direct drop-in replacement for the original CU320?
The CU320-2 DP is mechanically and electrically compatible with the original CU320 in booksize installations. The terminal pinout for 24 VDC power (X124), PROFIBUS (X126), and digital I/O (X122/X132) is functionally equivalent. However, the drive project must be re-downloaded after the swap, as the CU320-2 DP does not retain parameters from the previous unit. A full DRIVE-CLiQ topology scan and safety function re-commissioning are required before returning the system to service.

Q2: What firmware and software tools are needed for commissioning?
The 6SL3040-1MA00-0AA0 is supported by Siemens STARTER V4.4 and later, as well as TIA Portal V14 and later with the SINAMICS Startdrive package. Engineers working on legacy projects created in STARTER can migrate the project file to TIA Portal format if required. SMARTNEXMSK recommends confirming the firmware version on the replacement unit against the existing Motor Module firmware to avoid DRIVE-CLiQ compatibility warnings during topology recognition.

Q3: How is wiring compatibility verified before installation?
Prior to installation, the site wiring diagram should be compared against the CU320-2 DP terminal assignment in the Siemens SINAMICS S120 Control Units Manual (document A5E03264184). Pay particular attention to the STO input wiring on X122 pins 3–4 and 9–10, as the signal logic for safe torque off differs slightly between CU320 hardware revisions. SMARTNEXMSK’s technical team can assist with wiring verification for customers who provide their existing cabinet drawings.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers hardware defects in the 6SL3040-1MA00-0AA0 unit as supplied. It does not cover damage resulting from incorrect installation, overvoltage events, or firmware mismatches. In the event of a warranty claim, SMARTNEXMSK issues a return merchandise authorization (RMA) within 24 hours of a confirmed fault report. Replacement units are dispatched from stock to minimize system downtime. Contact [email protected] or call +86 18259474341 to initiate a warranty claim.
