Siemens 6SL3055-0AA00-4CA4 Retrofit-Ready Operator Panel

Siemens 6SL3055-0AA00-4CA4 Retrofit-Ready Operator Panel for SINAMICS S120 Control Systems

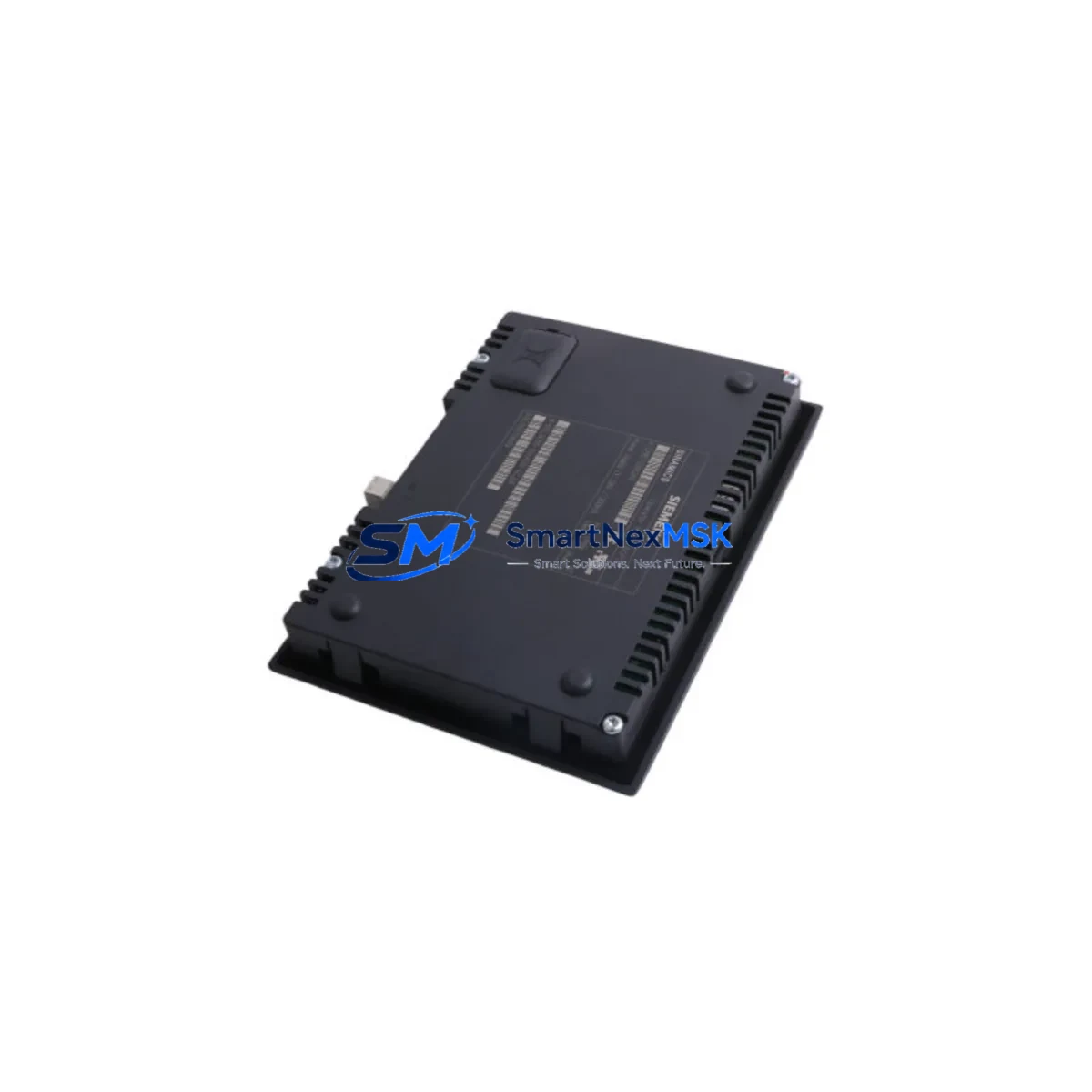

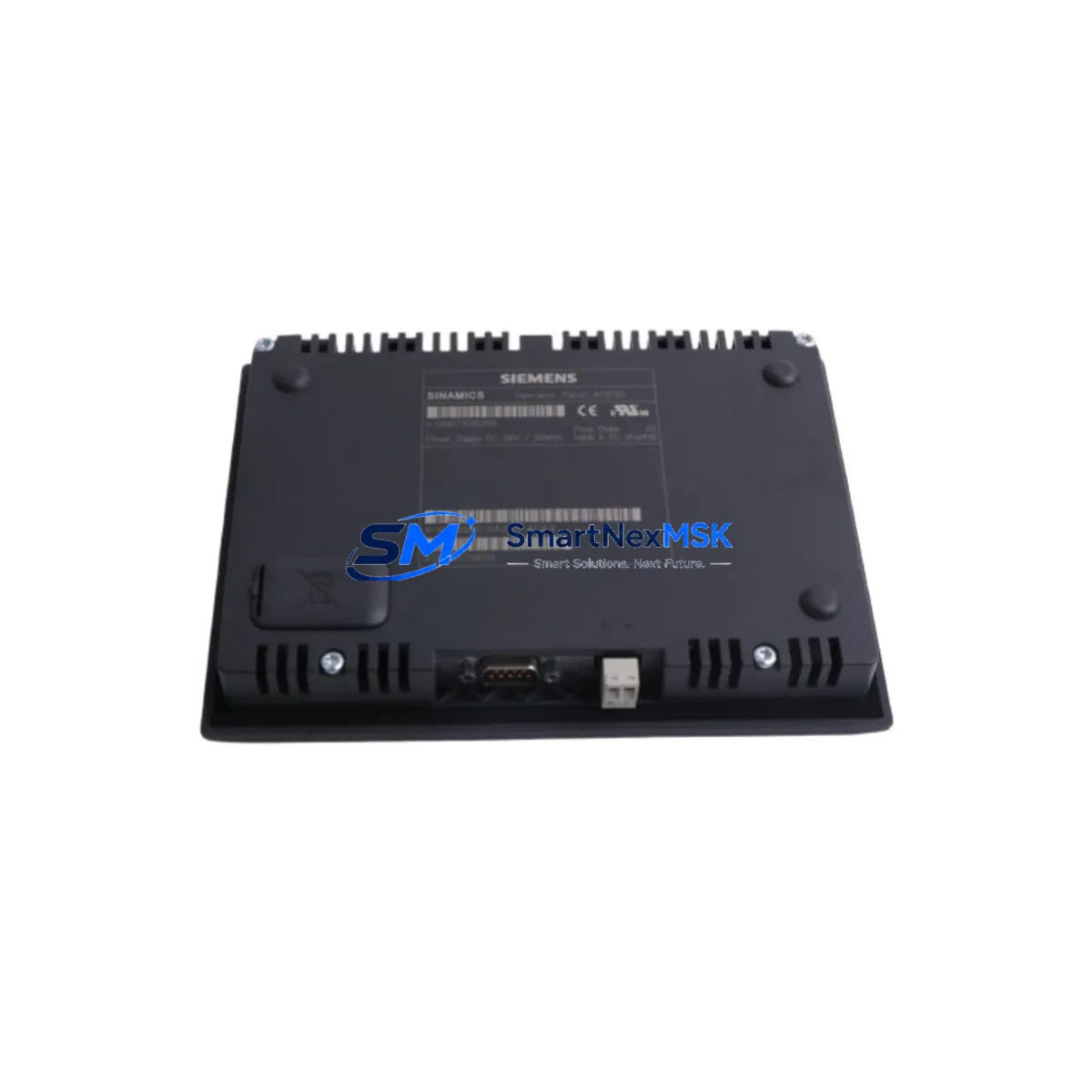

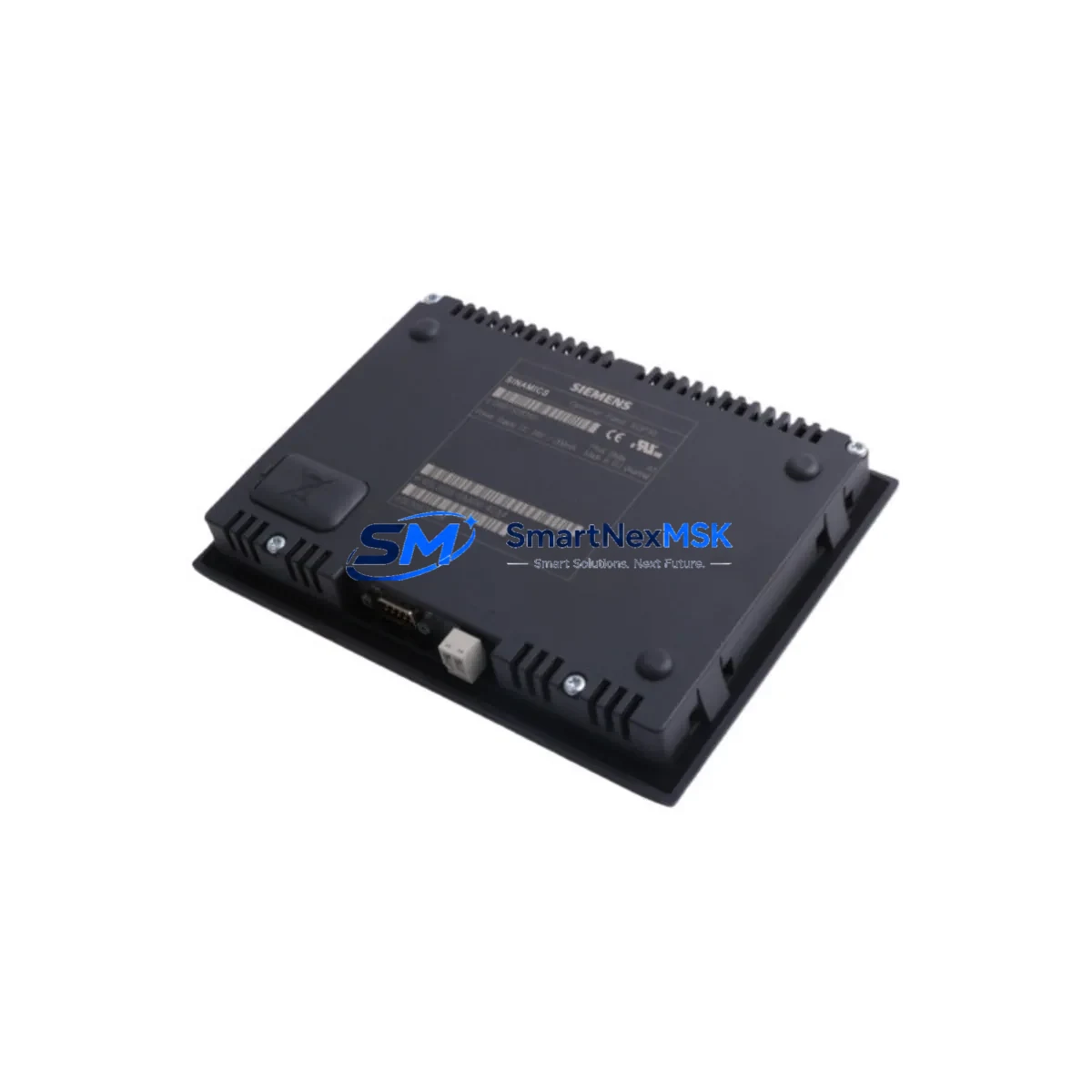

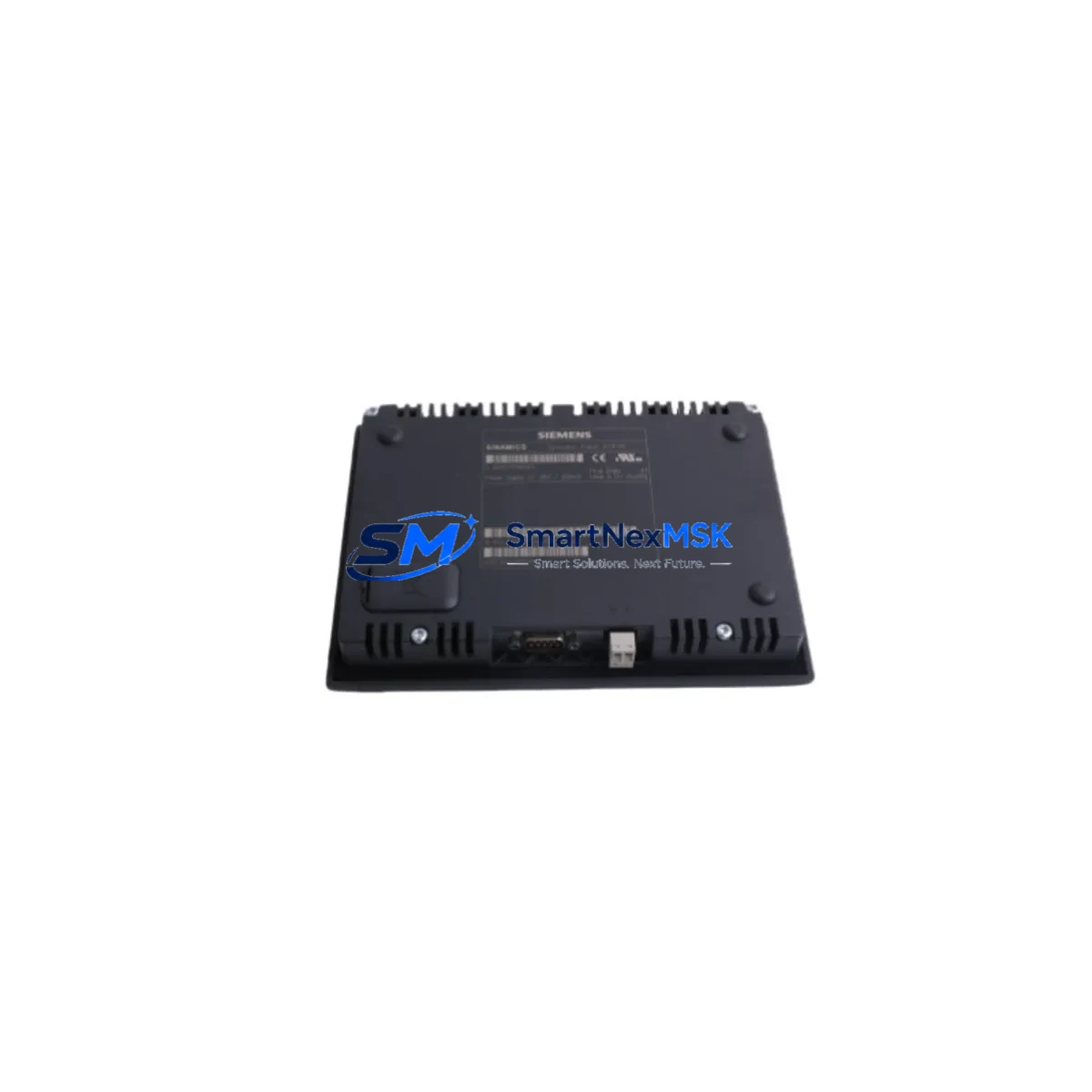

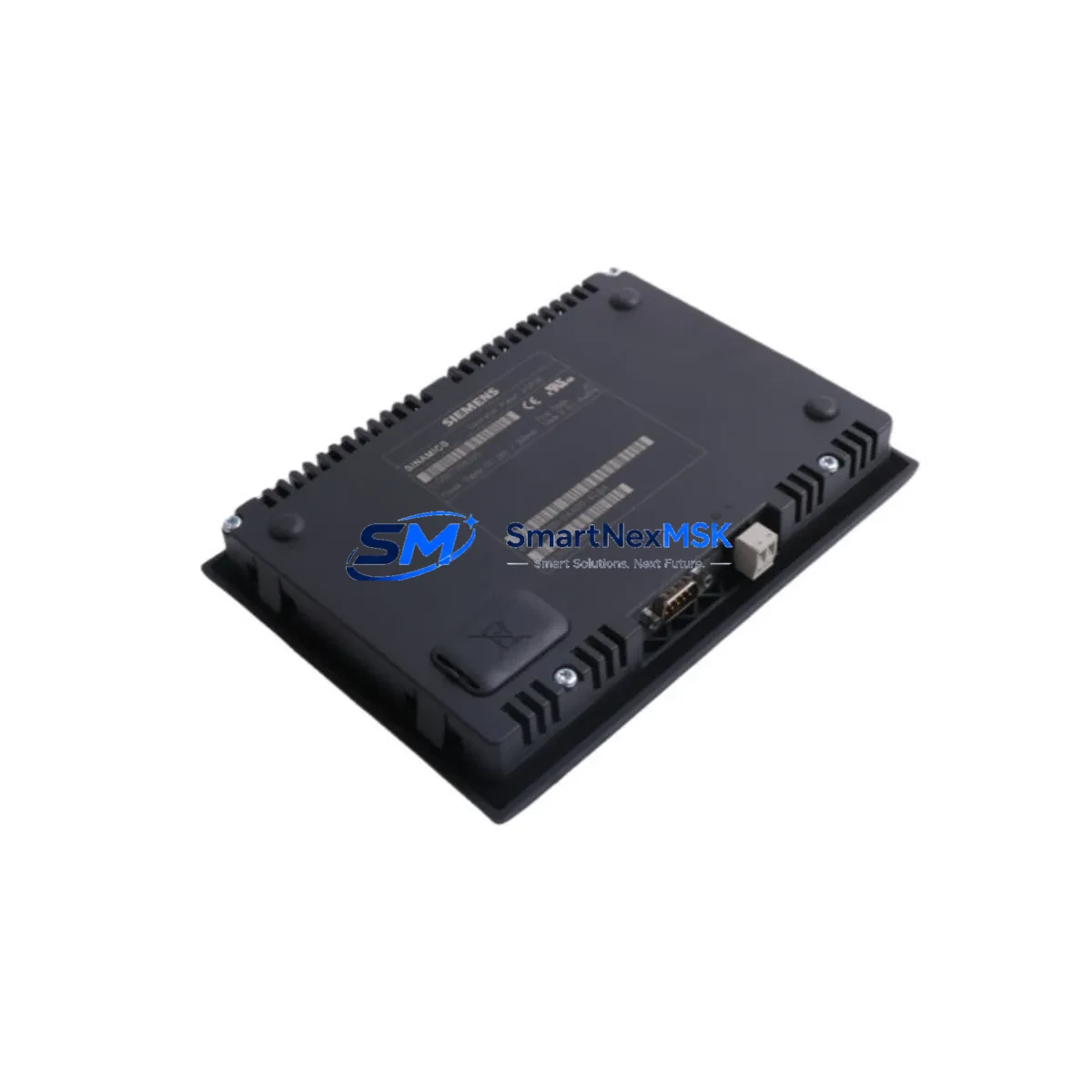

The Siemens 6SL3055-0AA00-4CA4 is the Advanced Operator Panel 30 (AOP30) designed for seamless integration into SINAMICS S120 drive systems. As legacy drive control panels reach end-of-life and spare parts become increasingly scarce, the 6SL3055-0AA00-4CA4 serves as the definitive retrofit-ready replacement for aging operator interfaces across a wide range of industrial automation environments. Whether you are upgrading a multi-axis CNC control cabinet, modernizing a legacy conveyor drive system, or restoring a discontinued panel in a critical production line, this unit delivers full compatibility with existing S120 hardware architectures without requiring firmware re-engineering or backplane redesign.

The AOP30 connects directly to the SINAMICS S120 Control Unit — including the CU320-2 DP and CU320-2 PN — via the AOP30 serial interface port on the front of the control unit. No additional communication module is required for basic operator functions. The panel supports PROFIBUS DP and PROFINET IO protocol environments, making it compatible with both legacy fieldbus architectures and modern Ethernet-based control networks. Engineers migrating from older SINAMICS S110 or MICROMASTER 440 platforms will find the AOP30’s parameter navigation structure familiar, significantly reducing commissioning time during system changeover.

When planning a retrofit around the 6SL3055-0AA00-4CA4, engineers must verify several critical compatibility points. First, confirm that the existing S120 Control Unit firmware version supports the AOP30 interface — firmware V4.5 and above is recommended for full feature access. Second, review the terminal block wiring on the CU320-2 to ensure the AOP30 cable (typically supplied separately as the 6SL3055-0AA00-3AA0 connecting cable) is routed correctly and not shared with high-voltage signal lines. Third, validate that the 24 VDC power supply feeding the control section — often a SITOP PSU100S or equivalent — provides sufficient current headroom after the AOP30 is added to the load. The AOP30 draws approximately 200 mA at 24 VDC, which must be accounted for in the cabinet power budget alongside the CU320-2, SMC30 encoder evaluation module, and any active line modules in the same rack.

For systems using the SINAMICS S120 Booksize format, the AOP30 mounts externally on the cabinet door or DIN rail bracket, interfacing with the control unit via the front panel port. In Chassis format installations, the same connection principle applies, though cable routing through the cabinet requires additional planning to maintain EMC compliance. The 6SL3055-0AA00-4CA4 is fully compatible with both Booksize and Chassis power module configurations, including the PM240-2 and PM340 power modules commonly found in retrofit projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 6SL3055-0AA00-4CA4 into an existing automation system begins with a thorough audit of the current control cabinet architecture. In most S120-based retrofit scenarios, the AOP30 replaces either a failed BOP20 (Basic Operator Panel, 6SL3055-0AA00-2AA0) or a completely absent operator interface on a drive that was previously commissioned and left in headless mode. Before installation, engineers should use the STARTER commissioning software or Startdrive within TIA Portal to back up the full parameter set from the CU320-2 DP or CU320-2 PN. This backup protects the existing drive configuration — including speed setpoints, ramp times, torque limits, and safety function parameters — against accidental overwrite during panel initialization.

In multi-drive cabinet installations, the S120 system typically includes a Line Module (Active Line Module or Smart Line Module), one or more Motor Modules in Booksize format, a shared DC bus, and a CU320-2 Control Unit managing all axes. The AOP30 connects to the CU320-2 and provides a unified operator interface for all drives on that control unit, eliminating the need for individual axis-level panels. Engineers should confirm that the existing DRIVE-CLiQ wiring between the Motor Modules, SMC30 sensor modules, and the Control Unit remains intact and undisturbed during the AOP30 installation. DRIVE-CLiQ topology errors are a common source of commissioning delays in retrofit projects.

For systems migrating from PROFIBUS DP to PROFINET IO — a common upgrade path as legacy Siemens S7-300 PLCs are replaced with S7-1500 or ET 200SP controllers — the AOP30 remains fully usable regardless of the fieldbus protocol change, since it communicates directly with the Control Unit rather than through the fieldbus network. This makes the 6SL3055-0AA00-4CA4 a stable operator interface investment even when the broader communication infrastructure is being modernized. The CM PBD (PROFIBUS communication module) or CBE20 (PROFINET communication board) can be swapped or added to the CU320-2 without affecting AOP30 functionality.

Terminal wiring verification is essential before powering up the retrofitted system. Confirm that the 24 VDC supply — typically sourced from a SITOP PSU100S 10A or SITOP PSU200M — is correctly fused and that the AOP30 cable is routed away from motor power cables to prevent induced interference. If the cabinet includes a Braking Module or a Voltage Sensing Module (VSM10), ensure these are correctly addressed in the drive topology before the first AOP30-guided commissioning run. All units ship pre-tested and are verified against factory acceptance criteria before dispatch, with a 12-month warranty covering manufacturing defects and component failure under normal operating conditions.

Downtime Control During System Migration

Minimizing production downtime during an AOP30 retrofit requires a structured pre-commissioning approach. The most effective strategy is to perform all preparatory work — parameter backup, cable preparation, power budget verification, and firmware version check — during a planned maintenance window before the actual hardware swap. With the 6SL3055-0AA00-4CA4 pre-configured and the replacement cable (6SL3055-0AA00-3AA0) pre-cut and labeled, the physical installation typically takes under 30 minutes on a CU320-2 platform.

Once the AOP30 is connected and the system is powered up, the panel will automatically detect the Control Unit and display the drive status. If the CU320-2 was previously running in headless mode, the AOP30 will prompt for language selection and display the current fault and alarm buffer — providing immediate visibility into any pre-existing drive issues that may have been masked without an operator panel. Engineers should clear the fault buffer, verify the parameter set against the pre-retrofit backup, and perform a no-load test run before returning the system to production. The AOP30’s built-in parameter copy function also allows the drive configuration to be saved directly to the panel’s internal memory, providing an additional on-site backup independent of the STARTER software environment.

For critical production lines where even a 30-minute outage is unacceptable, a parallel commissioning approach is recommended: install and configure the replacement CU320-2 with the new AOP30 on a bench setup using a test Motor Module, validate the full parameter set and safety functions offline, then perform a rapid swap during a shift changeover. This approach reduces live system exposure to under 10 minutes and ensures that the replacement unit is fully verified before it enters service. All units supplied are tested prior to shipment, and the 12-month warranty provides coverage from the date of installation, giving engineering teams confidence in the reliability of the retrofitted system.

Retrofit Support FAQ

Q1: Is the 6SL3055-0AA00-4CA4 a direct drop-in replacement for the BOP20 on my CU320-2?
Yes. The AOP30 connects to the same front panel port on the CU320-2 as the BOP20. No hardware modification to the Control Unit is required. The AOP30 provides a superset of BOP20 functionality, including a larger display, full parameter text descriptions, and a built-in parameter copy function. Existing drive parameters are not affected by the panel swap.

Q2: Will the AOP30 work with my existing PROFIBUS DP network without any changes?
Yes. The AOP30 communicates directly with the CU320-2 via the local AOP30 interface and does not participate in the PROFIBUS DP or PROFINET IO network. Your existing fieldbus configuration, PLC program, and HMI screen assignments remain unchanged after the AOP30 is installed.

Q3: What wiring checks should I perform before powering up the retrofitted system?
Verify that the AOP30 connecting cable is correctly seated at both the panel and the CU320-2 front port. Confirm that the 24 VDC supply voltage is within the 20.4–28.8 VDC tolerance range at the Control Unit terminal block. Check that no DRIVE-CLiQ cables have been disturbed during installation. Review the fault buffer on first power-up and clear any pre-existing faults before initiating a test run.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects and component failure under normal operating and environmental conditions as specified in the Siemens SINAMICS S120 system documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. To initiate a warranty claim, contact our sales team with the order reference number, a description of the fault, and photographic evidence of the installation. Replacement units are dispatched within 3–5 business days upon claim approval.

—
