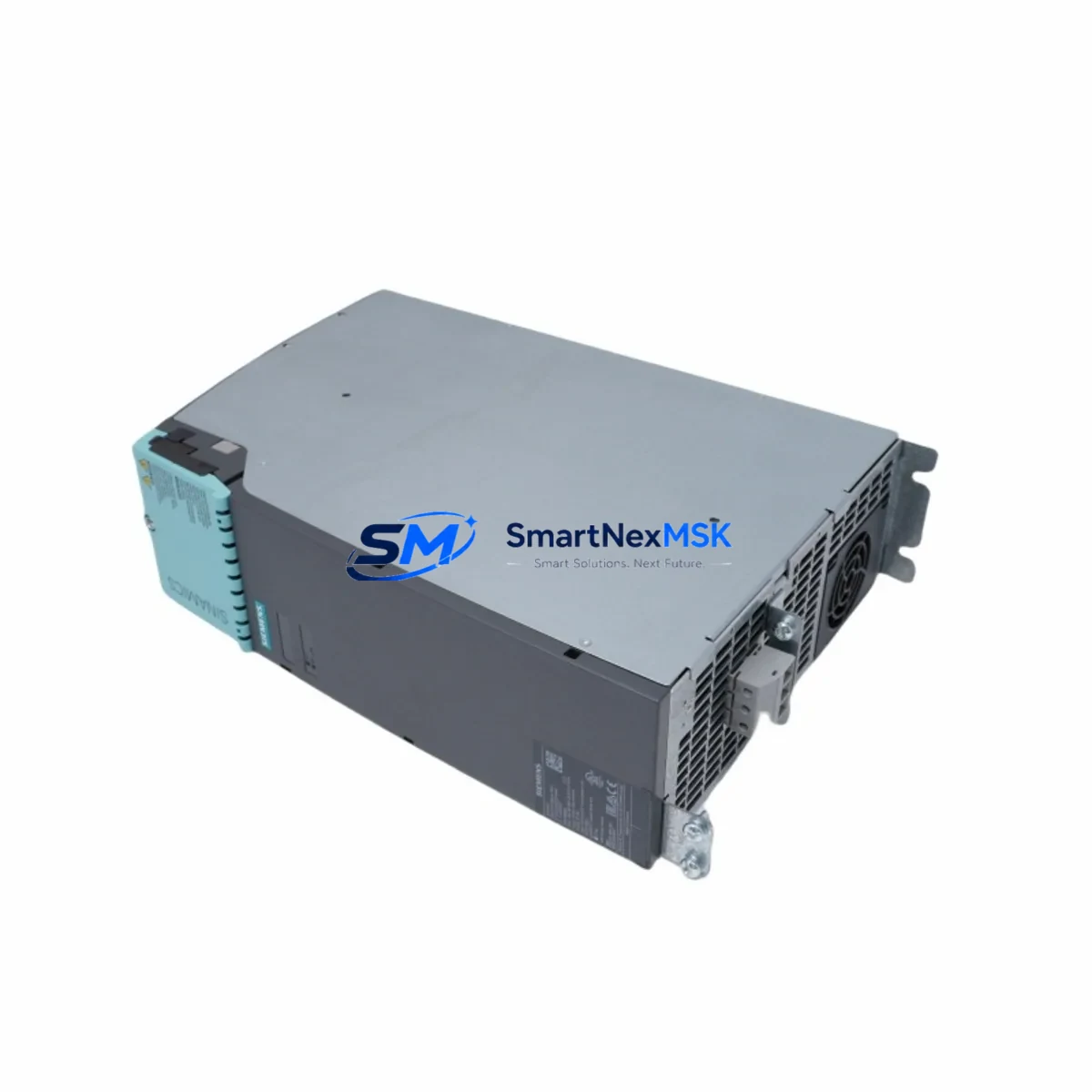

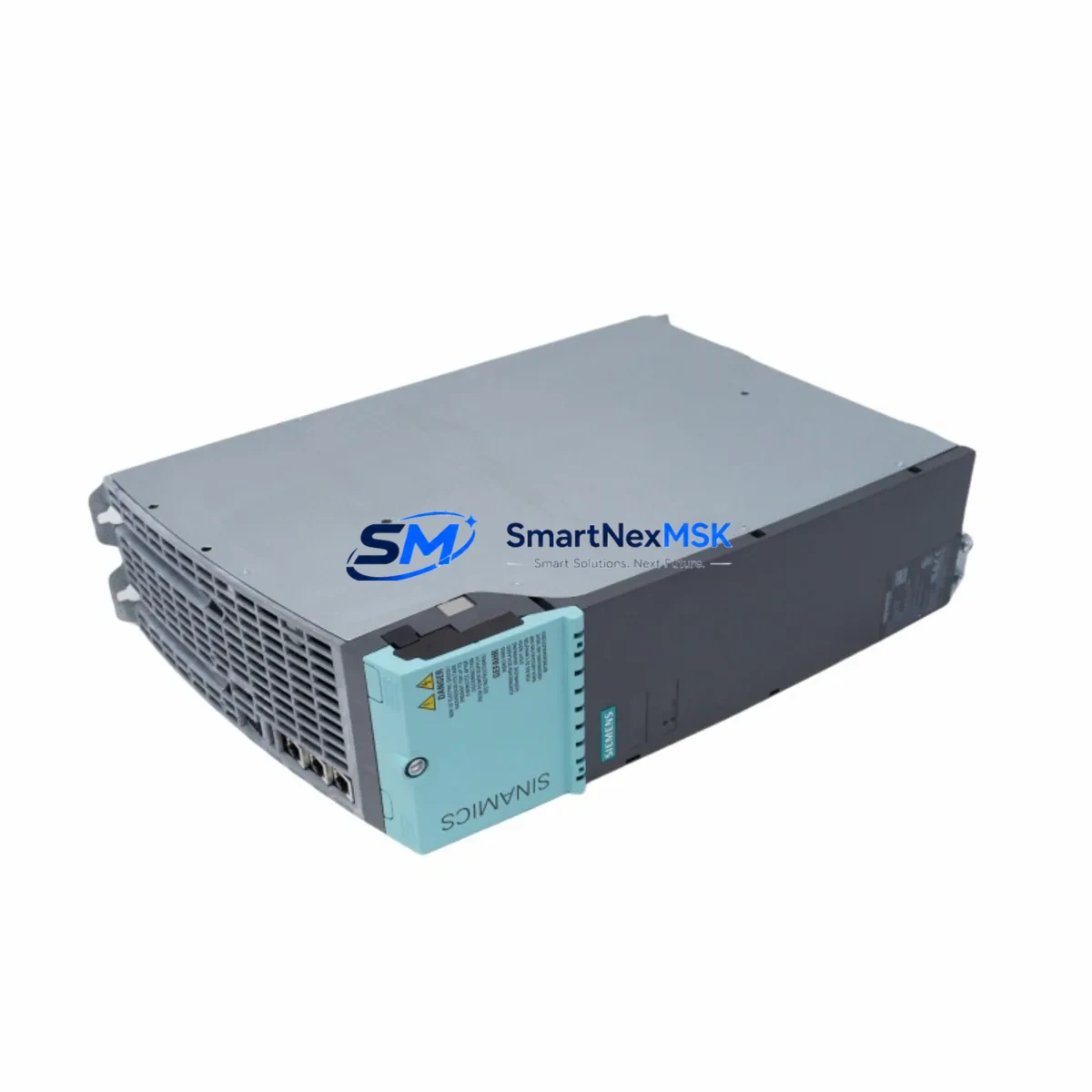

Siemens 6SL3130-7TE21-6AA4 Safety-Enhanced Active Line Module

Siemens 6SL3130-7TE21-6AA4 Safety-Enhanced Active Line Module: Reliable Control for Harsh Industrial Sites

The Siemens 6SL3130-7TE21-6AA4 is a high-performance Active Line Module (ALM) within the SINAMICS S120 drive system platform, engineered to deliver stable, regenerative power supply to multi-axis drive configurations in the most demanding industrial environments. Rated at 16A input current and 11kW feed-in power, this module provides sinusoidal mains current draw with active power factor correction, making it a cornerstone component for energy-efficient, safety-critical control cabinets in continuous production facilities, heavy industry, and hazardous-area automation systems.

In high-load, high-interference industrial sites — including petrochemical plants, metallurgical processing lines, mining hoists, port crane systems, and water treatment facilities — the integrity of the DC bus supply is non-negotiable. The 6SL3130-7TE21-6AA4 actively regulates the DC link voltage, suppressing voltage surges, compensating for mains fluctuations, and feeding regenerative braking energy back to the grid. This active regulation dramatically reduces the risk of control interruption, module mis-operation, and unplanned production downtime caused by power quality events.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered SINAMICS S120 control cabinet, the 6SL3130-7TE21-6AA4 Active Line Module operates as the regulated power backbone, working in close coordination with a suite of protective and signal-conditioning components to ensure uninterrupted, safe operation under harsh field conditions.

The ALM connects directly to the SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN via the DRIVE-CLiQ communication bus, enabling real-time closed-loop monitoring of DC link voltage, module temperature, and fault states. Any deviation from safe operating parameters triggers an immediate, coordinated response across all connected Motor Modules — preventing cascading failures in multi-axis systems.

On the mains input side, the module is typically paired with a Siemens SINAMICS S120 Line Filter (such as the 6SL3000-0BE21-6DA0) and a Line Reactor (6SL3000-0CE21-6AA0) to attenuate conducted EMI, limit inrush current, and protect against upstream surge events. In sites with unstable grid quality — common in mining, port, and heavy manufacturing environments — these passive protection components are essential companions to the ALM’s active regulation capability.

Within the cabinet, the DC bus output of the 6SL3130-7TE21-6AA4 feeds into SINAMICS S120 Double Motor Modules (e.g., 6SL3120-2TE21-0AA3) and Single Motor Modules, distributing regulated DC power to servo and induction motor drives across the machine. The SINAMICS S120 Braking Module (6SL3100-1BE21-3AA0) is often installed in parallel to safely dissipate regenerative energy during emergency stops or rapid deceleration cycles, protecting the DC bus from overvoltage events that could otherwise damage connected modules.

For safety interlock circuits and critical process protection, the system integrates with Siemens SIRIUS 3SK safety relays and 3RK3 Modular Safety Systems, which monitor E-stop chains, guard door interlocks, and light curtain signals. These safety devices communicate with the CU320-2 to execute Safe Torque Off (STO) and Safe Stop 1 (SS1) functions — IEC 62061 and ISO 13849-compliant safety functions that are natively supported by the SINAMICS S120 platform.

Power distribution within the cabinet is managed through Siemens SITOP PSU100S 24V DC power supplies, which provide stable control voltage to the CU320-2, I/O modules, and field sensors. The SITOP series is specifically designed for industrial control environments, offering high immunity to mains disturbances and built-in overload protection — a critical requirement when the ALM is operating under full regenerative load.

For facilities running Siemens S7-300 or S7-1500 PLCs as the supervisory controller, the SINAMICS S120 system communicates via PROFIBUS DP or PROFINET IO, with the CU320-2 acting as a drive slave. This architecture allows the PLC to monitor ALM status, issue speed and torque setpoints, and respond to drive faults within a single scan cycle — minimizing the window of exposure during any safety-relevant event.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where unplanned shutdowns carry significant safety and financial consequences, the 6SL3130-7TE21-6AA4 provides the stable DC bus supply required for compressor drives, pump drives, and agitator systems. Its active power factor correction reduces harmonic distortion on shared plant busbars, protecting sensitive instrumentation and control systems from signal drift caused by power quality degradation.

Electric Power Generation & Transmission: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — the ALM’s regenerative capability allows controlled deceleration energy to be returned to the plant grid rather than dissipated as heat, improving overall plant efficiency while maintaining safe, controlled stopping behavior during grid disturbances.

Mining & Mineral Processing: Underground and surface mining operations subject drive systems to extreme vibration, dust ingress, and wide ambient temperature swings. The 6SL3130-7TE21-6AA4, installed in sealed, climate-controlled control cabinets with appropriate Line Filters and Reactors, provides the robust, interference-immune power supply needed for conveyor drives, crusher drives, and hoist systems where a control interruption could create immediate personnel safety hazards.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous, uninterrupted pump and blower operation. The ALM’s active voltage regulation ensures that pump motor drives maintain stable speed control even during mains voltage sags or momentary supply interruptions, preventing process upsets that could compromise water quality or regulatory compliance.

Metallurgy & Steel Production: Rolling mill and continuous casting lines demand precise, high-dynamic torque control across multiple coordinated axes. The 6SL3130-7TE21-6AA4 provides the stiff, regulated DC bus supply that SINAMICS S120 Motor Modules require to deliver the millisecond-level torque response needed for strip tension control, roll gap adjustment, and emergency stop sequences in these safety-critical production environments.

Port & Heavy Lifting Equipment: Crane and hoist applications involve frequent, high-energy regenerative cycles as loads are lowered under controlled conditions. The ALM’s ability to feed regenerative energy back to the mains — rather than burning it in braking resistors — reduces thermal stress on the control cabinet, extends component service life, and eliminates the fire risk associated with overloaded braking resistors in enclosed machinery houses.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6SL3130-7TE21-6AA4?
The 12-month warranty covers all manufacturing defects, component failures, and functional faults under normal operating conditions. In the event of a confirmed warranty claim, SMARTNEXMSK provides full module replacement or repair at no additional cost, including return shipping coordination. Warranty coverage begins from the date of confirmed delivery.

Q2: What pre-shipment testing is performed on this module?
Every 6SL3130-7TE21-6AA4 unit undergoes a multi-point outgoing inspection prior to shipment, including visual inspection for physical damage, firmware version verification, DRIVE-CLiQ port continuity check, and functional power-on test where applicable. Units are shipped in original or equivalent protective packaging with anti-static protection to prevent transit damage.

Q3: Is this module compatible with existing SINAMICS S120 Booksize installations?
Yes. The 6SL3130-7TE21-6AA4 is a Booksize format Active Line Module fully compatible with the SINAMICS S120 Booksize component family, including CU320-2 Control Units, Booksize Motor Modules, the SINAMICS S120 Smart Line Module range, and associated Line Filters and Reactors. It is designed for direct replacement of same-rated ALM units in existing S120 Booksize control cabinets without mechanical or electrical modification.

Q4: Can long-term supply and spare parts support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of SINAMICS S120 Active Line Modules and associated components to support both immediate replacement needs and planned maintenance programs. For facilities requiring guaranteed spare parts availability over multi-year maintenance contracts, we offer reserved stock arrangements. Contact our technical sales team to discuss long-term supply agreements tailored to your plant’s maintenance schedule.
