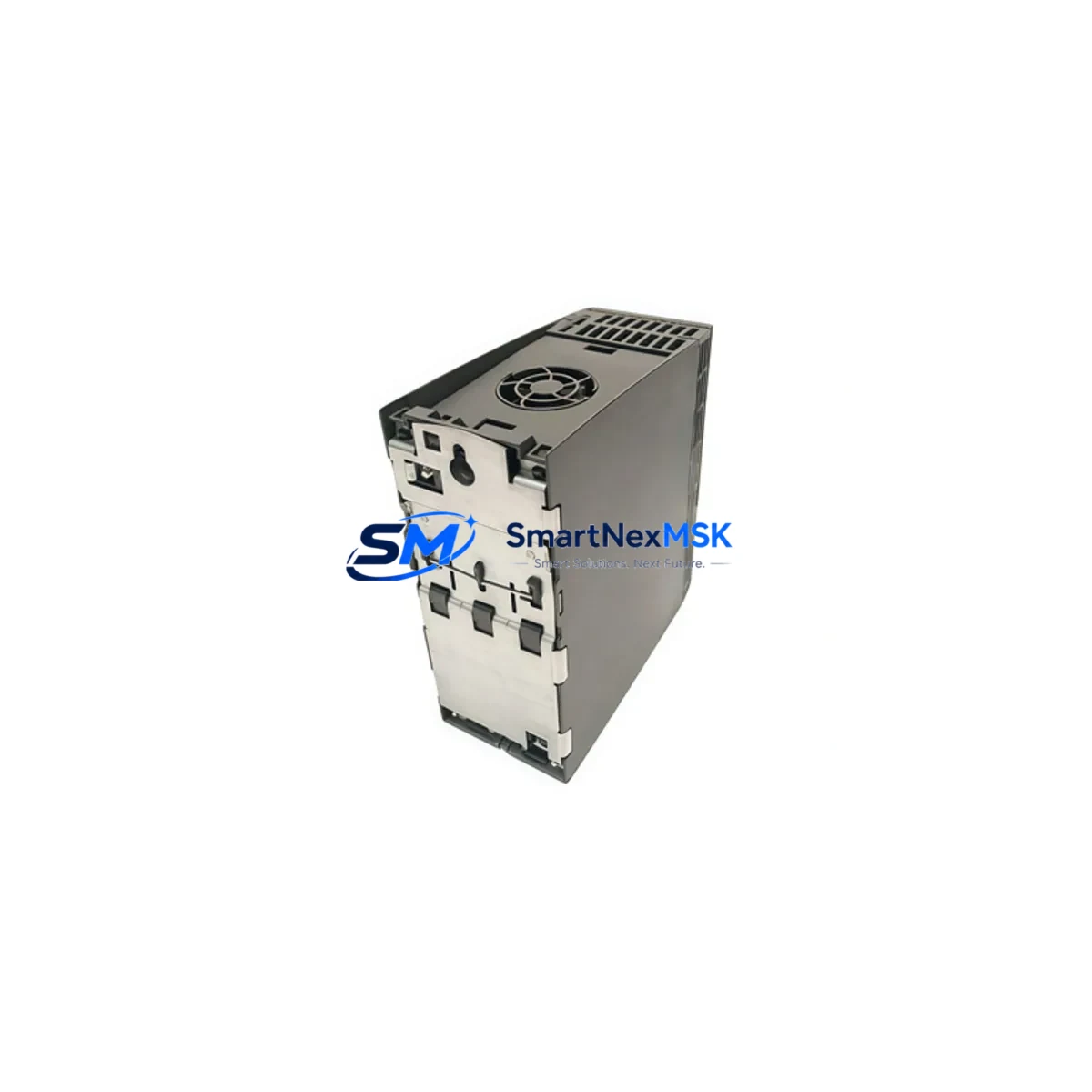

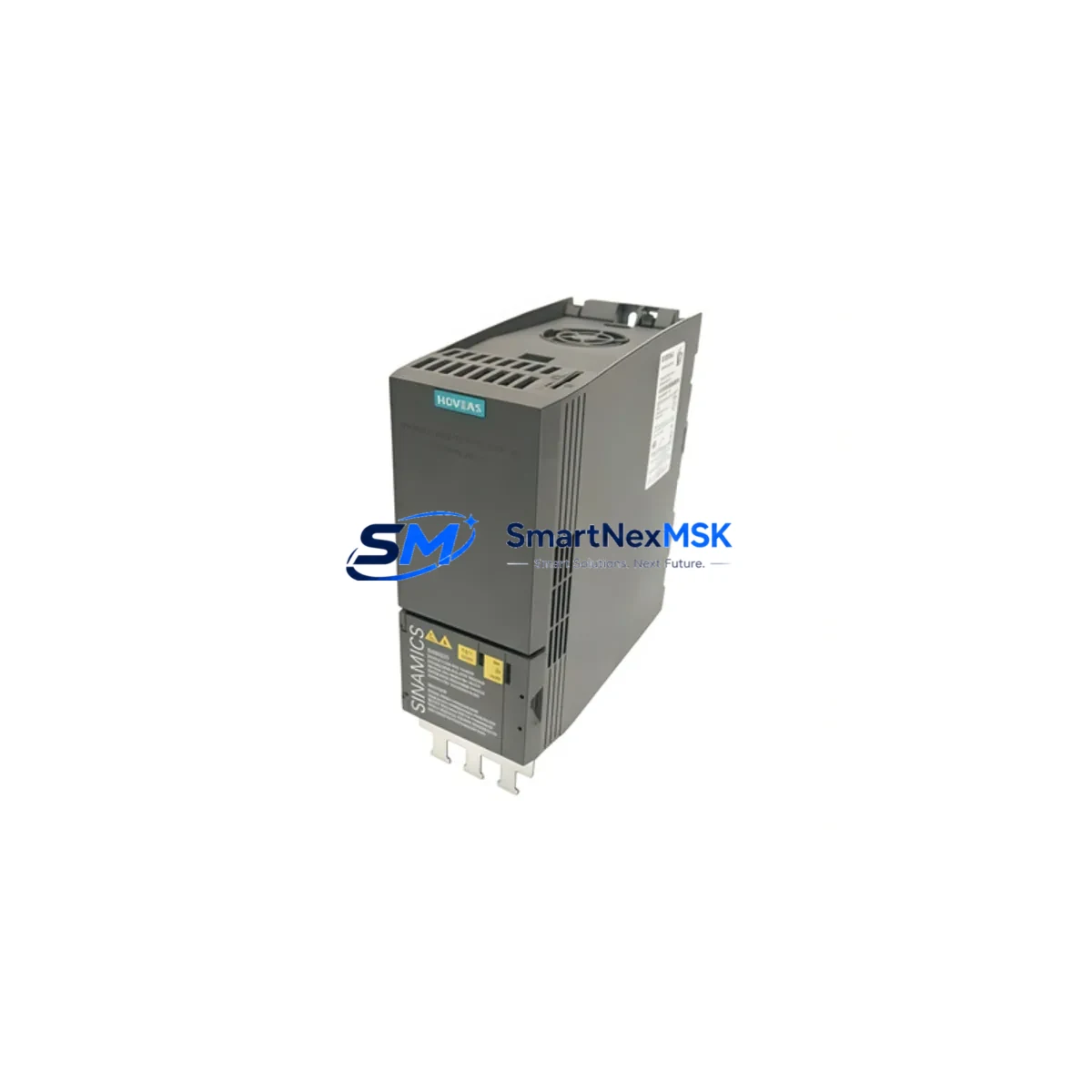

Siemens 6SL3210-1KE11-8AF2 Safety-Enhanced AC Drive for Harsh Industrial Sites
The Siemens 6SL3210-1KE11-8AF2 is a SINAMICS G120C compact inverter rated at 0.75 kW (1 HP), designed for three-phase 380–480 V AC supply networks. Built to IEC/EN 61800-5-1 safety standards, this drive delivers reliable motor speed control in high-load, high-interference industrial environments where control interruption, signal drift, or power fluctuation can trigger costly production shutdowns. Its IP20 enclosure rating, integrated EMC filter (Category C2), and robust IGBT power stage make it a dependable choice for continuous-duty applications in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics, and discrete manufacturing cells.
At SMARTNEXMSK, every unit of the 6SL3210-1KE11-8AF2 is sourced from authorized distribution channels, subjected to pre-shipment functional testing, and backed by a 12-month quality warranty. Stable long-term inventory is maintained to support both immediate replacement needs and planned MRO procurement cycles.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| SKU / Order Number | 6SL3210-1KE11-8AF2 |
| Product Series | SINAMICS G120C |
| Rated Output Power | 0.75 kW (1 HP) |
| Input Voltage | 3-phase AC 380–480 V ±10% |
| Output Frequency Range | 0–550 Hz |
| Overload Capacity | 150% for 60 s / 200% for 3 s |
| Protection Rating | IP20 |
| EMC Filter | Integrated, Category C2 |
| Safety Function | STO (Safe Torque Off) via terminals |
| Safety Standard | IEC 61508 SIL2 / EN ISO 13849-1 PLd |
| Communication Interface | USS / Modbus RTU (RS-485) |
| Ambient Operating Temperature | -10 °C to +50 °C (derating above 40 °C) |
| Relative Humidity | ≤ 95% RH, non-condensing |
| Altitude | Up to 2000 m without derating |
| Braking | DC braking; external braking resistor compatible |
| Dimensions (H × W × D) | 173 × 73 × 154 mm |
| Weight | Approx. 1.4 kg |
| Country of Origin | Germany |
| Warranty | 12 Months — SMARTNEXMSK Quality Guarantee |
| Pre-Shipment Testing | Full functional test performed on every unit |
Control Cabinet Protection Strategy
In a well-engineered industrial control cabinet, the 6SL3210-1KE11-8AF2 operates as the core variable-speed drive element within a layered protection architecture. To ensure stable, interference-free operation, it is typically installed alongside a Siemens SINAMICS G120 Control Unit CU240E-2 for advanced parameter management and fieldbus connectivity, and paired with a Siemens SITOP PSU100S 24 V DC power supply to maintain clean, regulated auxiliary power even during mains disturbances.
Upstream protection is provided by a Siemens 3RV2 motor starter protector or a dedicated 3NE SITOR semiconductor fuse to guard against short-circuit and overload events that could otherwise propagate to the drive’s IGBT bridge. A Siemens 3RT2 contactor in the main circuit enables safe isolation during emergency stop sequences and maintenance windows, working in concert with the drive’s integrated STO (Safe Torque Off) function to achieve PLd / SIL2 safety integrity without additional external safety relays in many configurations.
For surge and transient protection, a Siemens DEHN or OBO Bettermann Type 2 SPD (Surge Protective Device) is recommended at the cabinet entry point to clamp voltage spikes originating from nearby heavy machinery, welding equipment, or capacitor bank switching. Signal integrity on the RS-485 Modbus RTU link to the Siemens S7-1200 or S7-300 PLC is maintained through proper cable shielding, ferrite cores, and termination resistors — preventing communication anomalies that could cause unintended drive trips or missed speed references.
Thermal management within the cabinet is supported by a Siemens SIRIUS 3UF7 motor management relay monitoring motor winding temperature via PTC thermistor input, while a Siemens LOGO! 8 logic module can handle auxiliary interlocking logic for fan control, door heating, and alarm annunciation — keeping the entire drive system within its safe thermal envelope during continuous 24/7 production runs.
Critical Industrial Safety Applications
Petrochemical & Refinery Plants: In hazardous-area pump and compressor skids, the 6SL3210-1KE11-8AF2 provides precise flow control while its STO function enables rapid, safe de-energization of motor drives upon activation of emergency shutdown (ESD) systems, reducing the risk of uncontrolled fluid release or ignition-source exposure.
Power Generation & Utilities: Cooling water pump drives and auxiliary fan systems in thermal and hydroelectric power stations demand zero-unplanned-downtime performance. The G120C’s robust overload capacity (150% for 60 s) and integrated EMC filter prevent nuisance trips caused by generator switching transients or bus transfer events.
Mining & Mineral Processing: Conveyor belt drives, crusher feeders, and slurry pump systems in underground and open-pit mines operate under extreme dust, vibration, and voltage sag conditions. The drive’s wide input voltage tolerance (380–480 V ±10%) and DC bus ride-through capability maintain motor control continuity during momentary supply interruptions common in mine power networks.
Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on variable-speed pump control for energy efficiency and process stability. The 6SL3210-1KE11-8AF2 supports PID closed-loop control for pressure and flow regulation, minimizing water hammer events and reducing mechanical stress on pipeline infrastructure.
Metallurgy & Steel Mills: Rolling mill auxiliary drives, cooling bed fans, and fume extraction systems in steel production environments are subject to intense electromagnetic interference from arc furnaces and induction heaters. The G120C’s Category C2 EMC filter and shielded cable compatibility ensure reliable speed reference tracking without signal corruption.
Port & Logistics Automation: Crane hoist and travel drives in container terminals require precise torque control and fast dynamic response. The drive’s 200% peak torque capability for 3 seconds supports smooth load pickup and controlled lowering, while the STO channel provides a certified safe stop path compliant with port machinery safety regulations.
Safety and Quality FAQ
Q1: What warranty coverage does SMARTNEXMSK provide for the 6SL3210-1KE11-8AF2?
Every unit is covered by a 12-month warranty from the date of shipment. If the drive fails under normal operating conditions within this period, SMARTNEXMSK will arrange repair, replacement, or full refund. Warranty claims are processed within 5 business days of fault confirmation.
Q2: How is each unit tested before shipment?
All 6SL3210-1KE11-8AF2 drives undergo a full pre-shipment functional test including power-on verification, parameter readout, output voltage symmetry check, and STO channel continuity test. A test record is available upon request for quality-critical procurement.
Q3: Is this drive compatible with Siemens S7-series PLCs and third-party SCADA systems?
Yes. The 6SL3210-1KE11-8AF2 supports USS protocol and Modbus RTU over RS-485, enabling direct integration with Siemens S7-1200, S7-300, and S7-400 PLCs, as well as third-party DCS and SCADA platforms that support standard serial communication. Parameter sets can be transferred via the BOP-2 operator panel or STARTER/Startdrive commissioning software.
Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing MRO and replacement needs?
Yes. SMARTNEXMSK maintains stable inventory of the 6SL3210-1KE11-8AF2 and its SINAMICS G120C series variants to support both emergency replacement orders and scheduled MRO procurement. For high-volume or blanket purchase requirements, contact our sales team to discuss reserved stock arrangements and lead-time commitments.
