Siemens 6SL3210-1KE11-8UF2 Safety-Enhanced AC Drive Module

Siemens 6SL3210-1KE11-8UF2 Safety-Enhanced AC Drive Module: Reliable Control for Harsh Industrial Sites

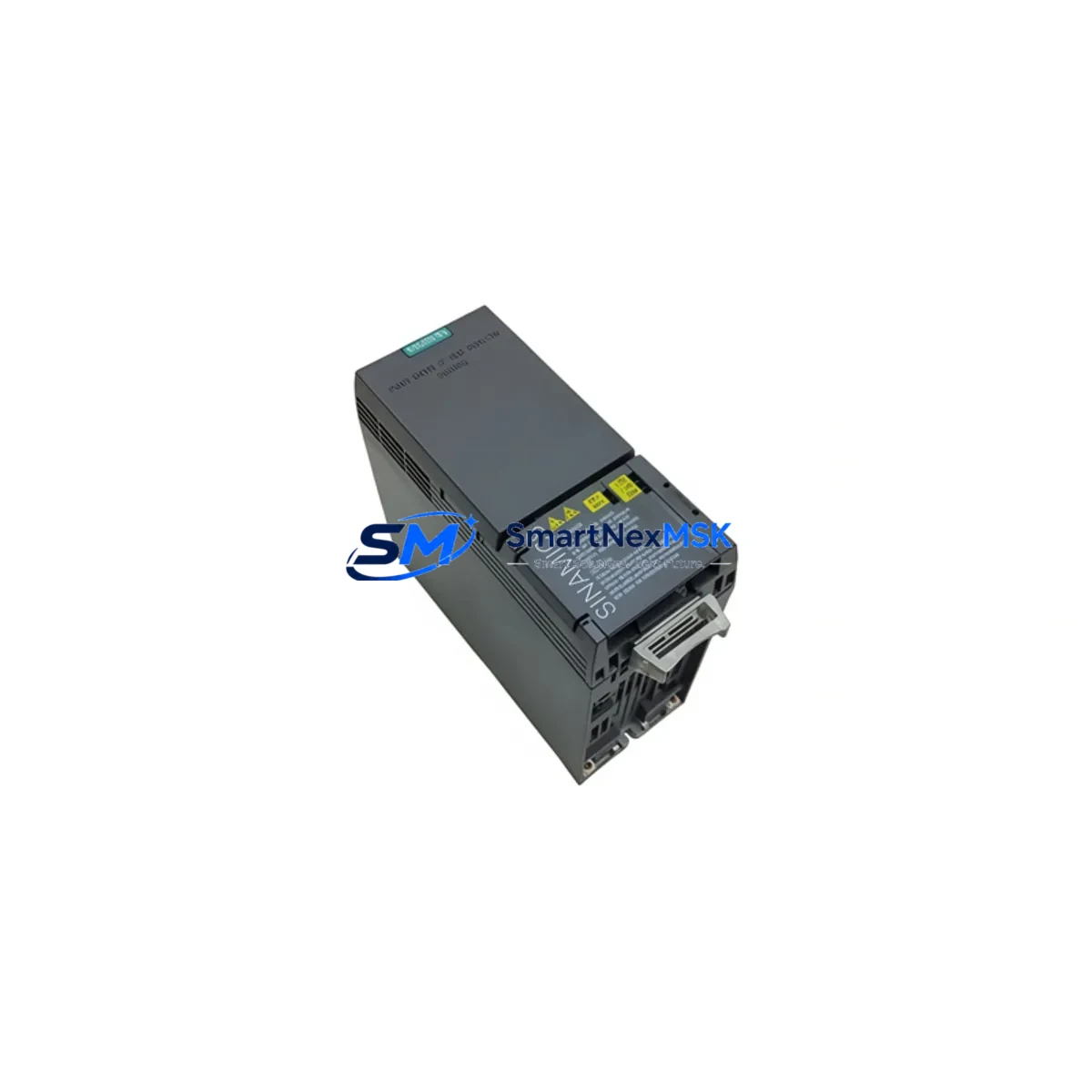

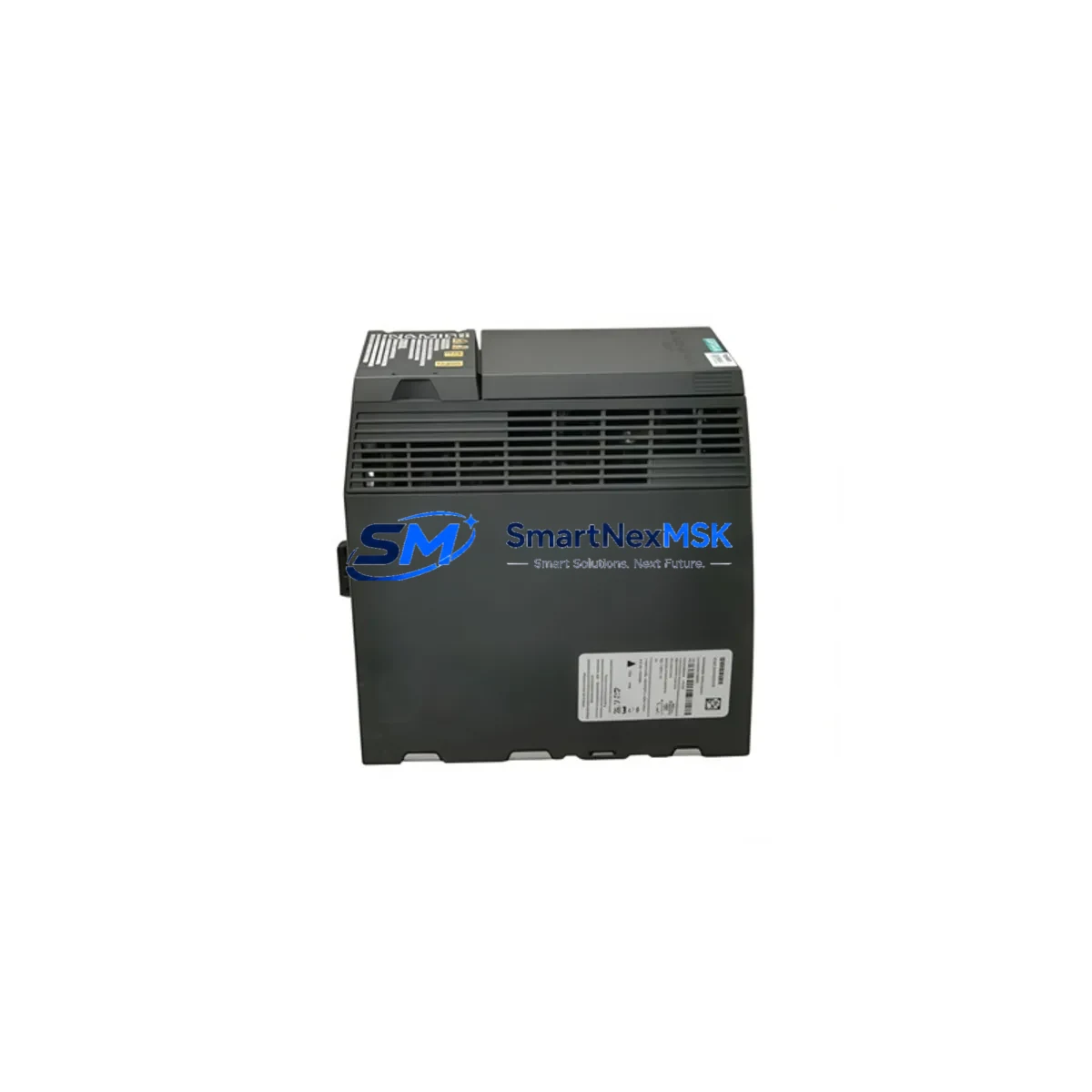

The Siemens 6SL3210-1KE11-8UF2 is a SINAMICS S120 series booksize motor module rated at 0.75 kW, engineered for continuous, safety-critical operation in demanding industrial environments. Designed to integrate seamlessly into centralized drive line-ups, this module delivers precise, stable motor control even under high electrical noise, fluctuating supply voltages, and thermally challenging cabinet conditions. For plant engineers and automation specialists operating in petrochemical, power generation, mining, water treatment, metallurgical, port logistics, or continuous manufacturing facilities, the 6SL3210-1KE11-8UF2 represents a proven, field-hardened solution for protecting both process continuity and personnel safety.

At its core, this motor module functions as the power output stage within a SINAMICS S120 multi-axis drive system. It receives its DC bus power from a compatible Siemens SINAMICS S120 Active Line Module or Basic Line Module, converting that shared DC link voltage into precisely regulated three-phase AC output for the connected motor. This architecture eliminates the need for individual rectifier stages per axis, reducing cabinet footprint and simplifying the overall power distribution topology — a critical advantage in high-density control cabinets where space, heat, and cable management directly affect system reliability.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 6SL3210-1KE11-8UF2 within a well-engineered SINAMICS S120 drive line-up requires careful attention to the surrounding protection architecture. In high-load or high-interference environments, the motor module must be supported by a robust set of complementary components to ensure uninterrupted, safe operation.

The shared DC bus architecture means that power quality upstream directly affects every axis in the system. A properly sized Siemens SINAMICS S120 Active Line Module (ALM) — such as the 6SL3130 series — provides regenerative energy recovery and active harmonic filtering, protecting the 6SL3210-1KE11-8UF2 from DC bus overvoltage events caused by rapid motor deceleration or load rejection. In facilities with unstable grid supplies, pairing the line module with a Siemens SITOP PSU8600 power supply for the 24 V DC control circuit ensures that the CU320-2 Control Unit and its DRIVE-CLiQ network remain powered and communicating even during brief mains interruptions — preventing spurious fault trips that could trigger unplanned shutdowns.

Signal integrity on the DRIVE-CLiQ bus is essential for safe encoder feedback and torque control. In cabinets with high-frequency switching noise from adjacent variable frequency drives or contactors, shielded DRIVE-CLiQ cables (6SL3060 series) with proper grounding at both ends are mandatory. For motor feedback, using a Siemens SMC20 Sensor Module Cabinet-Mounted allows the system to interface with standard incremental or absolute encoders without routing high-frequency encoder signals through the main cable duct — reducing the risk of signal drift that could cause position errors or safety function mis-triggers.

On the safety side, the 6SL3210-1KE11-8UF2 supports Safe Torque Off (STO) when controlled via a Siemens CU320-2 DP or CU320-2 PN Control Unit with the appropriate Safety Integrated license. This allows the drive to be integrated into a machine safety circuit alongside a Siemens SIRIUS 3SK safety relay or a Siemens ET 200SP fail-safe I/O module, enabling IEC 62061 / ISO 13849 compliant safety loops without the need for external motor contactors on every axis. Eliminating unnecessary contactors reduces arc flash risk, lowers maintenance frequency, and improves response time in emergency stop scenarios.

For thermal management in densely packed cabinets, monitoring the drive’s internal temperature via the CU320-2 diagnostic interface and integrating cabinet-level temperature sensors with the plant’s Siemens S7-1500 PLC or S7-300 CPU allows predictive thermal derating before a fault condition occurs. This proactive approach is particularly important in foundries, cement plants, and offshore platforms where ambient temperatures can approach or exceed the module’s rated limits during summer peaks or equipment room HVAC failures.

Critical Industrial Safety Applications

The Siemens 6SL3210-1KE11-8UF2 is deployed across a wide range of safety-critical and continuous-process industries where control interruption carries significant operational and safety consequences.

In petrochemical and refinery facilities, this motor module drives auxiliary pump motors, agitator drives, and compressor cooling fans within classified hazardous areas (Zone 2 / Division 2 boundaries), where the STO safety function provides a certified means of de-energizing the motor without breaking the DC bus — reducing arc ignition risk during emergency stops. In power generation plants, it controls cooling water circulation pumps and fuel feed conveyors where a drive fault could cascade into a turbine trip, making the module’s robust EMC design and surge tolerance essential for grid-connected environments with high harmonic distortion.

In underground mining operations, the 6SL3210-1KE11-8UF2 is used in conveyor belt drive systems and ventilation fan controls, where the ability to perform a controlled stop via STO — rather than a coast-to-rest — prevents material spillage and ensures safe egress conditions. Water and wastewater treatment plants rely on this module for dosing pump drives and aeration blower controls, where continuous 24/7 operation and resistance to the high humidity and chemical vapors present in pump rooms are non-negotiable requirements.

In metallurgical and steel mill environments, the module’s vibration and shock resistance ratings make it suitable for rolling mill auxiliary drives and ladle transfer car controls, where mechanical shock from heavy equipment movement is a constant stress factor. Port and terminal automation systems use SINAMICS S120 booksize modules in crane hoist auxiliary drives and conveyor indexing systems, where precise speed control and fast fault response are critical to load safety and throughput efficiency. Across all these applications, the 6SL3210-1KE11-8UF2’s compact booksize form factor allows it to be integrated into existing S120 drive line-ups as a direct replacement or capacity expansion without cabinet redesign.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 6SL3210-1KE11-8UF2?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the Siemens SINAMICS S120 technical documentation. It includes replacement or repair of the module at no additional cost. Warranty claims require the original purchase documentation and a fault description. The warranty period begins from the date of shipment.

Q2: What pre-shipment testing is performed on this module?
Every unit undergoes functional power-on verification, DC bus insulation resistance testing, and DRIVE-CLiQ communication interface checks prior to dispatch. Modules sourced from original Siemens production batches are inspected for firmware version compatibility and physical integrity. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 6SL3210-1KE11-8UF2 compatible with existing SINAMICS S120 booksize installations?
Yes. This module is fully compatible with the SINAMICS S120 booksize drive line-up and can be installed alongside existing 6SL3210 series motor modules sharing the same DC bus rail. It is compatible with CU320-2 DP, CU320-2 PN, and CU310-2 control units running SINAMICS firmware V4.7 and above. No hardware modifications to the cabinet are required for direct replacement of a failed unit of the same rating.

Q4: Can long-term supply and spare parts support be guaranteed?
We maintain dedicated stock of the 6SL3210-1KE11-8UF2 and related SINAMICS S120 booksize components to support both planned maintenance schedules and emergency breakdown replacements. For critical infrastructure operators requiring guaranteed availability, we offer reserved stock arrangements and priority dispatch agreements. Contact our technical sales team to discuss long-term supply contracts and multi-unit pricing for maintenance spares programs.
