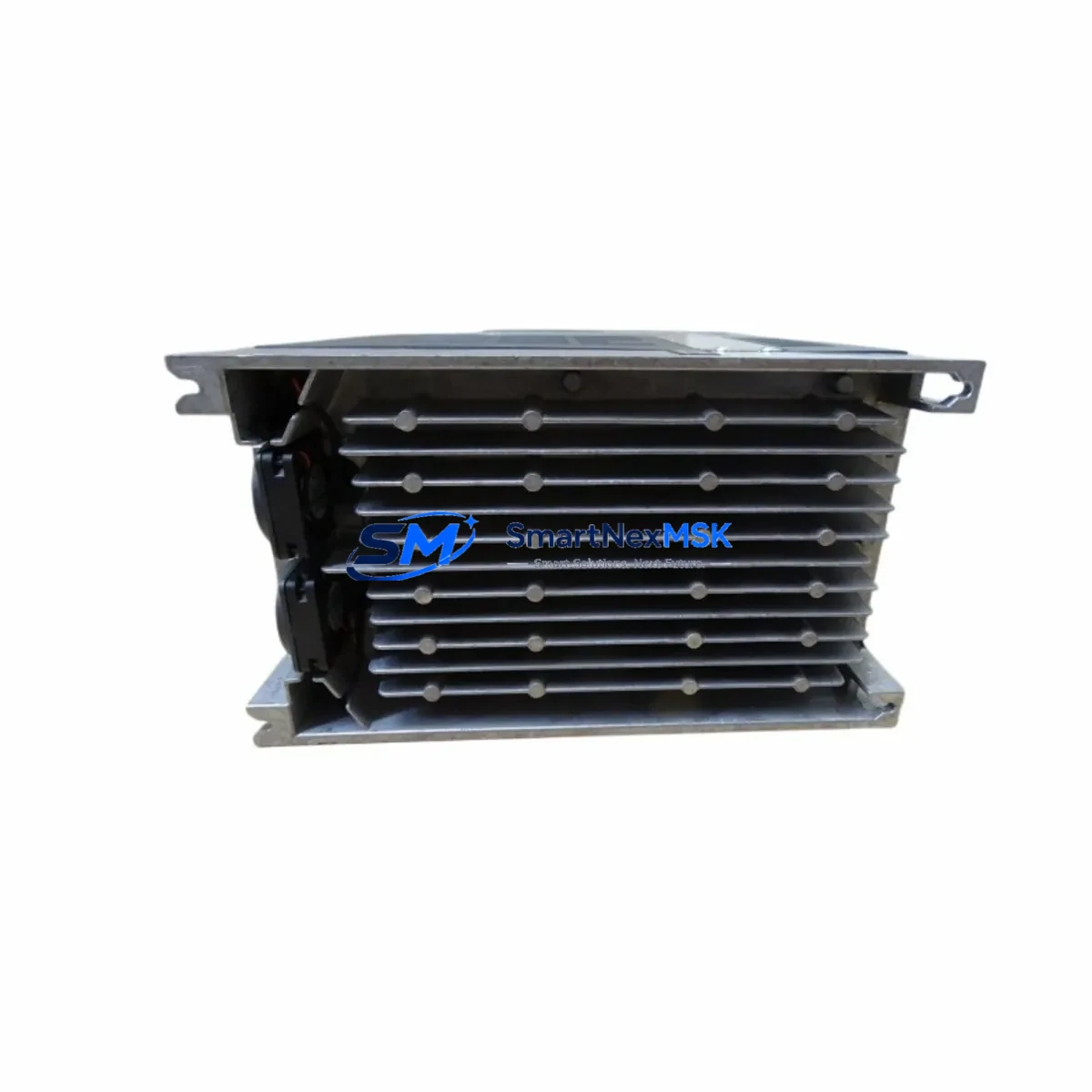

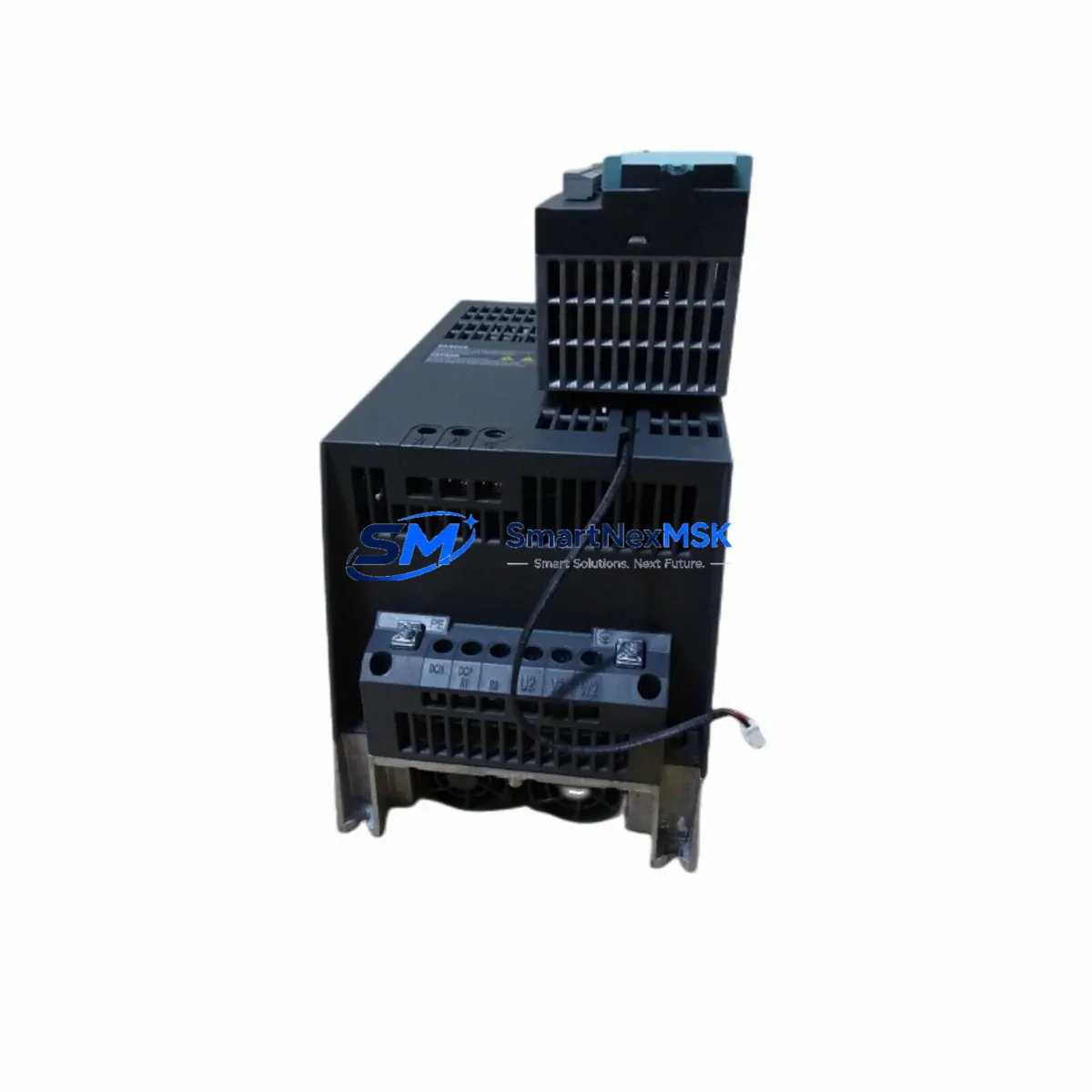

SIEMENS 6SL3210-1SE17-7AA0 Retrofit-Ready Single Motor Module for S120

SIEMENS 6SL3210-1SE17-7AA0 Retrofit-Ready Single Motor Module for S120 Control Systems

The SIEMENS 6SL3210-1SE17-7AA0 is a Booksize Single Motor Module designed for the SINAMICS S120 drive platform. As legacy automation lines face increasing pressure from discontinued spare parts and aging infrastructure, this module serves as a verified retrofit solution for engineers managing controlled system migrations, drive cabinet upgrades, and production continuity on existing S120-based control architectures.

Whether you are replacing a failed unit on a running production line, upgrading a legacy SINAMICS S120 Booksize chassis, or consolidating a multi-axis drive cabinet after a partial system failure, the 6SL3210-1SE17-7AA0 provides a direct-fit replacement path with minimal re-engineering. Its rated output current and DC link voltage specifications align with the standard S120 Booksize power bus, allowing integration alongside existing Active Line Modules such as the 6SL3130-6AE21-0AB1 or 6SL3130-7TE21-6AA3 without requiring bus reconfiguration.

For retrofit projects involving older SINAMICS S120 Chassis or Booksize Compact configurations, engineers should verify the firmware version on the Control Unit — typically a CU320-2 DP or CU320-2 PN — to confirm drive object compatibility. The 6SL3210-1SE17-7AA0 is fully supported under STARTER and SINAMICS Startdrive commissioning environments, and existing drive object parameters can be uploaded from the original module and downloaded to the replacement unit to minimize re-commissioning time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 6SL3210-1SE17-7AA0 into an existing SINAMICS S120 Booksize drive cabinet requires systematic pre-work across several engineering disciplines. Before removing the original module, the commissioning engineer should use STARTER or Startdrive to perform a full parameter upload from the existing drive object. This backup preserves motor data sets, speed controller gains, encoder configuration, and any application-specific function blocks that may have been programmed into the drive.

Power supply capacity is a critical checkpoint. The Active Line Module — for example a 6SL3130-6AE21-0AB1 16 kW unit — must have sufficient headroom to support the replacement module at its rated load. If the drive cabinet has been expanded with additional Single Motor Modules or Double Motor Modules such as the 6SL3120-2TE21-0AA3, the total DC link load must be recalculated to confirm the line module is not operating at its ceiling.

Terminal wiring on the motor side should be inspected and documented before disconnection. The U2, V2, W2 motor output terminals and the PE connection must be re-torqued to specification after installation. If the original installation used a SIEMENS MOTION-CONNECT 500 or MOTION-CONNECT 800PLUS motor cable, the same cable can be reused provided insulation integrity is confirmed with a megger test.

The DRIVE-CLiQ topology must be re-established after module swap. The replacement 6SL3210-1SE17-7AA0 will appear as a new component in the DRIVE-CLiQ tree, and the Control Unit — whether a CU320-2 DP running PROFIBUS DP or a CU320-2 PN on a PROFINET IO network — will need to accept the new component. In most cases, the existing drive object can be reassigned to the new hardware without rebuilding the project, provided the firmware versions are compatible.

If the retrofit involves migrating from an older S120 Chassis format to Booksize, additional planning is required for backplane and mounting rail changes. The Booksize format uses a shared DC link bus bar system, and modules such as the 6SL3162-2BM00-0AA0 bus bar adapter may be required depending on cabinet layout. Slot addressing and module sequencing within the DRIVE-CLiQ chain must be re-verified in the commissioning tool after physical installation.

For projects that also involve HMI updates — for example, replacing a SIMATIC TP700 Comfort panel or updating a WinCC Flexible runtime — screen objects linked to drive status words and fault codes should be reviewed to confirm tag mapping remains valid after the module swap. Drive fault and alarm messages displayed on the HMI are typically sourced from the Control Unit, so the panel communication link does not need to be reconfigured unless the CU itself is being replaced.

Encoder feedback modules such as the SMC20 or SMC30 Sensor Module Cabinet-Mounted units, which are commonly used in S120 Booksize installations for incremental or absolute encoder feedback, should also be checked for firmware compatibility and DRIVE-CLiQ assignment after the motor module is replaced. These modules retain their own parameter sets and are not affected by the motor module swap, but their position in the DRIVE-CLiQ chain must be confirmed in the commissioning tool.

Downtime Control During System Migration

Minimizing production downtime during a Single Motor Module replacement on a live SINAMICS S120 system requires a structured approach to pre-staging, parameter management, and post-installation verification. The most effective strategy is to pre-configure the replacement 6SL3210-1SE17-7AA0 offline before the maintenance window begins.

Using STARTER or Startdrive, the engineer can create an offline project that mirrors the existing drive configuration. The parameter set backed up from the original module is imported into the offline project and assigned to the replacement module. This allows the commissioning team to validate the configuration — including motor data, speed limits, ramp times, and safety function settings — before the physical swap takes place.

During the maintenance window, the sequence should follow a defined procedure: isolate the drive cabinet from the AC supply via the upstream circuit breaker or disconnector, discharge the DC link capacitors (confirm DC link voltage below 50 V before touching bus bars), remove the failed module, install the 6SL3210-1SE17-7AA0, reconnect DRIVE-CLiQ and motor cables, restore power, and download the pre-validated parameter set. A functional test at reduced speed should be performed before returning the axis to full production load.

For systems where the axis cannot be taken offline independently — for example, in a coordinated multi-axis gantry or winding application — a hot-standby spare strategy may be appropriate. Keeping a pre-configured 6SL3210-1SE17-7AA0 on the shelf with parameters already loaded reduces the swap-to-restart cycle to under 30 minutes in most Booksize cabinet configurations. All units supplied by SMARTNEXMSK are function-tested prior to shipment and covered by a 12-month warranty, supporting rapid deployment in time-critical retrofit scenarios.

Original program logic stored in the Control Unit (CU320-2 DP or CU320-2 PN) is not affected by the motor module replacement. The PLC program running on an upstream SIMATIC S7-300, S7-400, or S7-1500 controller communicating with the drive via PROFIBUS DP or PROFINET IO will continue to execute without modification, provided the drive object parameters are correctly restored and the axis reference point is re-established if an absolute encoder is in use.

Retrofit Support FAQ

Q1: Is the 6SL3210-1SE17-7AA0 a direct drop-in replacement for my existing S120 Booksize Single Motor Module?
A: Yes, provided the rated output current and DC link voltage of the replacement match the original module. The 6SL3210-1SE17-7AA0 is designed for the standard S120 Booksize DC link bus and mounts on the same rail system. Parameter restoration via STARTER or Startdrive is required after installation to ensure the drive object configuration is correctly applied to the new hardware.

Q2: What wiring changes are needed when installing the replacement module?
A: In most cases, no wiring changes are required. The motor output terminals (U2, V2, W2) and PE connection use the same terminal layout as the original module. DRIVE-CLiQ cables should be reconnected in the same topology sequence. If the original motor cable is in good condition, it can be reused. Re-torque all terminals to the values specified in the SINAMICS S120 Booksize Hardware Installation Manual.

Q3: How do I verify compatibility with my existing Control Unit firmware?
A: Connect to the CU320-2 DP or CU320-2 PN using STARTER or Startdrive and check the firmware version under the component properties. The 6SL3210-1SE17-7AA0 is compatible with CU firmware V4.7 and above. If the CU firmware is below this version, a firmware update should be performed before installing the replacement module to avoid DRIVE-CLiQ topology errors.

Q4: What does the 12-month warranty cover, and how is it supported?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. All units are function-tested before dispatch. In the event of a warranty claim, SMARTNEXMSK will arrange replacement or repair. Contact sales@smartnexmsk.com with the order reference and a description of the fault. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters.
