Siemens 6SL3210-5BE22-2CV1 S120 Motor Module Spare: Spare Replacement & Industrial Downtime Risk Control

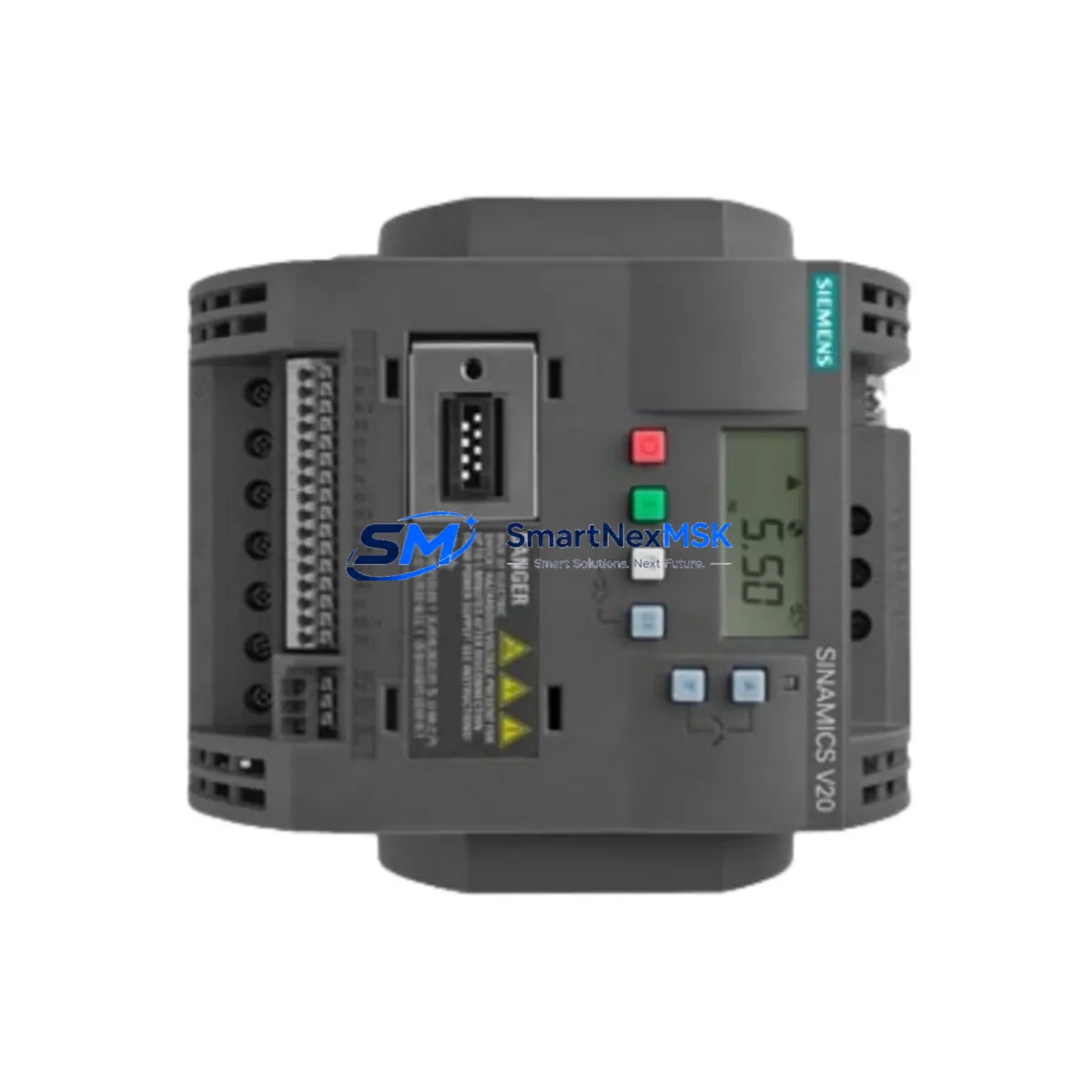

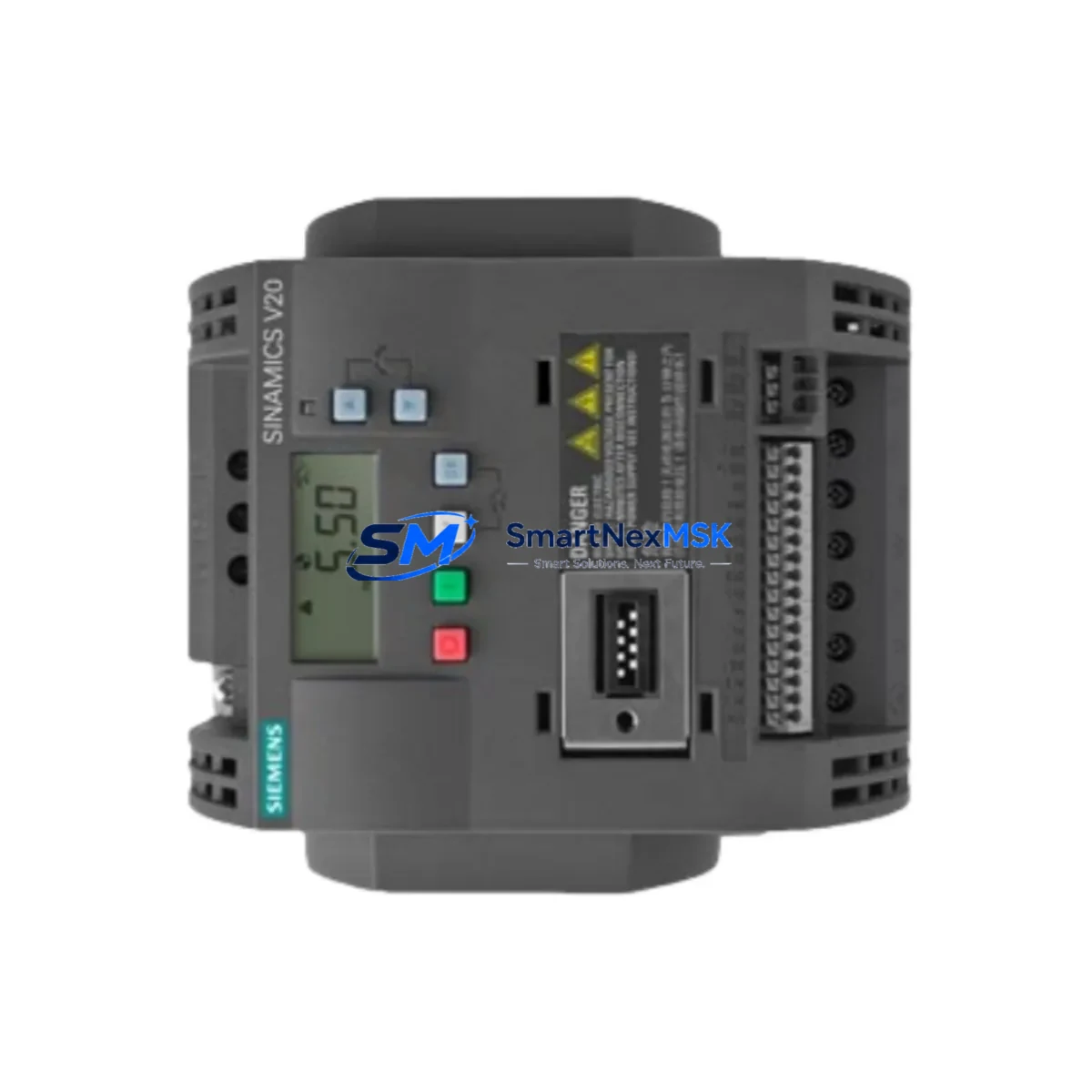

The Siemens 6SL3210-5BE22-2CV1 is an original SINAMICS S120 Single Motor Module rated at 2.2 kW in Booksize format. Designed for high-performance servo and vector drive applications, this module serves as a critical power conversion component within the S120 drive system, converting DC bus power from the Line Module into precisely regulated AC output for connected servo or induction motors. When this module fails or degrades, the entire drive axis goes offline — making fast, verified spare availability essential for any maintenance-conscious facility.
At SMARTNEXMSK, every 6SL3210-5BE22-2CV1 unit is sourced as an original Siemens component, functionally tested prior to shipment, and backed by a 12-month warranty. We maintain long-term stock to support both emergency replacement and planned maintenance programs for S120 Booksize installations worldwide.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 6SL3210-5BE22-2CV1 |
| Brand | Siemens |
| Series | SINAMICS S120 |
| Module Type | Single Motor Module, Booksize |
| Rated Output Power | 2.2 kW |
| DC Bus Voltage | 600 V DC (nominal) |
| Output Current | Approx. 5.5 A (continuous) |
| Cooling Method | Forced air (internal fan) |
| Form Factor | Booksize (rail-mount, S120 chassis) |
| Communication Interface | DRIVE-CLiQ |
| Compatible Line Modules | S120 Active Line Module, Basic Line Module, Smart Line Module |
| Compatible Control Units | CU320-2 DP, CU320-2 PN |
| Origin | Germany |
| Weight | Approx. 1.1 kg |
| Application Environment | Industrial automation, CNC, servo press, conveyor, packaging machinery |
| Maintenance Recommendation | Inspect DC bus connectors, DRIVE-CLiQ cables, and fan operation every 6 months |
| Warranty | 12 Months — tested before shipment |
Maintenance Planning for Continuous Operation
When a 6SL3210-5BE22-2CV1 Single Motor Module is flagged for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding S120 Booksize cabinet should be conducted in parallel to prevent repeat failures and maximize uptime after the repair.
Begin with the S120 Active Line Module (e.g., 6SL3130-6AE21-0AB1) or Smart Line Module supplying the shared DC bus — verify that DC bus voltage is stable and within specification before energizing the replacement Motor Module. A degraded Line Module can cause premature failure of a new Motor Module within days. Next, inspect the DRIVE-CLiQ cables connecting the Motor Module to the Control Unit (typically a CU320-2 DP or CU320-2 PN); damaged or loose DRIVE-CLiQ connectors are a leading cause of F07900-series faults that are often misdiagnosed as Motor Module failures.
Check the 24 V DC power supply feeding the Control Unit and signal electronics — an unstable 24 V rail (commonly supplied by a Siemens SITOP PSU100S or equivalent) can corrupt parameter memory and trigger spurious drive faults. Inspect all terminal block connections on the X21/X22 digital I/O interface and verify that enable signals, STO (Safe Torque Off) wiring, and motor temperature sensor inputs are correctly landed and free of corrosion.
For multi-axis cabinets, also assess adjacent Double Motor Modules (such as the 6SL3120-2TE21-0AA3) sharing the same DC bus segment — a shorted motor winding on one axis can stress neighboring modules. Review the motor power cable and motor encoder feedback cable for insulation breakdown, especially in high-cycle or high-vibration environments. If the installation uses a Sensor Module Cabinet-Mounted (SMC30) for encoder evaluation, verify its DRIVE-CLiQ link and power supply integrity as well.
Where the control cabinet includes signal isolators or relay output modules for interfacing with PLC I/O (e.g., Siemens ET 200SP distributed I/O or third-party safety relays), confirm that all interlock and permissive signals are functioning correctly before returning the axis to automatic mode. Finally, document the replacement in the site maintenance log and update the spare parts inventory to ensure a replacement 6SL3210-5BE22-2CV1 is restocked promptly — maintaining at least one buffer unit on the shelf is strongly recommended for any facility running S120 Booksize drives in continuous production.
Site Replacement Workflow
Step 1 — Isolation & Safe State: Isolate the drive cabinet from mains supply and confirm DC bus discharge (wait minimum 5 minutes after power-off, verify with a calibrated voltmeter at the DC bus terminals). Activate lockout/tagout per site safety procedures.
Step 2 — Module Removal: Disconnect the DRIVE-CLiQ cable, motor power connector (X1), motor brake connector (if fitted), and the DC bus busbars. Release the module retention latch and slide the 6SL3210-5BE22-2CV1 out of the Booksize chassis rail.
Step 3 — Compatibility Verification: Confirm the replacement unit carries the same order number (6SL3210-5BE22-2CV1) and firmware compatibility with the installed CU320-2 Control Unit firmware version. If upgrading from an older hardware revision, check the Siemens compatibility matrix or contact SMARTNEXMSK technical support.
Step 4 — Installation & Parameter Restore: Slide the new module into position, reconnect all connectors in reverse order, and power up the Control Unit. The CU320-2 will auto-detect the new Motor Module via DRIVE-CLiQ and prompt for parameter acceptance. Accept the topology change and restore axis parameters from the saved project backup (STARTER or Startdrive).
Step 5 — Functional Test: Run the axis through a low-speed jog cycle, verify current feedback, encoder signals, and temperature readings. Confirm no active faults before returning to production. Log the replacement date, serial number of the removed module, and the new module’s serial number for traceability.
This workflow minimizes downtime to typically under 2 hours for a prepared maintenance team, compared to days of delay when spare parts are not pre-stocked. SMARTNEXMSK ships tested units with same-day or next-business-day dispatch to support emergency replacement scenarios globally.
Spare Parts Support FAQ
Q1: Is the 6SL3210-5BE22-2CV1 still available as a new original part, or only as refurbished?
SMARTNEXMSK supplies original Siemens 6SL3210-5BE22-2CV1 units. All units are functionally tested before shipment and covered by a 12-month warranty. Stock availability is confirmed at time of order; contact [email protected] for real-time inventory status.
Q2: How do I verify compatibility with my existing S120 Booksize system before ordering?
Provide your Control Unit firmware version (readable from the CU320-2 nameplate or STARTER project) and the existing Motor Module hardware revision. SMARTNEXMSK technical staff will confirm compatibility and advise on any firmware update requirements prior to shipment.
Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional defects under normal operating conditions. If a unit fails within the warranty period, contact [email protected] with the order number and fault description. We will arrange priority replacement shipment or repair, subject to inspection of the returned unit.
Q4: Can SMARTNEXMSK support long-term spare parts stocking programs for S120 Booksize installations?
Yes. We offer reserved-stock agreements for facilities operating multiple S120 axes, ensuring dedicated buffer inventory of the 6SL3210-5BE22-2CV1 and related modules (Line Modules, Control Units, DRIVE-CLiQ cables, and power supplies) is maintained on your behalf. Contact our sales team to discuss a tailored spare parts support plan.
