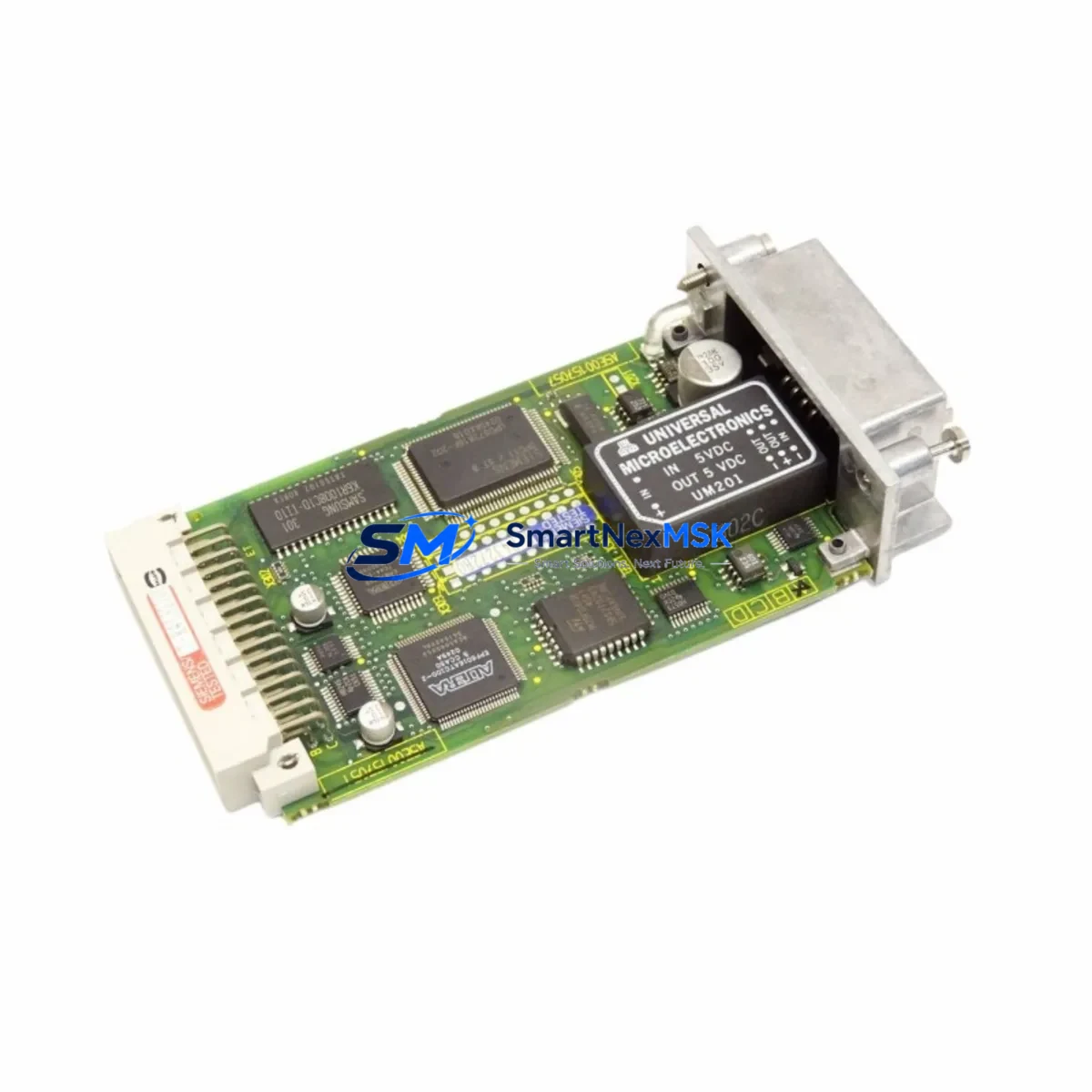

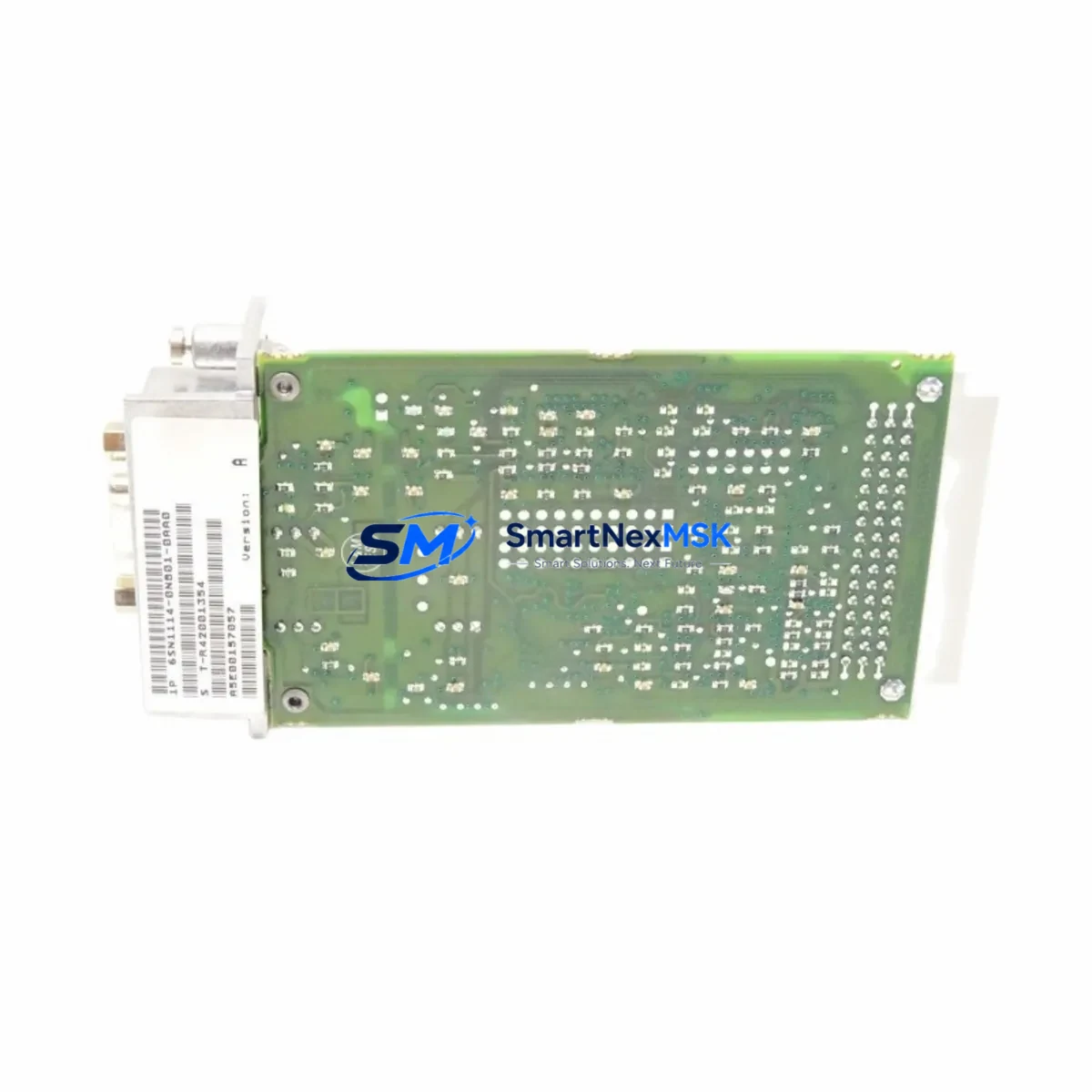

Siemens 6SN1118-0DH21-0AA1 Retrofit-Ready Dual-Axis Servo Control for SIMODRIVE 611-D Control Systems
The Siemens 6SN1118-0DH21-0AA1 is a dual-axis digital servo control module designed for the SIMODRIVE 611-D drive system — one of Siemens’ most widely deployed servo platforms in CNC machine tools, transfer lines, and precision manufacturing automation. As the 611-D series approaches end-of-life and spare parts become increasingly scarce, this module serves as a verified retrofit-ready replacement that enables engineers to restore full servo axis functionality without redesigning the control architecture or replacing the entire drive cabinet.
At SMARTNEXMSK, we maintain ready stock of the 6SN1118-0DH21-0AA1 sourced from authorized channels and tested prior to shipment. Each unit ships with a 12-month warranty and full documentation support to accelerate your retrofit or emergency repair project.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 6SN1118-0DH21-0AA1 |
| Drive Series | SIMODRIVE 611-D (Digital) |
| Axis Configuration | Dual-Axis Servo Control |
| Backplane Interface | SIMODRIVE 611 standard rack slot (compatible with 6SN1145 / 6SN1146 power modules) |
| Communication Protocol | PROFIBUS-DP / Drive-CLiQ (via SINUMERIK interface) |
| Compatible Controllers | SINUMERIK 840D, 840Di, 810D |
| Replacement Recommendation | Direct drop-in for 6SN1118-0DH21-0AA0 (prior revision); verify firmware version before swap |
| Commissioning Tool | SIMODRIVE 611-D Start-Up Tool (SimoCom U) or SINUMERIK HMI Advanced |
| Installation Requirement | Standard DIN rail / rack mounting; no mechanical modification required |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Replacing a servo control module in a live production environment requires careful pre-planning across multiple system layers. The 6SN1118-0DH21-0AA1 integrates directly into the SIMODRIVE 611-D rack alongside the 6SN1145-1BA01-0BA1 infeed/regenerative feedback module and the 6SN1146-1AB00-0BA1 monitoring module. Before removal of the existing unit, engineers should document all axis parameter sets stored in the SINUMERIK 840D NCU — particularly MD32000 (maximum axis velocity), MD32200 (dynamic response), and encoder assignment parameters.
Terminal wiring on the X121 and X122 connectors must be photographed and mapped prior to disconnection. The 6SN1118-0DH21-0AA1 uses the same 50-pin sub-D encoder interface as its predecessor, but technicians should verify motor encoder cable compatibility — particularly when the existing servo motors are older 1FT6 or 1FK6 series with TTL encoders versus newer absolute encoders used on 1FT7 or 1FK7 motors.
Power supply capacity is a critical checkpoint. The 611-D DC bus must be verified to support the combined axis load. If the retrofit involves upgrading from a single-axis 6SN1118-0DH11 module to this dual-axis variant, the 6SN1162-0GA00-0AA0 DC bus connector set and the infeed module rating must be recalculated. The 6SN1111-0AA01-1CA0 line filter should also be inspected for capacity compliance.
For systems running SINUMERIK 840D with an older NCU 571 or NCU 572 controller, the PROFIBUS-DP address assignment for the new module must be configured in HW Config within SIMATIC Manager or TIA Portal (for migrated projects). If the machine uses a 6FC5203-0AB20-0AA0 operator panel interface (OPI) or a TP177B HMI panel, axis alarm screens and spindle override displays should be verified post-commissioning to confirm correct axis mapping. Programming cables such as the 6ES7972-0CB20-0XA0 PROFIBUS PC adapter remain compatible for parameter backup and restore operations.
I/O expansion modules connected via the SIMODRIVE 611-D system — including 6SN1114-0AA01-0AA0 terminal expansion boards — do not require reconfiguration when replacing only the servo control module, provided the rack slot assignment is maintained. This significantly reduces retrofit scope and commissioning time.
Downtime Control During System Migration
Minimizing production downtime during a servo control module replacement requires a structured swap protocol. The recommended approach is to perform a full NCU data backup using the SINUMERIK 840D series archive function before any hardware is touched — this preserves all PLC ladder logic, NC programs, tool offsets, and axis machine data in a single restorable archive.
With the 6SN1118-0DH21-0AA1 pre-tested and confirmed functional at our facility before shipment, on-site installation time is typically reduced to under two hours for experienced engineers. The module’s firmware version should be matched or updated to align with the existing SINUMERIK software release — mismatched firmware is the most common cause of post-swap alarm states (e.g., Alarm 300500 or 300600 series on the 840D).
After physical installation, the SimoCom U commissioning software should be used to perform motor identification and encoder calibration. If the original motor data sets (MDI files) were archived, they can be reloaded directly, eliminating the need for a full auto-tuning cycle and further reducing downtime. Axis referencing (homing) procedures should be validated before returning the machine to automatic mode, particularly for systems with absolute encoders where the reference point memory may have been cleared during the module swap.
For multi-axis machines where only one axis is being replaced, the remaining axes can often remain powered and in a safe-stop state during the swap, preserving program state in the NCU and avoiding a full machine restart cycle. This approach is especially valuable on transfer lines or multi-spindle machining centers where a full restart involves extended warm-up and calibration sequences.
Retrofit Support FAQ
Q1: Is the 6SN1118-0DH21-0AA1 a direct replacement for the 6SN1118-0DH21-0AA0?
Yes. The -0AA1 is the current revision of the -0AA0. It is mechanically and electrically identical and fits the same rack slot. A firmware update via SimoCom U may be required if the SINUMERIK NCU is running an older software version. No wiring changes are needed.
Q2: What commissioning steps are required after installation?
After seating the module in the rack and reconnecting all encoder and power connectors, connect SimoCom U via the RS232 or PROFIBUS interface. Load the saved motor data set (or perform motor identification if no backup exists), verify axis parameters, and run a slow-speed jog test before returning to full automatic operation. Check for active alarms on the SINUMERIK HMI before releasing the axis to production.
Q3: Can this module be used with motors other than Siemens 1FT/1FK series?
The 6SN1118-0DH21-0AA1 is optimized for Siemens 1FT6, 1FT7, 1FK6, and 1FK7 servo motors. Use with third-party motors is possible in principle but requires custom motor data parameterization and is not covered under the standard 12-month warranty. Consult your application engineer before proceeding with non-Siemens motor combinations.
Q4: What does the 12-month warranty cover, and how is it claimed?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any relevant alarm codes from the SINUMERIK HMI. Replacement or repair will be arranged within 5 business days of fault confirmation.
