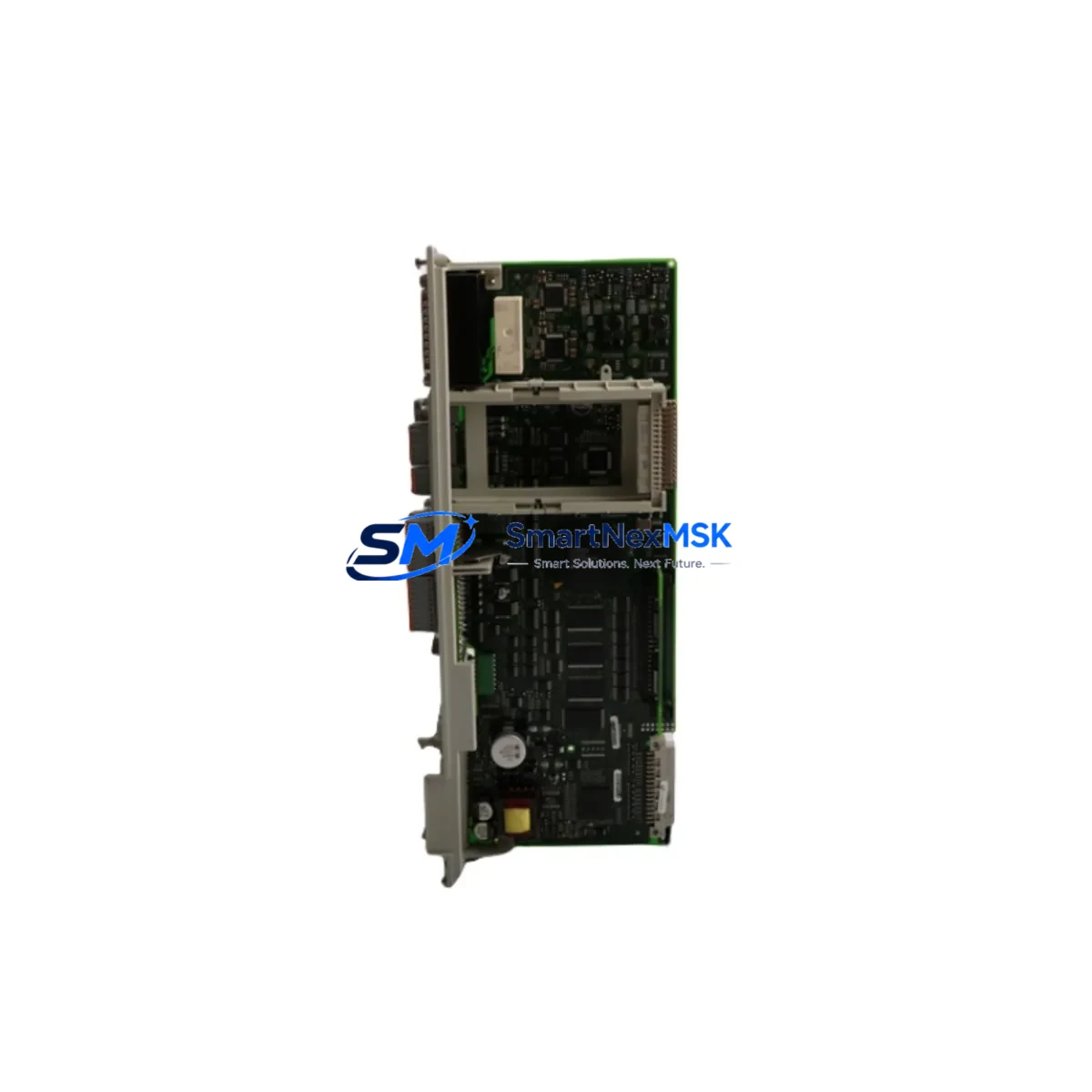

Siemens 6SN1118-0NH01-0AA1 Maintenance-Ready Spare SIMODRIVE 611
The Siemens 6SN1118-0NH01-0AA1 is a drive control module designed for the SIMODRIVE 611 series — one of Siemens’ most widely deployed digital servo drive platforms in CNC machining centers, transfer lines, and precision manufacturing systems. When this module fails or degrades, the entire axis it governs becomes inoperable, resulting in unplanned downtime that can cost thousands of dollars per hour in lost production. Stocking a verified, original spare is the single most effective measure a maintenance team can take to protect uptime on SIMODRIVE 611-equipped machinery.
This unit is sourced as an original Siemens component, fully tested prior to shipment, and backed by a 12-month warranty. It is suitable for direct replacement in existing SIMODRIVE 611 drive cabinets without firmware modification in most standard configurations, making it the preferred choice for both emergency breakdown recovery and planned preventive maintenance rotations.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number (SKU) | 6SN1118-0NH01-0AA1 |
| Brand | Siemens |
| Series | SIMODRIVE 611 |
| Module Type | Drive Control Module (Regelungseinschub) |
| Compatible Drive Units | SIMODRIVE 611 Digital / Universal HR feed and spindle drive units |
| Axis Configuration | Single-axis control |
| Interface | PROFIBUS-DP / Drive-CLiQ (configuration-dependent) |
| Supply Voltage | 24 VDC logic supply via backplane / NE module |
| Operating Temperature | 0 °C to +55 °C (cabinet-mounted, forced-air cooled) |
| Country of Origin | Germany |
| Application Environment | CNC machining centers, transfer lines, servo press systems, industrial robots |
| Maintenance Recommendation | Replace at first sign of axis fault codes (e.g., F-xx drive alarms); inspect every 24 months during planned shutdown |
| Compatibility Verification | Cross-reference with SINUMERIK 840D/810D CNC controller and NE/UE power module firmware version |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal operating conditions |
| Pre-shipment Testing | Functional test performed; unit verified operational before dispatch |
Maintenance Planning for Continuous Operation
Replacing the 6SN1118-0NH01-0AA1 drive control module is rarely an isolated task. In a SIMODRIVE 611 cabinet, this module works in close coordination with several other components, and a thorough maintenance engineer will inspect the entire drive stack during any planned or emergency intervention.
The 6SN1146-1BB00-0BA1 NE/UE infeed module (or equivalent NE power module) supplies the DC bus voltage that feeds all drive units in the cabinet — if the infeed module has degraded capacitors or a failing pre-charge circuit, a new control module will not resolve recurring bus undervoltage faults. Similarly, the 6SN1162-0GA00-0AA1 shield connection plate and associated 6FX2002 series motor power cables should be inspected for insulation breakdown, especially on machines with high cycle counts.
On the CNC side, the SINUMERIK 840D sl NCU communicates with the drive control module via the internal drive bus; any communication timeout alarms (e.g., Alarm 380500) may indicate a failing control module, a corrupted NCU drive parameter set, or a faulty 6SN1118 series communications board rather than the drive hardware itself. Maintenance teams should always perform a parameter backup via SINUMERIK HMI or SIMATIC S7 PG/PC before swapping control modules.
Within the cabinet, inspect the 24 VDC SITOP power supply (e.g., 6EP1334-2BA20) that feeds the control electronics — a sagging 24 V rail is a common root cause of intermittent drive faults that are misdiagnosed as control module failures. Check the terminal block assemblies (e.g., Siemens 8WA series) for loose connections on the enable signals and ready contacts. The 6SN1111 series axis expansion modules and any installed 6SN1113 monitoring modules should also be visually inspected for burn marks or swollen components.
For spindle-axis applications, verify the condition of the 1PH7 or 1PH8 series spindle motor encoder feedback cable and the SMC (Sensor Module Cabinet-Mounted) unit, as encoder signal degradation can cause the drive control module to log position feedback faults that mimic hardware failure. Keeping a spare 6SN1118-0NH01-0AA1 alongside a spare NE module and a SITOP PSU in your critical-spares cabinet ensures that the most common single-point failures in a SIMODRIVE 611 system can be resolved within one shift.
Site Replacement Workflow
Step 1 — Fault Isolation: Record all active alarms from the SINUMERIK HMI or NCU diagnostic screen. Distinguish between drive-bus communication faults and power-stage faults to confirm the control module is the failed component before ordering.
Step 2 — Safe Isolation: Follow LOTO (Lockout/Tagout) procedures. De-energize the machine, discharge the DC bus (minimum 5-minute wait after main contactor opens), and verify zero-voltage with a calibrated meter before opening the drive cabinet.
Step 3 — Parameter Backup: If the existing module is still partially functional, use SINUMERIK HMI Advanced or a PG/PC with STARTER/SCOUT software to back up all drive parameters. This eliminates re-commissioning time after the swap.
Step 4 — Module Swap: The 6SN1118-0NH01-0AA1 slides into the SIMODRIVE 611 drive unit on the standard guide rails. Ensure the front panel connector and the backplane bus connector are fully seated. Torque all terminal screws to specification.
Step 5 — Parameter Restore & Test: Restore the parameter backup. Perform a controlled jog test at reduced feedrate before returning the axis to full production speed. Verify encoder feedback, current limits, and speed loop response.
Step 6 — Documentation: Log the replacement in the machine maintenance record with the date, replaced part number, and post-swap test results. Update your spare parts inventory accordingly.
This workflow minimizes mean time to repair (MTTR) and ensures the replacement does not introduce new faults due to incorrect parameter configuration — a common cause of repeat failures after control module swaps on legacy SIMODRIVE 611 systems.
Spare Parts Support FAQ
Q1: Is the 6SN1118-0NH01-0AA1 still available as a new original part, or only as refurbished?
We supply original Siemens 6SN1118-0NH01-0AA1 units. Each unit undergoes functional testing before shipment. Given that SIMODRIVE 611 is a mature platform, availability can fluctuate — we recommend securing at least one spare per machine to avoid extended lead times during a breakdown event.
Q2: How do I verify compatibility with my specific SIMODRIVE 611 drive unit before ordering?
Cross-reference the drive unit order number (typically found on the drive unit nameplate, e.g., 6SN1123-1AA00-0CA1 or similar) with the Siemens SIMODRIVE 611 configuration manual. The 6SN1118-0NH01-0AA1 is compatible with the standard single-axis digital drive units in the 611 Universal HR family. If you are unsure, provide your drive unit nameplate data and CNC controller type when contacting us — we will confirm compatibility before shipment.
Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure and manufacturing defects under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact us with the order number, a description of the fault, and any alarm codes observed. We will arrange return shipping and either repair or replace the unit.
Q4: Can you support long-term supply for fleet maintenance programs covering multiple machines?
Yes. We support planned maintenance programs and can reserve stock for customers managing fleets of SIMODRIVE 611-equipped machines. Contact us to discuss volume pricing, scheduled delivery, and consignment stock arrangements that align with your annual maintenance calendar.
