Siemens 7MH4930-0AA01 Retrofit-Ready Weighing Module

Siemens 7MH4930-0AA01 Retrofit-Ready Weighing Module: Compatible Modernization and Smooth System Upgrade

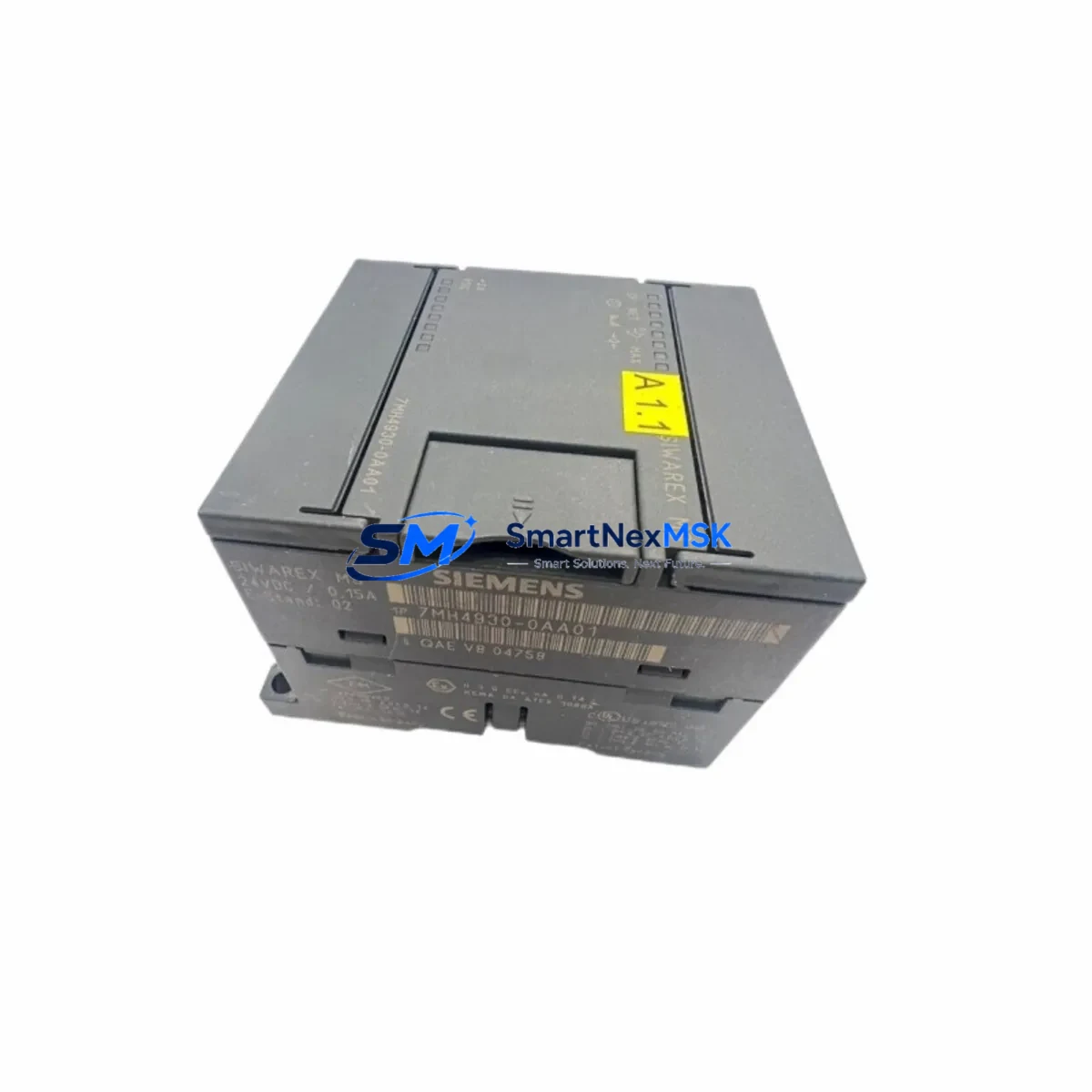

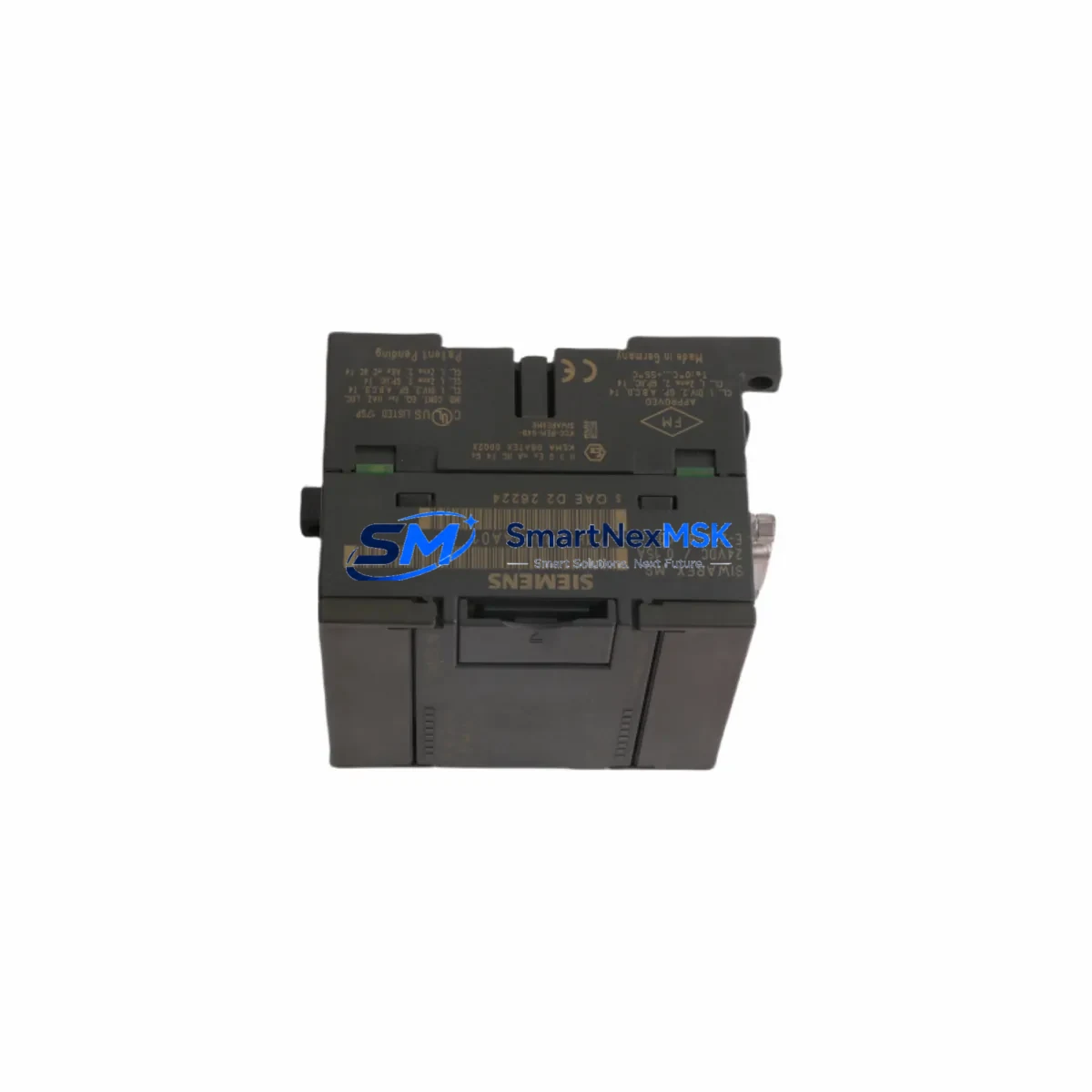

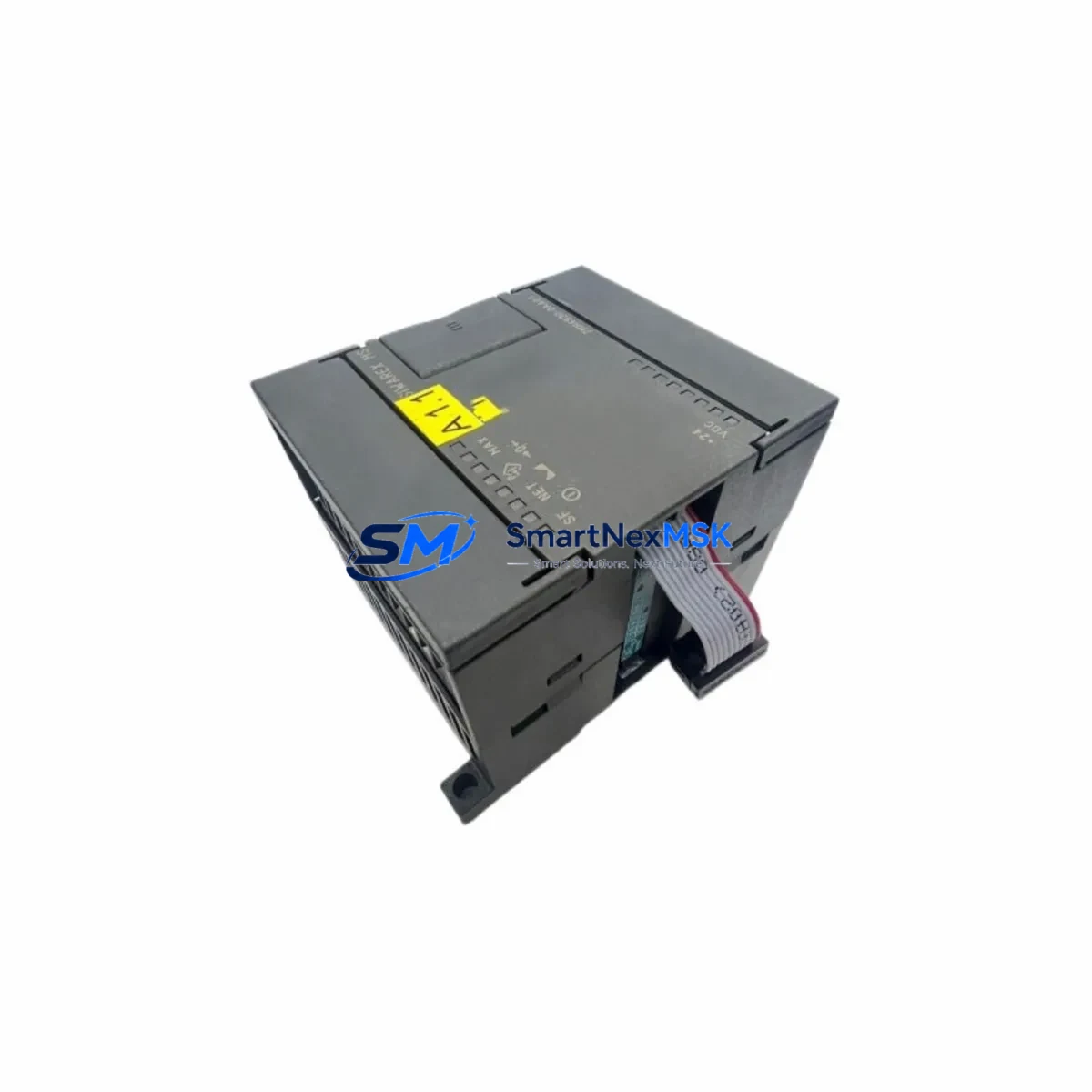

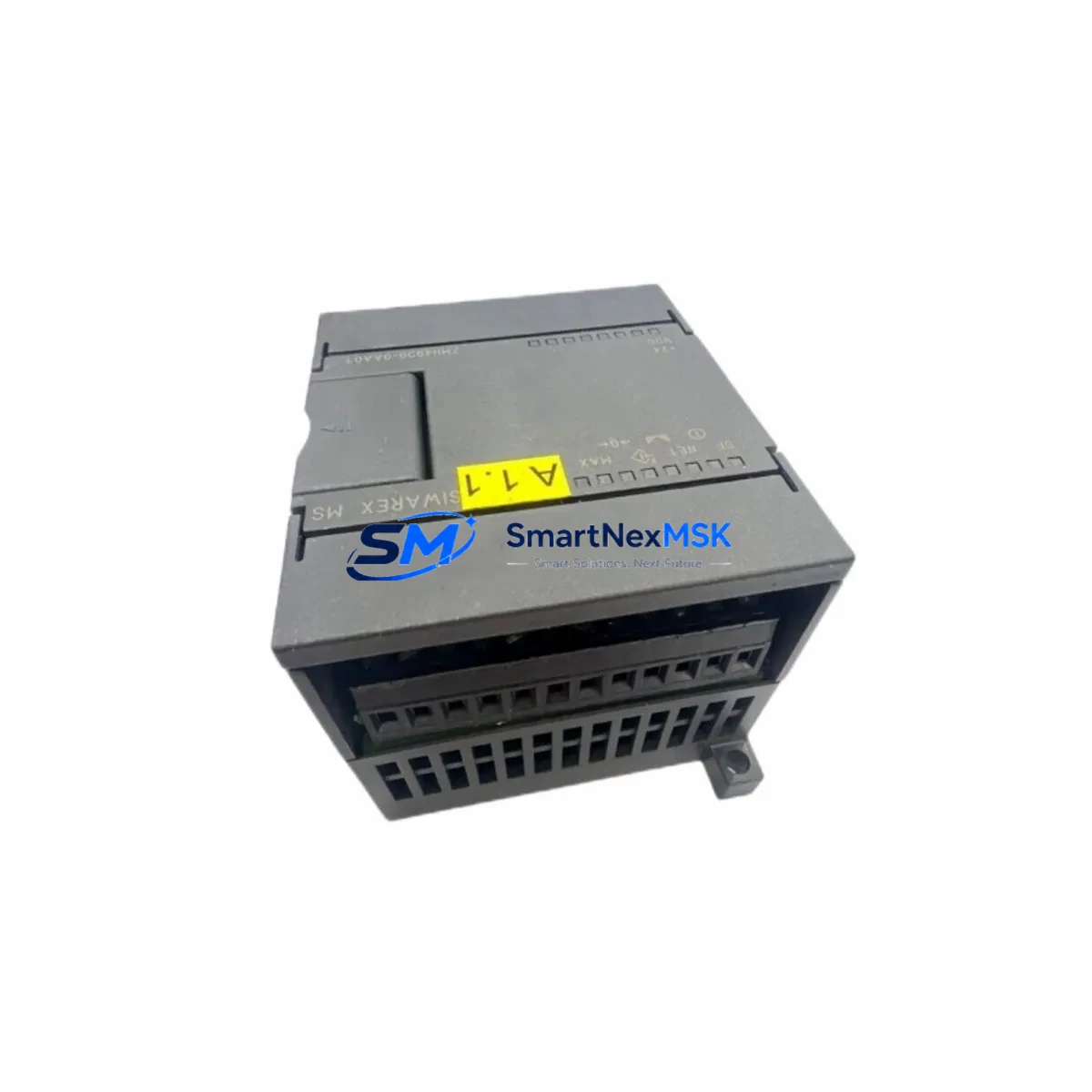

The Siemens 7MH4930-0AA01 is a SIWAREX WP231 weighing module engineered for seamless integration into SIMATIC S7-300 and ET 200M distributed I/O systems. As legacy weighing infrastructure ages and OEM support windows close, the 7MH4930-0AA01 has become a critical retrofit component for facilities managing batching lines, hopper scales, belt conveyors, and tank weighing applications. Whether you are replacing a failed unit, upgrading an end-of-life predecessor, or migrating a control cabinet to a more maintainable architecture, this module delivers drop-in compatibility with minimal re-engineering effort.

SMARTNEXMSK maintains verified stock of the 7MH4930-0AA01 sourced from authorized distribution channels. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial conditions. Fast global dispatch is available from our warehouse, with export documentation prepared for customs clearance in major industrial markets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 7MH4930-0AA01 into an existing S7-300 or ET 200M installation begins with a thorough audit of the current control cabinet. Engineers should verify that the existing PS 307 5A or PS 307 10A power supply module has sufficient current headroom to support the additional module load. In distributed configurations where the weighing module is mounted on an ET 200M rack connected via PROFIBUS DP, the IM 153-2 or IM 153-4 interface module must be confirmed compatible with the firmware revision of the 7MH4930-0AA01.

Terminal block wiring is a common source of commissioning delays. The SIWAREX WP231 uses a dedicated terminal assignment for excitation voltage, signal lines, and sense lines. When replacing a SIWAREX U or an older SIWAREX M, the terminal layout differs and a wiring adapter or re-termination is required. Document the existing load cell cable color coding before disconnection, and verify the cable shielding is grounded at one end only to prevent ground loop interference on the millivolt signal path.

Module addressing must be re-established after physical installation. In STEP 7 or TIA Portal, the hardware configuration must reflect the new module in the correct slot. If the predecessor module occupied a different slot or had a different I/O address range, the CPU program blocks referencing the weighing data — typically FB SIWAREX or custom FC wrappers — must be updated to match the new process image address. Failure to align addresses will result in the CPU entering STOP mode or producing incorrect weight values at the HMI.

HMI screens built on SIMATIC WinCC or WinCC flexible that display weight, tare, and limit status will require tag re-mapping if the underlying DB structure changes. In most direct replacement scenarios where the same module type is swapped, the DB layout remains identical and HMI screens require no modification. However, when migrating from a SIWAREX M to the WP231 platform, the data block structure differs and screen tags must be re-linked to the new DB addresses.

Communication link integrity should be verified after installation. In PROFIBUS DP topologies, use a PROFIBUS tester or the diagnostic functions in STEP 7 to confirm the slave address of the ET 200M rack is recognized and the 7MH4930-0AA01 is reporting correctly. In direct S7-300 backplane configurations, the module diagnostic buffer in STEP 7 will confirm successful initialization. If the system includes a CP 343-1 Ethernet module for remote SCADA connectivity, verify that the weighing data is correctly forwarded through the existing communication path after the module swap.

For facilities running multi-scale systems, the SM 321 digital input modules and SM 322 digital output modules used for limit switches, dosing valves, and conveyor interlocks should be inspected for terminal condition and relay wear during the same maintenance window. Replacing the weighing module while the cabinet is open is an efficient opportunity to address adjacent I/O modules that may be approaching end of service life.

Downtime Control During System Migration

Minimizing production downtime during a weighing module replacement requires preparation before the maintenance window begins. The existing SIWAREX WP231 parameters — including scale range, filter settings, limit values, tare memory, and calibration coefficients — should be exported using SIWATOOL WP231 prior to shutdown. This parameter backup can be restored to the replacement 7MH4930-0AA01 in minutes, eliminating the need for a full re-calibration in most cases where the load cell and mechanical installation remain unchanged.

The CPU program should be backed up to a memory card or PC before any hardware change. If the system uses a SIMATIC S7-300 CPU 315-2 DP or CPU 317-2 DP, the program can be saved to a MMC memory card and restored rapidly in the event of an unexpected issue during the swap. This protects the original ladder logic, function block library, and DB contents from accidental loss.

Physical replacement of the module takes under five minutes on a de-energized rack. After re-energizing, the CPU will perform a hardware configuration comparison. If the replacement module matches the configured type exactly, the CPU will transition to RUN mode automatically. If a parameter restore is required, connect the SIWATOOL WP231 software via the module’s RS-232 or USB interface, load the saved parameter file, and perform a zero calibration with the scale empty before resuming production.

For critical continuous processes where even brief interruptions are costly, consider staging the replacement during a scheduled shift change or planned maintenance interval. Having the 7MH4930-0AA01 pre-configured and parameter-loaded on the bench before the maintenance window begins reduces in-cabinet time to the minimum. SMARTNEXMSK can ship pre-tested units with customer-specified parameters loaded on request — contact our technical team to discuss pre-commissioning options.

Retrofit Support FAQ

Q1: Is the 7MH4930-0AA01 a direct drop-in replacement for my existing SIWAREX WP231 unit?
Yes. The 7MH4930-0AA01 is the standard SIWAREX WP231 order number and is a direct physical and functional replacement for any unit of the same type. The module slots into the same S7-300 or ET 200M rack position, uses the same terminal wiring, and is recognized by the same hardware configuration in STEP 7 and TIA Portal. No program changes are required for a like-for-like swap. Each unit shipped by SMARTNEXMSK is pre-tested and covered by a 12-month warranty.

Q2: Can the 7MH4930-0AA01 replace older SIWAREX U or SIWAREX M modules in my existing rack?
The SIWAREX WP231 is the designated successor platform for SIWAREX U and SIWAREX M in S7-300 environments. Physical installation is compatible with the same rack slots, but terminal wiring assignments differ between generations. A wiring re-termination is required, and the CPU hardware configuration and program blocks must be updated to reference the WP231 module type and its data block structure. Siemens provides a migration guide for this transition. Our technical team can advise on the specific steps for your installation.

Q3: What commissioning steps are required after installing the replacement module?
After physical installation and CPU restart, connect SIWATOOL WP231 to the module and restore the previously exported parameter file. Perform a zero-point calibration with the scale unloaded, then verify the span calibration using a reference weight. Check limit value outputs on the SM 322 digital output module and confirm weight values are correctly displayed on the WinCC or WinCC flexible HMI. Log the calibration result and retain it for quality records. The full commissioning sequence typically takes 30–60 minutes for an experienced technician.

Q4: What does the 12-month warranty cover, and what is the return process?
The 12-month warranty covers manufacturing defects and operational failures under rated electrical and environmental conditions as specified in the SIWAREX WP231 datasheet. It does not cover damage from incorrect wiring, overvoltage, physical impact, or installation outside the rated operating range. To initiate a warranty claim, contact SMARTNEXMSK at sales@smartnexmsk.com with the order number, failure description, and photos of the installation. We will arrange return shipping and provide a replacement or repaired unit within the agreed lead time.
