Siemens 80190-220-01-R Retrofit-Ready Control Board for SP-SCRGD

Siemens 80190-220-01-R Retrofit-Ready Control Board for SP-SCRGD Control Systems

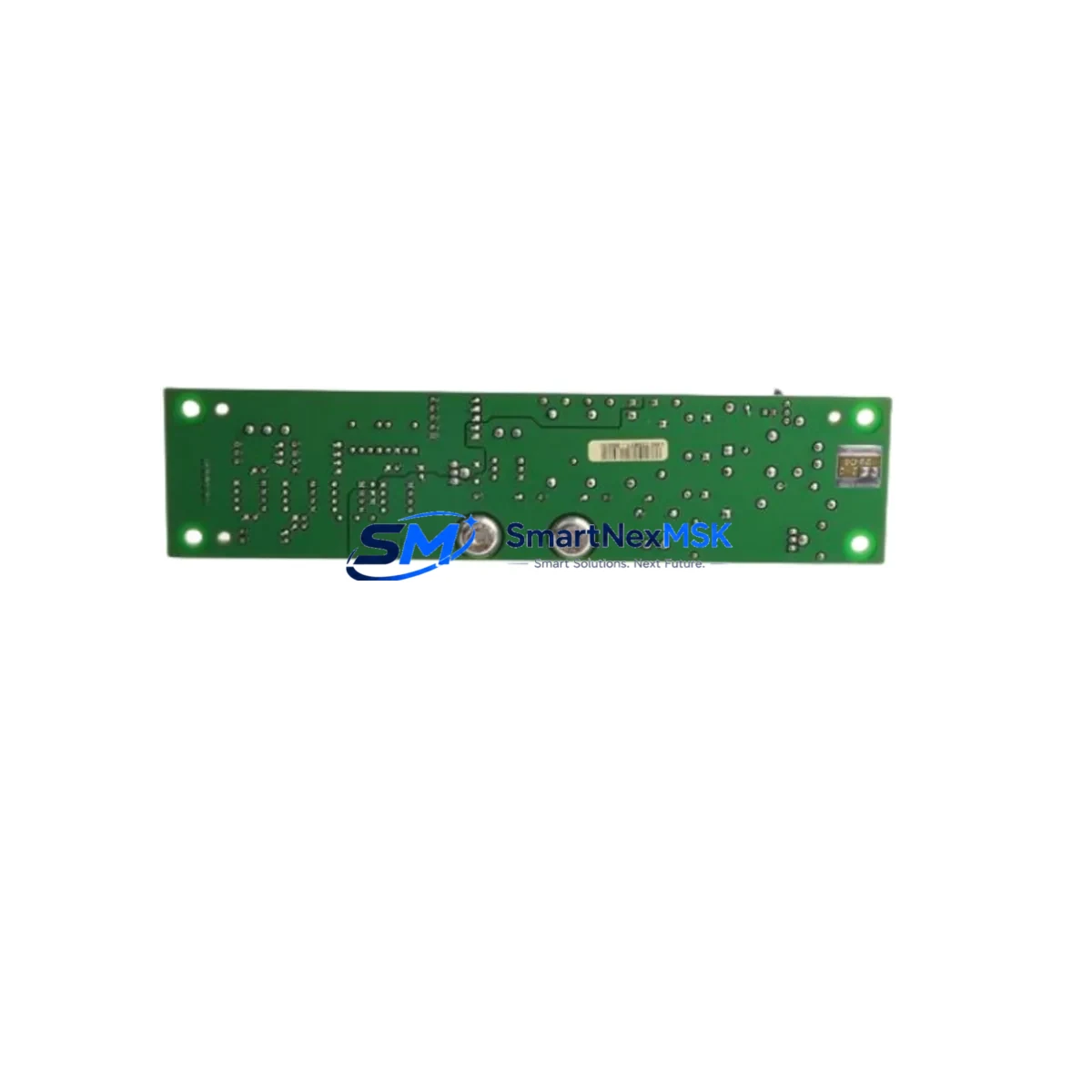

The Siemens 80190-220-01-R is a retrofit-ready control board designed for seamless integration into SP-SCRGD series automation and drive control systems. As legacy Siemens SINUMERIK and SIMODRIVE platforms approach end-of-life, the 80190-220-01-R has become a critical spare and upgrade component for engineers managing aging production lines, CNC machine tool retrofits, and industrial control cabinet modernization projects. Whether you are replacing a failed board, upgrading a discontinued module, or migrating a control system to extend its operational lifespan, this board delivers verified compatibility, reliable performance, and a 12-month warranty backed by pre-shipment functional testing.

Industrial facilities operating Siemens SP-SCRGD-based control architectures frequently encounter challenges sourcing original replacement boards as production of legacy components is discontinued. The 80190-220-01-R addresses this gap directly, offering a tested, in-stock solution that eliminates extended lead times and costly system redesigns. Our inventory is sourced from verified supply chains, and each unit undergoes outgoing inspection prior to dispatch to ensure it meets original Siemens performance specifications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Siemens 80190-220-01-R into an existing SP-SCRGD control system requires careful pre-installation planning across several interdependent subsystems. Before removing the failed or obsolete board, engineers should document the current rack configuration, including the backplane slot assignments of adjacent modules such as the Siemens SM 321 digital input module, SM 322 digital output module, and any installed CP 342-5 PROFIBUS communication processor. These neighboring modules share the backplane bus, and their addresses must remain consistent after the replacement board is seated.

Power budget verification is a mandatory step. The SP-SCRGD rack’s power supply — typically a Siemens PS 307 5A or PS 307 10A unit — must have sufficient residual capacity to support the 80190-220-01-R alongside all other installed modules. Overloaded power rails are a common cause of intermittent faults following board replacements and should be ruled out before commissioning begins.

Terminal wiring and field I/O connections must be photographed and labeled before disconnection. The 80190-220-01-R uses the same terminal block footprint as its predecessors in the SP-SCRGD series, but field wiring should be verified against the original electrical schematic to prevent miswiring during reinstallation. Pay particular attention to analog input channels if the system interfaces with process instrumentation such as pressure transmitters or temperature sensors via an SM 331 analog input module.

Communication link integrity is equally critical. If the control system uses a PROFIBUS DP network connecting the SP-SCRGD controller to remote I/O stations, variable-frequency drives, or an OP 277 HMI panel, the network topology and bus termination resistors must be verified after the board swap. MPI-connected programming devices using a PC Adapter USB or MPI/PROFIBUS cable should be used to re-establish the online connection and confirm that the CPU recognizes all configured slaves without fault.

For systems where the 80190-220-01-R replaces a board that also managed motion control axes — common in CNC retrofit applications — the drive parameters stored in the Siemens SIMODRIVE 611 or 6SN1 series drive units must be backed up before any hardware change. Axis homing sequences, encoder reference marks, and servo gain settings are not stored on the control board itself but must be re-verified during post-installation commissioning to ensure accurate positioning and safe machine operation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a control board in a live production environment. The recommended approach for the 80190-220-01-R retrofit is to perform a full program backup using STEP 7 or TIA Portal before any hardware is disturbed. The CPU’s program blocks, data blocks, system function blocks, and hardware configuration should be archived to an offline project file and stored on a separate engineering workstation. This ensures that if the replacement board requires a fresh program download, the original logic can be restored without relying on the failed module.

Where possible, schedule the board replacement during a planned maintenance window rather than responding reactively to a failure. Pre-stage the 80190-220-01-R at the control cabinet with all required tools, including a grounded ESD wrist strap, the appropriate flat-blade or Torx screwdriver for the rack retaining screws, and a laptop with STEP 7 or TIA Portal installed and licensed. Having the programming cable — such as a Siemens PC Adapter USB A2 — connected and tested before the old board is removed reduces the reconnection time significantly.

After the new board is installed and powered, perform a controlled CPU restart in STOP mode before switching to RUN. Verify that all I/O modules report correctly in the hardware diagnostics view, that no SF (system fault) or BF (bus fault) LEDs are illuminated on the rack, and that the PROFIBUS DP master reports all slaves as active. Only after a clean diagnostic state is confirmed should the system be transitioned to RUN mode and production resumed. This structured approach consistently reduces total replacement downtime to under two hours for experienced engineers familiar with the SP-SCRGD platform.

Retrofit Support FAQ

Q1: Is the Siemens 80190-220-01-R a direct drop-in replacement for the original SP-SCRGD control board?
A: The 80190-220-01-R is designed as a retrofit-compatible replacement for SP-SCRGD series control boards. In most installations it is a direct physical and functional replacement. However, we recommend verifying the firmware revision and hardware variant suffix of the original board against the replacement unit before installation, as minor hardware revisions may require a program re-download or parameter adjustment.

Q2: What commissioning steps are required after installing the 80190-220-01-R?
A: After physical installation, reconnect all terminal wiring per the original schematic, restore the CPU program from your archived STEP 7 or TIA Portal project, re-assign the module address if required, and verify PROFIBUS DP or MPI communication with all connected devices. Confirm that HMI screen tags and alarm configurations are functioning correctly before returning the system to production.

Q3: Does the 80190-220-01-R ship with a warranty, and what does it cover?
A: Yes. Every 80190-220-01-R unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Each board is functionally tested prior to shipment. Warranty claims are supported by our technical team; contact [email protected] with your order reference and fault description.

Q4: Can you supply other SP-SCRGD series components to complete a full control cabinet retrofit?
A: Yes. We maintain stock of complementary SP-SCRGD platform components including power supply modules, digital and analog I/O modules, communication processors, and backplane rack assemblies. Please contact our sales team with your full bill of materials for availability confirmation and consolidated shipment options.
