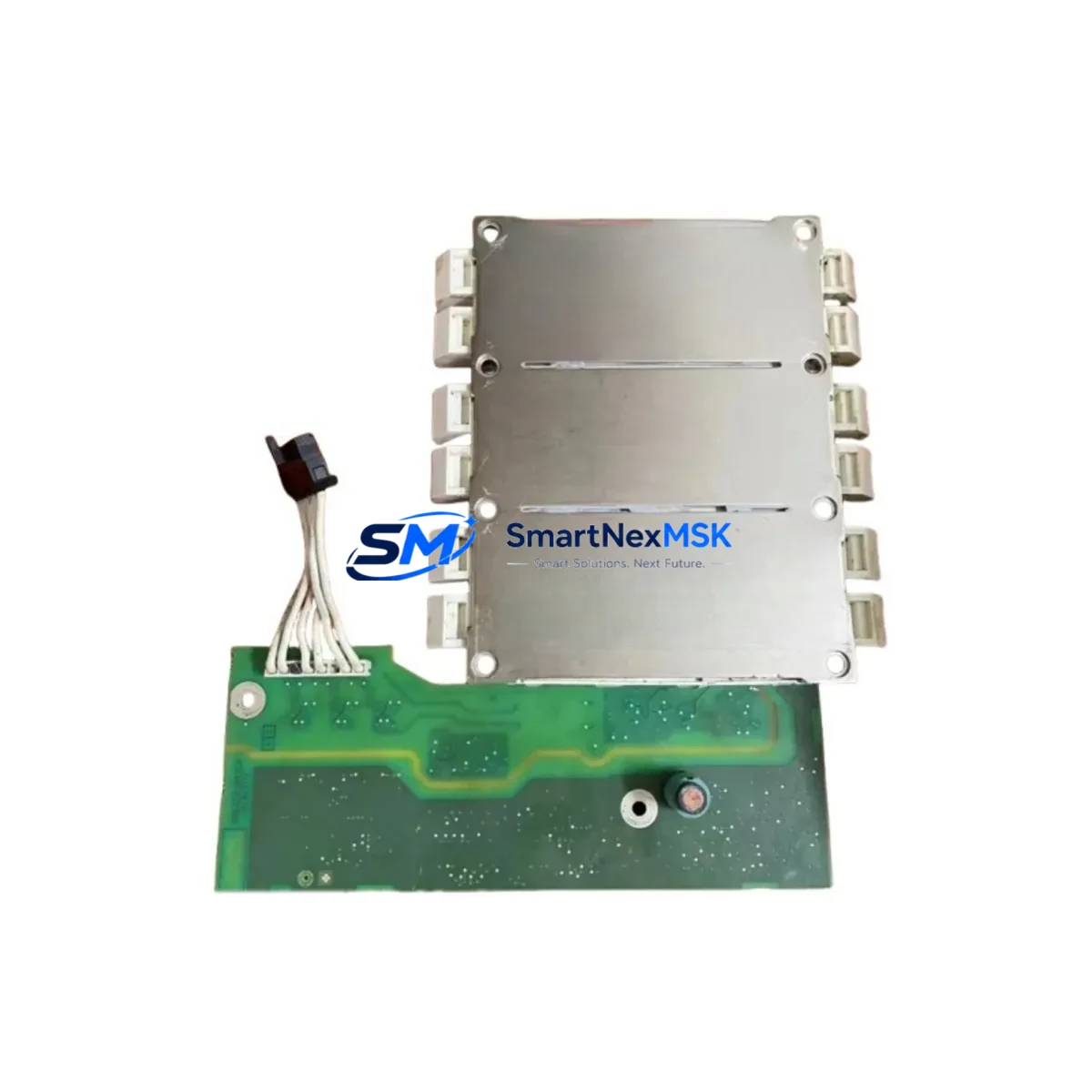

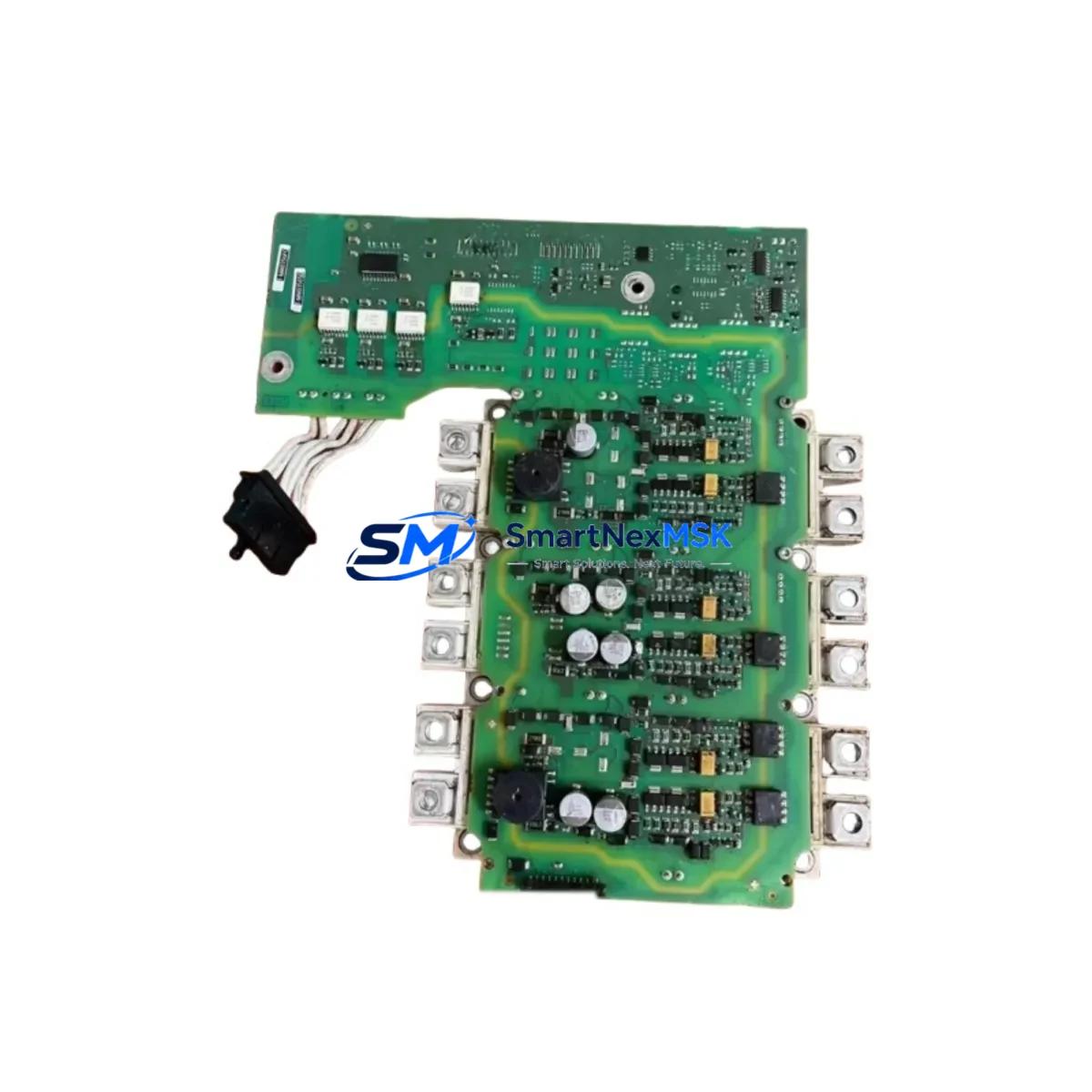

Siemens A5E00768956 Safety-Enhanced Gate Driver for Harsh Industrial Sites

Siemens A5E00768956 Safety-Enhanced Gate Driver for Harsh Industrial Sites

The Siemens A5E00768956 is a ruggedized gate driver module engineered for mission-critical variable frequency drive (VFD) control in the most demanding industrial environments. Designed as a core trigger and firing board within the SINAMICS and MICROMASTER drive families, this module governs IGBT switching sequences with precision timing and robust electrical isolation — making it indispensable wherever control interruption, signal drift, or power transients pose a direct safety risk to personnel and production continuity.

In high-load industrial facilities — including petrochemical plants, power generation stations, metallurgical smelters, mining hoists, port crane systems, and continuous-process manufacturing lines — the gate driver sits at the intersection of the control system and the power stage. Any failure at this interface can cascade into uncontrolled motor behavior, drive fault trips, or complete process shutdown. The A5E00768956 addresses these risks through hardened circuit design, reinforced galvanic isolation between the low-voltage control side and the high-voltage IGBT gate outputs, and tight propagation delay tolerances that prevent shoot-through events under transient load conditions.

When integrated into a properly configured control cabinet alongside a Siemens SINAMICS G120 Power Module or a MICROMASTER 440 inverter unit, the A5E00768956 ensures that gate pulse fidelity is maintained even during upstream disturbances such as supply voltage sags, harmonic interference from adjacent drives, or EMI generated by heavy motor starts. Its compatibility with the Siemens CU240E-2 Control Unit and related SINAMICS control boards means that safety functions — including STO (Safe Torque Off) and SS1 (Safe Stop 1) — can be reliably executed without spurious triggering or delayed response, which is critical in interlock circuits protecting rotating machinery.

For facilities operating under IEC 61508 or IEC 62061 functional safety frameworks, maintaining the integrity of the gate driver layer is non-negotiable. A degraded or counterfeit gate driver can introduce latency into the safety loop, compromise the response time of the Siemens SITOP power supply feeding the control electronics, or cause asymmetric firing of IGBT pairs — leading to DC bus imbalance and potential damage to the Siemens DC link capacitor bank and associated braking resistor assemblies. The A5E00768956 eliminates these failure modes through factory-calibrated gate resistance values and integrated fault detection circuitry.

In surge-prone environments — such as substations, arc furnace control rooms, or outdoor switchgear enclosures — the module’s design provides inherent protection against fast transient overvoltages that would otherwise corrupt gate signals and cause nuisance trips. When paired with a Siemens SINAMICS S120 Booksize Power Unit and a properly specified Siemens line filter (e.g., 6SL3203 series), the complete drive train achieves a level of EMC robustness suitable for Category C2 and C3 industrial installations. The Siemens SINAMICS S120 Motor Module benefits directly from stable gate drive signals, reducing thermal stress on IGBT junctions and extending mean time between failures (MTBF) across the entire power conversion stack.

Replacement and spare-part logistics are a practical safety concern in continuous-process industries where unplanned downtime carries both financial and operational risk. SMARTNEXMSK maintains verified stock of the A5E00768956 with full pre-shipment functional testing, ensuring that each unit shipped has been validated against Siemens OEM electrical parameters. Every module is dispatched with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions, providing procurement teams and maintenance engineers with the confidence needed for critical spare-part planning.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the A5E00768956 gate driver module requires a layered protection architecture. At the power input stage, a Siemens SITOP PSU100S 24V DC power supply provides stable, regulated control voltage with built-in overload and short-circuit protection, ensuring that the gate driver’s logic circuitry is never exposed to supply fluctuations originating from the plant distribution network. Upstream of the drive, a Siemens 6SL3203-series EMC line filter suppresses conducted emissions and prevents high-frequency switching noise from propagating back into the facility’s power infrastructure.

Within the drive itself, the A5E00768956 interfaces directly with the IGBT power modules housed in the Siemens SINAMICS S120 Power Module PM340 or equivalent booksize units. Proper torque on all bus bar connections and correct thermal interface between the IGBT module and its heatsink are prerequisites for the gate driver to operate within its designed switching envelope. A Siemens SINAMICS S120 CU320-2 Control Unit running current firmware provides the supervisory layer, monitoring DC bus voltage, output current, and temperature via the Siemens SINAMICS S120 Sensor Module Cabinet-Mounted (SMC30) for encoder feedback integrity.

For braking applications in hoists, cranes, or centrifuge drives, a correctly rated Siemens braking resistor (6SE6400-4BD series) must be installed to dissipate regenerative energy safely, preventing DC bus overvoltage events that would stress the gate driver’s clamping circuits. Communication integrity between the control unit and higher-level SCADA or DCS systems is maintained through a Siemens PROFIBUS DP or PROFINET interface module, ensuring that drive status, fault codes, and safety state information are transmitted without latency to the plant control room. This complete cabinet ecosystem — from input filter through gate driver to communication interface — forms a coherent safety and reliability architecture that minimizes the risk of unplanned process interruption.

Critical Industrial Safety Applications

The A5E00768956 gate driver module is deployed across a wide spectrum of safety-critical industrial applications where drive reliability directly affects operational safety and regulatory compliance.

In petrochemical and refinery facilities, the module drives variable speed pumps and compressors handling flammable or toxic media. Any spurious drive trip caused by a degraded gate driver can trigger pressure relief events or process upsets with serious safety consequences. The A5E00768956’s stable gate pulse output ensures that motor speed control remains predictable under the high ambient temperatures and chemical atmospheres typical of these installations.

In power generation and grid-connected applications — including wind turbine pitch control systems and hydroelectric auxiliary drives — the gate driver must maintain switching accuracy across wide temperature ranges and under the vibration loads inherent to rotating machinery environments. The module’s robust construction supports continuous operation in these conditions without the signal drift that can cause asymmetric IGBT loading.

In mining and mineral processing, conveyor drives, ball mill motors, and hoist systems operate under extreme mechanical loads with frequent starts and stops. The gate driver’s ability to handle repetitive high-current switching cycles without degradation is essential for maintaining the interlock integrity of emergency stop circuits protecting personnel working near moving equipment.

In water and wastewater treatment plants, pump drives controlled by the SINAMICS platform rely on the A5E00768956 to maintain consistent flow rates in critical dosing and filtration processes. Drive faults in these applications can compromise water quality or cause flooding events, making spare-part availability and rapid replacement capability a key element of the facility’s operational safety plan.

In metallurgical and steel production environments, rolling mill drives and furnace fan motors operate in high-EMI, high-temperature conditions with stringent uptime requirements. The gate driver’s EMC robustness and thermal tolerance make it a reliable choice for these demanding continuous-process applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the A5E00768956?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to Siemens OEM electrical specifications within the warranty period, SMARTNEXMSK will provide a replacement unit at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond the module’s rated tolerance, or physical mishandling.

Q2: What pre-shipment testing is performed on each unit?
Every A5E00768956 unit undergoes full functional testing against Siemens OEM electrical parameters prior to dispatch. This includes verification of gate output signal integrity, isolation resistance between control and power sides, and confirmation of correct propagation delay characteristics. Test records are maintained for traceability, and units that do not meet specification are quarantined and not shipped.

Q3: Is the A5E00768956 compatible with both SINAMICS and MICROMASTER drive families?
Yes. The A5E00768956 is designed for use across the Siemens SINAMICS (including G120 and S120 series) and MICROMASTER (including MM430 and MM440) drive families. Compatibility should always be confirmed against the specific drive model and firmware version in your application. Our technical team can assist with cross-referencing if you provide your drive’s nameplate data and existing board part numbers.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement needs?
Yes. SMARTNEXMSK maintains ongoing stock of the A5E00768956 and related Siemens drive components to support both planned maintenance programs and emergency breakdown situations. For facilities with critical uptime requirements, we recommend establishing a consignment or scheduled replenishment arrangement to ensure that replacement units are available on-site or within short lead times. Contact our sales team to discuss long-term supply agreements tailored to your maintenance strategy.
