Siemens C98043-A7001-L1 Spare for SIMOREG Automation

Siemens C98043-A7001-L1 Maintenance-Ready Spare for SIMOREG DC Master Automation

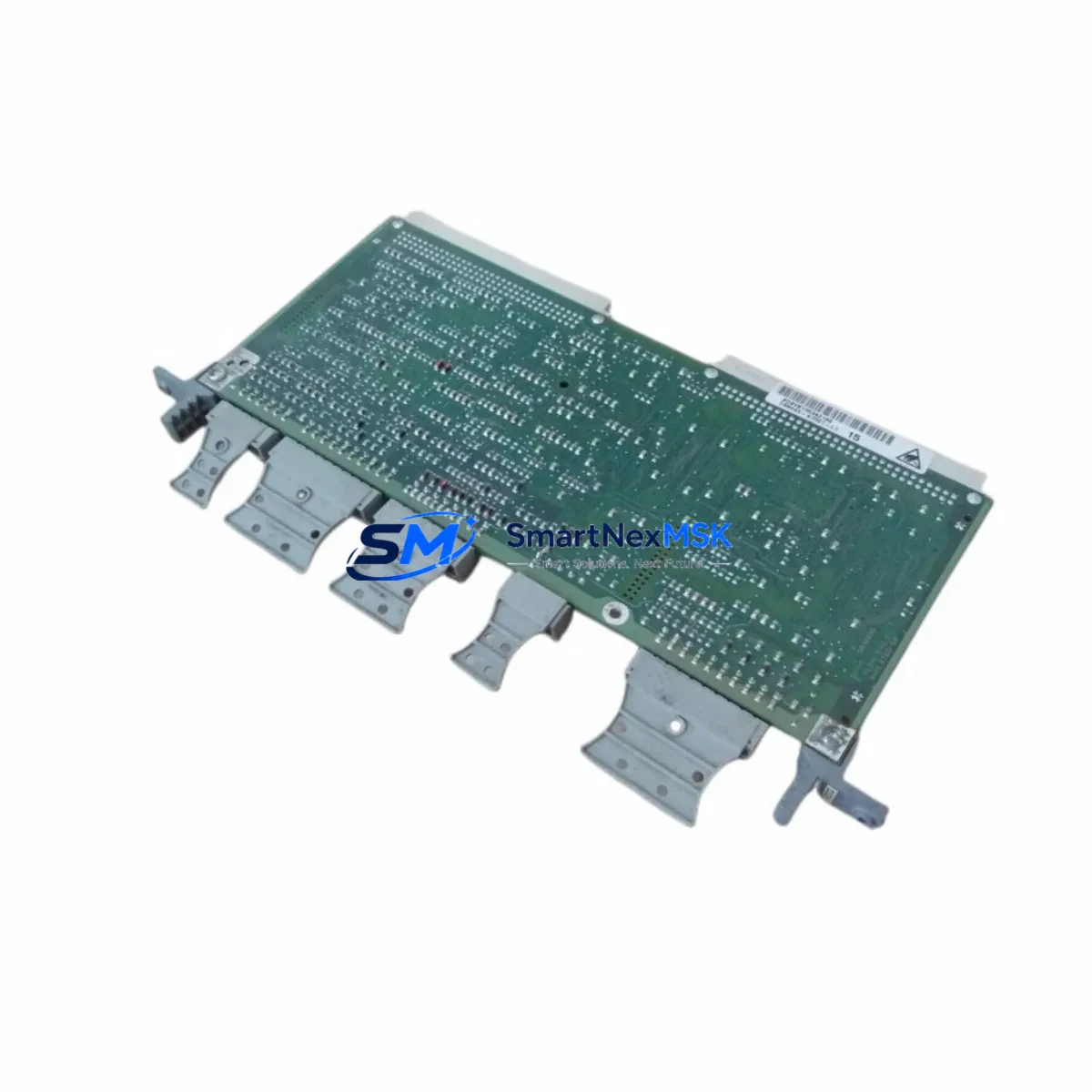

The Siemens C98043-A7001-L1 is the CUD1 Central Unit Drive Board designed for the SIMOREG DC Master 6RA70 series — one of the most widely deployed DC drive platforms in heavy industrial environments. For maintenance engineers managing aging drive cabinets, this board is the critical intelligence layer governing speed regulation, field control, and closed-loop feedback. When it fails, the entire DC drive system halts. Holding a verified original spare in your maintenance inventory is the single most effective strategy to minimize unplanned downtime and protect production continuity.

This unit ships tested, inspected, and backed by a 12-month warranty. Each board undergoes functional verification prior to dispatch to ensure it meets Siemens factory specifications. Whether you are executing a planned overhaul, responding to an emergency fault, or building a strategic spare parts buffer for a fleet of 6RA70 drives, the C98043-A7001-L1 is a direct, plug-compatible replacement that requires no firmware modification or parameter re-engineering when substituting a like-for-like unit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the C98043-A7001-L1 CUD1 board is rarely an isolated task. A disciplined maintenance engineer will treat this event as a trigger for a broader cabinet inspection. The 6RA70 drive cabinet integrates multiple interdependent components, and a board failure often signals stress across adjacent systems.

Begin with the 24 VDC electronics power supply — the CUD1 board is directly powered by the internal SIMOREG power supply module, and a degraded PSU can cause repeated board failures. Inspect and, if necessary, replace the power supply board before commissioning the new CUD1. Next, verify the PROFIBUS-DP communication module (CBP2) seated in the option slot: a corrupted or loose CBP2 will prevent the drive from joining the PLC network after board swap, causing unnecessary diagnostic delays.

Check all analog signal cables connecting the CUD1 to external speed reference sources and tachometer feedback circuits. Shielding integrity and terminal torque on the X100/X101 terminal strips should be confirmed — loose connections at these points are a common root cause of intermittent faults that are misdiagnosed as board failures. While the cabinet is open, inspect the field supply board (CUD2 or equivalent field controller) for signs of capacitor aging or thermal stress, particularly in drives operating above 40 °C ambient.

For drives integrated into larger DCS or PLC architectures, confirm that the Simatic S7 PLC or upstream controller has not logged persistent communication faults during the failure window — these may indicate that the fault originated upstream rather than in the drive itself. If the system uses a SIMOREG OP1S operator panel, verify that parameter sets are backed up before the swap, as some firmware versions do not retain all parameters across a cold board replacement.

Finally, inspect the DC bus fuses and thyristor firing boards within the same cabinet. A CUD1 failure caused by an upstream overcurrent event may have stressed the firing circuit. Replacing the control board without verifying the power section integrity risks a repeat failure within weeks. A complete spare kit for a 6RA70 installation should include the CUD1 board, the CBP2 communication module, the OP1S panel, relevant terminal blocks, and at least one set of DC bus fuses — ensuring that any single-point failure can be resolved within one maintenance window.

Site Replacement Workflow

Before removing the C98043-A7001-L1 from service, document all drive parameters using the OP1S operator panel or STARTER/SCOUT software via the PROFIBUS interface. Save the parameter file to a secure location — this step is non-negotiable and takes less than five minutes but can save hours of recommissioning time.

Power down the drive cabinet following the correct LOTO (Lockout/Tagout) procedure. Allow the DC bus capacitors to discharge fully — a minimum of five minutes after power-off is recommended, and always verify with a calibrated voltmeter before touching internal components. Remove the CUD1 board by releasing the front panel retaining screws and carefully disconnecting all ribbon cables and plug connectors. Note the orientation and labeling of each connector before removal.

Install the replacement C98043-A7001-L1, reconnect all cables in reverse order, and perform a visual inspection before powering up. On first power-up, restore the saved parameter set via OP1S or STARTER. Run the drive at no-load first to verify speed reference tracking, analog feedback, and digital I/O response before reconnecting the mechanical load. This staged commissioning approach reduces the risk of a second fault event and confirms full system compatibility before returning the drive to production.

For sites managing multiple 6RA70 drives, this workflow should be documented in the site maintenance management system (CMMS) and linked to the equipment tag for each drive. Standardizing the replacement procedure across the fleet reduces mean time to repair (MTTR) and ensures that any qualified technician can execute the swap safely and correctly.

Spare Parts Support FAQ

Q1: Is the C98043-A7001-L1 compatible with all variants of the SIMOREG DC Master 6RA70?
The CUD1 board is the standard central unit for the 6RA70 series across most power ratings. Compatibility should be confirmed against the drive’s nameplate and existing board revision. Contact our technical team with your drive’s full nameplate data for pre-shipment compatibility verification at no charge.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment. In the event of a warranty claim, we provide a replacement or full refund after fault analysis. The warranty period begins from the date of confirmed delivery.

Q3: How quickly can this spare be shipped, and what packaging is used?
Orders are typically dispatched within 1–3 business days. The board is packed in anti-static ESD bags, cushioned in foam-lined boxes, and shipped via insured international express courier. Tracking information is provided upon dispatch. Expedited same-day dispatch is available for urgent maintenance situations — contact [email protected] or call +86 18259474341.

Q4: Can I use this board as a long-term inventory spare for an aging 6RA70 fleet?
Yes. For sites operating legacy SIMOREG DC Master systems where OEM support has been reduced or discontinued, holding one or more C98043-A7001-L1 boards as strategic inventory spares is strongly recommended. We support long-term supply agreements and can reserve stock for multi-unit orders. Proper storage in a dry, ESD-safe environment at 15–35 °C will maintain board integrity for extended periods.
