Siemens C98043-A7001-L2-4 Retrofit-Ready Control Board

Siemens C98043-A7001-L2-4 Retrofit-Ready Control Board for SIMOREG DC Master: Compatible Upgrade for Legacy DC Drive Systems

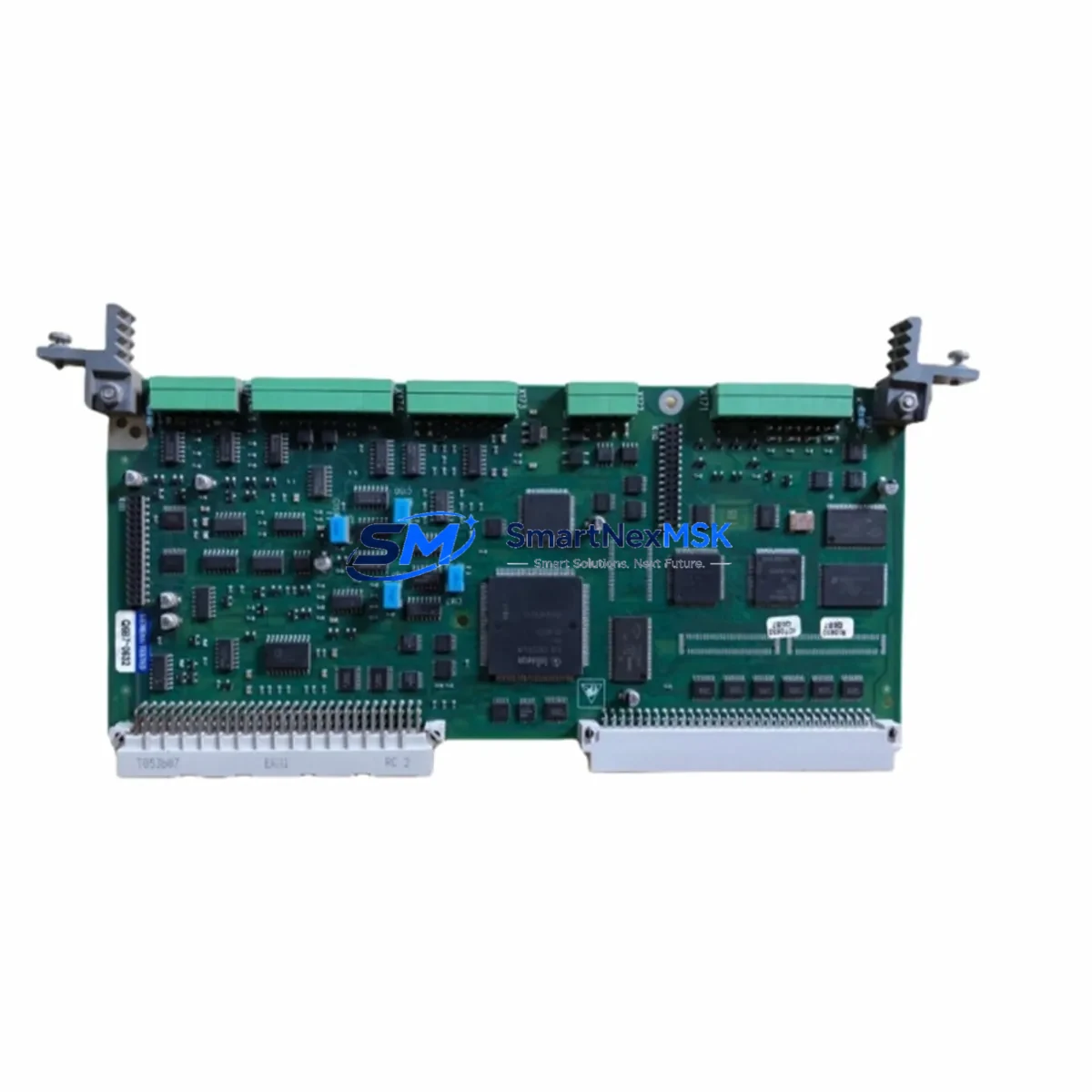

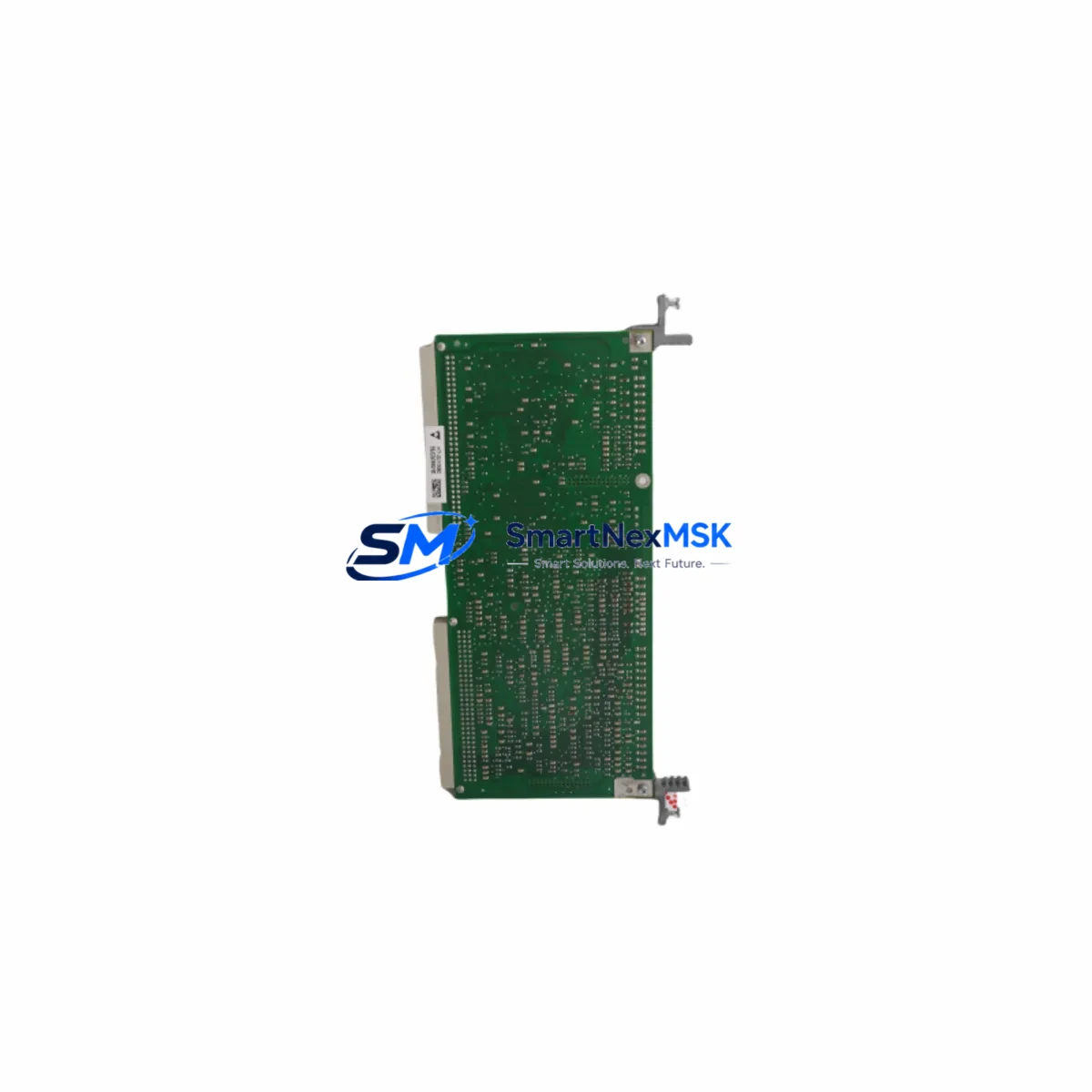

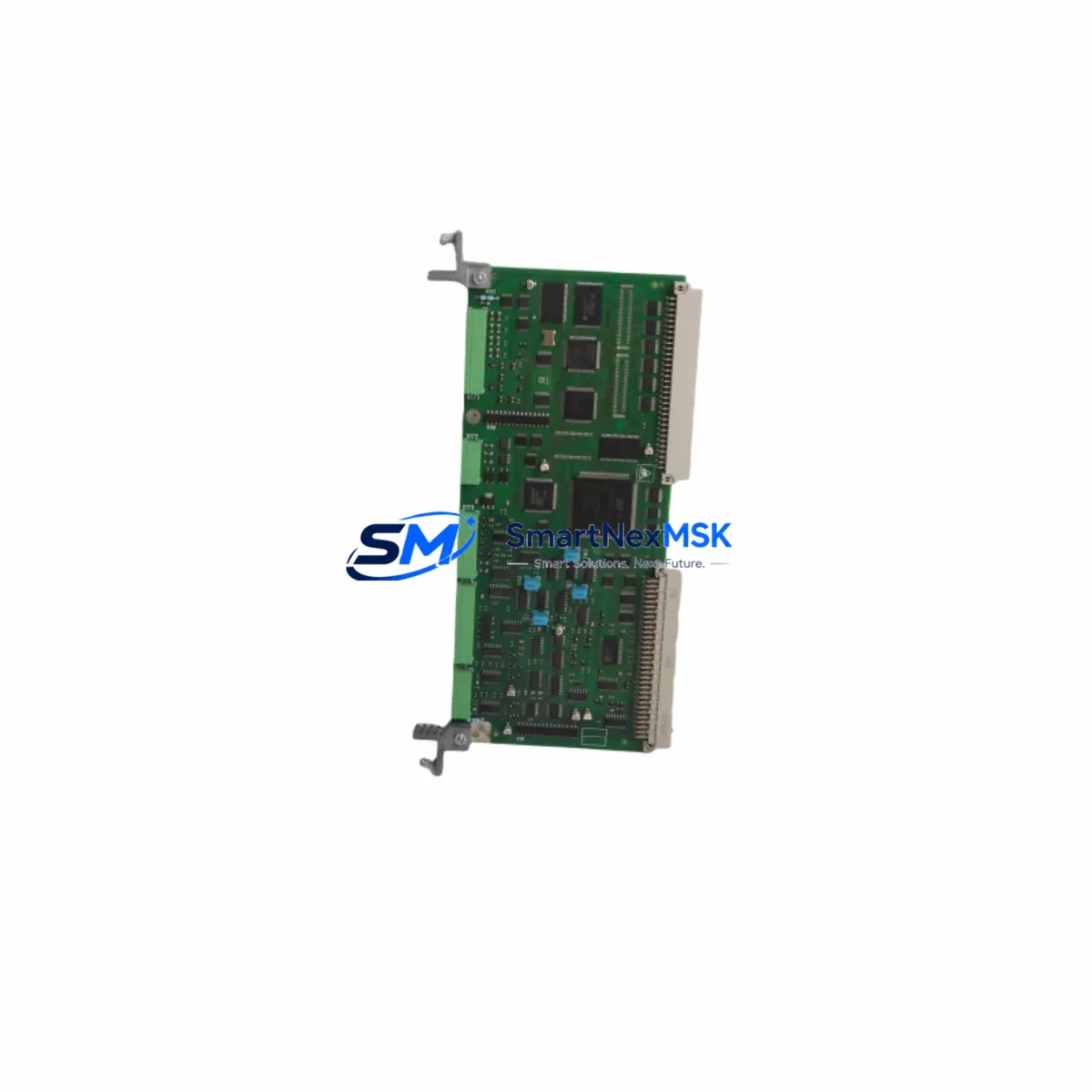

The Siemens C98043-A7001-L2-4 is a proven control board designed for the SIMOREG DC Master series of DC drive converters. As legacy DC drive systems age out of manufacturer support cycles, this board has become a critical retrofit component for facilities running 6RA70 and 6RA24 series converters in continuous production environments. Whether you are replacing a failed board, upgrading a control cabinet, or migrating from an older SIMOREG K platform, the C98043-A7001-L2-4 provides a reliable, specification-matched solution that minimizes engineering rework and commissioning time.

This control board interfaces directly with the SIMOREG DC Master power section, managing armature current regulation, field current control, speed feedback processing, and serial communications via the USS protocol over RS-485. Its onboard microprocessor handles closed-loop PID control, ramp function generation, and fault diagnostics — all functions that must be preserved intact when replacing a failed unit in a running production line.

Before installation, engineers should verify the firmware revision stamped on the existing board against the parameter set stored in the drive. SIMOREG DC Master drives retain parameters in non-volatile memory on the CUD1 electronics board, and a board swap without a prior parameter backup via STARTER software or the OP1S operator panel can result in loss of all tuned drive parameters. Always export the parameter file before removing the original board.

Terminal wiring on the C98043-A7001-L2-4 follows the standard SIMOREG DC Master X100–X177 terminal block layout. Verify that the existing wiring harness connector positions match before powering up. Pay particular attention to the pulse encoder feedback terminals (X103) if the drive is operating in closed-loop speed control mode with a tachogenerator or incremental encoder. Incorrect encoder wiring polarity will cause the drive to run away at startup.

Power supply requirements for the control electronics are drawn internally from the drive’s SMPS section. No external 24 V DC supply is required for the control board itself, but the 24 V auxiliary supply feeding the SIMOREG DC Master’s fan control and contactor logic must remain stable during board replacement. Confirm that the auxiliary supply voltage is within ±10% of nominal before energizing the drive after the swap.

For facilities upgrading from the older SIMOREG K (6RA24 series), the C98043-A7001-L2-4 is not a direct plug-in replacement — a full drive replacement to the 6RA70 platform is required, and the C98043-A7001-L2-4 serves as the control electronics within that new drive chassis. In this migration path, the field supply module (6RA7028 or equivalent), the line reactor, and the DC bus fusing must all be re-evaluated for the new drive’s ratings. The existing motor armature and field cabling can typically be reused if the cable cross-sections meet the new drive’s terminal ratings.

Communication integration is a common concern during SIMOREG DC Master retrofits. The C98043-A7001-L2-4 supports USS protocol natively and can be connected to a Siemens S7-300 or S7-400 PLC via a CP 340 or CP 341 communications processor module using the standard USS driver function blocks (FC 5 / FC 35). If the existing control system uses PROFIBUS DP, a CBP2 PROFIBUS option board must be installed in the drive’s option slot — this is separate from the C98043-A7001-L2-4 itself and must be ordered and configured independently. Verify that the PROFIBUS node address set on the CBP2 matches the address configured in the PLC’s hardware configuration (HW Config in STEP 7 or TIA Portal).

HMI integration should also be reviewed. If the production line uses a Siemens TP or MP series HMI panel communicating with the drive via USS or PROFIBUS, the HMI screen tags referencing drive parameters (speed setpoint, actual speed, fault codes) must be verified against the parameter numbers in the replacement board’s firmware version. Parameter numbering is consistent across SIMOREG DC Master firmware generations, but always cross-reference the parameter list in the SIMOREG DC Master Operating Instructions (6RA70 series, document 6SE7087-6AK85-0AA0) before going live.

Field commissioning after board replacement should follow a structured sequence: first perform a factory reset (P051 = 25), then restore the backed-up parameter set, then run the automatic optimization routines for armature current controller (P051 = 26) and speed controller (P051 = 27) if the motor has not changed. If the motor has been replaced as part of the same retrofit, a full motor identification run is required. Keep the DC bus discharged and the main contactor open during all parameter restoration steps.

All units supplied by SMARTNEXMSK are tested for basic electrical continuity and communication response prior to dispatch. Each C98043-A7001-L2-4 is covered by a 12-month warranty against manufacturing defects and component failure under normal operating conditions. Units are shipped in anti-static packaging with humidity indicator cards to protect sensitive onboard components during transit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SIMOREG DC Master retrofit requires more than a board swap. The C98043-A7001-L2-4 sits at the center of a broader control architecture that typically includes a Siemens S7-300 or S7-400 PLC as the supervisory controller, a CP 341 serial communications module handling USS telegrams, and a TP177 or MP277 HMI panel displaying drive status and speed feedback. In larger installations, the drive may be integrated into a PROFIBUS DP network alongside other field devices such as Siemens ET 200S distributed I/O stations, which handle remote digital and analog I/O for motor protection relays, limit switches, and process sensors.

The drive cabinet itself typically houses a 6RA70-series power section, a line reactor (4EP3 series or equivalent), DC bus fusing, a main contactor, and an auxiliary 24 V DC power supply unit. When planning the retrofit, inspect the condition of the line reactor and DC bus capacitors — these components have finite service lives and are common failure points in drives that have been in service for more than ten years. Replacing the C98043-A7001-L2-4 while leaving aged capacitors in place may result in a repeat failure within months.

If the retrofit involves migrating from a legacy SIMOREG K (6RA24) platform to the SIMOREG DC Master (6RA70), the programming cable (PC adapter USB or MPI/DP adapter) used to connect the engineering workstation to the S7 PLC must also be verified for compatibility with the TIA Portal or STEP 7 version in use. Older MPI cables are not compatible with TIA Portal V15 and above without an adapter. Plan for this dependency early to avoid delays on commissioning day.

For I/O expansion during the upgrade, Siemens ET 200M or ET 200SP distributed I/O modules connected via PROFIBUS or PROFINET can be added to the control system without modifying the drive’s internal wiring. This approach is recommended when the retrofit also involves adding new process interlocks, safety relays, or additional motor protection functions that were not present in the original system design.

Downtime Control During System Migration

Minimizing unplanned downtime during a SIMOREG DC Master control board replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, complete a full parameter backup using STARTER software connected via USS or PROFIBUS. Save the parameter file to at least two separate storage locations. Print a hard copy of the critical parameters (P100–P160 speed controller, P200–P260 current controller, P700–P760 communications) as a fallback reference in case the digital backup cannot be restored.

During the outage, follow a strict lockout/tagout procedure before opening the drive cabinet. Discharge the DC bus fully — use a calibrated voltmeter to confirm bus voltage is below 50 V DC before touching any internal components. The C98043-A7001-L2-4 can be removed and replaced in under 15 minutes by a trained technician familiar with the SIMOREG DC Master mechanical layout. The board is secured by a single front-panel locking lever and connects via a rear backplane connector — no tools are required for the board swap itself.

After installing the replacement board, restore the parameter backup before running any optimization routines. Verify that the drive’s rated current (P100), rated voltage (P101), and rated speed (P108) match the motor nameplate data before enabling the drive. Run the drive at reduced speed setpoint (10–20% of rated speed) for the first test run to confirm correct rotation direction and stable speed regulation before returning to full production speed. Document the commissioning results and store them with the drive’s maintenance records.

For facilities that cannot tolerate any unplanned downtime, SMARTNEXMSK recommends holding a pre-tested spare C98043-A7001-L2-4 on-site with a pre-loaded parameter backup stored on an OP1S operator panel. This approach reduces mean time to repair (MTTR) to under 30 minutes for a trained maintenance technician, even without access to a laptop or STARTER software on the production floor.

Retrofit Support FAQ

Q: Is the C98043-A7001-L2-4 a direct replacement for earlier L1 or L2-3 revisions?
A: Yes, the C98043-A7001-L2-4 is backward compatible with earlier L1 and L2-3 revisions within the SIMOREG DC Master 6RA70 series. The backplane connector and terminal block layout are identical. After installation, restore your backed-up parameter set and run the automatic optimization routines (P051 = 26 and 27) to re-tune the controllers for your specific motor. No hardware modifications to the drive cabinet are required.

Q: What commissioning steps are required after the board swap?
A: Perform a factory reset (P051 = 25), restore the parameter backup via STARTER or OP1S, verify motor nameplate data in P100–P108, then run armature current controller optimization (P051 = 26) followed by speed controller optimization (P051 = 27). Test at reduced speed before returning to full production. Confirm PROFIBUS or USS communication link is active and fault-free before handing back to operations.

Q: Can I reuse the existing terminal wiring from the failed board?
A: In most cases, yes. The X100–X177 terminal block layout is consistent across the SIMOREG DC Master 6RA70 series. Inspect the wiring harness connectors for heat damage or corrosion before reconnecting. Pay special attention to the encoder feedback terminals (X103) and the analog setpoint input terminals (X100) — incorrect wiring at these points is the most common cause of commissioning faults after a board replacement.

Q: What does the 12-month warranty cover?
A: All C98043-A7001-L2-4 units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of dispatch. The warranty covers manufacturing defects and component failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the drive’s rated specifications. Each unit is tested for electrical continuity and communication response before shipment and is shipped in anti-static, humidity-protected packaging.
