Siemens C98043-A7001-L2 Spare for Simoreg Automation

Siemens C98043-A7001-L2 Spare for Simoreg Automation: Spare Replacement & Industrial Downtime Risk Control

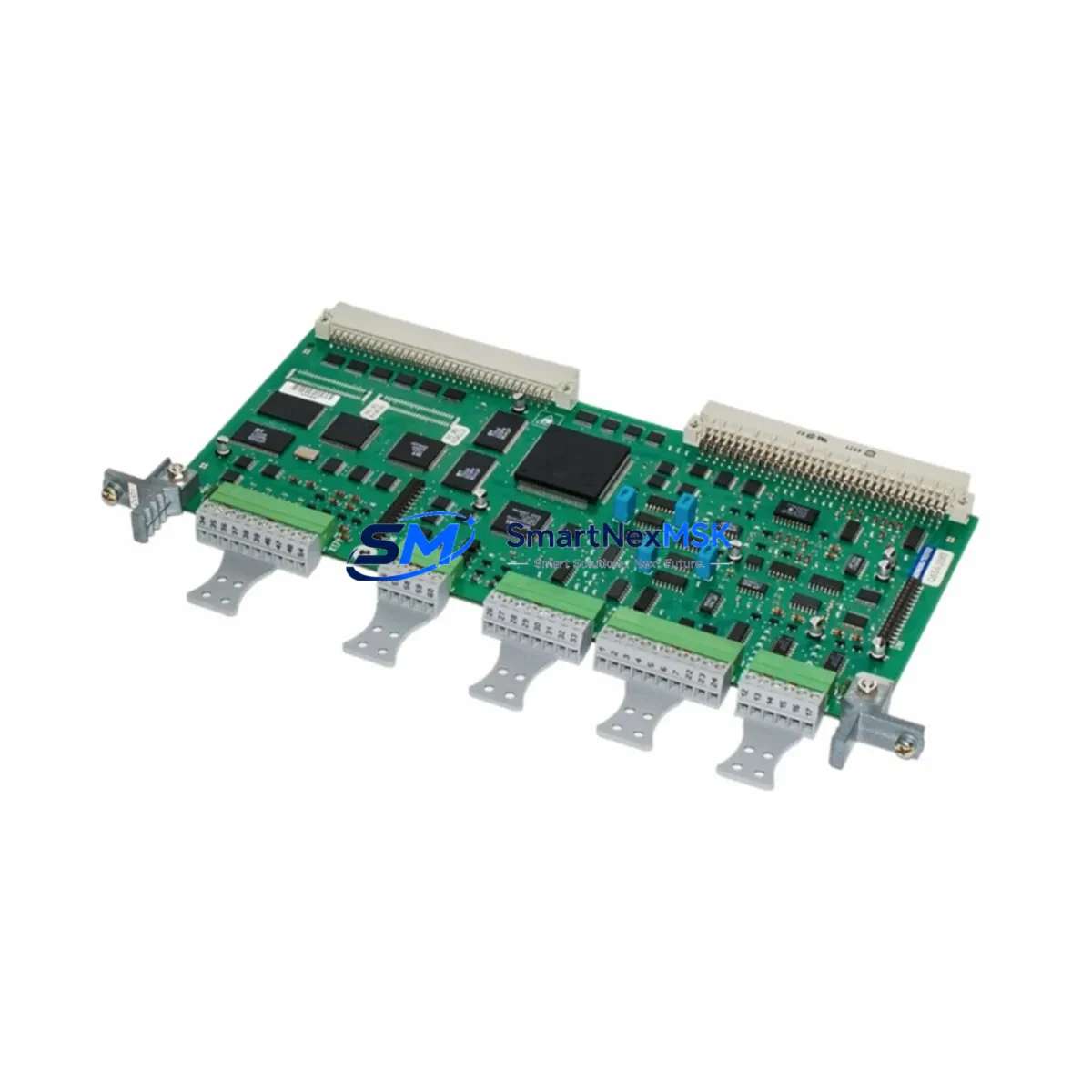

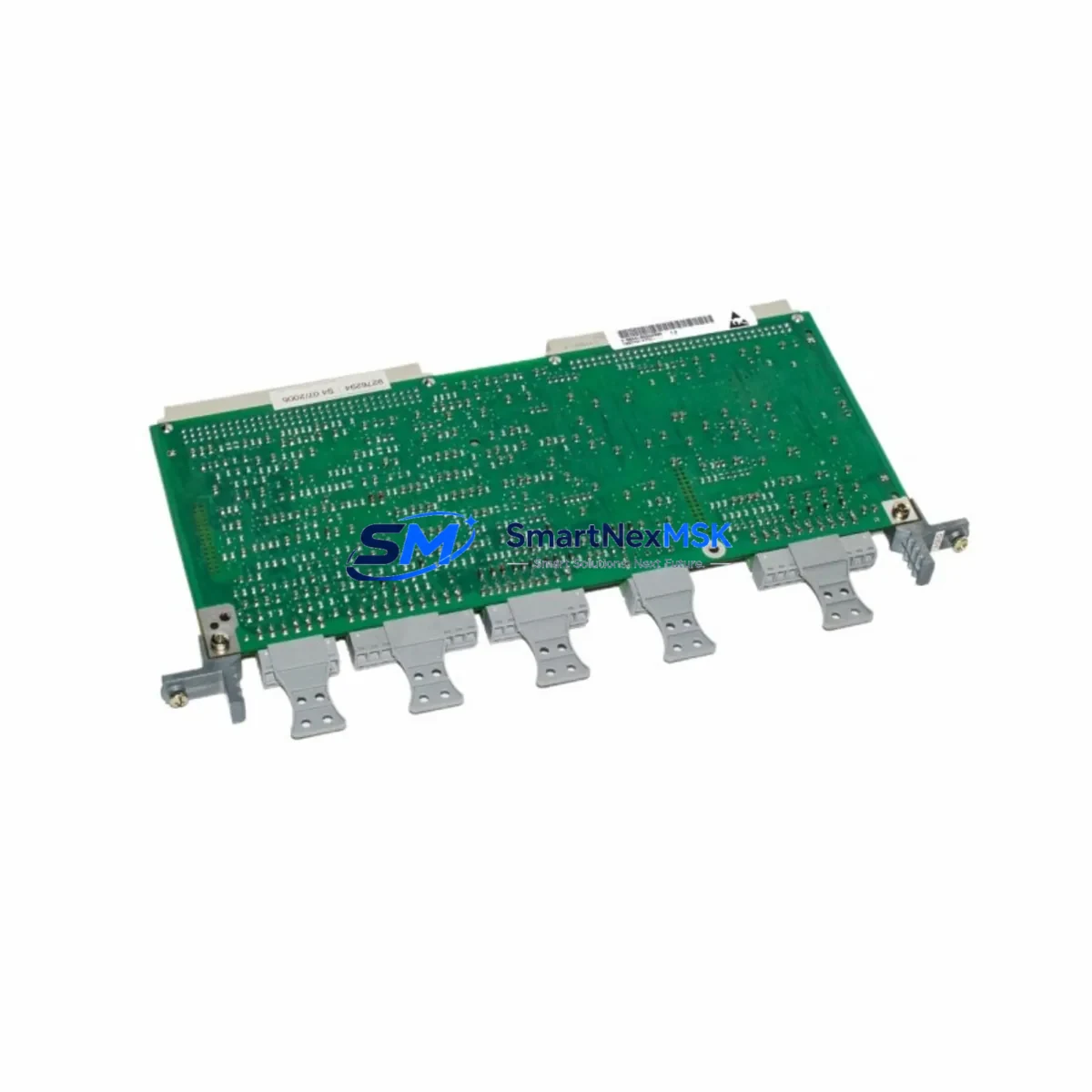

The Siemens C98043-A7001-L2 is the original control board for the Simoreg DC Master series — one of the most widely deployed DC drive platforms in heavy industrial environments including steel mills, paper machines, extruders, winding systems, and crane drives. When this board fails, the entire DC drive axis goes offline, triggering unplanned downtime that can cost thousands per hour in lost production. Stocking a verified replacement unit of the C98043-A7001-L2 is the single most effective measure a maintenance team can take to protect drive availability and reduce mean time to repair (MTTR).

This listing supplies the C98043-A7001-L2 as an original Siemens spare, sourced from authorized industrial channels, fully tested before shipment, and backed by a 12-month warranty. Each unit undergoes functional verification against Simoreg DC Master electrical specifications prior to dispatch, ensuring the replacement board is ready to install without additional bench testing on site.

For maintenance engineers managing aging Simoreg DC Master cabinets, the C98043-A7001-L2 is the correct control board to address fault codes related to firing pulse generation, current regulation, field excitation control, and closed-loop speed feedback. Procurement engineers sourcing long-term spare parts for legacy DC drive systems will find this unit available for immediate dispatch with full traceability documentation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A C98043-A7001-L2 failure rarely occurs in isolation. When a Simoreg DC Master drive trips on a control board fault, experienced maintenance engineers know to inspect the surrounding electrical environment before installing the replacement board. Overlooking a degraded component in the same control cabinet can cause the new board to fail prematurely, extending downtime rather than ending it.

Begin with the 24 V DC auxiliary power supply feeding the control electronics. A supply with excessive ripple or voltage sag under load is a common root cause of control board damage. Verify output voltage stability under full cabinet load before powering the replacement C98043-A7001-L2. Next, inspect the Simoreg power section thyristor bridge — if the control board failed due to a firing pulse fault, check whether any thyristors in the 6RA70 power stack have been damaged by overcurrent or commutation failure.

Check the field supply module (typically the C98043-A7002 or equivalent field excitation board in the Simoreg DC Master cabinet). A field loss condition can stress the armature regulation circuits on the C98043-A7001-L2 and should be resolved before commissioning the replacement. Inspect all terminal blocks and control wiring on the X100–X300 connector rows for loose crimps, corrosion, or insulation breakdown — particularly on analog setpoint, tachometer feedback, and enable signal circuits.

If the drive uses a PROFIBUS DP communication module (such as the CBP2 option board) or a USS serial interface, verify that the communication cable shielding is intact and that the network termination resistors are correctly installed. A communication fault on the fieldbus can mask or mimic a control board failure. Similarly, inspect any signal isolators on the speed reference or current feedback circuits — degraded isolation can introduce noise that destabilizes the current regulator.

For drives with encoder or tachometer feedback, test the pulse encoder or DC tachogenerator independently before closing the speed loop. A faulty feedback device will immediately stress the new control board’s speed regulation circuits. Also verify the condition of motor protection fuses and DC bus fuses in the cabinet — a fuse that has partially degraded without fully opening can cause intermittent overcurrent events that damage control electronics over time.

Finally, if the Simoreg DC Master is integrated into a larger control system via a Simatic S7 PLC or a DCS analog output card, confirm that the setpoint signal levels and enable logic are within specification before restarting the drive. A setpoint offset or an inverted enable signal can cause the drive to ramp uncontrollably on first power-up, damaging the newly installed C98043-A7001-L2.

Site Replacement Workflow

Step 1 — Isolate and de-energize. Follow LOTO (Lockout/Tagout) procedure for the Simoreg DC Master cabinet. Confirm that the DC bus capacitors have discharged fully (typically 5 minutes after AC isolation) before opening the cabinet door.

Step 2 — Document existing configuration. Before removing the C98043-A7001-L2, photograph or record all parameter settings using the Simoreg operator panel (PMU) or DriveMonitor software. The replacement board ships with factory defaults; all application-specific parameters must be re-entered after installation. Key parameter groups include P100 (motor data), P200 (setpoint channel), P300 (closed-loop control), and P600 (monitoring functions).

Step 3 — Remove the faulty board. Disconnect all ribbon cables and plug-in connectors systematically, labeling each connector position. The C98043-A7001-L2 is secured by DIN rail clips and board-edge connectors — do not apply lateral force to the PCB during removal.

Step 4 — Inspect and clean. Before installing the replacement, inspect the board slot for contamination, moisture, or signs of arcing. Clean with dry compressed air if necessary.

Step 5 — Install the replacement C98043-A7001-L2. Seat the board firmly, reconnect all cables in the documented order, and verify that all connector locks are engaged.

Step 6 — Recommission. Power up the auxiliary supply first. Enter all saved parameters via the PMU or DriveMonitor. Perform a no-load test run before reconnecting the motor load. Verify current regulation, speed feedback, and field excitation response before returning the drive to production.

This workflow minimizes the risk of repeat failure and ensures the replacement C98043-A7001-L2 operates within its rated service life. Compared to waiting for OEM repair cycles — which can take 4–12 weeks for legacy Simoreg boards — stocking a ready replacement unit reduces drive downtime to hours rather than weeks, preserving production continuity and protecting capital equipment.

Spare Parts Support FAQ

Q1: Is the C98043-A7001-L2 still available as a new original Siemens spare?
The Simoreg DC Master series has reached end-of-active-production, but original spare boards including the C98043-A7001-L2 remain available through authorized industrial spare parts channels. Each unit we supply is either new old stock (NOS) in original Siemens packaging or a fully refurbished board restored to OEM electrical specification. All units are tested before shipment and covered by a 12-month warranty from the date of dispatch.

Q2: How do I verify compatibility before ordering?
The C98043-A7001-L2 is the standard control board for the Simoreg DC Master 6RA70 series. Confirm compatibility by checking the drive nameplate for the 6RA70 order number and the existing board label for the C98043-A7001-L2 part number. If your drive uses a variant board (e.g., L1 or L3 suffix), contact us with your full drive order number and we will confirm the correct replacement. We do not recommend substituting suffix variants without engineering confirmation.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the Simoreg DC Master rated parameters. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the fault, and any available fault code data from the drive. We will arrange return shipping and provide a replacement or repair within an agreed lead time.

Q4: Can I stock multiple units for a fleet of Simoreg DC Master drives?
Yes — volume pricing is available for maintenance departments managing multiple Simoreg DC Master installations. A recommended minimum stock level is one C98043-A7001-L2 per three to five drives in continuous production service, or one unit per critical single-drive process line. Contact us at sales@smartnexmsk.com or +86 18259474341 to discuss volume pricing, consignment stock arrangements, and long-term supply agreements for your site spare parts program.
